2019 NISSAN LEAF Owner´s Manual

— Bluetooth® Hands-Free Phone System
control (P. 4-3, 4-68)
7. Shif t lever (P. 5-15) — ECO switch (P. 2-60)
— e-Pedal switch (P. 5-22)
8. Console box (P. 2-66)
9. Parking brake (switch type) (if so equipped) (P. 5-19)
10. Tilting steering wheel lever (P. 3-23)
11. Charge port lid switch (P. 3-20) — Immediate charge switch (P. 2-63)
— Heated steering wheel switch (if so
equipped) (P. 2-62)
— Steering Assist switch (if so equipped)
(P. 5-80)
12. Fuse box cover (P. 8-18)
2-4Instruments and controls

1. Vents (P. 4-30)
2. Meters and gauges (P. 2-6)
3. Center multi-function control panel(P. 4-3, 4-46)
4. Hazard warning flasher switch (P. 6-2)
5. Rear window and outside mirror (if so equipped) defroster switch
(P. 2-53)
6. Front passenger supplemental air bag (P. 1-43)
7. Glove box (P. 2-66)
8. Heater and air conditioner control (P. 4-31)
9. Power outlet (P. 2-65)
10. Front heated seat switches (if so equipped) (P. 2-60)
11. Auxiliary input jack (P. 4-3, 4-46) — iPod® connector/USB connector
(P. 4-3, 4-46)
12. Push-button power switch (P. 5-9)
13. Front passenger air bag status light (P. 1-43)
14. Hood release handle (P. 3-17)
INSTRUMENT PANEL
Instruments and controls2-5

1. Vehicle information display (P. 2-28)— Clock (P. 2-13)
— Outside air temperature (P. 2-13)
— Li-ion battery available charge gauge
(P. 2-10)
— Driving range (P. 2-10)
— Odometer/twin trip odometer (P. 2-7)
— Indicator for timer (P. CH-44)
— Power meter (P. 2-9)
2. Warning and indicator lights (P. 2-15) — Turn signal/Hazard indicator light
(P. 2-53)
— READY to drive indicator light (P. 2-26)
— ECO mode indicator (P. 2-14)
3. Speedometer (P. 2-7)
METERS AND GAUGES
2-6Instruments and controls

SPEEDOMETER AND ODOMETER
The vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side of the vehicle in-
formation display. The odometer is located
within the vehicle information display.
Speedometer
The speedometer indicates the vehicle
speed.
Odometer/twin trip odometer
The odometer and twin trip odometer2
are displayed on the vehicle information
display when the power switch is in the ON
or READY to drive position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips.
Instruments and controls2-7

Changing the display:
Pushing the TRIP RESET switch
1located
on the lef t side of the combination meter
panel changes the display as follows:
Odometer →TRIP A →TRIP B →Odometer
For additional information about the ve-
hicle information display, refer to “Vehicle
information display” in this section.
Resetting the trip odometer:
Pushing the TRIP RESET switch
1for ap-
proximately 1 second resets the currently
displayed trip odometer to zero.
LI-ION BATTERY TEMPERATURE
GAUGE
The gauge indicates the temperature of
the Li-ion battery.
The temperature of the Li-ion battery is
within the normal range when the display
is within the zone
1shown in the illustra-
tion.
The temperature of the Li-ion battery var-
ies according to the outside air tempera-
ture and driving conditions.
NOTE:
• If the display indicates that the tem-
perature of the Li-ion battery is near the
red zone end of the normal range, re-
duce vehicle speed to decrease the
temperature. If the indicator is over the
normal range, the power provided to
the traction motor is reduced when the
power limitation indicator light is illumi-
nated. Therefore, the vehicle is not as
responsive when the accelerator is de-
pressed while the power limitation light
is illuminated. For additional informa-
tion, refer to “Power limitation indicator
light” in this section.
• If the outside temperature is extremely
low, the Li-ion temperature gauge may
not display a temperature reading. The
vehicle may not be able to be put in the
READY to drive mode. Have the system
checked. It is recommended that you
visit a NISSAN certified LEAF dealer for
this service.
2-8Instruments and controls

POWER METER
This meter displays the actual traction mo-
tor power consumption
Aand the regen-
erative brake power provided to the Li-ion
battery
B.
The power meter is in a neutral state
3.
The white illuminated portion
1in the dis-
play moves right or lef t depending on de-
mand.
The white illuminated portion
1moves to
the right when power is provided to the
traction motor (Li-ion battery discharges). The white illuminated portion
1moves to
the lef t when power is generated and pro-
vided to the Li-ion battery by the regenera-
tive brake system (Li-ion battery charging).
The power meter also indicates if the
power provided to the motor is limited or
if regenerative braking is limited. When
power or regenerative braking is limited,
the illuminated segments on the display
are narrowed
2.
Regenerative braking is automatically re-
duced when the Li-ion battery is fully
charged to prevent the Li-ion battery from
becoming overcharged. Regenerative brak- ing is also automatically reduced when the
Li-ion battery temperature is high/low (indi-
cated by the red/blue zones on the Li-ion
battery temperature gauge) to prevent Li-
ion battery damage.
The more regenerative braking is reduced,
the more illuminated segments on the dis-
play are narrowed
2.
If the Li-ion battery charge is low, power
provided to the traction motor is reduced.
Motor output is also limited if the Li-ion
battery temperature is high/low (indicated
by the red/blue zones on the Li-ion battery
temperature gauge) or the Li-ion battery
charge level is low.
The more power provided to the traction
motor is reduced, the more illuminated
segments on the display are narrowed
2.
NOTE:
If the power meter is selected on the
trip computer, the meter is not dis-
played.
Instruments and controls
2-9

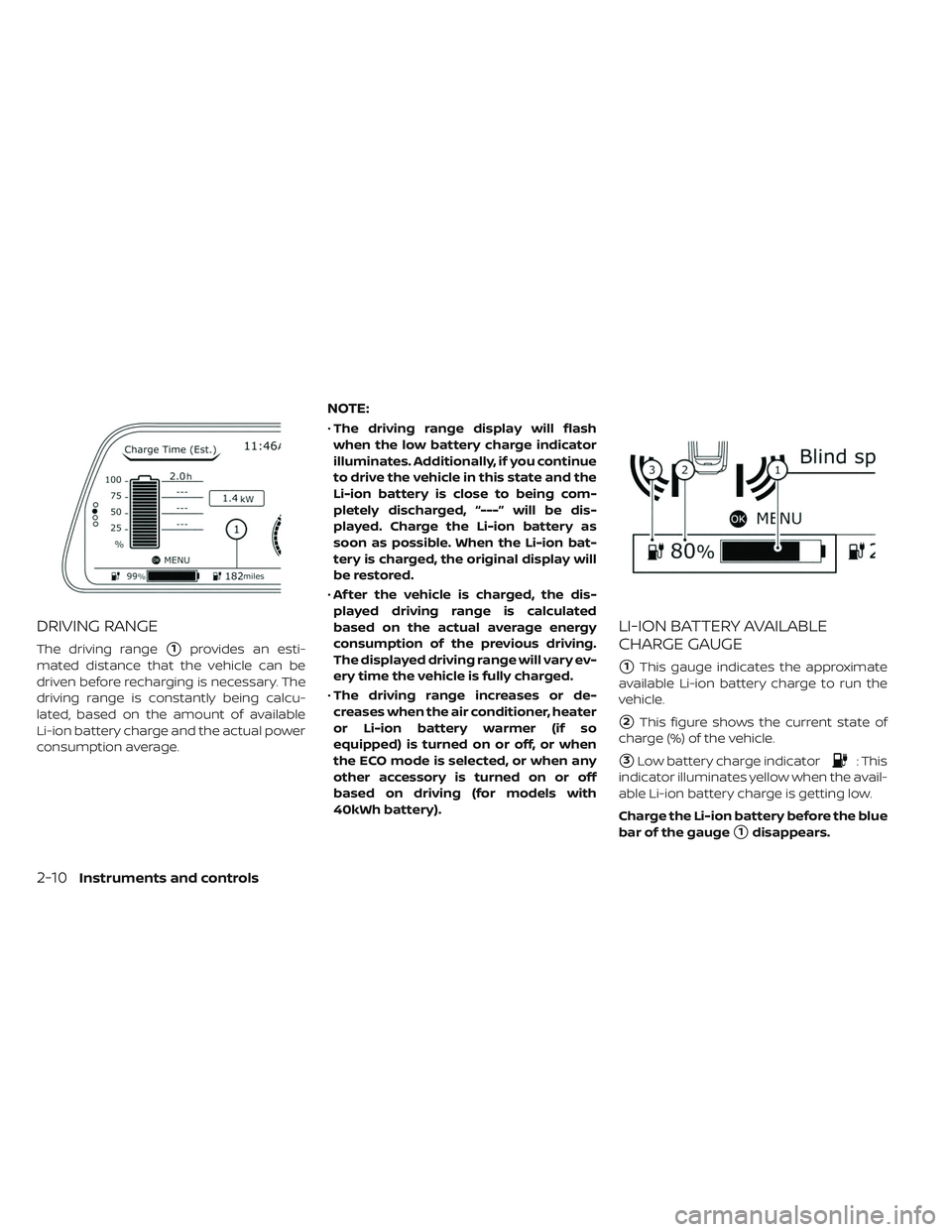

DRIVING RANGE
The driving range1provides an esti-
mated distance that the vehicle can be
driven before recharging is necessary. The
driving range is constantly being calcu-
lated, based on the amount of available
Li-ion battery charge and the actual power
consumption average.
NOTE:
• The driving range display will flash
when the low battery charge indicator
illuminates. Additionally, if you continue
to drive the vehicle in this state and the
Li-ion battery is close to being com-
pletely discharged, “---” will be dis-
played. Charge the Li-ion battery as
soon as possible. When the Li-ion bat-
tery is charged, the original display will
be restored.
• Af ter the vehicle is charged, the dis-
played driving range is calculated
based on the actual average energy
consumption of the previous driving.
The displayed driving range will vary ev-
ery time the vehicle is fully charged.
• The driving range increases or de-
creases when the air conditioner, heater
or Li-ion battery warmer (if so
equipped) is turned on or off, or when
the ECO mode is selected, or when any
other accessory is turned on or off
based on driving (for models with
40kWh battery).
LI-ION BATTERY AVAILABLE
CHARGE GAUGE
1This gauge indicates the approximate
available Li-ion battery charge to run the
vehicle.
2This figure shows the current state of
charge (%) of the vehicle.
3Low battery charge indicator: This
indicator illuminates yellow when the avail-
able Li-ion battery charge is getting low.
Charge the Li-ion battery before the blue
bar of the gauge
1disappears.
2-10Instruments and controls

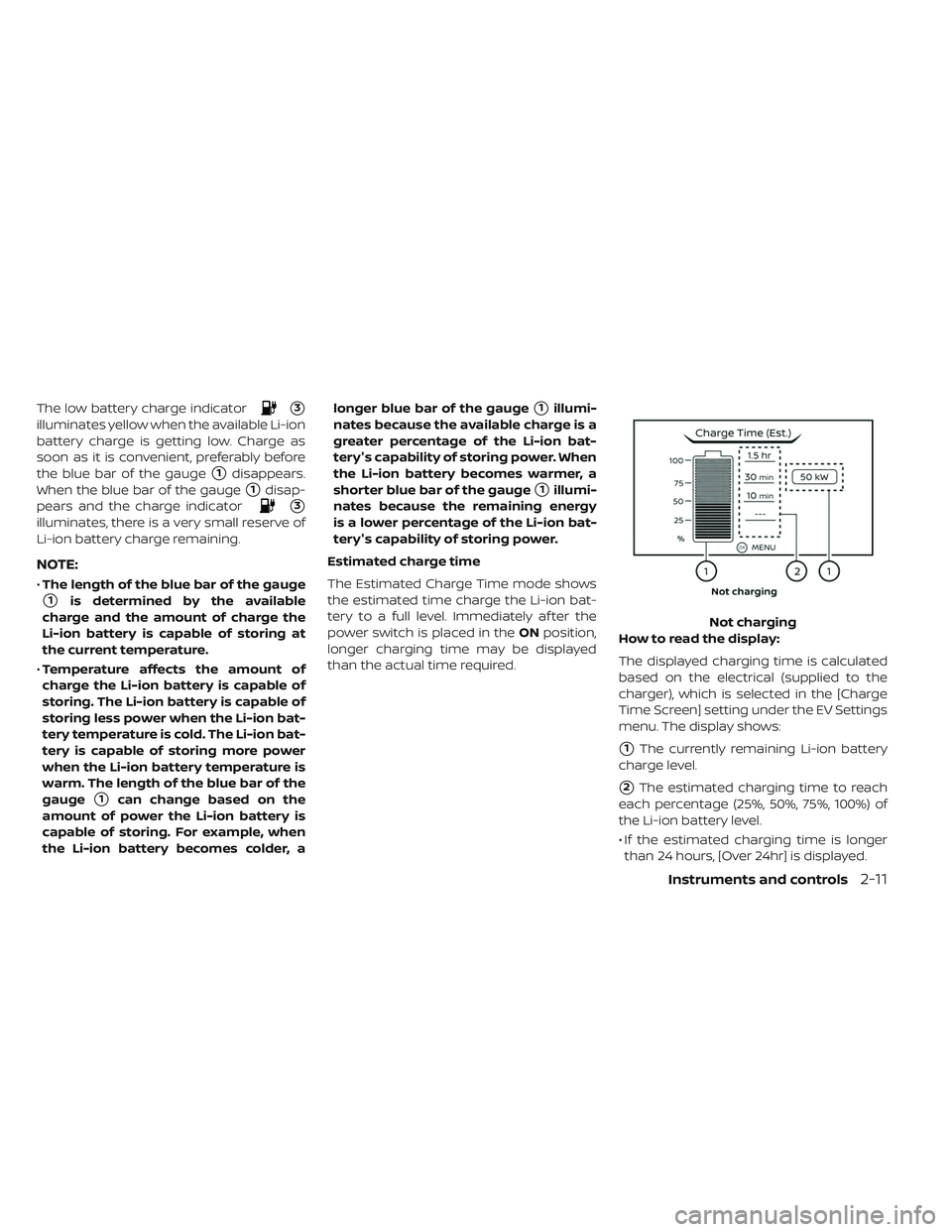

The low battery charge indicator3
illuminates yellow when the available Li-ion
battery charge is getting low. Charge as
soon as it is convenient, preferably before
the blue bar of the gauge
1disappears.
When the blue bar of the gauge
1disap-
pears and the charge indicator
3
illuminates, there is a very small reserve of
Li-ion battery charge remaining.
NOTE:
• The length of the blue bar of the gauge
1is determined by the available
charge and the amount of charge the
Li-ion battery is capable of storing at
the current temperature.
• Temperature affects the amount of
charge the Li-ion battery is capable of
storing. The Li-ion battery is capable of
storing less power when the Li-ion bat-
tery temperature is cold. The Li-ion bat-
tery is capable of storing more power
when the Li-ion battery temperature is
warm. The length of the blue bar of the
gauge
1can change based on the
amount of power the Li-ion battery is
capable of storing. For example, when
the Li-ion battery becomes colder, a longer blue bar of the gauge
1illumi-
nates because the available charge is a
greater percentage of the Li-ion bat-
tery's capability of storing power. When
the Li-ion battery becomes warmer, a
shorter blue bar of the gauge
1illumi-
nates because the remaining energy
is a lower percentage of the Li-ion bat-
tery's capability of storing power.
Estimated charge time
The Estimated Charge Time mode shows
the estimated time charge the Li-ion bat-
tery to a full level. Immediately af ter the
power switch is placed in the ONposition,
longer charging time may be displayed
than the actual time required. How to read the display:
The displayed charging time is calculated
based on the electrical (supplied to the
charger), which is selected in the [Charge
Time Screen] setting under the EV Settings
menu. The display shows:
1The currently remaining Li-ion battery
charge level.
2The estimated charging time to reach
each percentage (25%, 50%, 75%, 100%) of
the Li-ion battery level.
• If the estimated charging time is longer than 24 hours, [Over 24hr] is displayed. Not charging
Instruments and controls2-11
