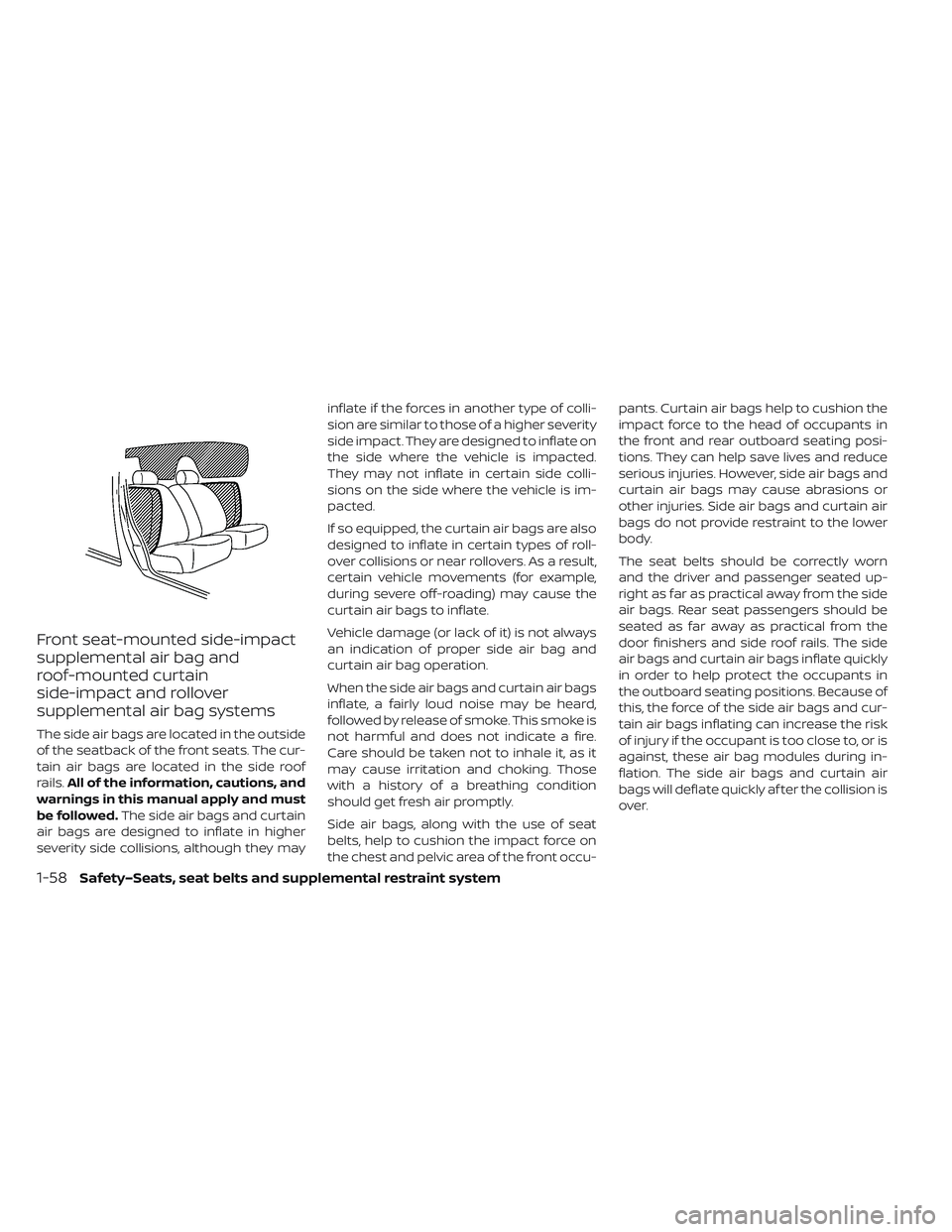

Front seat-mounted side-impact
supplemental air bag and
roof-mounted curtain
side-impact and rollover
supplemental air bag systems
The side air bags are located in the outside
of the seatback of the front seats. The cur-
tain air bags are located in the side roof
rails.All of the information, cautions, and
warnings in this manual apply and must
be followed. The side air bags and curtain
air bags are designed to inflate in higher
severity side collisions, although they may inflate if the forces in another type of colli-
sion are similar to those of a higher severity
side impact. They are designed to inflate on
the side where the vehicle is impacted.
They may not inflate in certain side colli-
sions on the side where the vehicle is im-
pacted.
If so equipped, the curtain air bags are also
designed to inflate in certain types of roll-
over collisions or near rollovers. As a result,
certain vehicle movements (for example,
during severe off-roading) may cause the
curtain air bags to inflate.
Vehicle damage (or lack of it) is not always
an indication of proper side air bag and
curtain air bag operation.
When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke is
not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it
may cause irritation and choking. Those
with a history of a breathing condition
should get fresh air promptly.
Side air bags, along with the use of seat
belts, help to cushion the impact force on
the chest and pelvic area of the front occu-pants. Curtain air bags help to cushion the
impact force to the head of occupants in
the front and rear outboard seating posi-
tions. They can help save lives and reduce
serious injuries. However, side air bags and
curtain air bags may cause abrasions or
other injuries. Side air bags and curtain air
bags do not provide restraint to the lower
body.
The seat belts should be correctly worn
and the driver and passenger seated up-
right as far as practical away from the side
air bags. Rear seat passengers should be
seated as far away as practical from the
door finishers and side roof rails. The side
air bags and curtain air bags inflate quickly
in order to help protect the occupants in
the outboard seating positions. Because of
this, the force of the side air bags and cur-
tain air bags inflating can increase the risk
of injury if the occupant is too close to, or is
against, these air bag modules during in-
flation. The side air bags and curtain air
bags will deflate quickly af ter the collision is
over.
1-58Safety–Seats, seat belts and supplemental restraint system

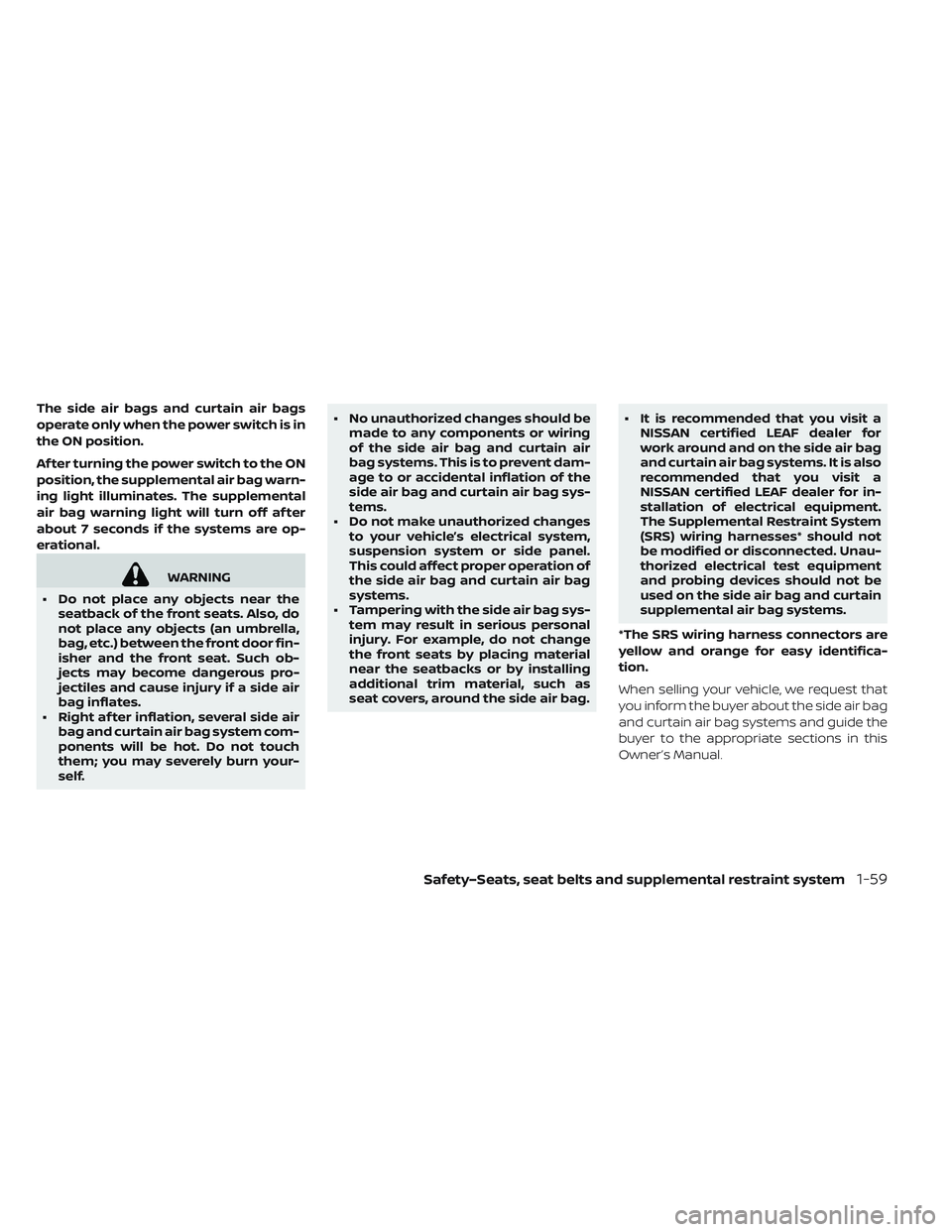

The side air bags and curtain air bags
operate only when the power switch is in
the ON position.
Af ter turning the power switch to the ON
position, the supplemental air bag warn-
ing light illuminates. The supplemental
air bag warning light will turn off af ter
about 7 seconds if the systems are op-
erational.
WARNING
• Do not place any objects near the seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door fin-
isher and the front seat. Such ob-
jects may become dangerous pro-
jectiles and cause injury if a side air
bag inflates.
• Right af ter inflation, several side air bag and curtain air bag system com-
ponents will be hot. Do not touch
them; you may severely burn your-
self. • No unauthorized changes should be
made to any components or wiring
of the side air bag and curtain air
bag systems. This is to prevent dam-
age to or accidental inflation of the
side air bag and curtain air bag sys-
tems.
• Do not make unauthorized changes to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation of
the side air bag and curtain air bag
systems.
• Tampering with the side air bag sys- tem may result in serious personal
injury. For example, do not change
the front seats by placing material
near the seatbacks or by installing
additional trim material, such as
seat covers, around the side air bag. • It is recommended that you visit a
NISSAN certified LEAF dealer for
work around and on the side air bag
and curtain air bag systems. It is also
recommended that you visit a
NISSAN certified LEAF dealer for in-
stallation of electrical equipment.
The Supplemental Restraint System
(SRS) wiring harnesses* should not
be modified or disconnected. Unau-
thorized electrical test equipment
and probing devices should not be
used on the side air bag and curtain
supplemental air bag systems.
*The SRS wiring harness connectors are
yellow and orange for easy identifica-
tion.
When selling your vehicle, we request that
you inform the buyer about the side air bag
and curtain air bag systems and guide the
buyer to the appropriate sections in this
Owner’s Manual.
Safety–Seats, seat belts and supplemental restraint system1-59

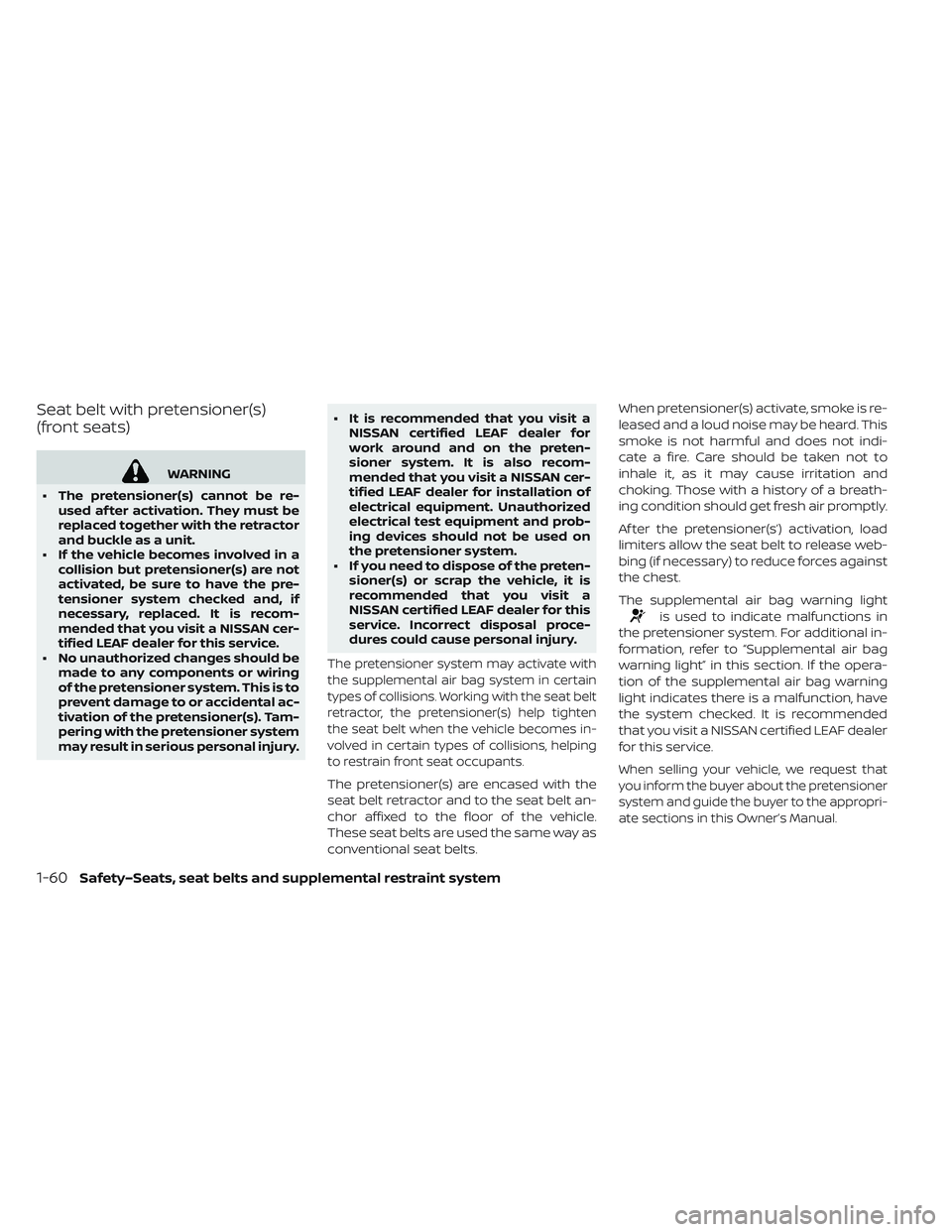

Seat belt with pretensioner(s)
(front seats)
WARNING
• The pretensioner(s) cannot be re- used af ter activation. They must be
replaced together with the retractor
and buckle as a unit.
• If the vehicle becomes involved in a collision but pretensioner(s) are not
activated, be sure to have the pre-
tensioner system checked and, if
necessary, replaced. It is recom-
mended that you visit a NISSAN cer-
tified LEAF dealer for this service.
• No unauthorized changes should be made to any components or wiring
of the pretensioner system. This is to
prevent damage to or accidental ac-
tivation of the pretensioner(s). Tam-
pering with the pretensioner system
may result in serious personal injury. • It is recommended that you visit a
NISSAN certified LEAF dealer for
work around and on the preten-
sioner system. It is also recom-
mended that you visit a NISSAN cer-
tified LEAF dealer for installation of
electrical equipment. Unauthorized
electrical test equipment and prob-
ing devices should not be used on
the pretensioner system.
• If you need to dispose of the preten- sioner(s) or scrap the vehicle, it is
recommended that you visit a
NISSAN certified LEAF dealer for this
service. Incorrect disposal proce-
dures could cause personal injury.
The pretensioner system may activate with
the supplemental air bag system in certain
types of collisions. Working with the seat belt
retractor, the pretensioner(s) help tighten
the seat belt when the vehicle becomes in-
volved in certain types of collisions, helping
to restrain front seat occupants.
The pretensioner(s) are encased with the
seat belt retractor and to the seat belt an-
chor affixed to the floor of the vehicle.
These seat belts are used the same way as
conventional seat belts. When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indi-
cate a fire. Care should be taken not to
inhale it, as it may cause irritation and
choking. Those with a history of a breath-
ing condition should get fresh air promptly.
Af ter the pretensioner(s’) activation, load
limiters allow the seat belt to release web-
bing (if necessary) to reduce forces against
the chest.
The supplemental air bag warning light
is used to indicate malfunctions in
the pretensioner system. For additional in-
formation, refer to “Supplemental air bag
warning light” in this section. If the opera-
tion of the supplemental air bag warning
light indicates there is a malfunction, have
the system checked. It is recommended
that you visit a NISSAN certified LEAF dealer
for this service.
When selling your vehicle, we request that
you inform the buyer about the pretensioner
system and guide the buyer to the appropri-
ate sections in this Owner’s Manual.
1-60Safety–Seats, seat belts and supplemental restraint system

SUPPLEMENTAL AIR BAG WARNING
LABELS
A. Supplemental front-impact air bag sys-
tem warning labels
The warning labels are located on the sur-
face of the sun visors.
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel,
monitors the circuits of the Air bag Control
Unit (ACU), satellite sensors, crash zone
sensor, occupant classification sensor, the
supplemental front-impact air bag, front
seat-mounted side-impact supplemental
air bag, roof-mounted curtain side-impact
supplemental air bag and seat belt preten-
sioner systems. The monitored circuits in- clude air bag systems, pretensioner(s) and
all related wiring.
When the power switch is in the ON posi-
tion, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing:
•
The supplemental air bag warning light re-
mains on af ter approximately 7 seconds.
• The supplemental air bag warning light
flashes intermittently.
• The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag,
side air bag, curtain air bag and preten-
sioner systems may not operate properly.
They must be checked and repaired. It is
recommended that you visit the nearest
NISSAN certified LEAF dealer for this ser-
vice.
Safety–Seats, seat belts and supplemental restraint system1-61

WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It
is recommended that you visit a
NISSAN certified LEAF dealer for this
service.
Repair and replacement
procedure
The front air bags, side air bags, curtain air
bags and pretensioner(s) are designed to
activate on a one-time-only basis. As a re-
minder, unless it is damaged, the supple-
mental air bag warning light will remain
illuminated af ter inflation has occurred.
These systems should be repaired and/or
replaced as soon as possible. It is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags and pretensioner(s) and related parts should be pointed out to the
person performing the maintenance. The
power switch should always be in the LOCK
position when working under the hood or
inside the vehicle.
WARNING
• Once a front air bag, side air bag or curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner(s) must
also be replaced. The air bag module
and pretensioner(s) should be re-
placed. It is recommended that you
visit a NISSAN certified LEAF dealer
for this service. The air bag modules
and pretensioner system cannot be
repaired.
• The front air bag, side air bag and curtain air bag systems, and preten-
sioner system should be inspected if
there is any damage to the front end
or side portion of the vehicle. It is
recommended that you visit a
NISSAN certified LEAF dealer for this
service. • If you need to dispose of a supple-
mental air bag or pretensioner sys-
tem or scrap the vehicle, it is recom-
mended that you visit a NISSAN
certified LEAF dealer for this service.
Correct supplemental air bag and
pretensioner system disposal pro-
cedures are set forth in the appro-
priate NISSAN Service Manual. Incor-
rect disposal procedures could
cause personal injury.
• If there is an impact to your vehicle from any direction, your Occupant
Classification Sensor (OCS) should
be checked. It is recommended that
you visit a NISSAN certified LEAF
dealer to verif y it is still functioning
correctly. The OCS should be
checked even if no air bags deploy
as a result of the impact. Failure to
verif y proper OCS function may re-
sult in an improper air bag deploy-
ment resulting in injury or death.
1-62Safety–Seats, seat belts and supplemental restraint system

2 Instruments and controls
Cockpit........................... .2-3
Instrument panel ......................2-5
Meters and gauges ................... .2-6
Speedometer and odometer ............2-7
Li-ion battery temperature gauge .........2-8
Power meter .......................2-9
Driving range ......................2-10
Li-ion battery available charge gauge ......2-10
Outside air temperature ...............2-13
Clock .......................... .2-13
ECO mode indicator ................ .2-14
e-Pedal system indicator ..............2-14
Warning lights, indicator lights and audible
reminders ......................... .2-15
Checking lights .................... .2-17
Warning lights .................... .2-17
Indicator lights .................... .2-24
Audible reminders ................. .2-27
Vehicle information display ..............2-28
How to use the vehicle information display . . .2-28
Startup display................... .2-29
Settings .........................2-29
Vehicle information display warnings and
indicators ........................2-37 Warning information displays
(models with a Navigation System)
.......2-46
Security systems .................... .2-47
Vehicle security system ...............2-48
NISSAN Vehicle Immobilizer System .......2-49
Wiper and washer switch ................2-50
Washer operation .................. .2-51
Rear wiper operation ................2-52
Rear window and outside mirror (if so equipped)
defroster switch......................2-53
Headlight and turn signal switch ...........2-53
Headlight switch .................. .2-53
Instrument brightness control ..........2-58
Turn signal switch ................. .2-59
Fog light switch (if so equipped) ...........2-59
Horn ............................ .2-60
ECO switch .........................2-60
Heated seat switches (if so equipped) .......2-60
Heated steering wheel switch (if so equipped) . . .2-62E-call (SOS) button (if so equipped).........2-62
Charge port lid switch ................. .2-63
Immediate Charge switch ...............2-63
Steering Assist switch (if so equipped) .......2-63
Rear Door Alert (if so equipped) ............2-64

Power outlet........................2-65
Storage...........................2-66 Seatback Pocket (if so equipped) .........2-66
Storagetray ..................... .2-66
Glovebox....................... .2-67
Console box ......................2-67
Overhead sunglasses storage ..........2-67
Cup holders ......................2-68
Tonneau cover (if so equipped) ..........2-69
Stowing golf bags .................. .2-70
Windows .......................... .2-70
Power windows ................... .2-70
Interior lights ........................2-73
Console light (if so equipped) ...........2-73
Map lights ........................2-74 Room light
.......................2-74
Cargo light .......................2-75
HomeLink® Universal Transceiver
(if so equipped) ......................2-75
Programming HomeLink® .............2-76
Programming HomeLink® for Canadian
customers and gate openers ...........2-77
Operating the HomeLink® universal
transceiver .......................2-78
Programming trouble-diagnosis .........2-78
Clearing the programmed information .....2-78
Reprogramming a single HomeLink®
button......................... .2-79
If your vehicle is stolen ................2-79

1. TRIP RESET switch for twin trip odom-eter (P. 2-6)
— Instrument brightness control switch
(P. 2-58)
2. Headlight, fog light (if so equipped) and turn signal switch
— Headlight (P. 2-53)
— Turn signal light (P. 2-53)
— Fog light (if so equipped) (P. 2-53)
3. Steering-wheel-mounted controls (lef t side)
— Audio control (P. 4-3, 4-46)
— Vehicle information display controls
(P. 2-28)
4. Steering wheel — Power steering system (P. 5-146)
— Horn (P. 2-60)
— Driver's supplemental air bag (P. 1-43)
5. Wiper and washer switch (P. 2-50)
6. Steering-wheel-mounted controls (right side)
— Cruise control switches (if so
equipped) (P. 5-54)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-56)
— ProPILOT Assist switch (if so equipped)
(P. 5-80)
COCKPIT
Instruments and controls2-3
