2018 SUBARU CROSSTREK Owners Manual

(430,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Replacing bulbs
WARNING
Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there is
a risk of sustaining a burn injury.
CAUTION
Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire. For the specified
wattage of each bulb, refer to“Bulb
chart”F12-14.NOTEFor models with type B combination
meter, if SRH is malfunctioning, the
SRH OFF indicator appears on the
combination meter when the ignition
switch is in the“ON”position. It
indicates that SRH has been deacti-
vated. Contact a SUBARU dealer for an
inspection.
&Headlights (models with LED
headlights)LED headlight warning light (type B)The LED headlight warning light illumi-
nates if the LED headlights malfunction.
Have your vehicle inspected at a SUBARU
dealer as soon as possible.
&Headlights (models with ha-
logen headlights)
CAUTION
Halogen headlight bulbs become
very hot while in use. If you touch
the bulb surface with bare hands or
greasy gloves, fingerprints or
grease on the bulb surface will
develop into hot spots, causing the
bulb to break. If there are finger
prints or grease on the bulb surface,
wipe them away with a soft cloth
moistened with alcohol.NOTE.If headlight aiming is required, con-
sult your SUBARU dealer for proper
adjustment of the headlight aim.
.It may be difficult to replace the
bulbs. Have the bulbs replaced by your
SUBARU dealer if necessary.
Perform the following steps to replace the
bulbs.
Maintenance and service/Replacing bulbs
11-36

(431,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Right-hand side1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air
intake duct.
Left-hand side2. Use a screwdriver to remove the
secured clip of the washer tank. To make
it easy to access the bulb, turn the neck of
the washer fluid filler pipe as illustrated.
1) Low beam bulb
2) High beam bulb3. Disconnect the electrical connector
from the bulb and remove the bulb from
the headlight assembly by turning it
counterclockwise.
4. Replace the bulb with new one. At this
time, use care not to touch the bulb
surface.
5. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
6. Reconnect the electrical connector.
7. Install the air intake duct with clips
(right-hand side).
8. Set the washer fluid filler pipe to the
original place and secure it by clip (left-
hand side).
–CONTINUED–
Maintenance and service/Replacing bulbs
11-37
11

(432,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Front turn signal lightIt may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.&Parking lightIt may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.&Front fog light (if equipped)It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
&Rear combination lights1. Remove the covers.2. Using a Phillips screwdriver, remove
the upper and lower screws that secure the
rear combination light assembly.
3. Slide the rear combination light as-
sembly rearward and remove it from the
vehicle.
Maintenance and service/Replacing bulbs
11-38

(433,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

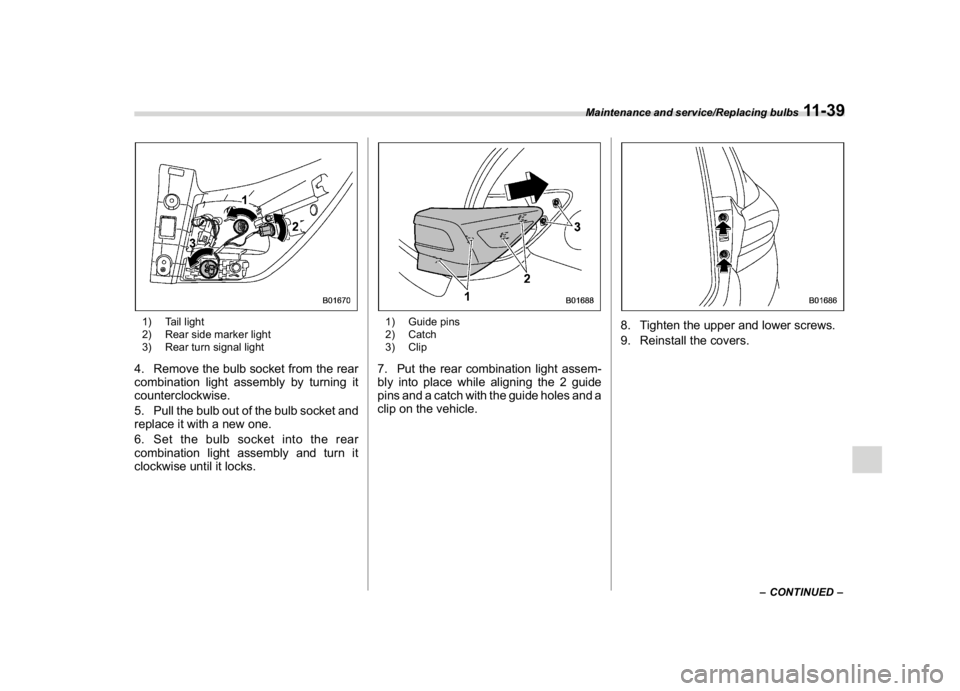

1) Tail light
2) Rear side marker light
3) Rear turn signal light4. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
5. Pull the bulb out of the bulb socket and
replace it with a new one.
6. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
1) Guide pins
2) Catch
3) Clip7. Put the rear combination light assem-
bly into place while aligning the 2 guide
pins and a catch with the guide holes and a
clip on the vehicle.
8. Tighten the upper and lower screws.
9. Reinstall the covers.
–CONTINUED–
Maintenance and service/Replacing bulbs
11-39
11

(434,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

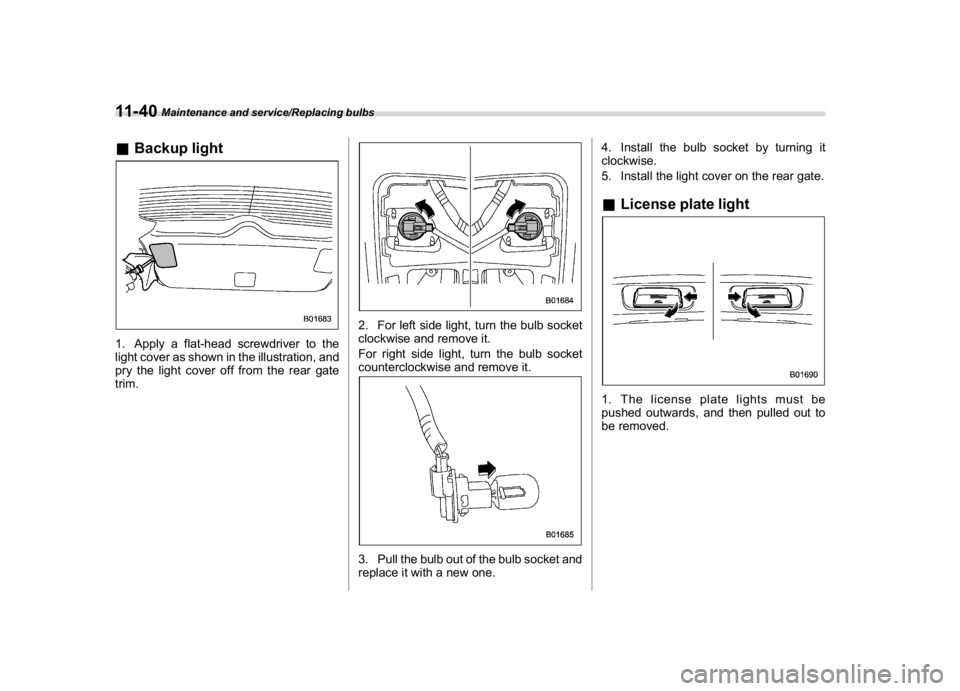

&Backup light1. Apply a flat-head screwdriver to the
light cover as shown in the illustration, and
pry the light cover off from the rear gate
trim.
2. For left side light, turn the bulb socket
clockwise and remove it.
For right side light, turn the bulb socket
counterclockwise and remove it.3. Pull the bulb out of the bulb socket and
replace it with a new one.4. Install the bulb socket by turning it
clockwise.
5. Install the light cover on the rear gate.
&License plate light1. The license plate lights must be
pushed outwards, and then pulled out to
be removed.
Maintenance and service/Replacing bulbs
11-40

(435,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

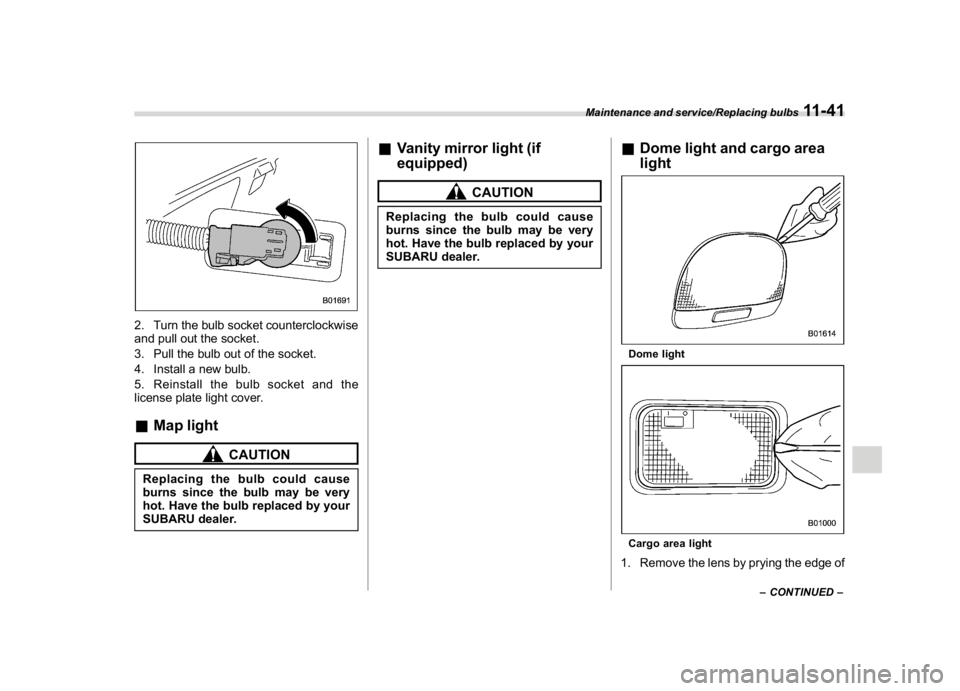

2. Turn the bulb socket counterclockwise
and pull out the socket.
3. Pull the bulb out of the socket.
4. Install a new bulb.
5. Reinstall the bulb socket and the
license plate light cover.&Map light
CAUTION
Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.
&Vanity mirror light (if
equipped)
CAUTION
Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.
&Dome light and cargo area
lightDome lightCargo area light1. Remove the lens by prying the edge of
–CONTINUED–
Maintenance and service/Replacing bulbs
11-41
11

(436,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
the lens with a flat-head screwdriver.
2. Pull the bulb out of the socket.
3. Install a new bulb.
4. Reinstall the lens.&Other bulbsIt may be difficult to replace the bulbs.
Have the bulbs replaced by your
SUBARU dealer if necessary.
Replacing key batteryThe access key fob/transmitter battery
may be discharged under the following
conditions.
.The operation of the keyless access
function is unstable
.The operating distance of the remote
keyless entry system is unstable
.The transmitter does not operate prop-
erly when used within the standard dis-
tance
Replace the battery with a new one.&Safety precautions
CAUTION
.Do not let dust, oil or water get on
or in the access key fob/transmit-
ter when replacing battery.
.Before replacing the battery, re-
move any static electricity.
.Be careful not to touch or damage
the printed circuit board in the
access key fob/transmitter when
replacing the battery.
.Be careful not to allow children to
touch the battery and any re-
moved parts; children couldswallow them.
.There is a danger of an explosion
if the battery is incorrectly re-
placed. Replace only with the
same or equivalent type of the
battery.
.Batteries should not be exposed
to excessive heat such as bright
sunlight, fire or the like.
NOTE.Replace only with the same or
equivalent type of battery recom-
mended by the manufacturer.
.Dispose of used batteries according
to local laws.
.Mount the battery in the correct
orientation to prevent fluid leakage.
Be careful not to bend the terminals. It
may result in a malfunction.
.It is recommended that the battery
be replaced by a SUBARU dealer.
.Use a new battery.
.After replacing the battery, confirm
that the transmitter functions properly.
Maintenance and service/Replacing key battery
11-42

(437,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Replacing battery of access
key fob
CAUTION
When removing or reinstalling the
access key fob cover, make sure that
the plastic part does not come off or
become misaligned.

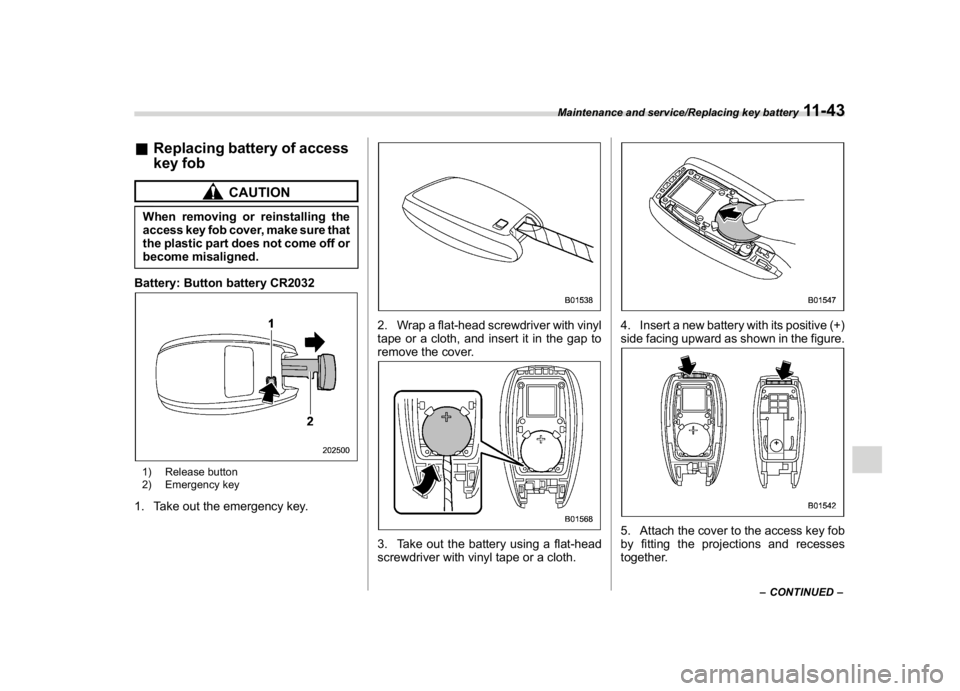

Battery: Button battery CR20321) Release button
2) Emergency key1. Take out the emergency key.
2. Wrap a flat-head screwdriver with vinyl
tape or a cloth, and insert it in the gap to
remove the cover.3. Take out the battery using a flat-head
screwdriver with vinyl tape or a cloth.
4. Insert a new battery with its positive (+)
side facing upward as shown in the figure.5. Attach the cover to the access key fob
by fitting the projections and recesses
together.
–CONTINUED–
Maintenance and service/Replacing key battery
11-43
