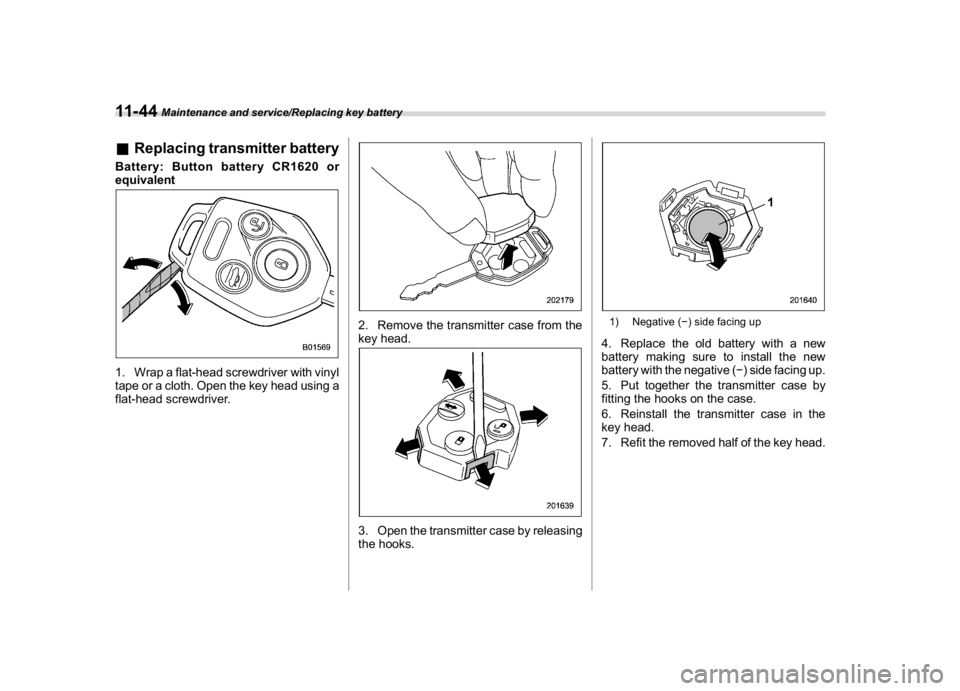

&Replacing transmitter batteryBattery: Button battery CR1620 or
equivalent1. Wrap a flat-head screwdriver with vinyl
tape or a cloth. Open the key head using a
flat-head screwdriver.
2. Remove the transmitter case from the
key head.3. Open the transmitter case by releasing
the hooks.
1) Negative () side facing up4. Replace the old battery with a new
battery making sure to install the new
battery with the negative () side facing up.
5. Put together the transmitter case by
fitting the hooks on the case.
6. Reinstall the transmitter case in the
key head.
7. Refit the removed half of the key head.
Maintenance and service/Replacing key battery
11-44

(441,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Specifications........................................................12-2
Dimensions...........................................................12-2
Engine..................................................................12-3
Fuel......................................................................12-3
Engine oil.............................................................12-4
Manual transmission, front differential and rear
differential gear oil..............................................12-6
Fluids...................................................................12-7
Engine coolant......................................................12-7
Electrical system..................................................12-8
Tires .....................................................................12-8Temporary spare tires...........................................12-9
Brake disc............................................................12-9
Fuses and circuits..............................................12-10
Fuse panel located in the passenger
compartment...................................................12-10
Fuse panel located in the engine compartment ... 12-12
Bulb chart............................................................12-14
Safety precautions..............................................12-14
Bulb chart..........................................................12-15
Vehicle identification..........................................12-18
Specifications
12

(442,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
SpecificationsThese specifications are subject to change without notice.&Dimensions
in (mm)
Item
Overall length175.8 (4,465)
Overall width71.0 (1,800)
Overall height63.6 (1,615)
Wheel base104.9 (2,665)
Tread
Front 61.0 (1,550)
Rear 61.2 (1,555)
Ground clearance*
1
8.7 (220)
*1: Measured with vehicle empty
Specifications/Specifications
12-2

(443,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&EngineEngine model
FB20
(2.0 L, DOHC, non-turbo)
Engine type Horizontally opposed, liquid cooled 4 cylinder, 4-stroke direct injection gasoline engine
Displacement cu-in (cc) 121.7 (1,995)
Bore6Stroke in (mm) 3.3163.54 (84.0690.0)
Compression ratio12.5 : 1
Firing order1–3–2–4&Fuel
Fuel requirement Fuel tank capacity
Unleaded gasoline with 87 AKI (90 RON) or higher16.6 US gal (63 liters, 13.9 Imp gal)
For more details, refer to“Fuel”F7-3.
–CONTINUED–
Specifications/Specifications
12-3
12

(444,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Engine oilFor the checking, adding and replacing procedure or other details, refer to“Engine oil”F11-8.NOTEThe procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended
that you have this service performed by your SUBARU dealer.
!Approved engine oil
Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
Specifications/Specifications
12-4

(445,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
!Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.NOTEEach quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.
Oil gradeSAE viscosity No. and
applicable temperatureEngine oil capacity
API (American Petroleum Insti-
tute) classificationSNwith the
words“RESOURCE CONSER-
VING”or
ILSAC (International Lubricant
Specification Advisory Commit-
tee)GF-5, which can be identi-
fied with the ILSAC certification
mark (Starburst mark)0W-20 syntheticoil is the required oil
for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.
*: If 0W-20 synthetic oil is not available,
5W-30 conventional oil may be used if
replenishment is needed but should be
changed to 0W-20 synthetic oil at the
next oil change.
–Adding the oil from low level to
full level:
1.1 US qt (1.0 liter, 0.9 Imp qt)
–Changing the oil and oil filter:
4.7 US qt (4.4 liters, 3.9 Imp qt)
–CONTINUED–
Specifications/Specifications
12-5
12

(446,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Manual transmission, front differential and rear differential gear oilOil Manual transmission oilFront differential gear oil
(CVT models)Rear differential gear
oil (CVT models)Rear differential gear oil (MT models)
Oil grade.SUBARU Extra MT*
3
.API classification
GL-5 (75W-90)*
4
.SUBARU Extra MT*
3
.API classification GL-5
(75W-90)API classification GL-5
SAE viscosity
No. and ap-
plicable tem-
perature—.75W-90*
.90
*: Recommended
Oil capacity*
1
3.5 US qt (3.3 liters, 2.9
Imp qt)1.4 US qt (1.3 liters, 1.1
Imp qt)0.8 US qt (0.8 liters, 0.7 Imp qt)
Remarks*
2
“Manual transmission oil”
F11-14
“Front differential gear oil (CVT models) and rear differential gear oil”F11-15
*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of oil.
*4: You may use this type of manual transmission oil. However, using this type of oil will detract from driveability and fuel efficiency.
Specifications/Specifications
12-6

(447,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Fluids
Fluid
Fluid type*
1
Fluid capacity*
2
Remarks*
3
Continuously variable transmission
fluid (CVT models)Consult your SUBARU dealer. 11.3 US qt (10.7 liters, 9.4 Imp qt)“
Continuously variable transmis-
sion fluid”F11-15
Brake fluidFMVSS No. 116, DOT 3 or DOT 4 brake
fluid–“
Brake fluid”F11-15
Clutch fluid (MT models)FMVSS No. 116, DOT 3 or DOT 4 brake
fluid–
“
Clutch fluid (MT models)”F11-16
*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors.
*3: For more details about maintenance and service, refer to the indicated section.&Engine coolant
Vehicle model Coolant capacity Coolant type
MT models 8.0 US qt (7.6 liters, 6.7 Imp qt)
SUBARU Super Coolant
CVT models8.2 US qt (7.8 liters, 6.9 Imp qt)
The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. For more details about maintenance and service, refer to“
Cooling system”F11-10.
–CONTINUED–
Specifications/Specifications
12-7
