2018 SUBARU CROSSTREK Owners Manual

(230,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
mately 30 minutes after the system has
been turned on.

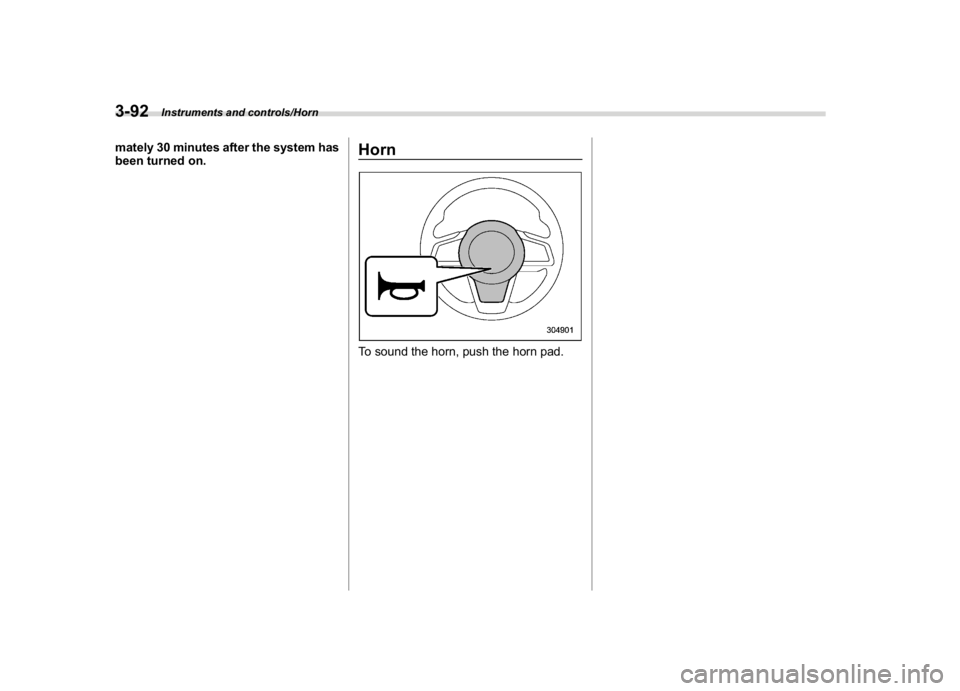

HornTo sound the horn, push the horn pad.
Instruments and controls/Horn
3-92

(233,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Ventilator control....................................................4-2
Center ventilators.................................................. 4-2
Side ventilators...................................................... 4-2
Climate control panel.............................................4-2
Type A ................................................................... 4-3
Type B ................................................................... 4-4
Type C ................................................................... 4-5
Automatic climate control operation
(type B andC) ......................................................4-6
Sensors................................................................. 4-6
Manual climate controloperation..........................4-7
Airflow mode selection........................................... 4-7
MAX A/C mode (for type B and C).......................... 4-8
Temperature control............................................... 4-8
Fan speed control.................................................. 4-9
Air conditioner control........................................... 4-9Air inlet selection...................................................4-9
To turn off the climate control system.....................4-9
Defrosting..............................................................4-10
Operating tips for heater andair conditioner.... 4-10
Cleaning ventilation grille.....................................4-10
Efficient cooling after parking in direct sunlight .... 4-10
Lubrication oil circulation in the refrigerant
circuit................................................................ 4-11
Checking air conditioning system before summer
season.............................................................. 4-11
Cooling and dehumidifying in high humidity
and low temperature weather conditions ............ 4-11
Air conditioner compressor shut-off when
engine is heavily loaded.................................... 4-11
Refrigerant for your climate control system.......... 4-11
Air filtration system...............................................4-11
Replacing a cabin air filter....................................4-12
Climate control
4

(234,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

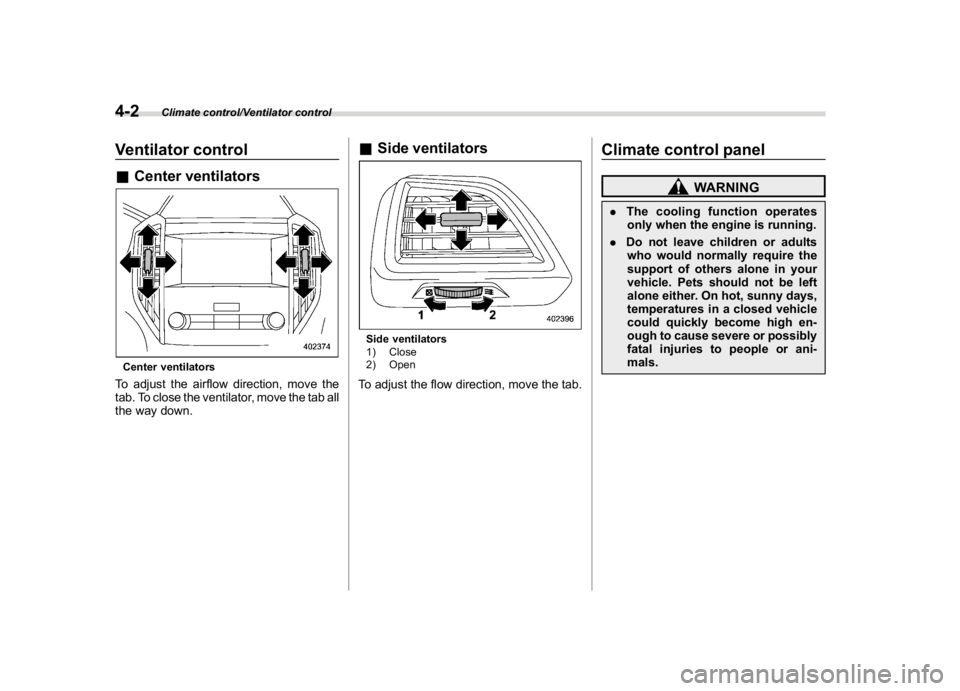

Ventilator control&Center ventilatorsCenter ventilatorsTo adjust the airflow direction, move the
tab. To close the ventilator, move the tab all
the way down.
&Side ventilatorsSide ventilators
1) Close
2) OpenTo adjust the flow direction, move the tab.
Climate control panel
WARNING
.The cooling function operates
only when the engine is running.
.Do not leave children or adults
who would normally require the
support of others alone in your
vehicle. Pets should not be left
alone either. On hot, sunny days,
temperatures in a closed vehicle
could quickly become high en-
ough to cause severe or possibly
fatal injuries to people or ani-
mals.
Climate control/Ventilator control
4-2

(235,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Type A
1) Airflow mode selection dial (Refer to
“Airflow mode selection”F4-7.)
2) Fan speed control dial (Refer to“Fan
speed control”F4-9.)
3) Temperature control dial (Refer to“Tem-
perature control”F4-8.)
4) Air conditioner button (Refer to“Air
conditioner control”F4-9.)
5) Air inlet selection button (Refer to“Air
inlet selection”F4-9.)
6) Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to“Defogger and deicer”F3-89.)
–CONTINUED–
Climate control/Climate control panel
4-3
4

(236,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

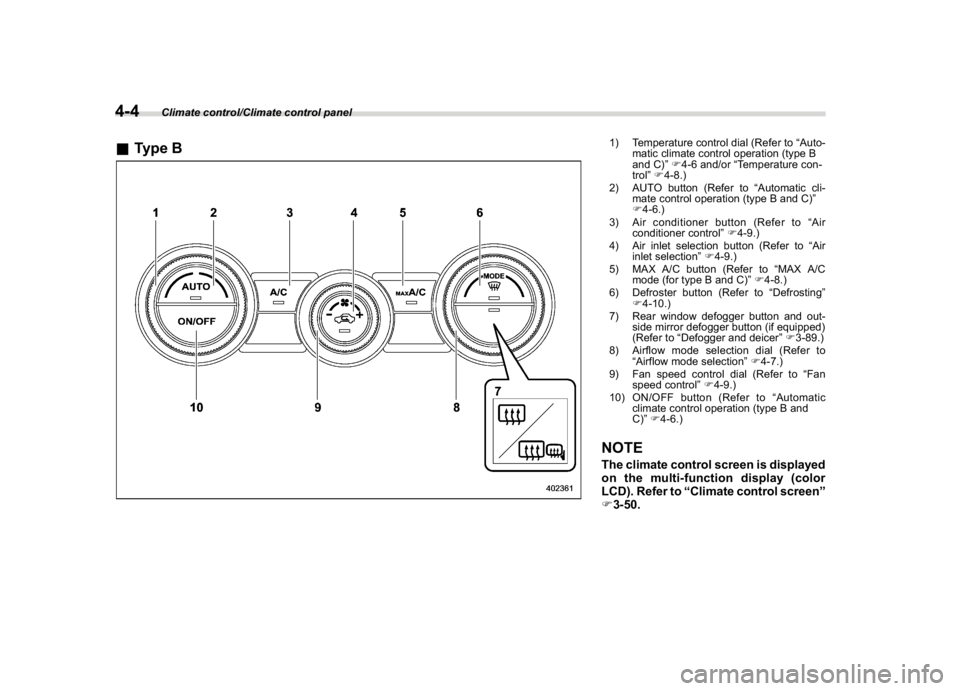

&Type B
1) Temperature control dial (Refer to“Auto-
matic climate control operation (type B
and C)”F4-6 and/or“Temperature con-
trol”F4-8.)
2) AUTO button (Refer to“Automatic cli-
mate control operation (type B and C)”
F4-6.)
3) Air conditioner button (Refer to“Air
conditioner control”F4-9.)
4) Air inlet selection button (Refer to“Air
inlet selection”F4-9.)
5) MAX A/C button (Refer to“MAX A/C
mode (for type B and C)”F4-8.)
6) Defroster button (Refer to“Defrosting”
F4-10.)
7) Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to“Defogger and deicer”F3-89.)
8) Airflow mode selection dial (Refer to
“Airflow mode selection”F4-7.)
9) Fan speed control dial (Refer to“Fan
speed control”F4-9.)
10) ON/OFF button (Refer to“Automatic
climate control operation (type B and
C)”F4-6.)NOTEThe climate control screen is displayed
on the multi-function display (color
LCD). Refer to“Climate control screen”
F3-50.
Climate control/Climate control panel
4-4

(237,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

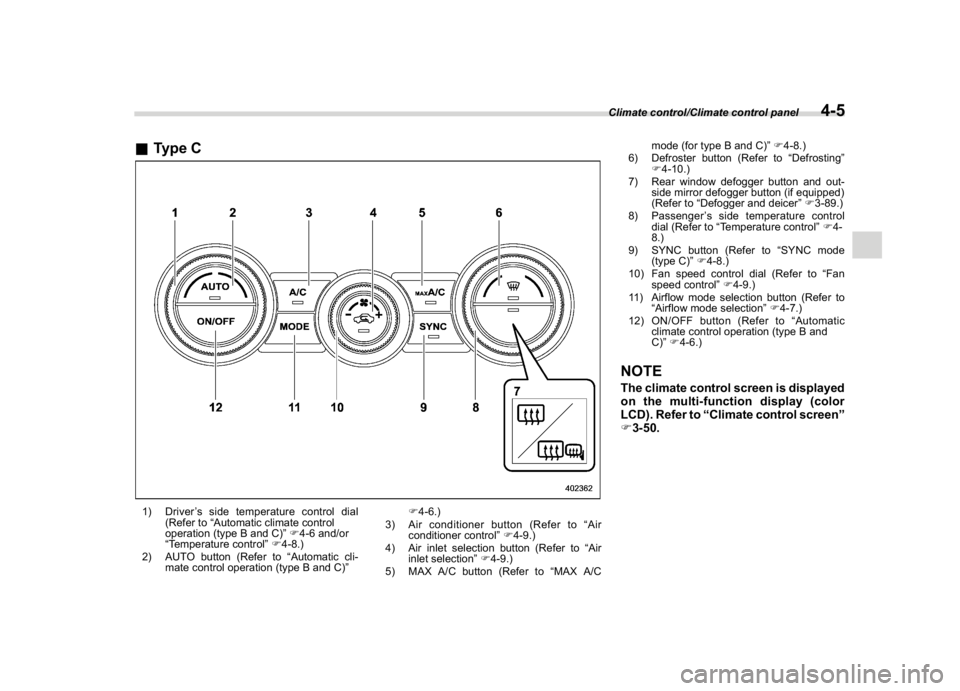

&Type C1) Driver’s side temperature control dial
(Refer to“Automatic climate control
operation (type B and C)”F4-6 and/or
“Temperature control”F4-8.)
2) AUTO button (Refer to“Automatic cli-
mate control operation (type B and C)”F4-6.)
3) Air conditioner button (Refer to“Air
conditioner control”F4-9.)
4) Air inlet selection button (Refer to“Air
inlet selection”F4-9.)
5) MAX A/C button (Refer to“MAX A/Cmode (for type B and C)”F4-8.)
6) Defroster button (Refer to“Defrosting”
F4-10.)
7) Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to“Defogger and deicer”F3-89.)
8) Passenger’s side temperature control
dial (Refer to“Temperature control”F4-
8.)
9) SYNC button (Refer to“SYNC mode
(type C)”F4-8.)
10) Fan speed control dial (Refer to“Fan
speed control”F4-9.)
11) Airflow mode selection button (Refer to
“Airflow mode selection”F4-7.)
12) ON/OFF button (Refer to“Automatic
climate control operation (type B and
C)”F4-6.)
NOTEThe climate control screen is displayed
on the multi-function display (color
LCD). Refer to“Climate control screen”
F3-50.Climate control/Climate control panel
4-5
4

(238,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Automatic climate control
operation (type B and C)When this mode is selected, the fan speed,
airflow distribution, air-inlet control, and air
conditioner compressor operation are
automatically controlled. To activate this
mode, perform the following.
1. Press the AUTO button. The indicator
light“FULL AUTO”on the multi-function
display (color LCD) illuminates.
2. Set the preferred temperature using
the temperature control dial.NOTE.Operate the automatic climate con-
trol system when the engine is running.
.Even when cooling is not necessary,
the air conditioner compressor will
automatically turn on if the temperature
is set much lower than the current
outlet air temperature. Even in this
case, the“A/C”indicator light on the
control panel illuminates.
.The controllable temperature range
may vary depending on the regional
specifications of the vehicle.
.If you operate any of the buttons on
the control panel other than the ON/
OFF button, rear window defogger
button, SYNC button and temperature
control dial(s) during FULL AUTO modeoperation, the“FULL”indicator light on
the multi-function display (color LCD)
will turn off and the“AUTO”indicator
light will remain illuminated. You can
then manually control the system as
desired using the button you operated.
To change the system back to the FULL
AUTO mode, press the AUTO button.
To turn off the climate control system,
press the ON/OFF button. Then the air
inlet selection will be set to the following.
.When the air inlet selection is set to
auto mode: Outside air circulation
.When the air inlet selection is set to
manual mode: No change
&SensorsThe sensors are located as follows.1) Interior air temperature sensor
2) Solar sensorThe automatic climate control system
employs several sensors. These sensors
Climate control/Automatic climate control operation (type B and C)
4-6

(239,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
are delicate. If they are not treated properly
and become damaged, the system may
not be able to control the interior tempera-
ture correctly. To avoid damaging the
sensors, observe the following precau-
tions.
.Do not subject the sensors to impact.
.Keep water away from the sensors.
.Do not cover the sensors.
Manual climate control op-
eration&Airflow mode selectionSelect the airflow mode by using the
airflow mode selection dial (type A and B)
or the airflow mode selection button (type
C).
Airflow modes are as follows.Ventilation:Instrument panel outlets
Ventilation 2 for type B and C:Instru-
ment panel outlets and foot outletsBi-level:Instrument panel outlets and foot
outlets
–CONTINUED–
Climate control/Manual climate control operation
4-7
