2018 SUBARU CROSSTREK Owners Manual

(190,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
!Information screen
Press the INFO button on the steering wheel to switch the item displayed on the information screen.
Content Description Page
Electric components operating status screen
Displays the operating status of the electric components and equipment. 3-53
Prevention safety screen Displays the status of your vehicle. 3-53
EyeSight screen*1
Displays the operating status of EyeSight. 3-54
Favorite screen Displays up to 3 optional items. 3-54
Weather information screen*
2
Displays weather information. 3-55
Traffic information*
2/Navigation*
3screen Displays information linked with the navigation system. 3-55
Audio screen Displays audio system information. 3-56
Fuel consumption screen Displays fuel consumption information. 3-56
Clock screen Displays the clock. 3-56
Guidance screen Moves to the setting screen.3-57
*1: Models with EyeSight system
*2: Models with SiriusXM Satellite Radio
*3: Models with navigation system
Instruments and controls/Multi-function display (color LCD)
3-52

(191,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

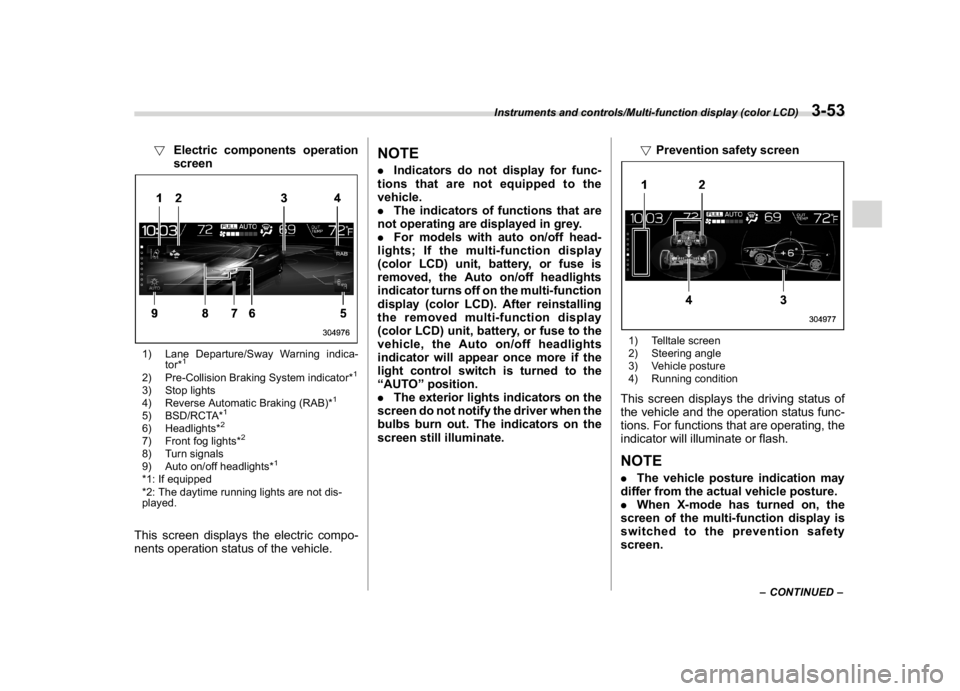

!Electric components operation
screen1) Lane Departure/Sway Warning indica-
tor*
1
2) Pre-Collision Braking System indicator*
1
3) Stop lights
4) Reverse Automatic Braking (RAB)*
1
5) BSD/RCTA*
1
6) Headlights*
2
7) Front fog lights*
2
8) Turn signals
9) Auto on/off headlights*
1
*1: If equipped
*2: The daytime running lights are not dis-
played.This screen displays the electric compo-
nents operation status of the vehicle.
NOTE.Indicators do not display for func-
tions that are not equipped to the
vehicle.
.The indicators of functions that are
not operating are displayed in grey.
.For models with auto on/off head-
lights; If the multi-function display
(color LCD) unit, battery, or fuse is
removed, the Auto on/off headlights
indicator turns off on the multi-function
display (color LCD). After reinstalling
the removed multi-function display
(color LCD) unit, battery, or fuse to the
vehicle, the Auto on/off headlights
indicator will appear once more if the
light control switch is turned to the
“AUTO”position.
.The exterior lights indicators on the
screen do not notify the driver when the
bulbs burn out. The indicators on the
screen still illuminate.!Prevention safety screen
1) Telltale screen
2) Steering angle
3) Vehicle posture
4) Running conditionThis screen displays the driving status of
the vehicle and the operation status func-
tions. For functions that are operating, the
indicator will illuminate or flash.NOTE.The vehicle posture indication may
differ from the actual vehicle posture.
.When X-mode has turned on, the
screen of the multi-function display is
switched to the prevention safety
screen.
–CONTINUED–
Instruments and controls/Multi-function display (color LCD)
3-53
3

(192,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
!EyeSight screen (models with
EyeSight system)1) Lead vehicle indicator
2) Your own vehicle indicator
3) Stop lights
4) Road line indicator
5) Lane indicatorThis screen displays the status of the
EyeSight system. The lead vehicle indica-
tor moves forward and backward depend-
ing on the distance with the vehicle in front.
For details, refer to the Owner’s Manual
supplement for the EyeSight system.!Favorite screen
Favorite screen (display example)This screen displays up to three optional
pieces of information that can be selected
from the following items.
Item Details
The engine coolant temperature is
displayed.The engine oil temperature is
displayed.The average vehicle speed is
displayed.The accelerator opening ratio is
displayed.The vehicle posture is displayed.The current rate of fuel consump-
tion is displayed.The direction of the vehicle is
displayed.*
1
The weather information is dis-
played.*
2
Instruments and controls/Multi-function display (color LCD)
3-54

(193,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Item Details
The posted speed limit of the road
you are currently driving on is
displayed.*
1
The calender is displayed.Nothing is displayed.
*1: If equipped
*2: Models with SiriusXM Satellite Radio
NOTESome displayed items may be not
displayed depending on the model
and specifications.
The items shown in the favorite screen can
be changed. For details, refer to“Favorite
setting”F3-60.!Weather information screen (if
equipped)
1) Weather information for the destination.*
2) Weather information for the current loca-
tion.
*: Only when a destination is set in the
navigation systemThe weather information is displayed on
the screen.NOTE.When all of the following conditions
are satisfied, weather information is
displayed.
–The vehicle is equipped with an
audio and navigation system for
SiriusXM satellite radio.
–You have a current SiriusXMsatellite radio subscription.
.The weather forecast for the set
destination remains displayed until a
new destination is set or until you reach
the destination.
.Depending on the reception timing
of XM, the display of weather informa-
tion may be delayed.
!Navigation screen (models with
navigation system)
The navigation system information to the
destination is displayed on the screen.NOTEWhen a destination is not set in the
navigation system, the compass orien-
tation, name, route sign and speed limit
of the road the vehicle is traveling on
–CONTINUED–
Instruments and controls/Multi-function display (color LCD)
3-55
3

(194,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
remain displayed on the screen.
!Audio screenThe screen of the currently selected audio
source is displayed.
For details about how to use the audio set,
refer to the separate navigation/audio
Owner’s Manual.!Fuel consumption screen
1) Driving range on remaining fuel
2) Average fuel consumption corresponding
to the driving distance of each trip meter
3) Current fuel consumptionThe fuel consumption information is dis-
played on the screen.NOTEThe driving range on remaining fuel is
only a guide. The indicated value may
differ from the actual driving range on
remaining fuel, so you must immedi-
ately fill the tank when the low fuel
warning light illuminates.!Clock/date screen
The time and date are displayed.
You can adjust the time and date. For
details, refer to“Clock”F3-63.
Instruments and controls/Multi-function display (color LCD)
3-56

(195,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

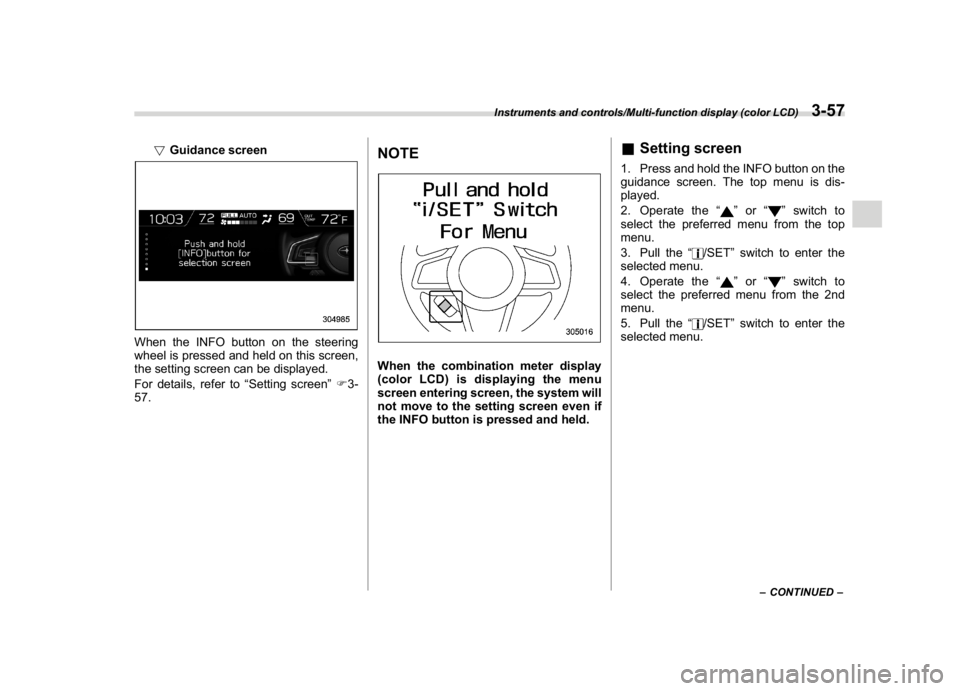

!Guidance screen
When the INFO button on the steering
wheel is pressed and held on this screen,
the setting screen can be displayed.
For details, refer to“Setting screen”F3-
57.
NOTEWhen the combination meter display
(color LCD) is displaying the menu
screen entering screen, the system will
not move to the setting screen even if
the INFO button is pressed and held.
&Setting screen1. Press and hold the INFO button on the
guidance screen. The top menu is dis-
played.
2. Operate the“
”or“
”switch to
select the preferred menu from the top
menu.
3. Pull the“
/SET”switch to enter the
selected menu.
4. Operate the“
”or“
”switch to
select the preferred menu from the 2nd
menu.
5. Pull the“
/SET”switch to enter the
selected menu.
–CONTINUED–
Instruments and controls/Multi-function display (color LCD)
3-57
3

(196,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
The menu list is as follows.Top menu 2nd menu Description Page
Time/Date
Time/Date* Set and adjust the time and date. 12h or 24h format can be selected. 3-59
Birthday Set a birthday.3-59
Anniversary Set an anniversary day. 3-59
Go Back Return to the 1st menu.—
Display/Beep
Screen Off* Turn the screen on or off. Yes or No 3-59
Favorite Set and customize the triple meter. 3-60
Bypass Screen Set the bypass screen for each item. On or Off 3-60
Beep Adjust the beep sound volume. High, Low or Off 3-60
Go Back Return to the 1st menu.—
Maintenance
Engine Oil Set and adjust the oil maintenance notification date. 3-61
Oil Filter Set and adjust the oil filter maintenance notification date. 3-61
Tires Set and adjust the tire maintenance notification date. 3-61
Maintenance Schedule Set and adjust the vehicle maintenance notification date. 3-61
ON/OFFTurn on or off the self-check screen that is
activated when the ignition switch is turned to the
“ON”position.On or Off 3-61
Clear All Settings Clear all settings for maintenance items. Yes or No 3-61
Go Back Return to the 1st menu.—
Initialize
—Reset all settings to the default settings. Yes or No 3-62
Go Back
—Return to the setting screen.—
*: You can also set this while driving.
Instruments and controls/Multi-function display (color LCD)
3-58

(197,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
!Date and time settings
You can set the date, time and 12h or 24h
format settings.
!Current date and time setting
For details about clock setting, refer to
“Clock”F3-63.

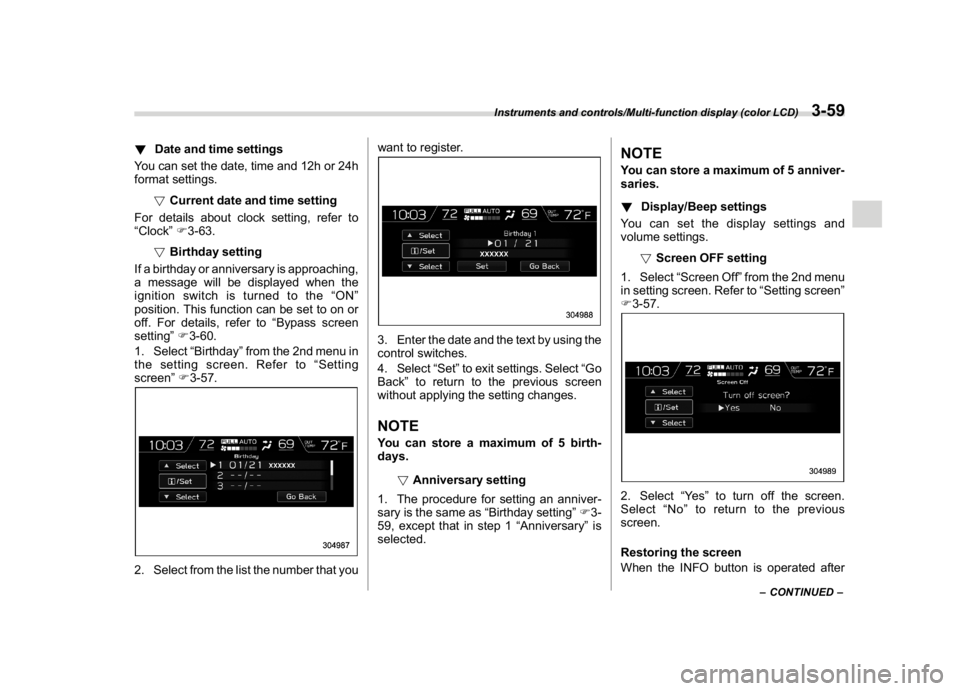

!Birthday setting
If a birthday or anniversary is approaching,
a message will be displayed when the
ignition switch is turned to the“ON”
position. This function can be set to on or
off. For details, refer to“Bypass screen
setting”F3-60.
1. Select“Birthday”from the 2nd menu in
the setting screen. Refer to“Setting
screen”F3-57.2. Select from the list the number that youwant to register.
3. Enter the date and the text by using the
control switches.
4. Select“Set”to exit settings. Select“Go
Back”to return to the previous screen
without applying the setting changes.NOTEYou can store a maximum of 5 birth-
days.
!Anniversary setting
1. The procedure for setting an anniver-
sary is the same as“Birthday setting”F3-
59, except that in step 1“Anniversary”is
selected.
NOTEYou can store a maximum of 5 anniver-
saries.
!Display/Beep settings
You can set the display settings and
volume settings.
!Screen OFF setting
1. Select“Screen Off”from the 2nd menu
in setting screen. Refer to“Setting screen”
F3-57.2. Select“Ye s”to turn off the screen.
Select“No”to return to the previous
screen.
Restoring the screen
When the INFO button is operated after
–CONTINUED–
Instruments and controls/Multi-function display (color LCD)
3-59
