2018 SUBARU CROSSTREK Owners Manual

(448,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Electrical systemBattery type
75D23L
Alternator12V-130A
Spark plugsDILKAR7B8 (NGK)&TiresTire size P225/60R17 98H 225/55R18 98H
Wheel size
1767J 1867J
Pressure Front
33 psi (230 kPa, 2.3 kgf/cm
2)
Rear
32 psi (220 kPa, 2.2 kgf/cm2)
Wheel nut tightening torque
89 lbf·ft (120 N·m, 12 kgf·m)*1
*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts
by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure,
refer to“
Changing a flat tire”F9-5.Specifications/Specifications
12-8

(449,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Temporary spare tires
U.S.-spec. models and Canada-spec. models Other models
Temporary spare tire size T145/80 D17 185/65 R17
Temporary spare tire inflation pressure
(recommended cold tire inflation pressure)60 psi (420 kPa, 4.2 kgf/cm
2)42 psi (290 kPa, 2.9 kgf/cm
2)
&Brake discIf you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your
SUBARU dealer.
Specifications/Specifications
12-9
12

(450,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

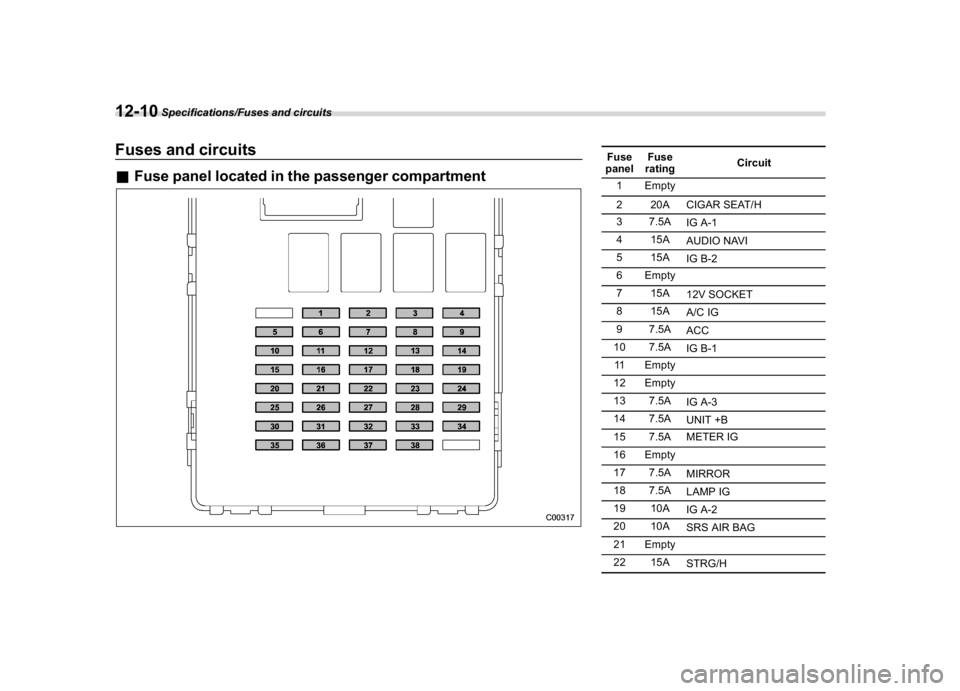

Fuses and circuits&Fuse panel located in the passenger compartment
Fuse
panelFuse
ratingCircuit
1 Empty
2 20A CIGAR SEAT/H
3 7.5A
IG A-1
4 15A
AUDIO NAVI
5 15A
IG B-2
6 Empty
7 15A
12V SOCKET
8 15A
A/C IG
9 7.5A
ACC
10 7.5A
IG B-1
11 Empty
12 Empty
13 7.5A
IG A-3
14 7.5A
UNIT +B
15 7.5A METER IG
16 Empty
17 7.5A
MIRROR
18 7.5A
LAMP IG
19 10A
IG A-2
20 10A
SRS AIR BAG
21 Empty
22 15A
STRG/H
Specifications/Fuses and circuits
12-10

(451,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Fuse
panelFuse
ratingCircuit
23 10A
DRL
24 Empty
25 Empty
26 10A
BACK UP
27 Empty
28 20A
TRAIL R.FOG
29 Empty
30 Empty
31 Empty
32 7.5A
ILLUMI
33 7.5A
KEY SW A
34 Empty
35 Empty
36 7.5A
KEY SW B
37 7.5A
STOP
38 7.5A
EYE SIGHT
–CONTINUED–
Specifications/Fuses and circuits
12-11
12

(452,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

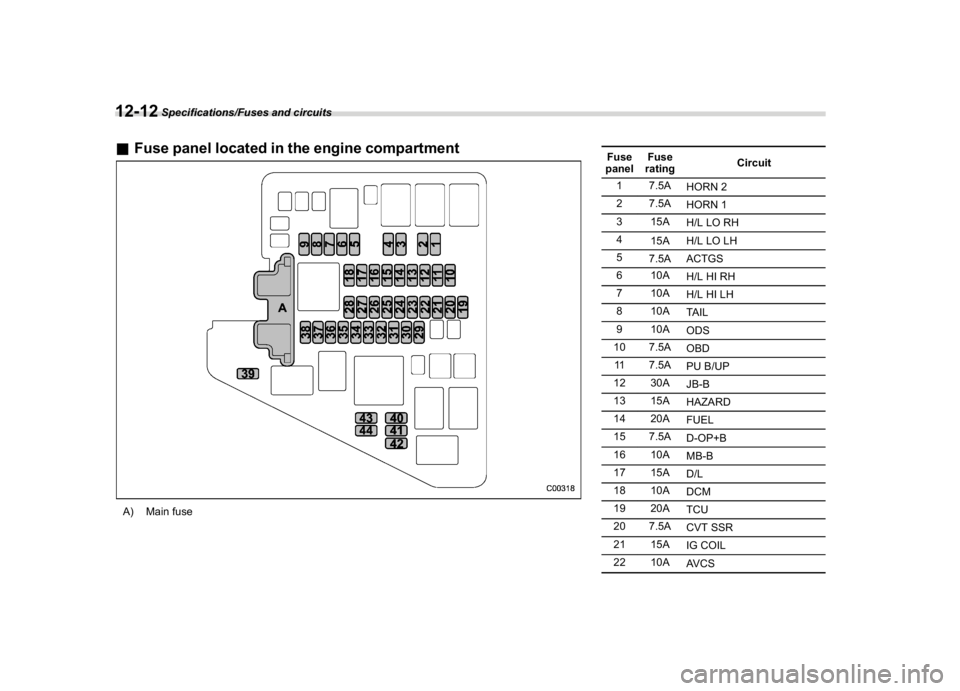

&Fuse panel located in the engine compartmentA) Main fuseFuse
panelFuse
ratingCircuit
1 7.5A
HORN 2
2 7.5A
HORN 1
3 15A
H/L LO RH
4
15A H/L LO LH
5
7.5A ACTGS
6 10A
H/L HI RH
7 10A
H/L HI LH
8 10A
TAIL
9 10A
ODS
10 7.5A
OBD
11 7.5A
PU B/UP
12 30A
JB-B
13 15A
HAZARD
14 20A
FUEL
15 7.5A
D-OP+B
16 10A
MB-B
17 15A
D/L
18 10A
DCM
19 20A
TCU
20 7.5A
CVT SSR
21 15A
IG COIL
22 10A
AVCS
Specifications/Fuses and circuits
12-12

(453,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Fuse
panelFuse
ratingCircuit
23 10A
E/G2
24 Empty
25 Empty
26 20A
O2 HTR
27 15A
E/G1
28 Empty
29 30A
BACKUP
30 25A
R. DEF
31 20A
AUDIO
32 30A
VDC SOL
33 25A
MAIN FAN
34 25A
SUB FAN
35 10A
DEICER
36 15A
F. FOG
37 15A
BLOWER
38 15A
BLOWER
39 Empty
40 30A
F. WIPER
41 15A
F. WASH
42 15A
R. WIPER
43 Empty
44 Empty
Specifications/Fuses and circuits
12-13
12

(454,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

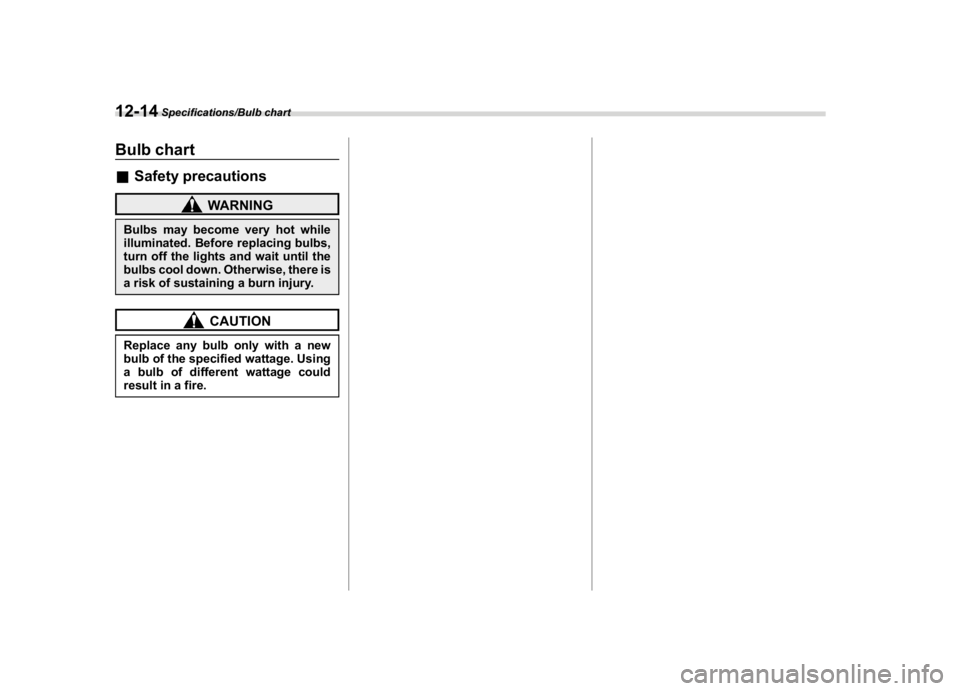

Bulb chart&Safety precautions
WARNING
Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there is
a risk of sustaining a burn injury.
CAUTION
Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire.
Specifications/Bulb chart
12-14

(455,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Bulb chartNOTELights A, B, C, D and E are the LED (Light Emitting Diode) type. Consult your SUBARU dealer for replacement.
–CONTINUED–
Specifications/Bulb chart
12-15
12
