2016 SKODA YETI Owner's Manual

SIMPLY CLEVER
OWNER´S MANUALOWNER´S MANUAL
ŠKODA Yeti

5L0012720AM

Preface
You have opted for a ŠKODA – our sincere thanks for your confidence in us.
This Owner's Manual contains instructions about the vehicle operation, im-
portant information about safety, vehicle care, maintenance and self-help
and technical vehicle data.
For vehicles with Infotainment, the operation of some of the functions and
vehicle systems is carried out via Infotainment.
Please do not read just this Owner's Manual, but also read the Infotainment
Owner's Manual carefully. The procedure in accordance with the two instruc-
tions is a prerequisite for the correct use of the vehicle.
When using the vehicle, the general binding country-specific legal require-
ments (e.g. transporting children, deactivating the airbag, tyre use, road traf-
fic, etc.) must always be observed.
Please always pay attention when driving! As the driver, you are fully re-
sponsible for road safety.
We hope you enjoy driving your ŠKODA, and wish you a pleasant journey at
all times.
Your ŠKODA AUTO 5L0012720AM

Table of Contents
materials defect liability and ŠKODA warranty
for new cars4
On-board literature
6
Notes
7
Structure of the Owner's Manual and further
information
8
Abbreviations
Safety
Passive Safety
10
General information
10
Correct and safe seated position
10
Seat belts
13
Using seat belts
13
Inertia reels and belt tensioners
15
Airbag system
16
Description of the airbag system
16
Airbag deactivation
19
Transporting children safely
21
Child seat
21
Fastening systems
24
Using the system
Cockpit
27
Overview
26
Instruments and Indicator Lights
28
Instrument cluster
28
Warning lights
31
Information system
38

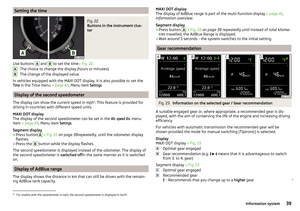

Driver information system
38
Operation of the information system
40Multifunction display (MFD)41MAXI DOT display42
Service interval display
44
SmartGate
45
Unlocking and opening
47
Unlocking and locking
47
Anti-theft alarm system
51
Luggage compartment lid
52
Window operation
53

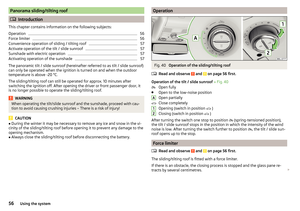

Panorama sliding/tilting roof
56
Lights and visibility
58
Lights
58
Interior lighting
62
Visibility
63

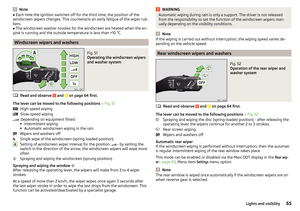

Windscreen wipers and washers
64
Rear view mirror
66
Seats and head restraints
68
Front seats
68
Rear seats
71
Headrests
73
Front seat heating
74
Useful features
75

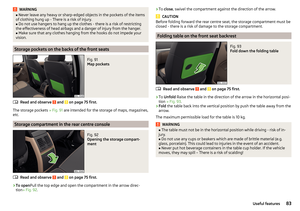

Interior fittings
75
Tablet holder
84
Transport of cargo
86
Luggage Storage and Transport
86
Variable loading floor in the luggage
compartment (Estate)
91
Transportation on the roof rack
93
Heating and ventilation
93
Heating, manual air conditioning system,
Climatronic
93
Auxiliary heating (auxiliary heating and
ventilation)
97Driving
Starting-off and Driving100
Starting and stopping the engine
100
START-STOPsystem
102
Brakes and parking
103
Manual gear changing and pedals
105
Automatic transmission
106
Running in and economical driving
108
Avoiding damage to your vehicle
109
Assist systems
110
General information
110
Braking and stabilisation systems
110
OFF ROAD Mode
112
Parking aid (ParkPilot)
114
Reversing camera
116

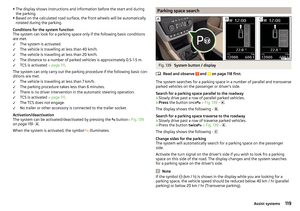

Park Assist
118
Cruise Control System
121
Fatigue detection
122
Tyre pressure monitoring
123
Towing device and trailer
124

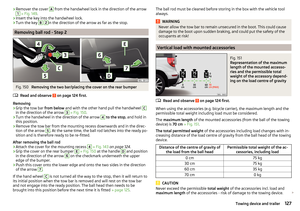

Hitch
124
Using the towing device
128
General Maintenance
Care and maintenance
131

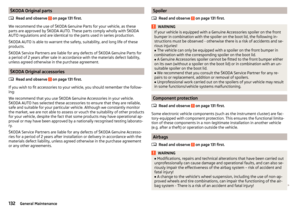

Service work, adjustments and technical
alterations
131
Service intervals
133
Cleaning and care
135
Inspecting and replenishing
139
Fuel
139
AdBlue ®
And its refilling
141

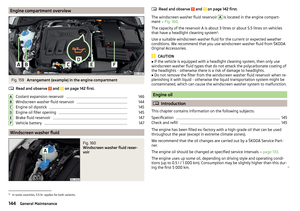

Engine compartment
142
Engine oil
144
Coolant
1462Table of Contents

Brake fluid147Vehicle battery147
Wheels
150
Wheels and tyres
150
Operating in winter conditions
152
Do-it-yourself
Emergency equipment and self-help
154
Emergency equipment
154
Changing a wheel
155
Breakdown kit
159

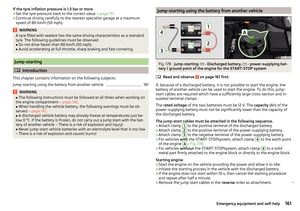

Jump-starting
161
Towing the vehicle
162
Remote control and removable light -
replacing the battery/batteries
164
Emergency unlocking / unlocking of doors
165
Replacing windscreen wiper blades
166
Fuses and light bulbs
167
Fuses
167
Bulbs
170
Technical data
Technical data
175
Basic vehicle data
175
Vehicle-specific data depending on the
engine
181

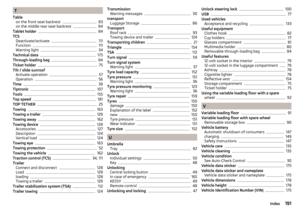

Index
3Table of Contents

materials defect liability and ŠKODA warranty for new
cars
Materials defect liability
Your ŠKODA Partner, as a vendor, is liable to you for material damage to your
new ŠKODA car, ŠKODA Genuine Parts or ŠKODA Genuine Accessories in ac-
cordance with statutory regulations and the purchase agreement.
ŠKODA warranty for new cars
As well as the materials defect liability, ŠKODA AUTO grants you the ŠKODA
warranty for new cars (hereinafter referred to as “ŠKODA warranty),” according
to the conditions described below.
As part of the ŠKODA warranty, ŠKODA AUTO will provide the following serv-
ices. ▶ Free repair of faulty components or vehicle defects that occur within two
years from the start of the ŠKODA warranty.
▶ Free repair of paintwork defects on your vehicle that occur within three years
from the start of the ŠKODA warranty.
▶ Free repair of corrosion caused by rust on the bodywork of your vehicle that
occurs within twelve years from the start of the warranty. Only corrosion of
body panels from the inside to the outside is included in the definition of cor-
rosion caused by rust on the bodywork and covered by the ŠKODA warranty.
The start of warranty is the date on which the new car is handed over to the
initial purchaser by the ŠKODA Partner 1)
. This date must be noted down by the
ŠKODA Partner in the Owner's Manual for your vehicle » in the section on the
documentation of the vehicle handover .
Vehicle repairs may be carried out either by replacing the faulty part or by re- pairing it. Replaced parts become the property of the ŠKODA Service Partner.
There shall be no further claims arising from the ŠKODA warranty. In particular,
there shall be no claims for replacement, cancellation, provision of a courtesy
vehicle for the duration of repairs or compensation for damages.If your ŠKODA vehicle was purchased from a ŠKODA Partner in a country of the
European Economic Area (i.e. the countries of the European Union, Norway,
Iceland and Liechtenstein) or in Switzerland, claims arising from the ŠKODA
warranty must also be made through a ŠKODA Service Partner in one of these
countries.
If your ŠKODA vehicle was purchased from a ŠKODA Partner outside the Euro-
pean Economic Area and Switzerland, claims arising from the ŠKODA warranty
must also be made through a ŠKODA Service Partner outside the European
Economic Area and Switzerland.
A prerequisite for carrying out work under the ŠKODA warranty is that all serv-
ice work has been carried out in a timely and technically correct manner and in
accordance with the ŠKODA AUTO's provisions. It must be proven that service
work has been carried out properly and in accordance with the ŠKODA AUTO's provisions when making a claim on the ŠKODA warranty. In the event of a
missed service or failure to carry out a service according to the ŠKODA AUTO's
provisions, you may still be entitled to warranty claims as long as you can
prove that the missed service or the failure to carry out a service according to
the ŠKODA AUTO's provisions was not the cause of the defect.
Natural wear and tear to your vehicle is not covered by the ŠKODA warranty.
The ŠKODA warranty also does not cover faults to bodywork, installations or
conversions provided by third parties, or vehicle faults caused as a result. The
same applies to accessories that were not installed and/or delivered ex-facto-
ry.
In addition, this warranty does not apply if the defect was caused by one of
the following.
▶ Unauthorised use, improper handling (e.g. use in racing competitions or over-
loading), improper care and maintenance or unauthorised modifications to
your vehicle.
▶ Non-compliance with instructions in the Owner's Manual or other factory-
supplied instructions.
▶ External causes or influences (e.g. accidents, hail, flooding etc.). 1)
Due to the requirements of the generally binding country-specific regula-
tions, the date of first registration can be given instead of the date of the
vehicle handover.
4materials defect liability and ŠKODA warranty for new cars

▶Parts fitted on or in the vehicle, whose use has not been approved by ŠKODA
AUTO, or modification of the vehicle in a manner not approved by ŠKODA
AUTO (e.g. tuning).
▶ Damage caused by you that was not immediately seen to by a specialist ga-
rage or was not rectified properly.
It is the customer's responsibility to prove that s/he is not the cause of the
damage.
This ŠKODA warranty does not affect the purchaser's statutory rights from ma-
terials defect liability from the vehicle vendor and other potential claims from
product liability laws.
Mobility warranty
The mobility warranty provides a sense of security when travelling in your ve-
hicle.
If your vehicle ever breaks down on the road due to an unexpected failure,
services to keep you moving can be provided for you under the mobility guar-
antee, which include the following services: Breakdown at the roadside and
towing to ŠKODA service partners, technical assistance on the phone or on-
site commissioning.
If your vehicle is not repaired on the same day, the ŠKODA Service Partner may
provide further services as required, such as replacement transportation (bus,
train etc.) or a courtesy vehicle etc.
More information regarding terms and conditions for the provision of a mobility
warranty for your vehicle can be obtained from your ŠKODA Partner. They will
also provide you with detailed terms and conditions for the mobility warranty
with respect to your vehicle. In the event that there is no mobility warranty
coverage in place for your vehicle, you should check with any ŠKODA Service
Partner about the possibility of a supplementary agreement.
Optional ŠKODA Extended warranty
If you opted for a ŠKODA extended warranty when purchasing your new car,
the two-year ŠKODA warranty with regards to all free warranty repairs is ex-
tended by the period you chose or until the chosen mileage limit has been
reached, whichever occurs first.
The paint warranty and the warranty against corrosion described above are
unaffected by the ŠKODA extended warranty.
The ŠKODA extended warranty does not apply to external and internal foils.
The information on the detailed conditions of the ŠKODA extended warranty is
provided by your ŠKODA partner.NoteThe ŠKODA extended warranty is only available in some countries.5materials defect liability and ŠKODA warranty for new cars

On-board literature
You will always find this Owner's Manual in the on-board literature. Depending
on equipment fitted, the on-board literature can also contain the Infotainment
Owner's Manual or The radio Owner's Manual .
Owner´s Manual
These Owner´s Manual apply to all body variants of the vehicle and all related
model versions as well as all equipment levels .
This Owner's Manual describes all possible equipment variants without identi-
fying them as special equipment, model variants or market-dependent equip-
ment. Consequently, this vehicle does not contain all of the equipment com-
ponents described in this Owner's Manual.
The range of equipment installed in your vehicle depends on the purchase
contract for the vehicle. For any questions regarding the scope of equipment,
please contact a ŠKODA Partner.
The Pictures in this Owner's Manual are for illustrative purposes only. The il-
lustrations can differ in minor details from your vehicle; they are only intended
to provide general information.
ŠKODA AUTO pursues a policy of ongoing product and model development
with all vehicles. Changes in terms of supply scope are possible at any time
with regard to design, equipment and technology. The information listed in
this Owner's Manual corresponds to the information available at the time of
going to press.
Therefore legal claims cannot be made based on the technical data, illustra-
tions and information contained in this Owner's Manual.
We recommend that web pages that are referred to in this Owner's Manual are
displayed using the classic view. Not all necessary information may be dis-
played correctly if the mobile view is chosen.
Infotainment Owner´s Manual
The Infotainment Owner's Manual contains a description of the Infotainment
service and possibly also some functions and vehicle systems.
The radio Owner's Manual
The radio Owner's Manual describes the operation of the radio, and in some
cases various functions and vehicle systems.Online user manualsFig. 1
On-board literature online on the
ŠKODA web pages
To display user manuals online proceed as follows.
1.Read the QR-Code » Fig. 1 using the corresponding application in your ex-
ternal device (e.g. phone, tablet) or enter the following address in your
web browser. http://go.skoda.eu/owners-manuals The web page with a model overview of the ŠKODAbrand is opened.2.Select the desired model - a menu for the user manuals is displayed.3.Select the construction period as well as the language.4.Select one of the following manual types. File in pdfformat On-line version of the manual Variant for the mobile device - My ŠKODA App application6On-board literature
