2016 NISSAN JUKE Owners Manual


> (GLW    0RGHO )' @
TROUBLESHOOTING GUIDEGUID-65DF5E65-C5B3-479F-B41A-BD8E737A64F8
SymptomCause and Countermeasure
Cannot access Siri


> (GLW    0RGHO )' @

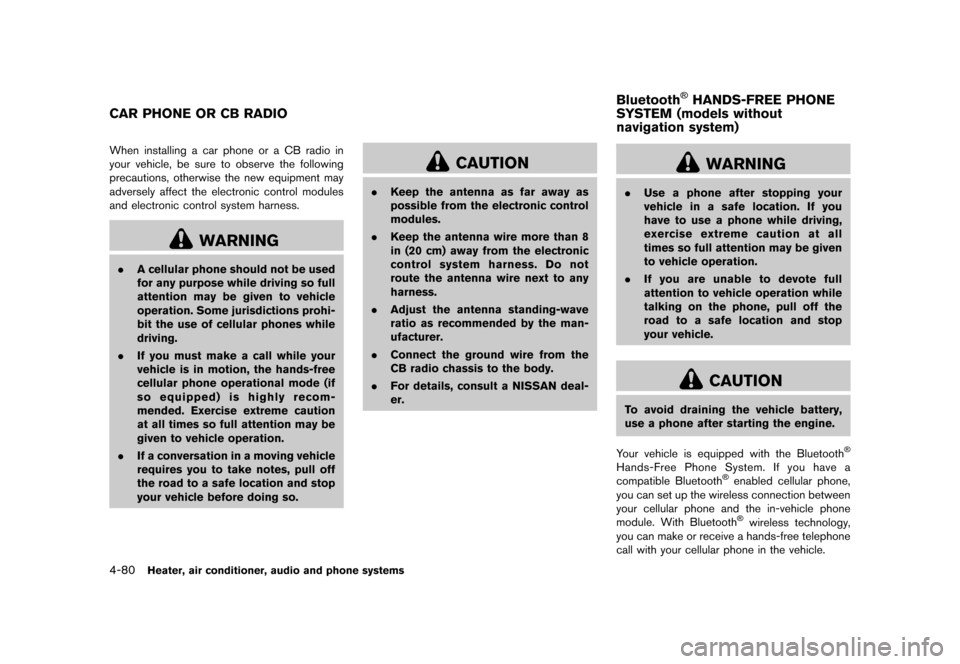

4-80Heater, air conditioner, audio and phone systems
GUID-433608FE-D4D9-4693-ADC1-026C2CCCF895When installing a car phone or a CB radio in
your vehicle, be sure to observe the following
precautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN deal-
er.
GUID-5BB4ADBF-288B-4991-9A88-69D70D6685E8
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your vehicle is equipped with the Bluetooth


> (GLW    0RGHO )' @
Once your cellular phone is connected to the in-
vehicle phone module, no other phone connect-
ing procedure is required. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
placed in the ACC or ON position with the
previously connected cellular phone turned on
and carried in the vehicle.
NOTE:
Some devices require the user to accept
connections to other Bluetooth


> (GLW    0RGHO )' @
4-82Heater, air conditioner, audio and phone systems
IC Regulatory informationGUID-2EDEA324-802B-458F-970A-25372BA79E8D.Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth


> (GLW    0RGHO )' @

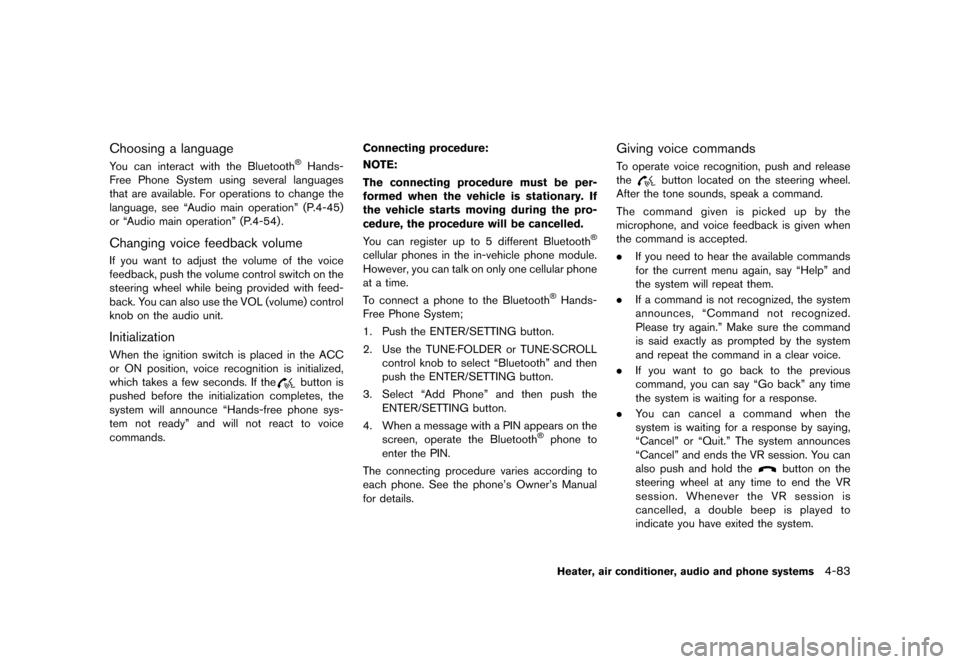

Choosing a languageGUID-4E29ECA5-1464-463F-A9B3-6425EEB5F83BYou can interact with the Bluetooth


> (GLW    0RGHO )' @

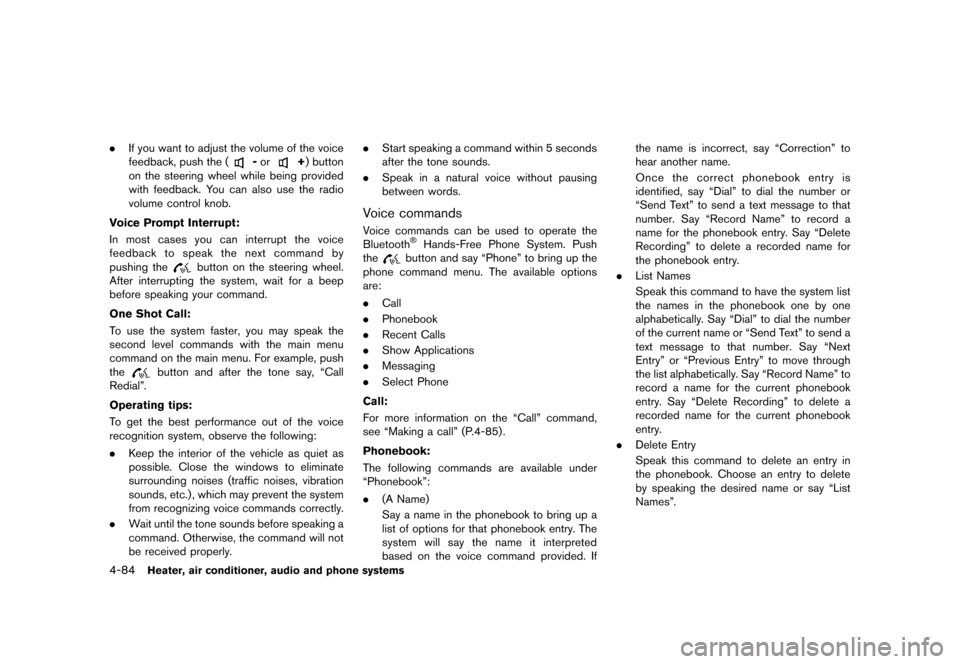

4-84Heater, air conditioner, audio and phone systems
.If you want to adjust the volume of the voice
feedback, push the (
-or+) button
on the steering wheel while being provided
with feedback. You can also use the radio
volume control knob.
Voice Prompt Interrupt:
GUID-F83C168B-173D-4313-B631-F712588C0463In most cases you can interrupt the voice
feedback to speak the next command by
pushing the
button on the steering wheel.
After interrupting the system, wait for a beep
before speaking your command.
One Shot Call:
GUID-F83C168B-173D-4313-B631-F712588C0463To use the system faster, you may speak the
second level commands with the main menu
command on the main menu. For example, push
the
button and after the tone say, ªCall
Redialº.
Operating tips:
GUID-F83C168B-173D-4313-B631-F712588C0463To get the best performance out of the voice
recognition system, observe the following:
. Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate
surrounding noises (traffic noises, vibration
sounds, etc.) , which may prevent the system
from recognizing voice commands correctly.
. Wait until the tone sounds before speaking a
command. Otherwise, the command will not
be received properly. .
Start speaking a command within 5 seconds
after the tone sounds.
. Speak in a natural voice without pausing
between words.
Voice commandsGUID-BE9F4E7E-EDF9-4F46-880E-05C5B1377DF1Voice commands can be used to operate the
Bluetooth


> (GLW    0RGHO )' @

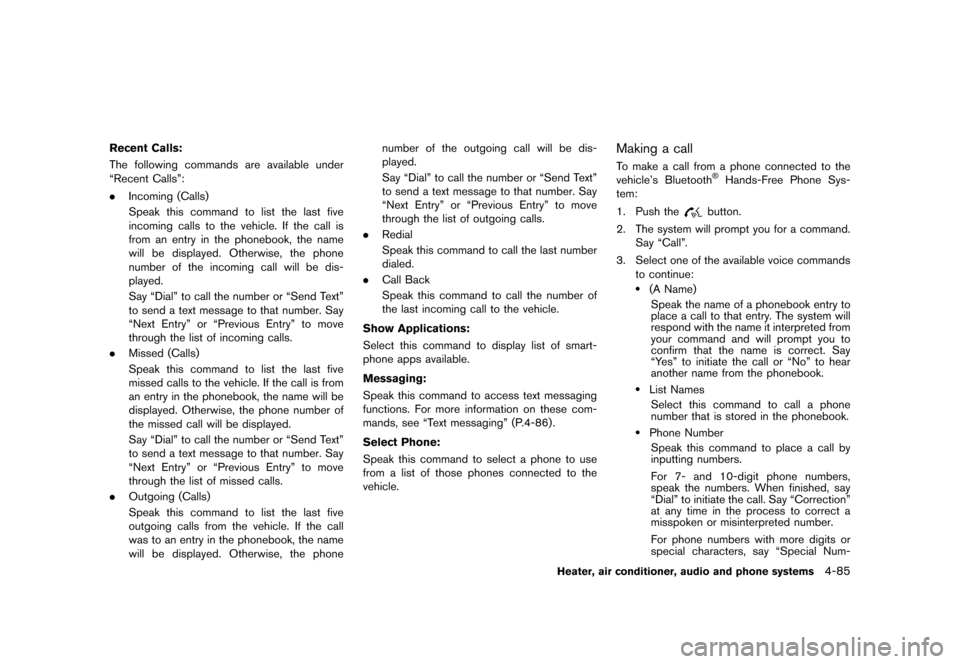

Recent Calls:GUID-F83C168B-173D-4313-B631-F712588C0463The following commands are available under
ªRecent Callsº:
.Incoming (Calls)
Speak this command to list the last five
incoming calls to the vehicle. If the call is
from an entry in the phonebook, the name
will be displayed. Otherwise, the phone
number of the incoming call will be dis-
played.
Say ªDialº to call the number or ªSend Textº
to send a text message to that number. Say
ªNext Entryº or ªPrevious Entryº to move
through the list of incoming calls.
. Missed (Calls)
Speak this command to list the last five
missed calls to the vehicle. If the call is from
an entry in the phonebook, the name will be
displayed. Otherwise, the phone number of
the missed call will be displayed.
Say ªDialº to call the number or ªSend Textº
to send a text message to that number. Say
ªNext Entryº or ªPrevious Entryº to move
through the list of missed calls.
. Outgoing (Calls)
Speak this command to list the last five
outgoing calls from the vehicle. If the call
was to an entry in the phonebook, the name
will be displayed. Otherwise, the phone number of the outgoing call will be dis-
played.
Say ªDialº to call the number or ªSend Textº
to send a text message to that number. Say
ªNext Entryº or ªPrevious Entryº to move
through the list of outgoing calls.
. Redial
Speak this command to call the last number
dialed.
. Call Back
Speak this command to call the number of
the last incoming call to the vehicle.
Show Applications:
GUID-F83C168B-173D-4313-B631-F712588C0463Select this command to display list of smart-
phone apps available.
Messaging:
GUID-F83C168B-173D-4313-B631-F712588C0463Speak this command to access text messaging
functions. For more information on these com-
mands, see ªText messagingº (P.4-86) .
Select Phone:
GUID-F83C168B-173D-4313-B631-F712588C0463Speak this command to select a phone to use
from a list of those phones connected to the
vehicle.
Making a callGUID-651357F4-F0D0-4000-AA64-92FF8DEF606ETo make a call from a phone connected to the
vehicle's Bluetooth


> (GLW    0RGHO )' @

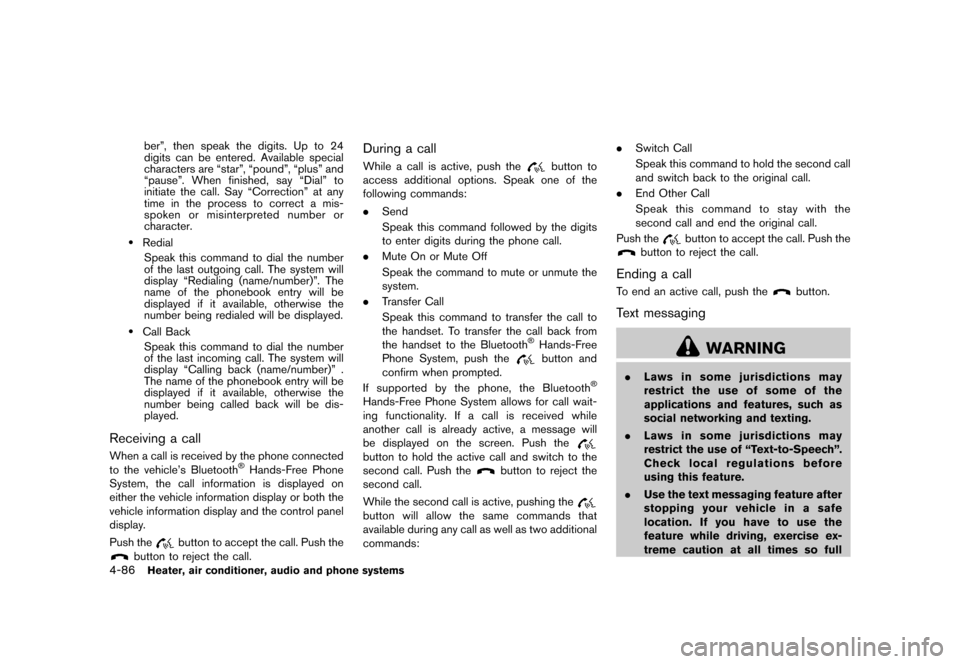

4-86Heater, air conditioner, audio and phone systems
berº, then speak the digits. Up to 24
digits can be entered. Available special
characters are ªstarº, ªpoundº, ªplusº and
ªpauseº. When finished, say ªDialº to
initiate the call. Say ªCorrectionº at any
time in the process to correct a mis-
spoken or misinterpreted number or
character.
.RedialSpeak this command to dial the number
of the last outgoing call. The system will
display ªRedialing (name/number)º. The
name of the phonebook entry will be
displayed if it available, otherwise the
number being redialed will be displayed.
.Call Back
Speak this command to dial the number
of the last incoming call. The system will
display ªCalling back (name/number)º .
The name of the phonebook entry will be
displayed if it available, otherwise the
number being called back will be dis-
played.
Receiving a callGUID-BD6E5D29-B491-4EC8-A565-1BF7F699C353When a call is received by the phone connected
to the vehicle's Bluetooth
