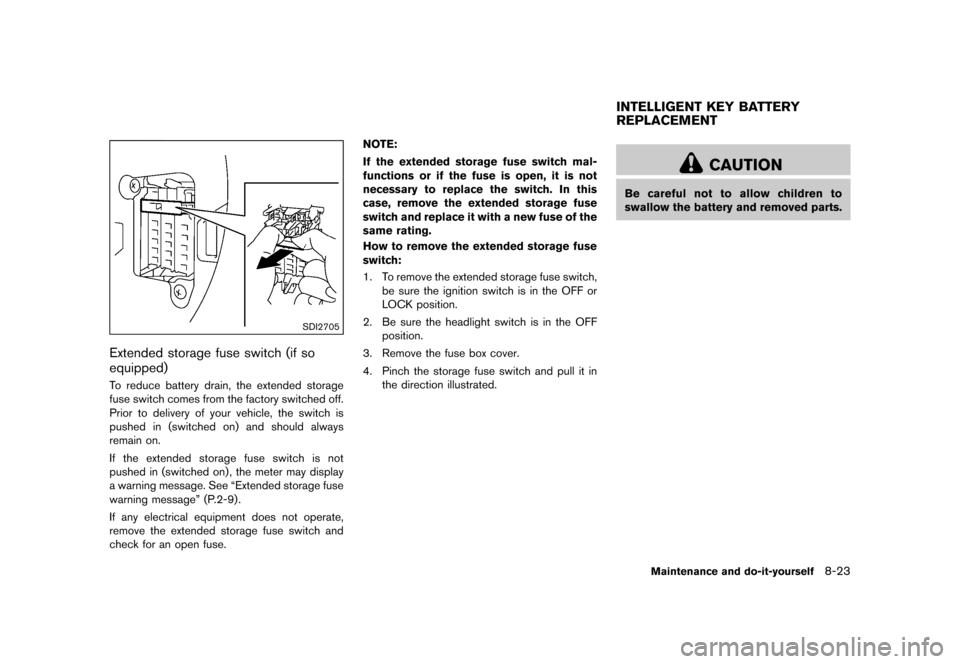

Extended storage fuse switch (if so
equipped)
GUID-7EE1D234-C9B0-4378-9F56-2EAE0BD5CAB4To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on) , the meter may display
a warning message. See ªExtended storage fuse
warning messageº (P.2-9).
If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.NOTE:
If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
GUID-F83C168B-173D-4313-B631-F712588C04631. To remove the extended storage fuse switch,
be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the storage fuse switch and pull it in the direction illustrated.
GUID-E03C12AE-5204-44DA-8C92-75FB6768F780
CAUTION
Be careful not to allow children to
swallow the battery and removed parts.
Maintenance and do-it-yourself8-23
INTELLIGENT KEY BATTERY
REPLACEMENT
&RQGLWLRQ


> (GLW    0RGHO )' @
8-24Maintenance and do-it-yourself
SDI2451

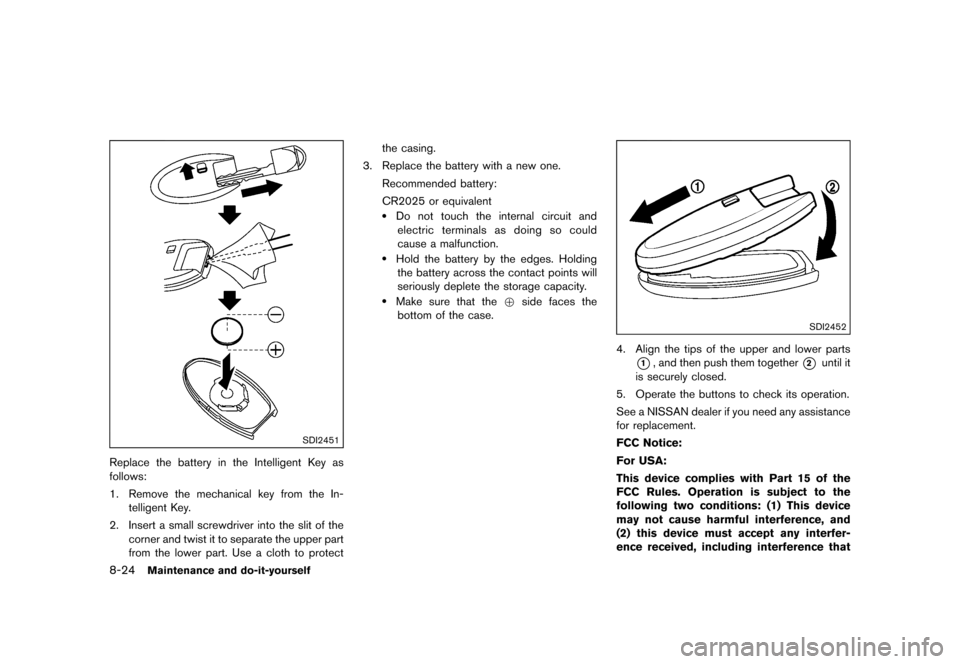

Replace the battery in the Intelligent Key as
follows:
1. Remove the mechanical key from the In-telligent Key.
2. Insert a small screwdriver into the slit of the corner and twist it to separate the upper part
from the lower part. Use a cloth to protect the casing.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom of the case.
SDI2452
4. Align the tips of the upper and lower parts
*1, and then push them together*2until it
is securely closed.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
&RQGLWLRQ


> (GLW    0RGHO )' @
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
Maintenance and do-it-yourself8-25
&RQGLWLRQ


> (GLW    0RGHO )' @
8-26Maintenance and do-it-yourself
GUID-23FC80BC-9A5D-4CDF-AF41-4375212E36BD
JVM0505X
1. Map light
2. Front fog light (if so equipped)
3. Headlight (high-beam/low-beam)
4. Front parking light
5. Front turn signal light/Front side marker light
6. Side turn signal light
7. Daytime running light (NISMO models)
8. High-mounted stop light
9. Reverse light
10. Rear turn signal light
11. Stop/tail light
12. License plate light
13. Cargo light
14. Tail light (LED)
LIGHTS
&RQGLWLRQ


> (GLW    0RGHO )' @
HEADLIGHTSGUID-2315F15B-21C2-48E3-B4D6-114A3540E8D5Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-E802D82D-AE31-4C67-BD7D-36FB0F025F80
Xenon headlight model:GUID-F83C168B-173D-4313-B631-F712588C0463If replacement is required, see a NISSAN dealer.
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. It is recommended to
have your xenon headlights replaced at
a NISSAN dealer. For additional infor-
mation, see ªHeadlight and turn signal
switchº (P.2-38) .
Halogen headlight model:
GUID-F83C168B-173D-4313-B631-F712588C0463The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
. Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the base when handling
the bulb. Never touch the glass
envelope. Touching the glass envel-
ope could significantly affect bulb
life and/or headlight performance.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust-
ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed as shown in the chart.
JVM0488X
Maintenance and do-it-yourself8-27
&RQGLWLRQ


> (GLW    0RGHO )' @
8-28Maintenance and do-it-yourself

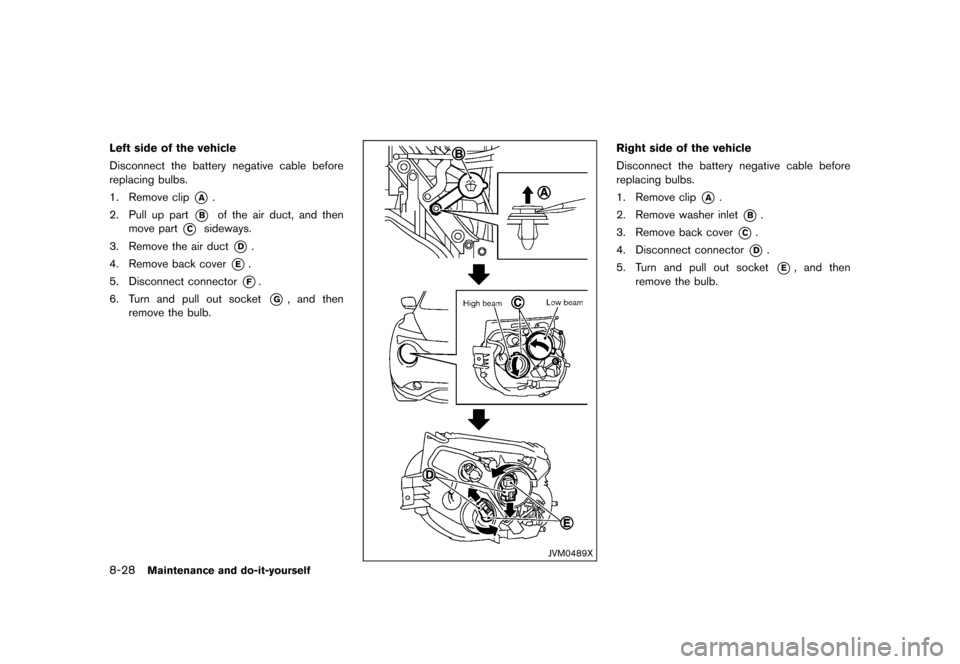

Left side of the vehicle
Disconnect the battery negative cable before
replacing bulbs.
1. Remove clip
*A.
2. Pull up part
*Bof the air duct, and then
move part
*Csideways.
3. Remove the air duct
*D.
4. Remove back cover
*E.
5. Disconnect connector
*F.
6. Turn and pull out socket
*G, and then
remove the bulb.
JVM0489X
Right side of the vehicle
Disconnect the battery negative cable before
replacing bulbs.
1. Remove clip
*A.
2. Remove washer inlet
*B.
3. Remove back cover
*C.
4. Disconnect connector
*D.
5. Turn and pull out socket
*E, and then
remove the bulb.
&RQGLWLRQ


> (GLW    0RGHO )' @
EXTERIOR AND INTERIOR LIGHTSGUID-61BBD601-FAE2-461C-81CD-A4009E8538F6
ItemWattage (W)Bulb No.
Headlight high/low beams (Xenon)* 60/35HB3/D2S
Headlight high/low beams (Halogen) 60/55HB3/H11
Front turn signal light* 21WY21W
Front parking light* LED-
Front side marker light* 5W5W
Front fog light (if so equipped)* 55H11
Side turn signal light* LED-
Daytime running light (for NISMO models)* LED-
Rear combination light*
turn signal light 21WY21W
stop/tail light 21/5W21/5W
tail light (LED) LEDÐ
back-up 16W16W
License plate light* 5W5W
Map light 5Ð
High-mounted stop light* LEDÐ
Cargo light 5Ð
Glove box light* 1.4Ð
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
SDI2306
: REMOVE
: INSTALL
Replacement proceduresGUID-FD1940F8-D0CC-49B0-9D9B-69150AD59693All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
Maintenance and do-it-yourself8-29
&RQGLWLRQ


> (GLW    0RGHO )' @
8-30Maintenance and do-it-yourself
SDI2391

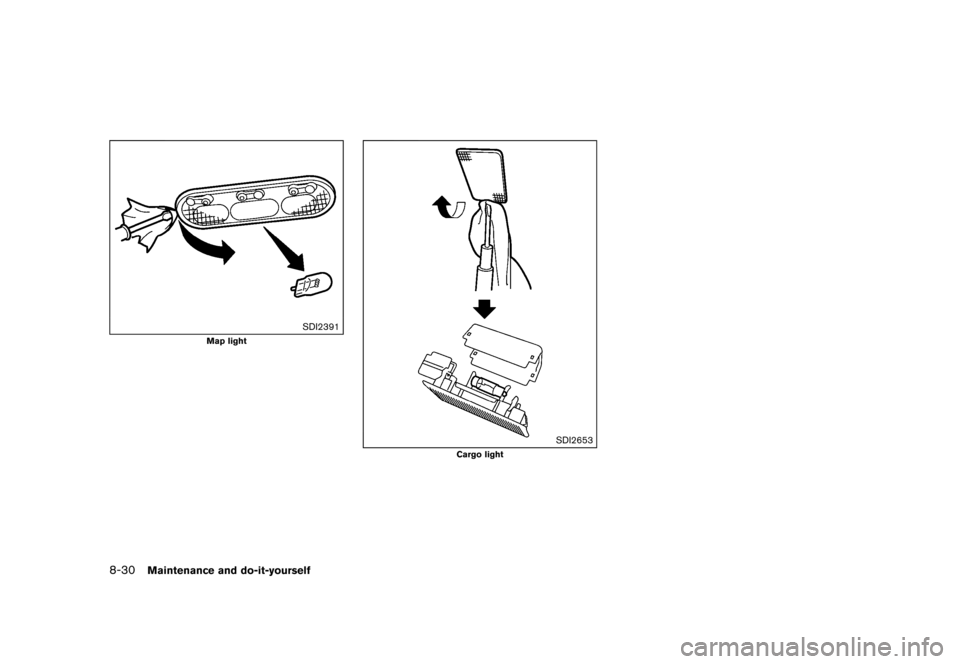

Map light
SDI2653
Cargo light
