2016 NISSAN JUKE Owners Manual


> (GLW    0RGHO )' @
changes.
Audio settings:
GUID-F83C168B-173D-4313-B631-F712588C04631. push thebutton.
2. Touch the ªSettingsº key.
3. Touch the ªAudioº key. Use the touch-screen to adjust the following
items to the desired setting:
.Bass:Adjusts the bass to the desired level.
.Treble:Adjusts the treble to the desired level.
.Balance:Adjusts the balance to the desired level.
Balance adjusts the sound level between
the left and right speakers.
.Fade:
Adjusts the fade to the desired level.
Fade adjusts the sound level between
the front and rear speakers.
.Speed Sensitive Vol.:Adjusts the speed sensitive volume
function, which increases the volume of
the audio system as the speed of the
vehicle increases. Set to ªOFFº to dis-
able the feature. The higher the setting,
the more the volume increases in relation
to vehicle speed.
.AUX Volume Level:Controls the volume level of incoming
sound when an auxiliary device is con-
nected to the system. Available options
are Low (Quiet) , Medium, and High
(Loud) .
Bass, treble, balance and fade can also be
adjusted by pushing the AUDIO control knob
and turning it to select the item to adjust. When
the desired item is shown on the display, turn the
tuning to adjust and then push the AUDIO
button until the display returns to the main audio
screen. If the button is not pushed for approxi-
mately 10 seconds, the radio or CD display will
automatically reappear.
SXM settings:
GUID-F83C168B-173D-4313-B631-F712588C0463To view the SXM settings:
1. Push the
button.
2. Touch the ªSettingsº key.
3. Touch the ªSXMº key.
The signal strength, activation status and other
information are displayed on the screen.
FM/AM/SAT radio operationGUID-F471B34D-BB40-4254-905D-BAD3C1C3D3BD
FM´AM button:GUID-F83C168B-173D-4313-B631-F712588C0463Push the FM´AM button to change the band as
follows:
AM ?FM1 ?FM2 ?AM
If another audio source is playing when the
FM´AM button is pushed, the audio source
playing will automatically be turned off and the
last radio station played will begin playing.
The FM stereo indicator (ST) is shown on the
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio
automatically changes from stereo to monaural
reception.
SXM band select:
GUID-F83C168B-173D-4313-B631-F712588C0463Pushing the SXM button will change the band
as follows:
SXM1* ?SXM2* ?SXM3* ?SXM1*
(satellite, if so equipped)
When the SXM button is pushed while the
ignition switch is in the ACC or ON position, the
radio will come on at the last station played.
The last station played will also come on when
the ON´OFF button is pushed.
*When the SXM button is pushed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and a
Heater, air conditioner, audio and phone systems4-63
&RQGLWLRQ


> (GLW    0RGHO )' @

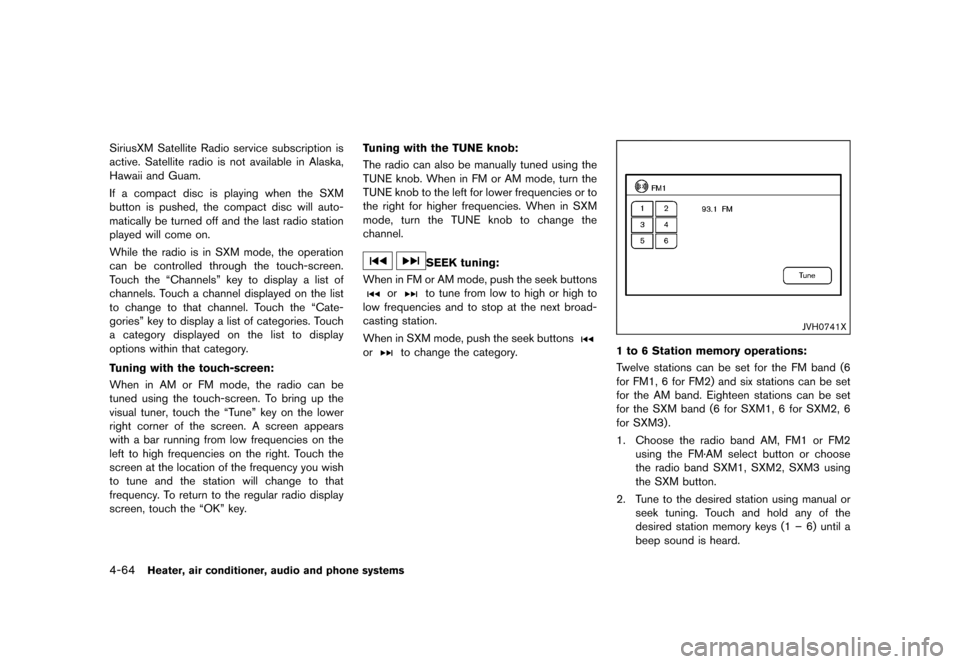

4-64Heater, air conditioner, audio and phone systems
SiriusXM Satellite Radio service subscription is
active. Satellite radio is not available in Alaska,
Hawaii and Guam.
If a compact disc is playing when the SXM
button is pushed, the compact disc will auto-
matically be turned off and the last radio station
played will come on.
While the radio is in SXM mode, the operation
can be controlled through the touch-screen.
Touch the ªChannelsº key to display a list of
channels. Touch a channel displayed on the list
to change to that channel. Touch the ªCate-
goriesº key to display a list of categories. Touch
a category displayed on the list to display
options within that category.
Tuning with the touch-screen:
GUID-F83C168B-173D-4313-B631-F712588C0463When in AM or FM mode, the radio can be
tuned using the touch-screen. To bring up the
visual tuner, touch the ªTuneº key on the lower
right corner of the screen. A screen appears
with a bar running from low frequencies on the
left to high frequencies on the right. Touch the
screen at the location of the frequency you wish
to tune and the station will change to that
frequency. To return to the regular radio display
screen, touch the ªOKº key.Tuning with the TUNE knob:
GUID-F83C168B-173D-4313-B631-F712588C0463The radio can also be manually tuned using the
TUNE knob. When in FM or AM mode, turn the
TUNE knob to the left for lower frequencies or to
the right for higher frequencies. When in SXM
mode, turn the TUNE knob to change the
channel.
SEEK tuning:GUID-F83C168B-173D-4313-B631-F712588C0463When in FM or AM mode, push the seek buttons
orto tune from low to high or high to
low frequencies and to stop at the next broad-
casting station.
When in SXM mode, push the seek buttons
orto change the category.
JVH0741X
1 to 6 Station memory operations:GUID-F83C168B-173D-4313-B631-F712588C0463Twelve stations can be set for the FM band (6
for FM1, 6 for FM2) and six stations can be set
for the AM band. Eighteen stations can be set
for the SXM band (6 for SXM1, 6 for SXM2, 6
for SXM3) .
1. Choose the radio band AM, FM1 or FM2 using the FM´AM select button or choose
the radio band SXM1, SXM2, SXM3 using
the SXM button.
2. Tune to the desired station using manual or seek tuning. Touch and hold any of the
desired station memory keys (1 ± 6) until a
beep sound is heard.
&RQGLWLRQ


> (GLW    0RGHO )' @

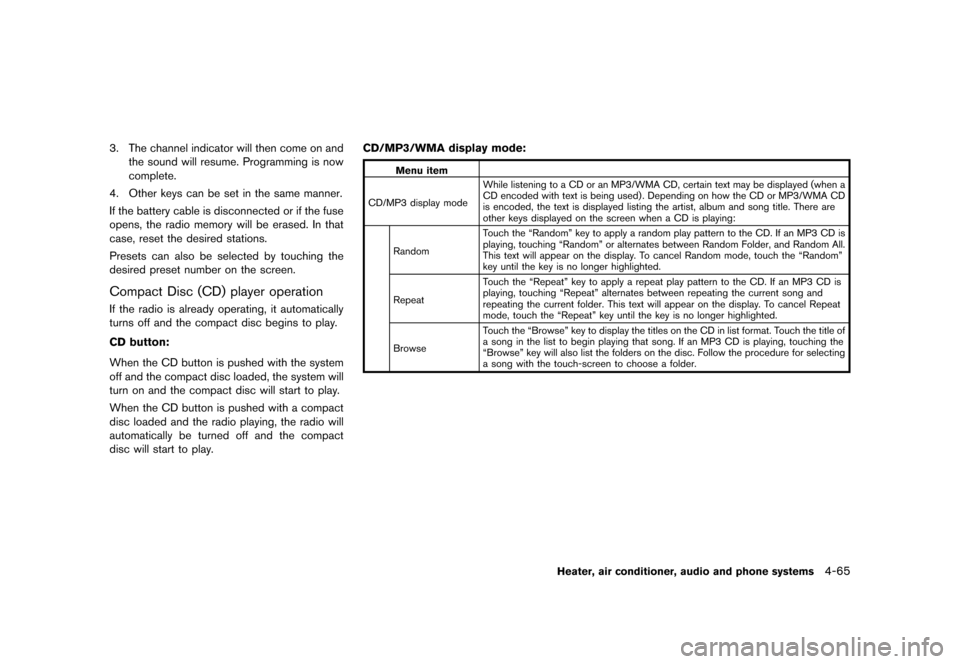

3. The channel indicator will then come on andthe sound will resume. Programming is now
complete.
4. Other keys can be set in the same manner.
If the battery cable is disconnected or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations.
Presets can also be selected by touching the
desired preset number on the screen.
Compact Disc (CD) player operationGUID-22B6B76F-6FCF-458E-A1BC-11D6DA23716DIf the radio is already operating, it automatically
turns off and the compact disc begins to play.
CD button:
GUID-F83C168B-173D-4313-B631-F712588C0463When the CD button is pushed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pushed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact
disc will start to play. CD/MP3/WMA display mode:
Menu item
CD/MP3 display mode While listening to a CD or an MP3/WMA CD, certain text may be displayed (when a
CD encoded with text is being used) . Depending on how the CD or MP3/WMA CD
is encoded, the text is displayed listing the artist, album and song title. There are
other keys displayed on the screen when a CD is playing:
Random Touch the ªRandomº key to apply a random play pattern to the CD. If an MP3 CD is
playing, touching ªRandomº or alternates between Random Folder, and Random All.
This text will appear on the display. To cancel Random mode, touch the ªRandomº
key until the key is no longer highlighted.
Repeat Touch the ªRepeatº key to apply a repeat play pattern to the CD. If an MP3 CD is
playing, touching ªRepeatº alternates between repeating the current song and
repeating the current folder. This text will appear on the display. To cancel Repeat
mode, touch the ªRepeatº key until the key is no longer highlighted.
Browse Touch the ªBrowseº key to display the titles on the CD in list format. Touch the title of
a song in the list to begin playing that song. If an MP3 CD is playing, touching the
ªBrowseº key will also list the folders on the disc. Follow the procedure for selecting
a song with the touch-screen to choose a folder.
Heater, air conditioner, audio and phone systems4-65
&RQGLWLRQ


> (GLW    0RGHO )' @

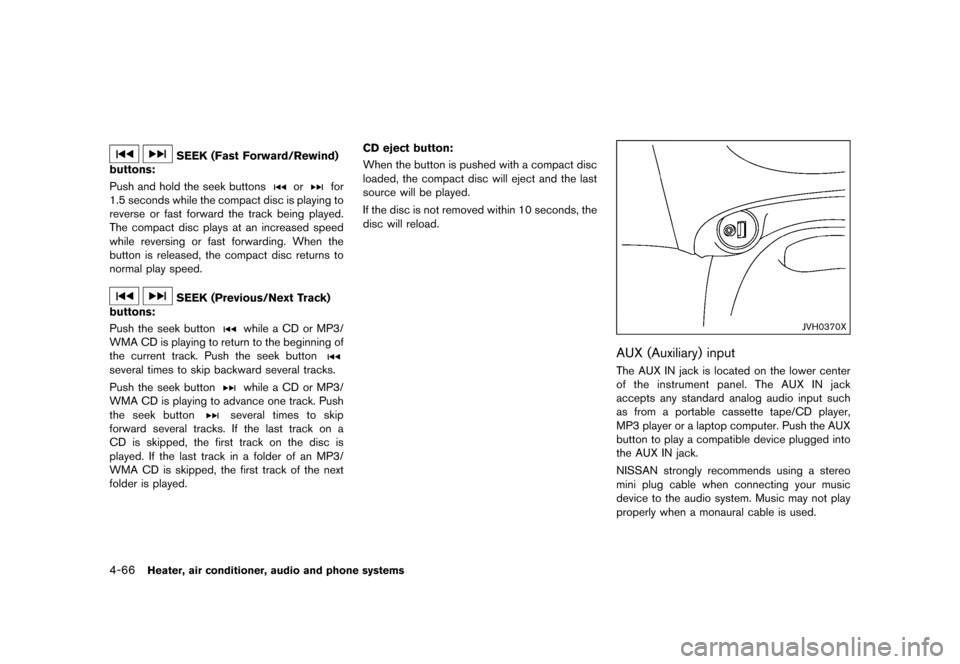

4-66Heater, air conditioner, audio and phone systems
SEEK (Fast Forward/Rewind)
buttons:
GUID-F83C168B-173D-4313-B631-F712588C0463Push and hold the seek buttonsorfor
1.5 seconds while the compact disc is playing to
reverse or fast forward the track being played.
The compact disc plays at an increased speed
while reversing or fast forwarding. When the
button is released, the compact disc returns to
normal play speed.
SEEK (Previous/Next Track)
buttons:
GUID-F83C168B-173D-4313-B631-F712588C0463Push the seek buttonwhile a CD or MP3/
WMA CD is playing to return to the beginning of
the current track. Push the seek button
several times to skip backward several tracks.
Push the seek button
while a CD or MP3/
WMA CD is playing to advance one track. Push
the seek button
several times to skip
forward several tracks. If the last track on a
CD is skipped, the first track on the disc is
played. If the last track in a folder of an MP3/
WMA CD is skipped, the first track of the next
folder is played. CD eject button:
GUID-F83C168B-173D-4313-B631-F712588C0463When the button is pushed with a compact disc
loaded, the compact disc will eject and the last
source will be played.
If the disc is not removed within 10 seconds, the
disc will reload.
JVH0370X
AUX (Auxiliary) inputGUID-A871C1F0-42F3-402B-849C-74B6117EE37FThe AUX IN jack is located on the lower center
of the instrument panel. The AUX IN jack
accepts any standard analog audio input such
as from a portable cassette tape/CD player,
MP3 player or a laptop computer. Push the AUX
button to play a compatible device plugged into
the AUX IN jack.
NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.
&RQGLWLRQ


> (GLW    0RGHO )' @

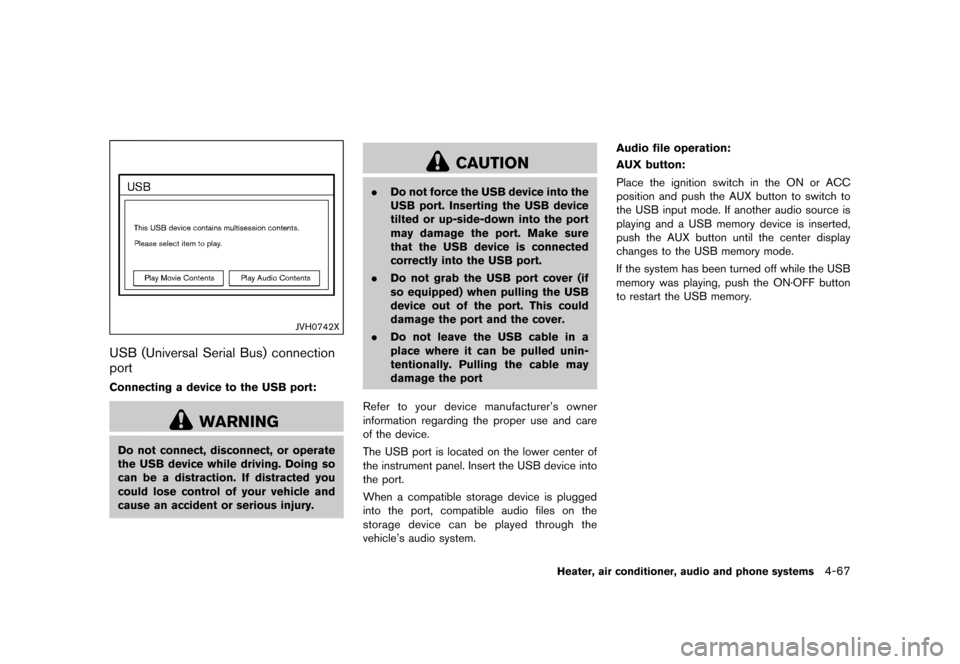

JVH0742X
USB (Universal Serial Bus) connection
port
GUID-55592140-0251-4082-9B9B-66E35E1E6B02
Connecting a device to the USB port:GUID-F83C168B-173D-4313-B631-F712588C0463
WARNING
Do not connect, disconnect, or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
The USB port is located on the lower center of
the instrument panel. Insert the USB device into
the port.
When a compatible storage device is plugged
into the port, compatible audio files on the
storage device can be played through the
vehicle's audio system. Audio file operation:
GUID-F83C168B-173D-4313-B631-F712588C0463AUX button:
Place the ignition switch in the ON or ACC
position and push the AUX button to switch to
the USB input mode. If another audio source is
playing and a USB memory device is inserted,
push the AUX button until the center display
changes to the USB memory mode.
If the system has been turned off while the USB
memory was playing, push the ON´OFF button
to restart the USB memory.
Heater, air conditioner, audio and phone systems4-67
&RQGLWLRQ


> (GLW    0RGHO )' @

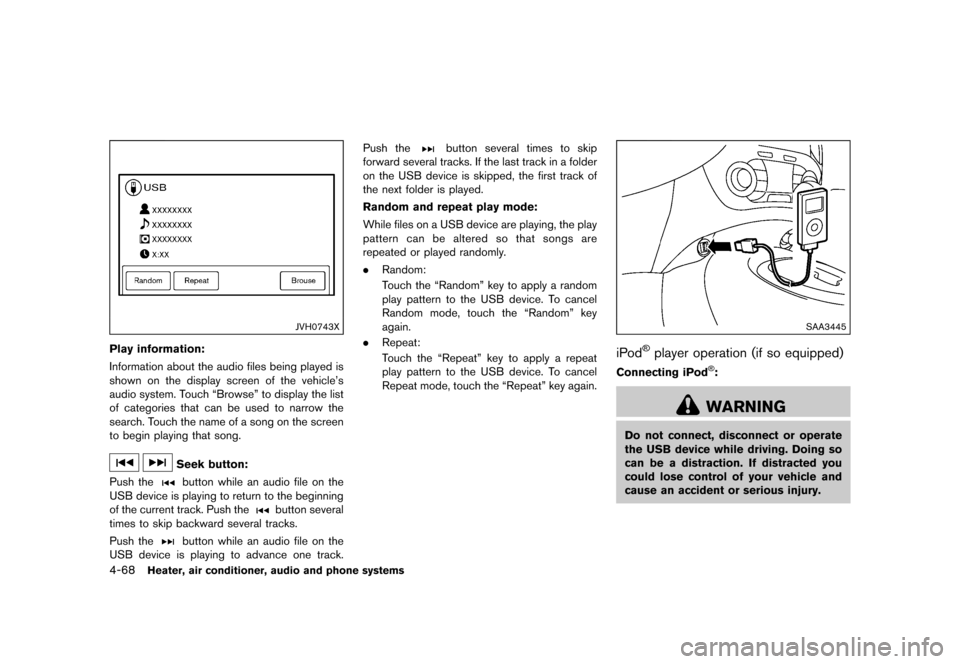

4-68Heater, air conditioner, audio and phone systems
JVH0743X
Play information:
Information about the audio files being played is
shown on the display screen of the vehicle's
audio system. Touch ªBrowseº to display the list
of categories that can be used to narrow the
search. Touch the name of a song on the screen
to begin playing that song.
Seek button:
Push the
button while an audio file on the
USB device is playing to return to the beginning
of the current track. Push the
button several
times to skip backward several tracks.
Push the
button while an audio file on the
USB device is playing to advance one track. Push the
button several times to skip
forward several tracks. If the last track in a folder
on the USB device is skipped, the first track of
the next folder is played.
Random and repeat play mode:
While files on a USB device are playing, the play
pattern can be altered so that songs are
repeated or played randomly.
. Random:
Touch the ªRandomº key to apply a random
play pattern to the USB device. To cancel
Random mode, touch the ªRandomº key
again.
. Repeat:
Touch the ªRepeatº key to apply a repeat
play pattern to the USB device. To cancel
Repeat mode, touch the ªRepeatº key again.
SAA3445
iPod


> (GLW    0RGHO )' @

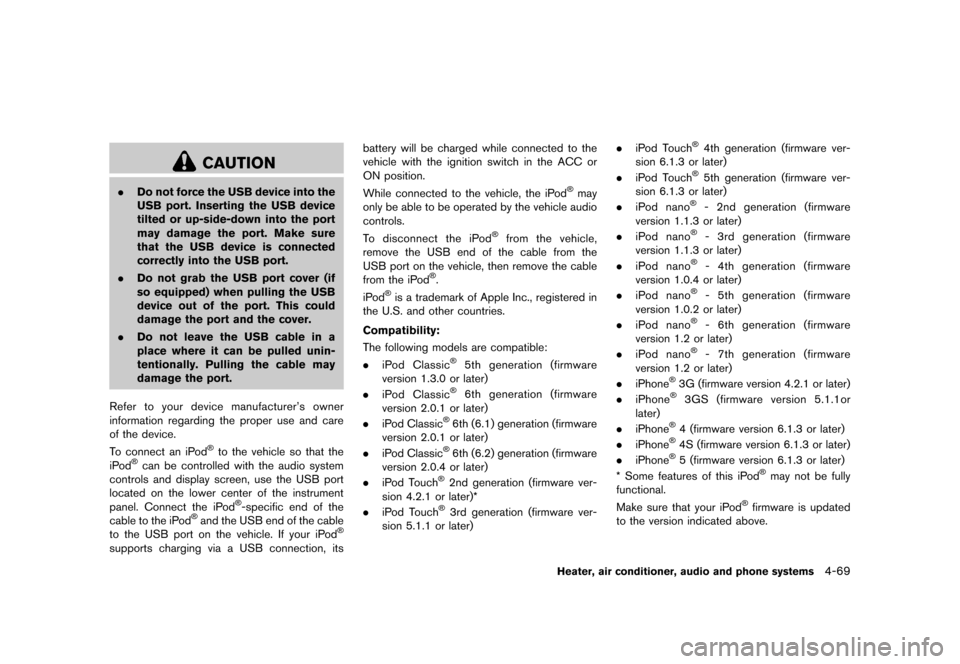

CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
To connect an iPod


> (GLW    0RGHO )' @

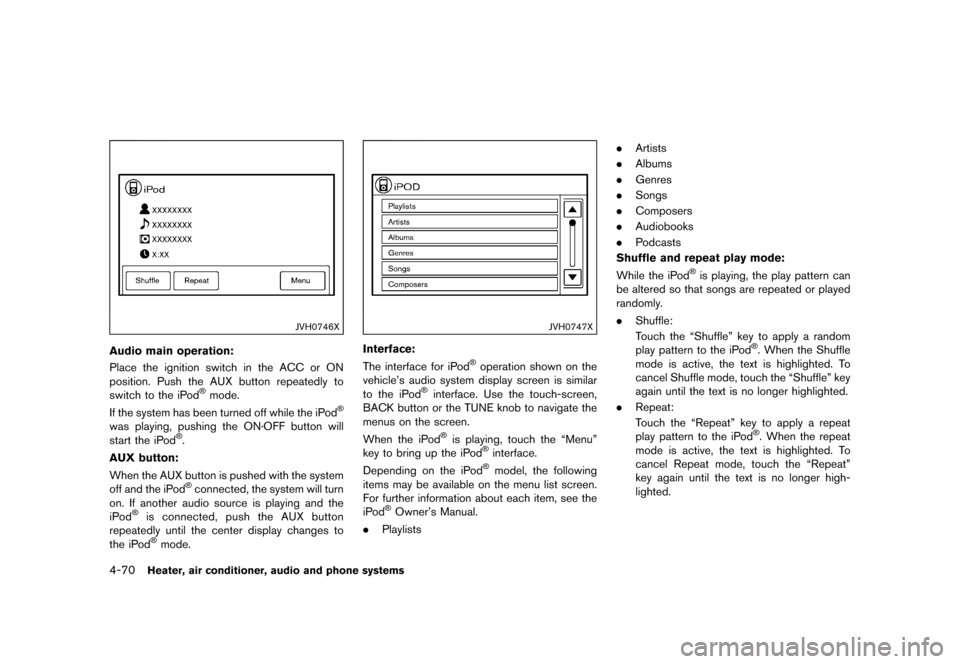

4-70Heater, air conditioner, audio and phone systems
JVH0746X
Audio main operation:GUID-F83C168B-173D-4313-B631-F712588C0463Place the ignition switch in the ACC or ON
position. Push the AUX button repeatedly to
switch to the iPod
