2016 NISSAN JUKE Owners Manual


> (GLW    0RGHO )' @

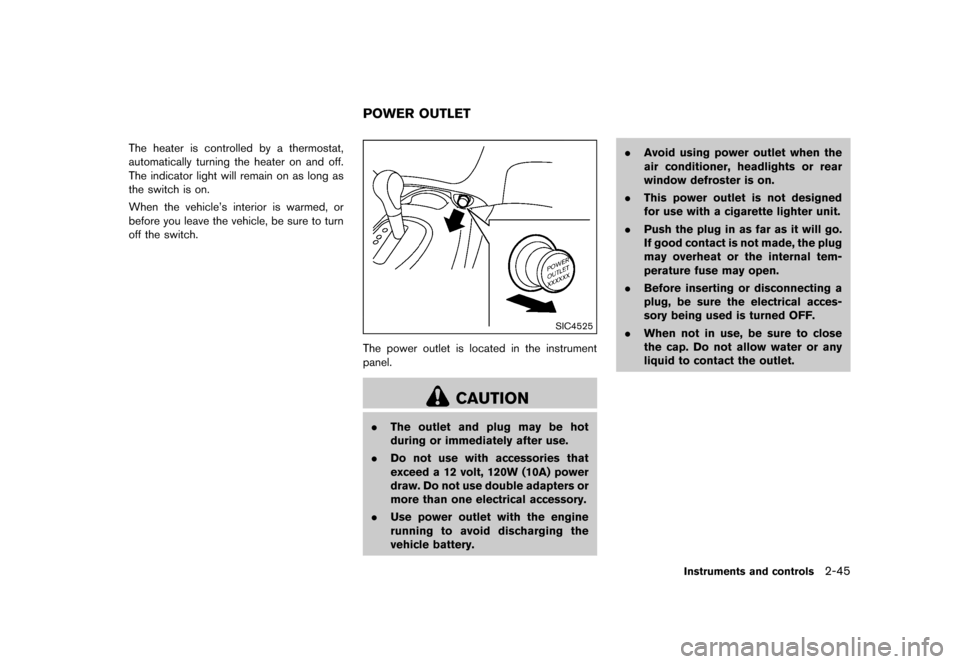

The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle's interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
GUID-850FEE13-D4FF-4D25-97B5-E92230D21302
SIC4525
The power outlet is located in the instrument
panel.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery. .
Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
Instruments and controls2-45
POWER OUTLET
&RQGLWLRQ


> (GLW    0RGHO )' @
2-46Instruments and controls

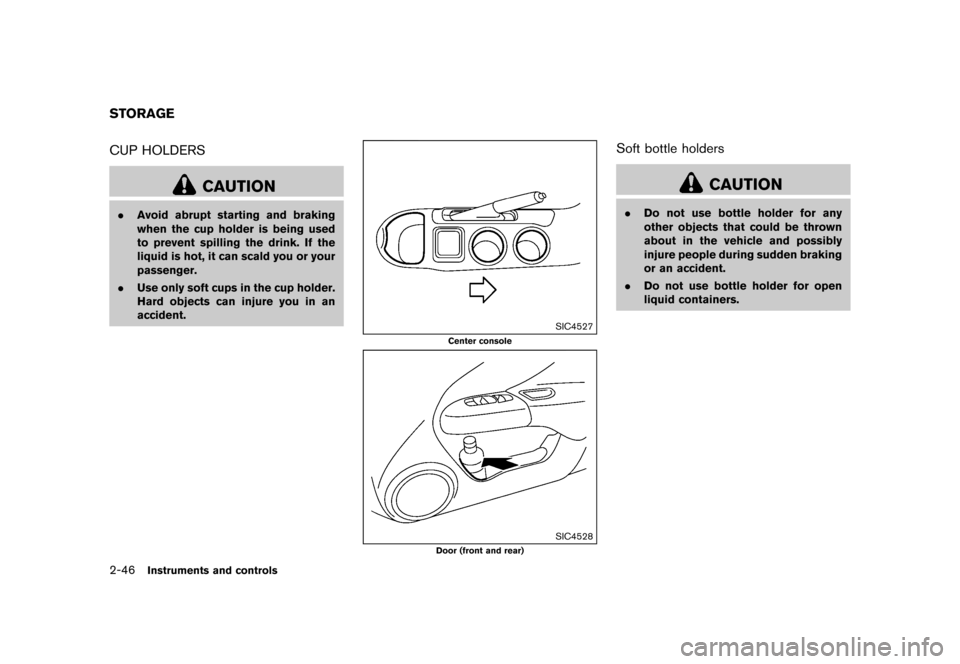

GUID-11FFEB74-6D4E-4717-B00A-F5FBAB2E5908CUP HOLDERSGUID-FC8FAFBC-BCD6-43B2-98A8-26203EF5F9DB
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC4527
Center console
SIC4528
Door (front and rear)
Soft bottle holdersGUID-1A4FBEC5-2F7E-4330-AFDC-3E00F421B6AB
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.
. Do not use bottle holder for open
liquid containers.
STORAGE
&RQGLWLRQ


> (GLW    0RGHO )' @
SIC4529

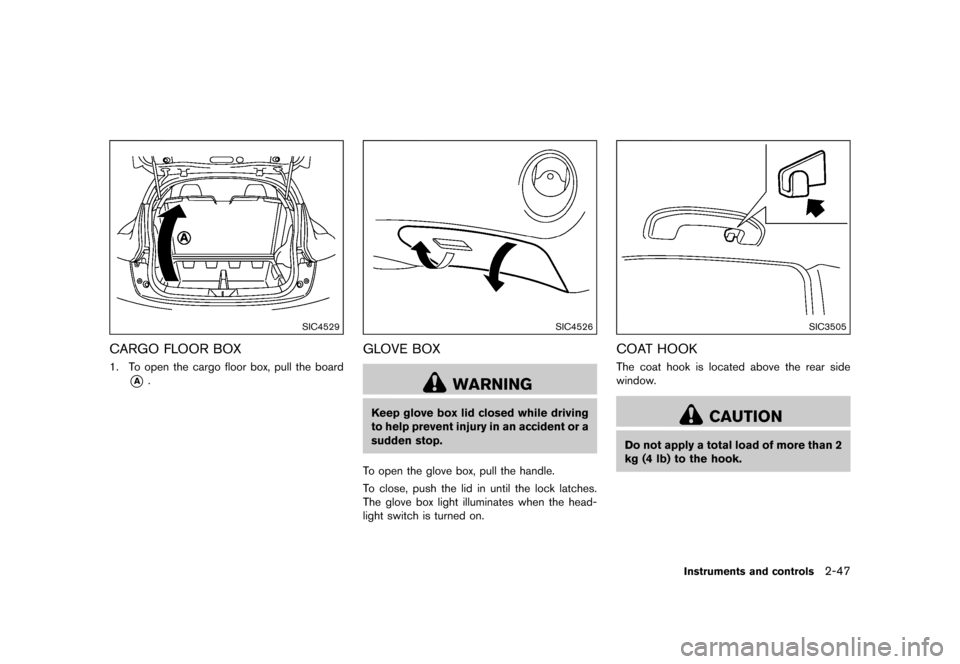

CARGO FLOOR BOXGUID-45F8D0E0-09C1-4BF0-AFEC-F04387391A771. To open the cargo floor box, pull the board
*A.
SIC4526
GLOVE BOXGUID-EA635502-9936-47A9-B2CA-4F1ACC30F00B
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle.
To close, push the lid in until the lock latches.
The glove box light illuminates when the head-
light switch is turned on.
SIC3505
COAT HOOKGUID-8181D445-70B5-442B-A1BA-CF086D65AB6DThe coat hook is located above the rear side
window.
CAUTION
Do not apply a total load of more than 2
kg (4 lb) to the hook.
Instruments and controls2-47
&RQGLWLRQ


> (GLW    0RGHO )' @
2-48Instruments and controls

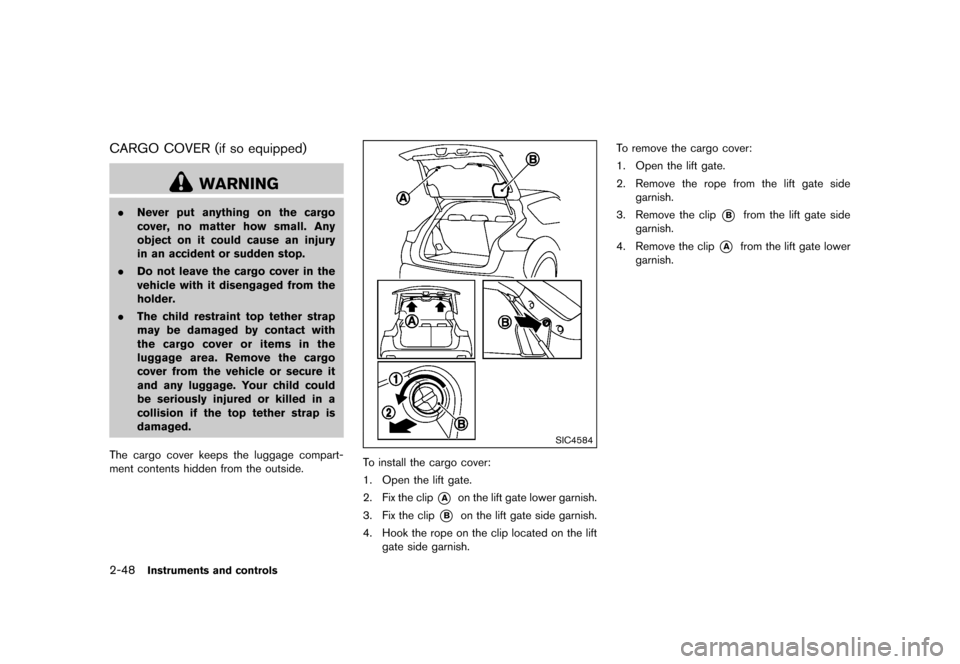

CARGO COVER (if so equipped)GUID-B2FCE0EE-8505-4710-86C2-50A0D5588C33
WARNING
.Never put anything on the cargo
cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.
. Do not leave the cargo cover in the
vehicle with it disengaged from the
holder.
. The child restraint top tether strap
may be damaged by contact with
the cargo cover or items in the
luggage area. Remove the cargo
cover from the vehicle or secure it
and any luggage. Your child could
be seriously injured or killed in a
collision if the top tether strap is
damaged.
The cargo cover keeps the luggage compart-
ment contents hidden from the outside.
SIC4584
To install the cargo cover:
1. Open the lift gate.
2. Fix the clip
*Aon the lift gate lower garnish.
3. Fix the clip
*Bon the lift gate side garnish.
4. Hook the rope on the clip located on the lift gate side garnish. To remove the cargo cover:
1. Open the lift gate.
2. Remove the rope from the lift gate side
garnish.
3. Remove the clip
*Bfrom the lift gate side
garnish.
4. Remove the clip
*Afrom the lift gate lower
garnish.
&RQGLWLRQ


> (GLW    0RGHO )' @

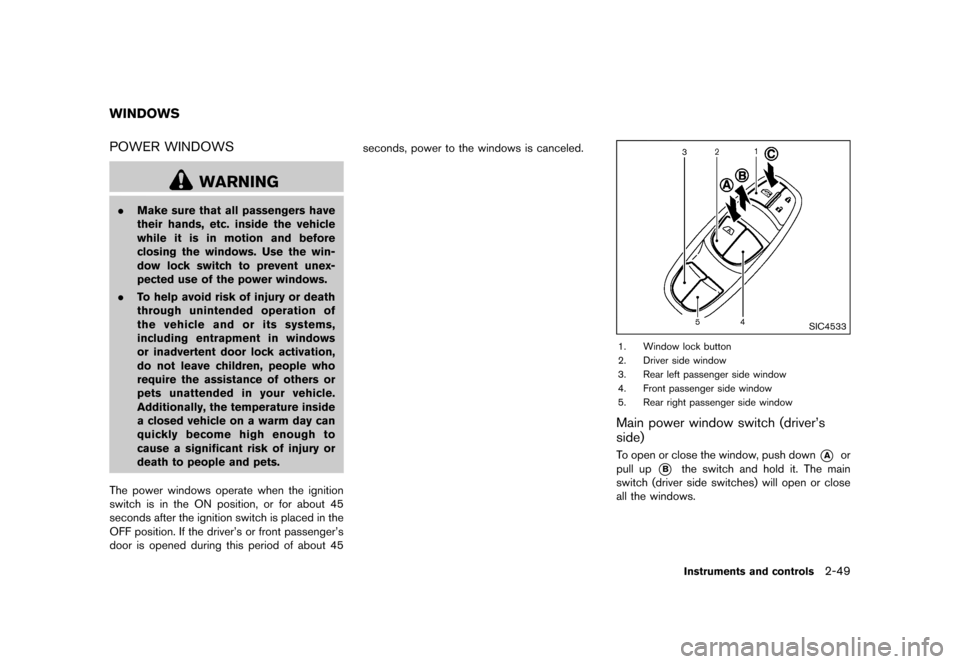

GUID-ECC58B2D-F250-41F5-B8E8-7EBD4B79C5CAPOWER WINDOWSGUID-6A23709F-5277-4229-B1AD-2B7DC859B673
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. To help avoid risk of injury or death
through unintended operation of
the vehicle and or its systems,
including entrapment in windows
or inadvertent door lock activation,
do not leave children, people who
require the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
The power windows operate when the ignition
switch is in the ON position, or for about 45
seconds after the ignition switch is placed in the
OFF position. If the driver's or front passenger's
door is opened during this period of about 45 seconds, power to the windows is canceled.
SIC4533
1. Window lock button
2. Driver side window
3. Rear left passenger side window
4. Front passenger side window
5. Rear right passenger side window
Main power window switch (driver's
side)
GUID-F0D006F2-BA97-4BA8-9004-BA0E645371B0To open or close the window, push down*Aor
pull up
*Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Instruments and controls2-49
WINDOWS
&RQGLWLRQ


> (GLW    0RGHO )' @
2-50Instruments and controls

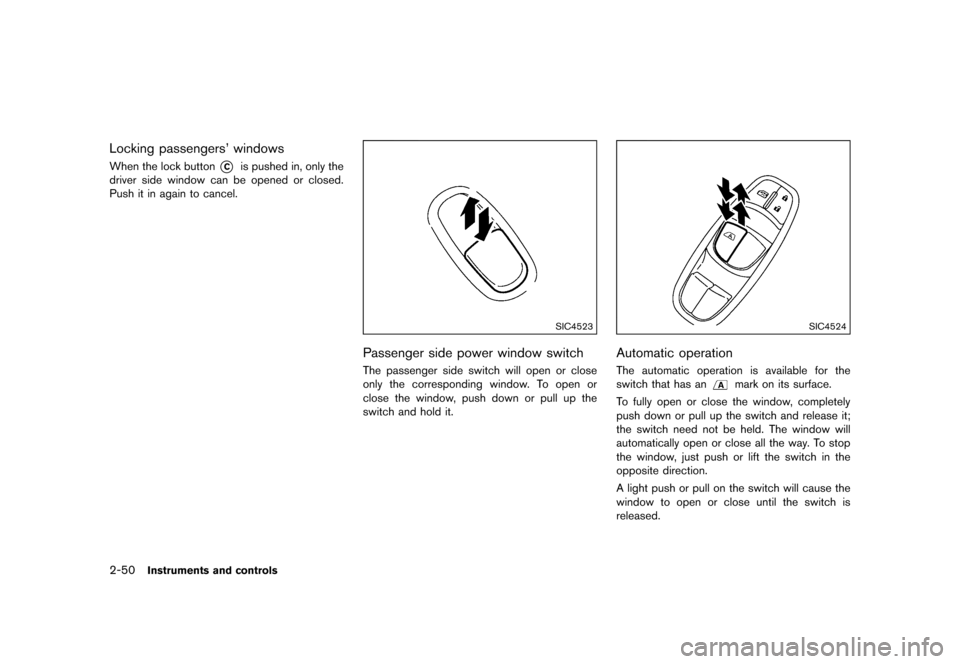

Locking passengers' windowsGUID-B7C9C0EE-B507-4E3B-AA5E-FBE98158A1B8When the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC4523
Passenger side power window switchGUID-04E2B8E0-31B6-4403-9F3E-482646F08AA7The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC4524
Automatic operationGUID-F2AEDE5F-326B-4FB9-9763-AE7CE69B0980The automatic operation is available for the
switch that has an
mark on its surface.
To fully open or close the window, completely
push down or pull up the switch and release it;
the switch need not be held. The window will
automatically open or close all the way. To stop
the window, just push or lift the switch in the
opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
&RQGLWLRQ


> (GLW    0RGHO )' @

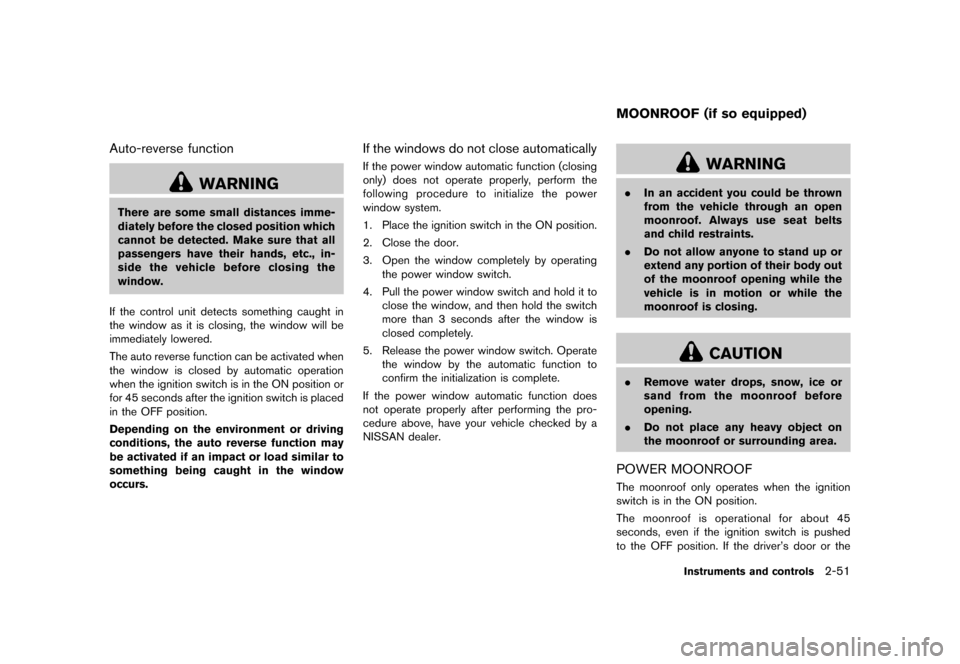

Auto-reverse functionGUID-C5187523-35D8-44E8-9700-CA4CAB34864E
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is placed
in the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
If the windows do not close automaticallyGUID-B6340D93-45A3-48B4-BE8B-20DD3A8E0867If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Place the ignition switch in the ON position.
2. Close the door.
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
GUID-763E28EB-A953-4A35-A10F-6F137F82E26B
WARNING
. In an accident you could be thrown
from the vehicle through an open
moonroof. Always use seat belts
and child restraints.
. Do not allow anyone to stand up or
extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.
CAUTION
.Remove water drops, snow, ice or
sand from the moonroof before
opening.
. Do not place any heavy object on
the moonroof or surrounding area.
POWER MOONROOFGUID-60D1BFD6-832F-432D-8BEE-8F0AE9FFB2B4The moonroof only operates when the ignition
switch is in the ON position.
The moonroof is operational for about 45
seconds, even if the ignition switch is pushed
to the OFF position. If the driver's door or the
Instruments and controls2-51
MOONROOF (if so equipped)
&RQGLWLRQ


> (GLW    0RGHO )' @
2-52Instruments and controls

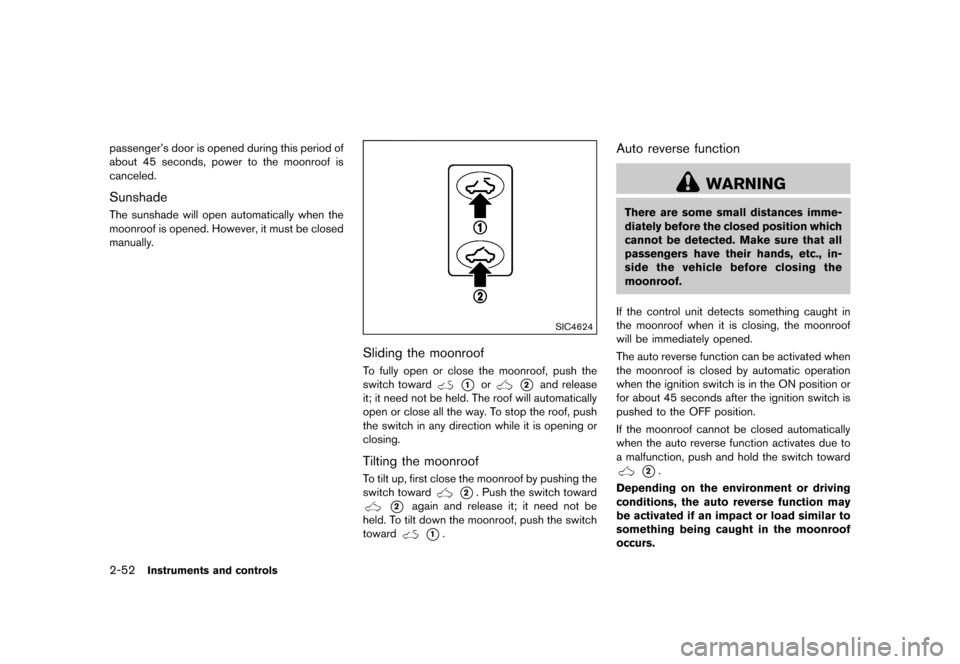

passenger's door is opened during this period of
about 45 seconds, power to the moonroof is
canceled.
SunshadeGUID-F2AE68AD-35BC-4AA8-83C0-4AA506392BF1The sunshade will open automatically when the
moonroof is opened. However, it must be closed
manually.
SIC4624
Sliding the moonroofGUID-F85D3D5F-862B-4CED-BA76-75CBE0FDAF74To fully open or close the moonroof, push the
switch toward
*1or*2and release
it; it need not be held. The roof will automatically
open or close all the way. To stop the roof, push
the switch in any direction while it is opening or
closing.
Tilting the moonroofGUID-5A375FB1-2459-4E69-B8C9-A8D87A6925A0To tilt up, first close the moonroof by pushing the
switch toward
*2. Push the switch toward
*2again and release it; it need not be
held. To tilt down the moonroof, push the switch
toward
*1.
Auto reverse functionGUID-05D9BD58-A278-4709-A03A-80DC088F07EC
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.
If the control unit detects something caught in
the moonroof when it is closing, the moonroof
will be immediately opened.
The auto reverse function can be activated when
the moonroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
pushed to the OFF position.
If the moonroof cannot be closed automatically
when the auto reverse function activates due to
a malfunction, push and hold the switch toward
*2.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
