> (GLW    0RGHO )' @
occurs in the system, the VDC system function
will be canceled but the vehicle is still driveable.
For additional information, see ªVehicle Dynamic
Control (VDC) systemº (P.5-37) of this manual.
INDICATOR LIGHTSGUID-1EB9AC97-06B3-4B85-A8DE-4194674FC033
All-Wheel Drive (AWD) indicator
light (AWD model)
GUID-2CD1DBFF-7E1B-4E8B-81ED-33ED676273ACWhen the ignition switch is in the ªONº position,
the All-Wheel Drive (AWD) indicator light
illuminates and then turns off.
When selecting AWD mode while the engine is
running, the AWD indicator light illuminates.
(See ªAll-Wheel Drive (AWD)º (P.5-29) .)
All-Wheel Drive (AWD-V) indicator
light (AWD model)
GUID-8C9048F9-278F-4025-8E3B-A286975CAA94When selecting AWD-V mode while the engine
is running, the AWD-V indicator light illuminates.
(See ªAll-Wheel Drive (AWD)º (P.5-29) .)
Continuously Variable Transmis-
sion (CVT) indicator light (if so equipped)
GUID-89513D09-6BB2-4811-B6B0-1034600701FFWhen the ignition switch is in the ªONº position,
the Continuously Variable Transmission (CVT)
indicator light illuminates and then turns off.
Cruise indicator lightGUID-9865425F-C266-446A-895C-23335FF057AB
Cruise main switch indicator:GUID-F83C168B-173D-4313-B631-F712588C0463This light illuminates when the cruise control
main switch is pushed. The light turns off when
the main switch is pushed again. When the
cruise indicator light illuminates, the cruise
control system is operational.
Cruise malfunction:
GUID-F83C168B-173D-4313-B631-F712588C0463If the cruise indicator light blinks while the
engine is running, it may indicate the cruise
control system is not functioning properly. Have
the system checked by a NISSAN dealer.
See ªCruise controlº (P.5-26).
Engine start operation indicator
light
GUID-1D3C34B9-B054-4186-8E35-F8A348777616This light appears when the shift lever is in the P
(Park) position (Continuously Variable Transmis-
sion (CVT) models) or N (Neutral) position
(Manual Transmission (MT) models) . This light
means that the engine will start by pushing the
ignition switch with the brake pedal (CVT
models) or clutch pedal (MT models) depressed.
You can start the engine directly in any position.
Exterior light indicatorGUID-B9DA9F59-94DD-479E-A4ED-F9B3237B5784This indicator illuminates when the headlight
switch is turned to the AUTO (if so equipped) ,
orposition and the front parking lights,
instrument panel lights, rear combination lights,
license plate lights or headlights are on. The
indicator turns off when these lights are turned
off.
Front fog light indicator light (if so
equipped)
GUID-ECA6061B-E0DA-42FF-A867-06F30FCFAD0DThe front fog light indicator light illuminates
when the front fog lights are on. (See ªFog light
switchº (P.2-43) .)
Front passenger air bag status lightGUID-D784181C-CA8B-4A88-9F16-58F3364EFA8AThe front passenger air bag status light (located
on the center of the instrument panel) will be lit
and the passenger front air bag will be OFF
depending on how the front passenger seat is
being used.
For front passenger air bag status light opera-
tion, see ªNISSAN Advanced Air Bag System
(front seats)º (P.1-44) of this manual.
Instruments and controls2-21
&RQGLWLRQ


> (GLW    0RGHO )' @
2-22Instruments and controls

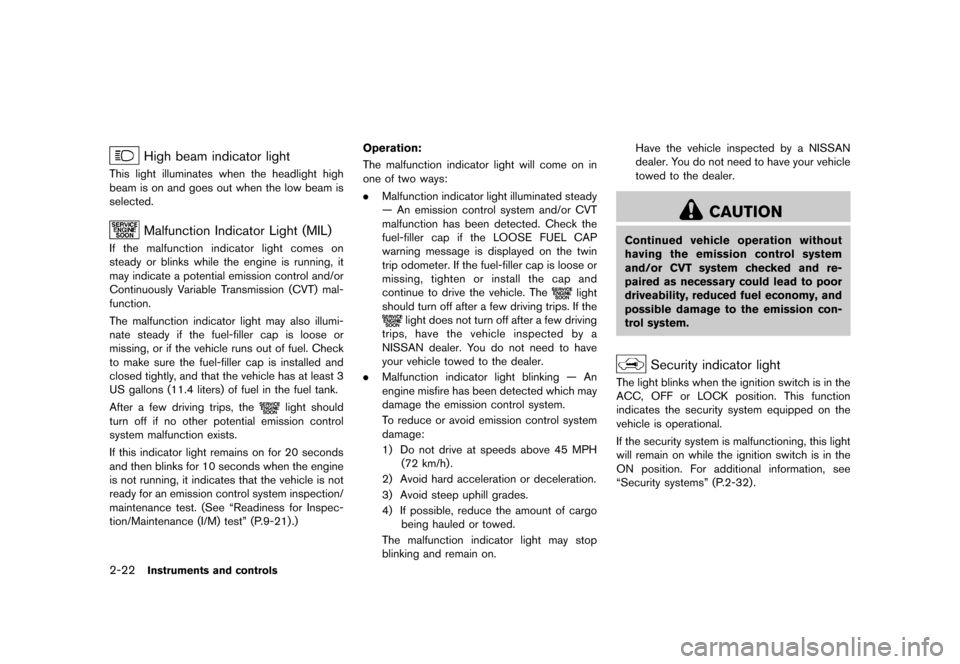

High beam indicator lightGUID-849B231E-AF14-45BE-A788-A0C55B5A4C93This light illuminates when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction Indicator Light (MIL)GUID-105F7DF5-6121-4EF4-AFAC-8D8C431A8A2EIf the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
Continuously Variable Transmission (CVT) mal-
function.
The malfunction indicator light may also illumi-
nate steady if the fuel-filler cap is loose or
missing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
closed tightly, and that the vehicle has at least 3
US gallons (11.4 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See ªReadiness for Inspec-
tion/Maintenance (I/M) testº (P.9-21) .) Operation:
GUID-F83C168B-173D-4313-B631-F712588C0463The malfunction indicator light will come on in
one of two ways:
.
Malfunction indicator light illuminated steady
Ð An emission control system and/or CVT
malfunction has been detected. Check the
fuel-filler cap if the LOOSE FUEL CAP
warning message is displayed on the twin
trip odometer. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light
should turn off after a few driving trips. If the
light does not turn off after a few driving
trips, have the vehicle inspected by a
NISSAN dealer. You do not need to have
your vehicle towed to the dealer.
. Malfunction indicator light blinking Ð An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
1) Do not drive at speeds above 45 MPH
(72 km/h) .
2) Avoid hard acceleration or deceleration.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on. Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
and/or CVT system checked and re-
paired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission con-
trol system.
Security indicator lightGUID-5BBF01E2-3135-4B2A-BA68-00E15944E42AThe light blinks when the ignition switch is in the
ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this light
will remain on while the ignition switch is in the
ON position. For additional information, see
ªSecurity systemsº (P.2-32) .
&RQGLWLRQ


> (GLW    0RGHO )' @
Turn signal/hazard indicator lightsGUID-938BCB58-C7D0-4656-B2E2-A3F2D5C472C5The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC) off
indicator light
GUID-BBD2CFDF-7486-4847-A2BC-6E127444B584When the ignition switch is in the ªONº position,
the Vehicle Dynamic Control (VDC) off indicator
light illuminates and then turns off.
The light comes on when the Vehicle Dynamic
Control (VDC) off switch is pushed to OFF. This
indicates that the VDC system and traction
control system are not operating.
AUDIBLE REMINDERSGUID-42904A1A-6A75-4B8C-8F34-6D9818D98A82
Key reminder chimeGUID-32BD73EC-E7A4-4435-A048-B7769B717D08A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position.
Make sure the ignition switch is pushed to the
OFF position, and take the Intelligent Key with
you when leaving the vehicle.
Light reminder chimeGUID-72168721-DFA8-448A-961A-A3FACAB0A8E3The light reminder chime will sound when the
driver side door is opened with the headlight
switch in the
orposition, and the
ignition switch is in the ACC, OFF or LOCK
position.
Turn the light switch off when you leave the
vehicle.
Brake pad wear warningGUID-EF2EB7E0-B227-4E63-9DC8-B730CC13FB1BThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
Parking brake reminder chimeGUID-8853279F-1AD6-47C7-B9A8-09A67EC2B7BEThe parking brake reminder chime will sound if
the vehicle is driven at more than 4 MPH (7
km/h) with the parking brake applied. Stop the
vehicle and release the parking brake.
Seat belt warning chimeGUID-F9E8997E-7A88-4D30-B477-C791A79F8575The seat belt warning chime will sound for about
6 seconds unless the driver's seat belt is
securely fastened.
Instruments and controls2-23
&RQGLWLRQ


> (GLW    0RGHO )' @
2-24Instruments and controls

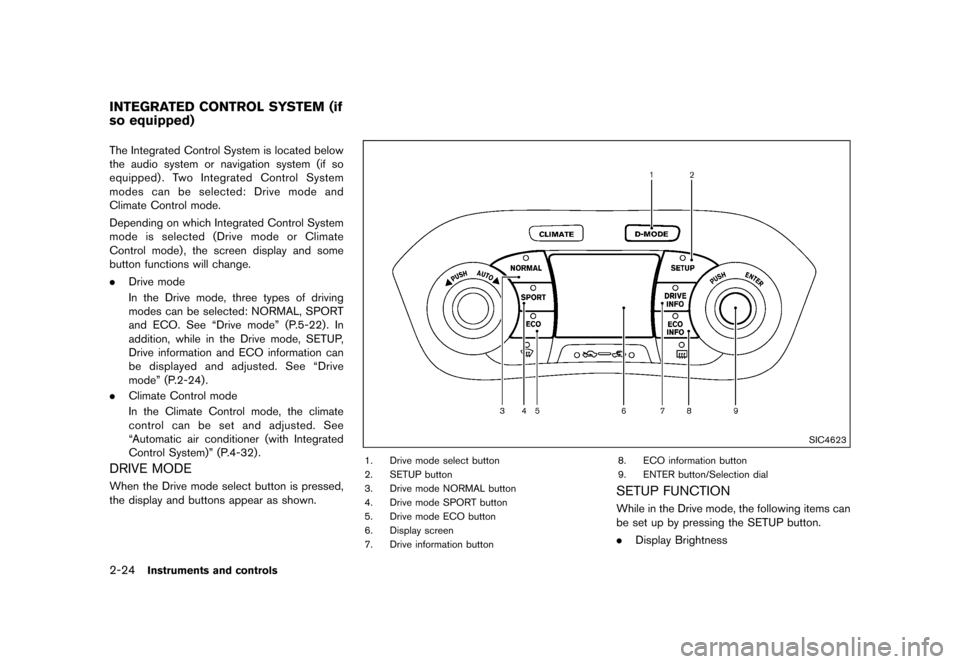

GUID-F75DC192-4AA8-4A55-AE59-59A76A90EBC4The Integrated Control System is located below
the audio system or navigation system (if so
equipped) . Two Integrated Control System
modes can be selected: Drive mode and
Climate Control mode.
Depending on which Integrated Control System
mode is selected (Drive mode or Climate
Control mode) , the screen display and some
button functions will change.
.Drive mode
In the Drive mode, three types of driving
modes can be selected: NORMAL, SPORT
and ECO. See ªDrive modeº (P.5-22). In
addition, while in the Drive mode, SETUP,
Drive information and ECO information can
be displayed and adjusted. See ªDrive
modeº (P.2-24) .
. Climate Control mode
In the Climate Control mode, the climate
control can be set and adjusted. See
ªAutomatic air conditioner (with Integrated
Control System)º (P.4-32) .
DRIVE MODEGUID-8018E7B4-28B9-4333-857E-2A3D1B7D7F1BWhen the Drive mode select button is pressed,
the display and buttons appear as shown.
SIC4623
1. Drive mode select button
2. SETUP button
3. Drive mode NORMAL button
4. Drive mode SPORT button
5. Drive mode ECO button
6. Display screen
7. Drive information button 8. ECO information button
9. ENTER button/Selection dial
SETUP FUNCTIONGUID-5B5DBB47-0C64-4C41-8AF1-443319848F1AWhile in the Drive mode, the following items can
be set up by pressing the SETUP button.
.
Display Brightness
INTEGRATED CONTROL SYSTEM (if
so equipped)
&RQGLWLRQ


> (GLW    0RGHO )' @

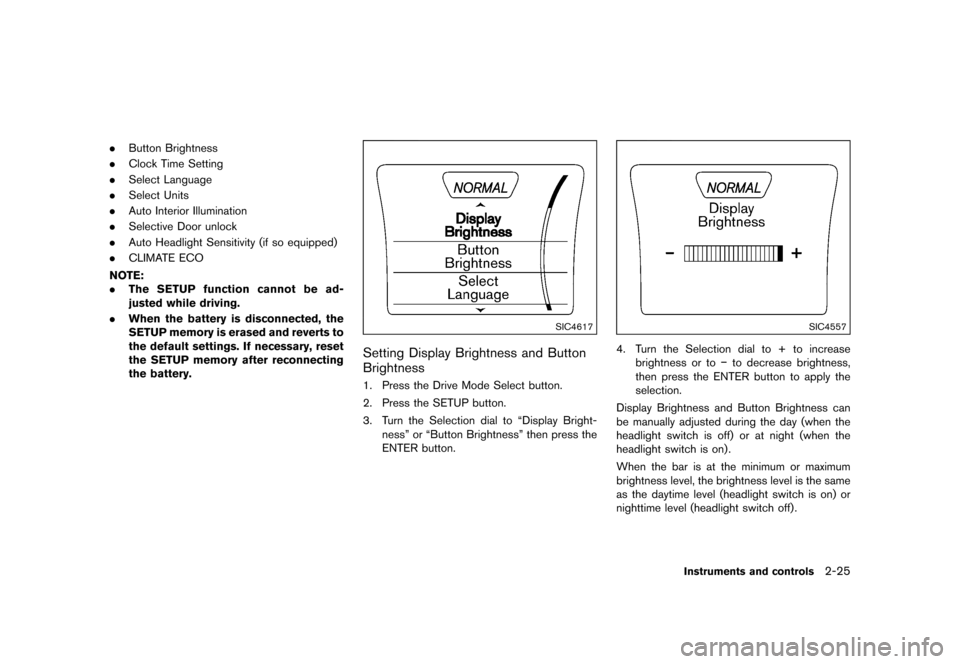

.Button Brightness
. Clock Time Setting
. Select Language
. Select Units
. Auto Interior Illumination
. Selective Door unlock
. Auto Headlight Sensitivity (if so equipped)
. CLIMATE ECO
NOTE:
. The SETUP function cannot be ad-
justed while driving.
. When the battery is disconnected, the
SETUP memory is erased and reverts to
the default settings. If necessary, reset
the SETUP memory after reconnecting
the battery.
SIC4617
Setting Display Brightness and Button
Brightness
GUID-27E9F256-C04B-4006-9271-055B958717481. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to ªDisplay Bright-
nessº or ªButton Brightnessº then press the
ENTER button.
SIC4557
4. Turn the Selection dial to + to increasebrightness or to


> (GLW    0RGHO )' @
2-26Instruments and controls

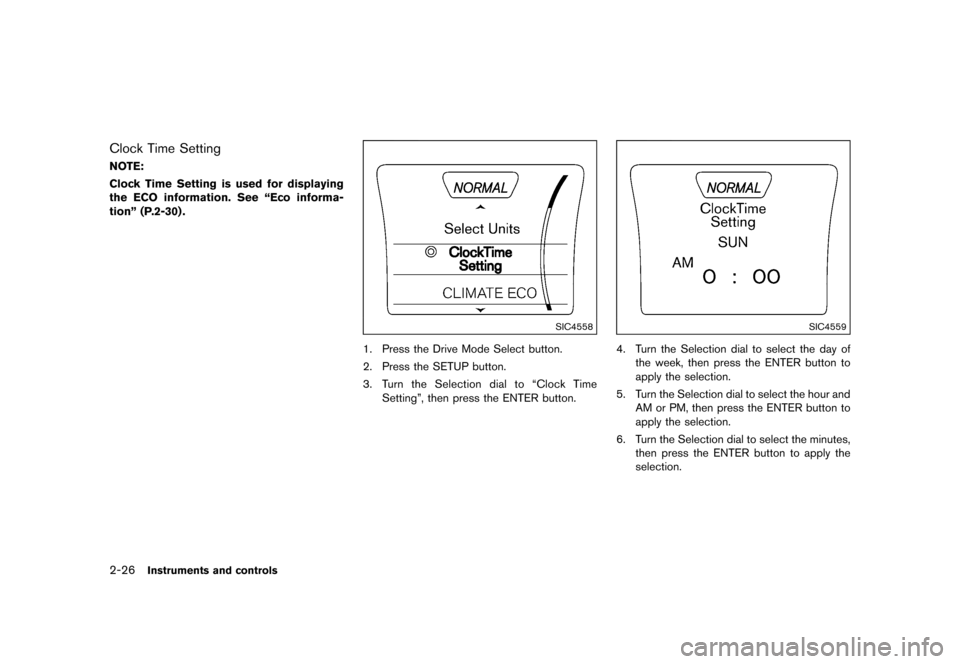

Clock Time SettingGUID-2812E6D3-7933-4DFF-89C0-F87C59706668NOTE:
Clock Time Setting is used for displaying
the ECO information. See ªEco informa-
tionº (P.2-30) .
SIC4558
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3.Turn the Selection dial to ªClock Time
Settingº, then press the ENTER button.
SIC4559
4. Turn the Selection dial to select the day of
the week, then press the ENTER button to
apply the selection.
5. Turn the Selection dial to select the hour and AM or PM, then press the ENTER button to
apply the selection.
6. Turn the Selection dial to select the minutes, then press the ENTER button to apply the
selection.
&RQGLWLRQ


> (GLW    0RGHO )' @

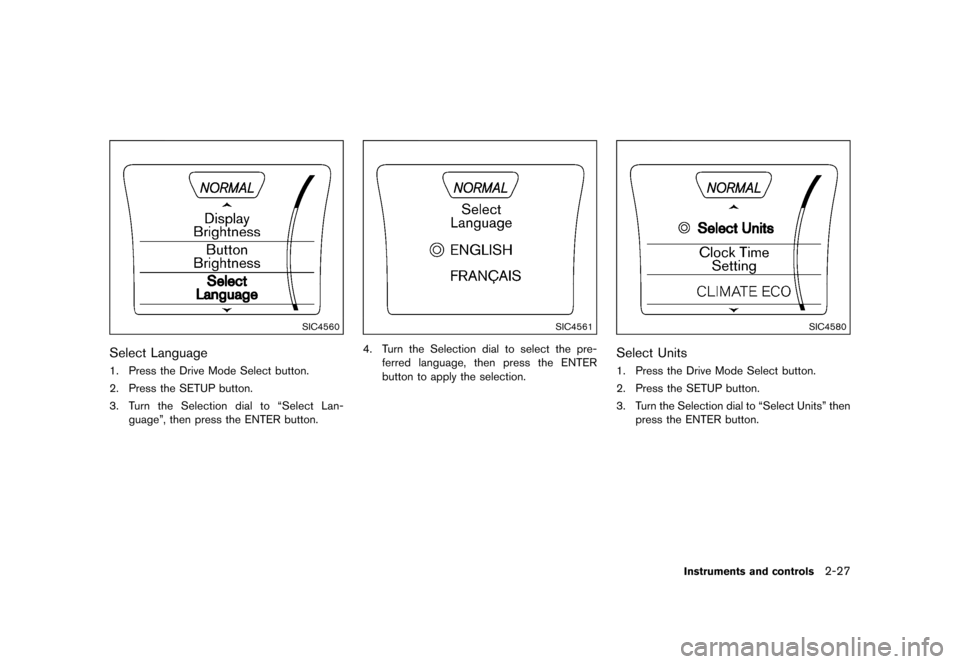

SIC4560
Select LanguageGUID-BEC48047-A67F-46E3-90C7-828B6A0EEAA11. Press the Drive Mode Select button.
2. Press the SETUP button.
3.Turn the Selection dial to ªSelect Lan-
guageº, then press the ENTER button.
SIC4561
4. Turn the Selection dial to select the pre-
ferred language, then press the ENTER
button to apply the selection.
SIC4580
Select UnitsGUID-774E4284-E836-45B2-9C03-2EB133B47B951. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to ªSelect Unitsº thenpress the ENTER button.
Instruments and controls2-27
&RQGLWLRQ


> (GLW    0RGHO )' @

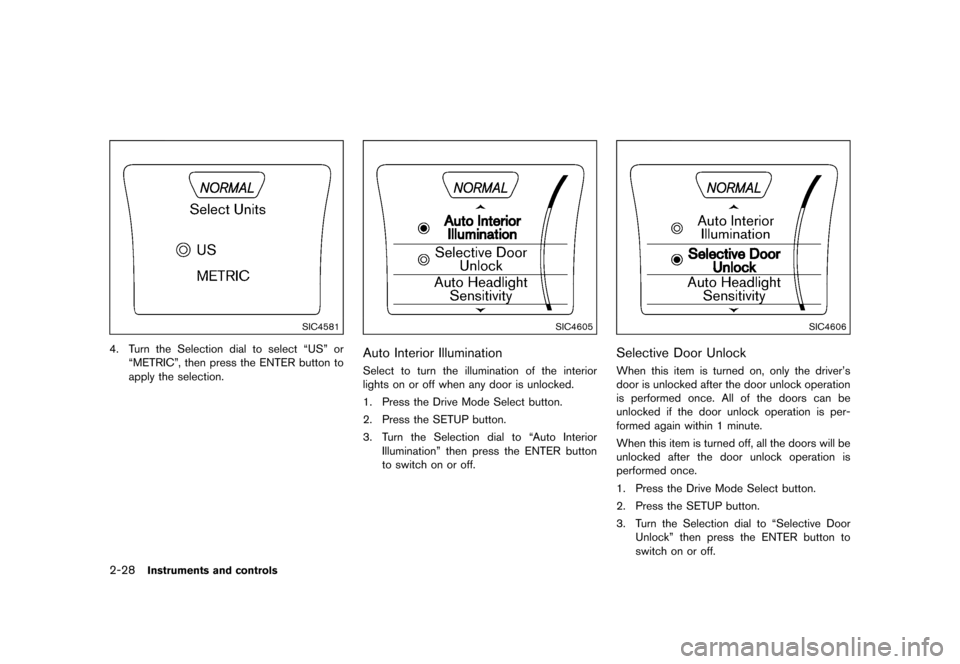

2-28Instruments and controls
SIC4581
4. Turn the Selection dial to select ªUSº orªMETRICº, then press the ENTER button to
apply the selection.
SIC4605
Auto Interior IlluminationGUID-73C0C534-32F7-4478-94B8-BD493A21A348Select to turn the illumination of the interior
lights on or off when any door is unlocked.
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3.Turn the Selection dial to ªAuto Interior
Illuminationº then press the ENTER button
to switch on or off.
SIC4606
Selective Door UnlockGUID-D7CB0C67-3FC9-41B8-9A49-41124D8166DAWhen this item is turned on, only the driver's
door is unlocked after the door unlock operation
is performed once. All of the doors can be
unlocked if the door unlock operation is per-
formed again within 1 minute.
When this item is turned off, all the doors will be
unlocked after the door unlock operation is
performed once.
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to ªSelective Door
Unlockº then press the ENTER button to
switch on or off.
&RQGLWLRQ
