GUID-1396CB90-1E3C-46B4-BEC8-929DFCC03D6DDOT (Department Of Transportation) Quality

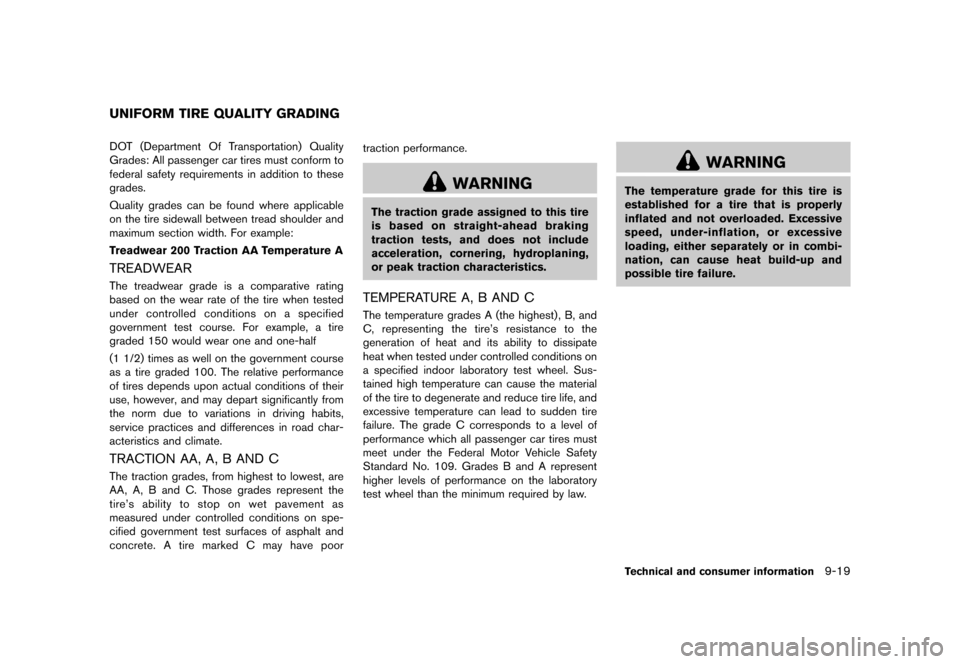

Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEARGUID-EB4741A4-2815-4C19-A415-EBDC993E715AThe treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course. For example, a tire
graded 150 would wear one and one-half
(1 1/2) times as well on the government course
as a tire graded 100. The relative performance
of tires depends upon actual conditions of their
use, however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road char-
acteristics and climate.
TRACTION AA, A, B AND CGUID-7C9D157D-A605-4BF0-A47B-8EA060F09ABEThe traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire's ability to stop on wet pavement as
measured under controlled conditions on spe-
cified government test surfaces of asphalt and
concrete. A tire marked C may have poortraction performance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
TEMPERATURE A, B AND CGUID-24E5DF40-27FD-4446-A793-787756774B53The temperature grades A (the highest) , B, and
C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory
test wheel than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
Technical and consumer information9-19
UNIFORM TIRE QUALITY GRADING
&RQGLWLRQ


> (GLW    0RGHO )' @
9-20Technical and consumer information
GUID-F1F885DB-59DB-40E8-ABB0-EAB3E168A070Your vehicle is covered by the following emis-
sion warranties.
For USA:
.Emission Defects Warranty
. Emissions Performance Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
vehicle. If you did not receive a Warranty
Information Booklet, or it has become lost, you
may obtain a replacement by writing to:
. Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada:
Emission Control System Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your vehicle. If you
did not receive a Warranty Information Booklet,
or it has become lost, you may obtain a
replacement by writing to:
. Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5GUID-11CE756C-1B81-4A4A-A277-F3FE680543BDFor USA
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Ad-
ministrator, NHTSA, 400 Seventh Street,
SW., Washington, D.C. 20590. You can
also obtain other information about motor
vehicle safety from http://www.safercar.
gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1. For Canada
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada in addition to
notifying NISSAN.
If Transport Canada receives complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that NISSAN
conduct a recall campaign. However,
Transport Canada cannot become involved
in individual problems between you, your
dealer, or NISSAN.
You may contact Transport Canada's De-
fect Investigations and Recalls Division toll
free at 1-800-333-0510. You may also
report safety defects online at: https://
wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP/Index.aspx.
Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada's Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
EMISSION CONTROL SYSTEM
WARRANTY
REPORTING SAFETY DEFECTS
&RQGLWLRQ


> (GLW    0RGHO )' @

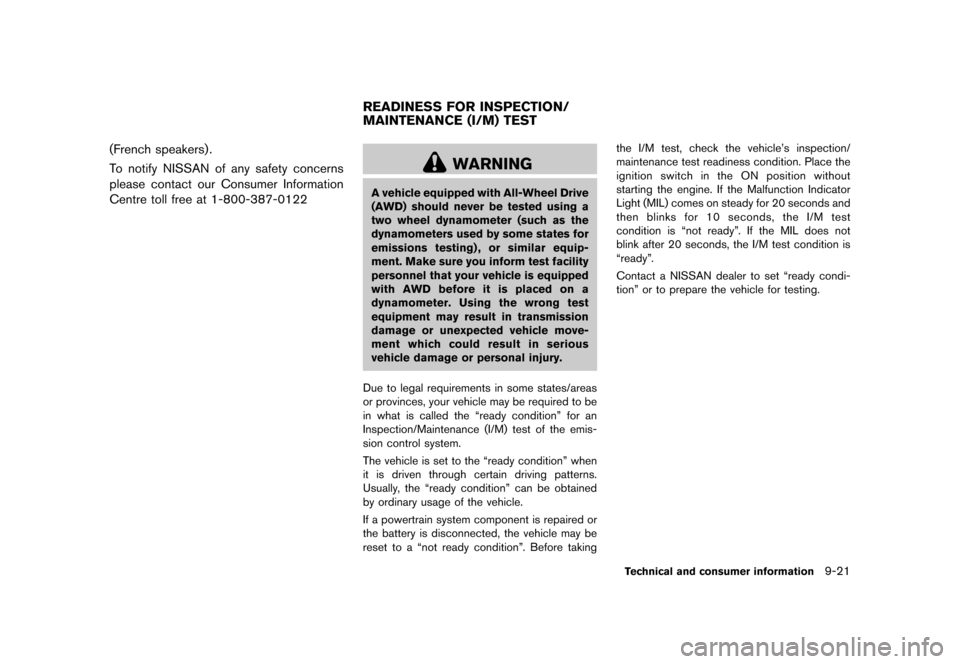

(French speakers) .
To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122
GUID-5504BD8C-31D4-41C9-B8D7-9AC3DC61F6CA
WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a
two wheel dynamometer (such as the
dynamometers used by some states for
emissions testing) , or similar equip-
ment. Make sure you inform test facility
personnel that your vehicle is equipped
with AWD before it is placed on a
dynamometer. Using the wrong test
equipment may result in transmission
damage or unexpected vehicle move-
ment which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the ªready conditionº for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the ªready conditionº when
it is driven through certain driving patterns.
Usually, the ªready conditionº can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a ªnot ready conditionº. Before taking the I/M test, check the vehicle's inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is ªnot readyº. If the MIL does not
blink after 20 seconds, the I/M test condition is
ªreadyº.
Contact a NISSAN dealer to set ªready condi-
tionº or to prepare the vehicle for testing.
Technical and consumer information9-21
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
&RQGLWLRQ


> (GLW    0RGHO )' @
9-22Technical and consumer information

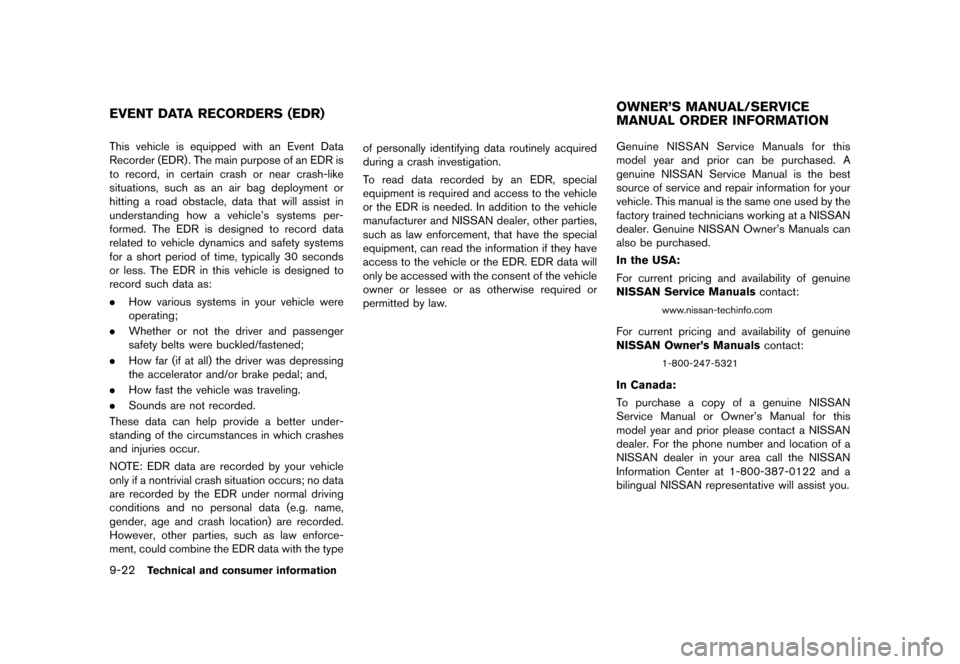

GUID-5BFB31D7-859E-4BAD-B44E-8F5626C3B174This vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle's systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur.
NOTE: EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs; no data
are recorded by the EDR under normal driving
conditions and no personal data (e.g. name,
gender, age and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.GUID-0B026CC9-40EB-40CB-93E0-793F552E62C1Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. This manual is the same one used by the
factory trained technicians working at a NISSAN
dealer. Genuine NISSAN Owner's Manuals can
also be purchased.
In the USA:
For current pricing and availability of genuine
NISSAN Service Manuals
contact:
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner's Manuals contact:
1-800-247-5321
In Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner's Manual for this
model year and prior please contact a NISSAN
dealer. For the phone number and location of a
NISSAN dealer in your area call the NISSAN
Information Center at 1-800-387-0122 and a
bilingual NISSAN representative will assist you.
EVENT DATA RECORDERS (EDR) OWNER'S MANUAL/SERVICE
MANUAL ORDER INFORMATION
&RQGLWLRQ


> (GLW    0RGHO )' @

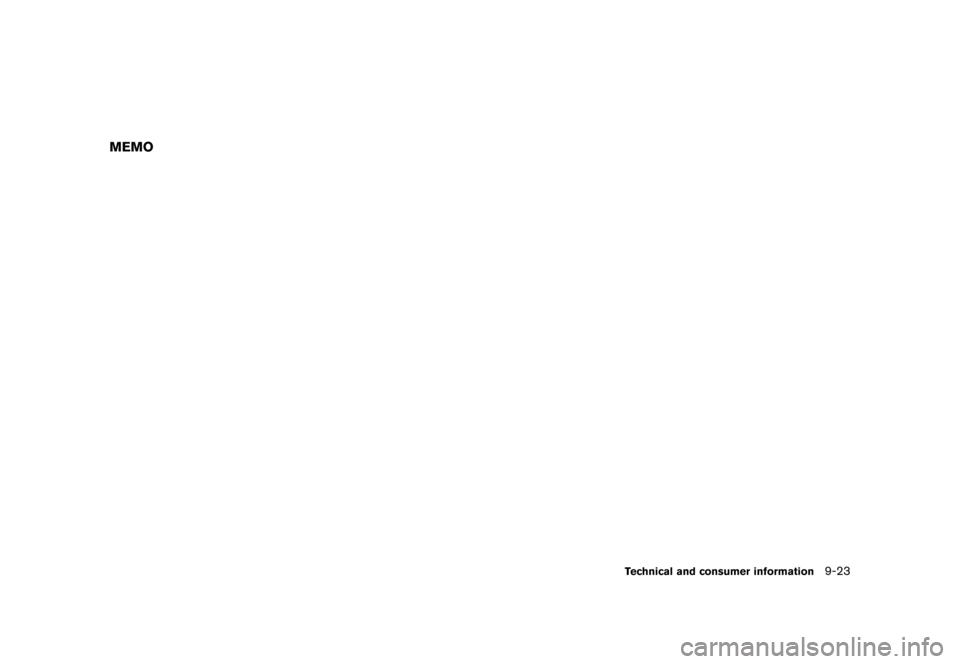

MEMO
Technical and consumer information9-23
&RQGLWLRQ


> (GLW    0RGHO )' @

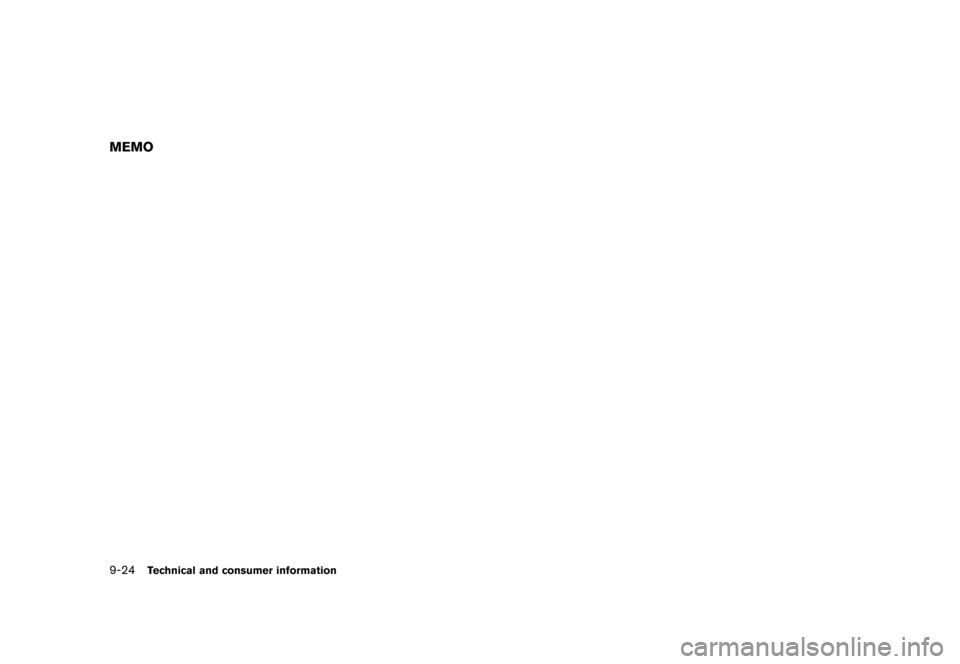

9-24Technical and consumer information
MEMO
&RQGLWLRQ


> (GLW    0RGHO )' @

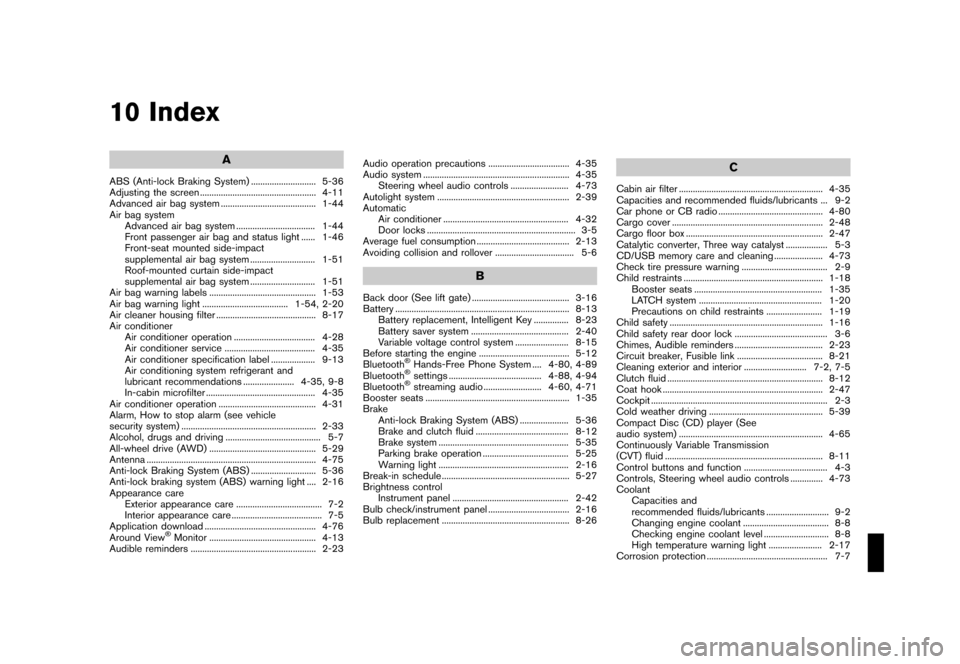

10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-36
Adjusting the screen ...
.................................................. 4-11
Advanced air bag system ...
......................................... 1-44
Air bag system Advanced air bag system ...
.................................. 1-44
Front passenger air bag and status light ...
...... 1-46
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-51
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-51
Air bag warning labels ...
.............................................. 1-53
Air bag warning light ...
..................................... 1-54, 2-20
Air cleaner housing filter ...
........................................... 8-17
Air conditioner Air conditioner operation ...
................................... 4-28
Air conditioner service ...
....................................... 4-35
Air conditioner specification label ...
................... 9-13
Air conditioning system refrigerant and
lubricant recommendations ...
...................... 4-35, 9-8
In-cabin microfilter ...
............................................... 4-35
Air conditioner operation ...
.......................................... 4-31
Alarm, How to stop alarm (see vehicle
security system) ...
.......................................................... 2-33
Alcohol, drugs and driving ...
......................................... 5-7
All-wheel drive (AWD) ...
.............................................. 5-29
Antenna ...
......................................................................... 4-75
Anti-lock Braking System (ABS) ...
............................ 5-36
Anti-lock braking system (ABS) warning light ...
.... 2-16
Appearance care Exterior appearance care ...
..................................... 7-2
Interior appearance care ...
....................................... 7-5
Application download ...
................................................ 4-76
Around View


> (GLW    0RGHO )' @
10-2
Cover, Cargo cover...
................................................... 2-48
Cruise control ...
.............................................................. 5-26
Cup holders ...
................................................................. 2-46
CVT, Driving with CVT (Continuously
Variable Transmission) ...
.............................................. 5-14
D
Daytime running light system ...
.................................. 2-41
Defroster switch, Rear window and outside
mirror defroster switch ...
.............................................. 2-37
Dimensions and weights ...
.......................................... 9-10
Displaying Climate control ...
....................................... 4-34
Door open warning light ...
........................................... 2-17
Drive belt ...
...................................................................... 8-15
Driving All-wheel drive (AWD) ...
....................................... 5-29
Cold weather driving ...
.......................................... 5-39
Driving with CVT (Continuously
Variable Transmission) ...
....................................... 5-14
Driving with manual transmission ...
.................... 5-19
Precautions when starting and driving ...
............. 5-2
Safety precautions ...
................................................. 5-7
E
Economy, Fuel ...
............................................................. 5-29
Elapsed time ...
.................................................... 2-13, 2-29
Electric power steering ...
............................................. 5-34
Electric power steering warning light ...
.................... 2-17
Emission control information label ...
......................... 9-12
Emission control system warranty ...
.......................... 9-20
Engine Before starting the engine ...
................................ 5-12
Break-in schedule ...
................................................ 5-27
Capacities and
recommended fluids/lubricants ...
........................... 9-2 Changing engine coolant
...
..................................... 8-8
Changing engine oil and filter ...
............................. 8-9
Checking engine coolant level ...
............................ 8-8
Checking engine oil level ...
..................................... 8-8
Coolant temperature gauge ...
.............................. 2-10
Emergency engine shut off ...
...................... 5-11, 6-3
Engine block heater ...
............................................ 5-40
Engine compartment check locations ...
............... 8-6
Engine cooling system ...
.......................................... 8-7
Engine oil ...
.................................................................. 8-8
Engine oil and oil filter recommendation ...
.......... 9-7
Engine oil viscosity ...
................................................. 9-8
Engine serial number ...
.......................................... 9-11
Engine specifications ...
............................................. 9-9
High temperature warning light ...
....................... 2-17
If your vehicle overheats ...
.................................... 6-11
Starting the engine ...
............................................. 5-13
Event Data Recorders (EDR) ...
.................................. 9-22
Exhaust gas (carbon monoxide) ...
............................... 5-2
Extended storage fuse warning ...
................................ 2-9
F
F.M.V.S.S./C.M.V.S.S. certification label ...
............... 9-12
Filter Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
............................. 8-9
Flashers (See hazard warning flasher switch) ...
...... 6-2
Flat tire ...
............................................................................ 6-3
Flat towing ...
.................................................................... 9-18
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake and clutch fluid ...
........................................ 8-12
Capacities and
recommended fluids/lubricants ...
........................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
............................................................. 8-11 Engine coolant
...
........................................................ 8-7
Engine oil ...
.................................................................. 8-8
Window washer fluid ...
.......................................... 8-12
FM-AM radio with Compact Disc (CD) player ...
.... 4-45
FM-AM-SAT radio with Compact Disc (CD)
player (Type A) ...
............................................................ 4-53
FM-AM-SAT radio with Compact Disc (CD)
player (Type B) ...
............................................................ 4-62
Fog light switch ...
.......................................................... 2-43
Front manual seat adjustment ...
................................... 1-3
Front passenger air bag and status light ...
............. 1-46
Front seat, Front seat adjustment ...
............................ 1-3
Front-seat active head restraints ...
.............................. 1-9
Fuel Capacities and
recommended fluids/lubricants ...
........................... 9-2
Distance to empty ...
............................................... 2-13
Fuel economy ...
....................................................... 5-29
Fuel information ...
....................................................... 9-4
Fuel octane rating ...
.................................................. 9-4
Fuel-filler cap ...
........................................................ 3-18
Fuel-filler door ...
...................................................... 3-18
Gauge ...
..................................................................... 2-11
Fuel Efficient Driving Tips ...
........................................ 5-28
Fuses ...
............................................................................. 8-20
Fusible links ...
................................................................. 8-21
G
Gas cap ...
........................................................................ 3-18
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
................ 2-10
Fuel gauge ...
............................................................ 2-11
Odometer ...
................................................................. 2-7
Speedometer ...
........................................................... 2-7
Tachometer ...
............................................................... 2-9
Trip computer ...
....................................................... 2-13
&RQGLWLRQ
