2016 NISSAN JUKE Owners Manual


> (GLW    0RGHO )' @
.Language Select
The language settings can be changed.
Select ªLanguage Selectº using the TU-
NE´SCROLL control knob and then push the
ENTER/SETTING button. Use the TU-
NE´SCROLL control knob to select the
preferred language. Push the ENTER/
SETTING button to apply the setting.
DISP button:GUID-F83C168B-173D-4313-B631-F712588C0463Display of the screen can be canceled by
pushing the
button. You can still listen to
music that is being played back even while the
screen display is turned off. If you want to
display the screen again, push the
button
once more. Pushing some of the audio source
buttons will also turn the screen back on and
display the screens of the corresponding
sources.
MEDIA button:GUID-F83C168B-173D-4313-B631-F712588C0463Pushing thebutton will switch the audio
source as follows:
CD ?USB/iPod ?Bluetooth Audio ?AUX ?
CD
Apps button:GUID-F83C168B-173D-4313-B631-F712588C0463Thebutton launches the Smartphone
Integration mode. See ªNissanConnectSMApp smartphone integrationº (P.4-75) .
FM-AM-SAT Radio operationGUID-30B56C20-92D8-4B10-A97C-E70DB83836B6
radio (FM´AM) band select:GUID-F83C168B-173D-4313-B631-F712588C0463Pushing the FM´AM button will change the band
as follows:
AM
?FM1 ?FM2 ?AM
radio (SAT) band select:GUID-F83C168B-173D-4313-B631-F712588C0463Pushing the XM band select button will change
the band as follows:
XM1 ?XM2 ?XM3 ?XM1
When the XM band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.
The last channel played will also come on when
the Power button is pushed to ON.
The satellite radio is not available in Alaska,
Hawaii and Guam.
If another audio source is playing when the radio
band select button is turned to ON, the audio
source will automatically be turned off and the
last radio channel played will come on.
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception. TUNE (Tuning):
GUID-F83C168B-173D-4313-B631-F712588C0463.
For AM and FM radio
Turn the radio TUNE´SCROLL control knob
for manual tuning.
. For SiriusXM Satellite Radio
Turn the radio TUNE´SCROLL control knob
to seek channels from all of the categories
when any category is not selected.
SEEK tuning/CAT (category):GUID-F83C168B-173D-4313-B631-F712588C0463.For AM and FM radio
Push the SEEK button
orto tune
from low to high or high to low frequencies
and to stop at the next broadcasting station.
. For SiriusXM Satellite Radio
Push the SEEK button
orto tune to
the first channel of the next or previous
category.
SCAN tuning:GUID-F83C168B-173D-4313-B631-F712588C0463Push the SCAN tuning button to tune from low
to high frequencies and stop at each broad-
casting station for several seconds. Pushing the
button again during this several seconds period
will stop SCAN tuning and the radio will remain
tuned to that station.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next
Heater, air conditioner, audio and phone systems4-55
&RQGLWLRQ


> (GLW    0RGHO )' @
4-56Heater, air conditioner, audio and phone systems

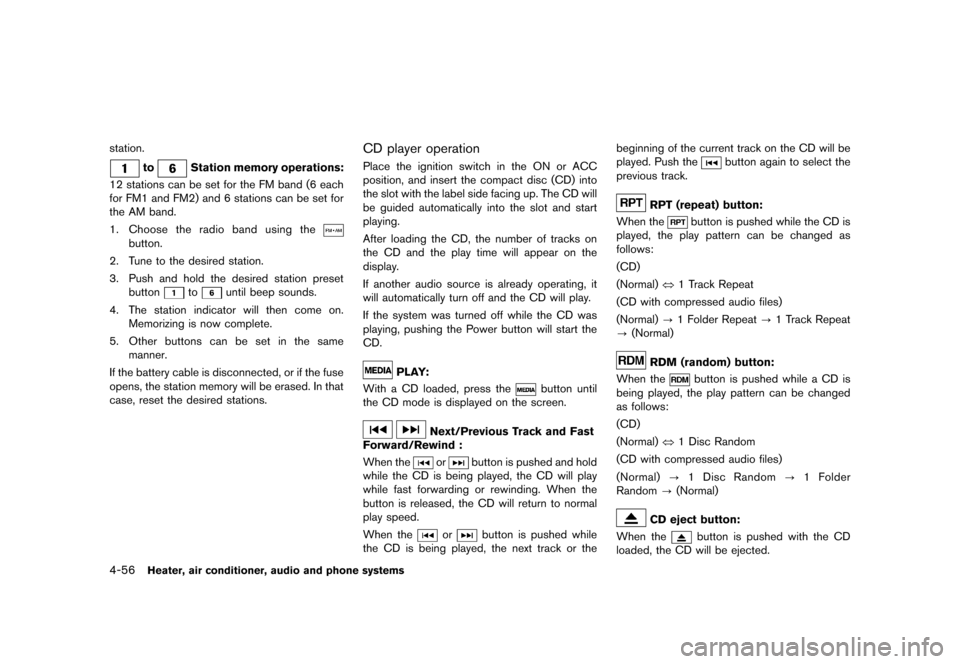

station.
toStation memory operations:GUID-F83C168B-173D-4313-B631-F712588C046312 stations can be set for the FM band (6 each
for FM1 and FM2) and 6 stations can be set for
the AM band.
1.Choose the radio band using the
button.
2. Tune to the desired station.
3. Push and hold the desired station preset button
tountil beep sounds.
4. The station indicator will then come on. Memorizing is now complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the station memory will be erased. In that
case, reset the desired stations.
CD player operationGUID-AD8D542A-ED45-492B-83CE-102DF83F1B07Place the ignition switch in the ON or ACC
position, and insert the compact disc (CD) into
the slot with the label side facing up. The CD will
be guided automatically into the slot and start
playing.
After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.
If another audio source is already operating, it
will automatically turn off and the CD will play.
If the system was turned off while the CD was
playing, pushing the Power button will start the
CD.
PLAY:GUID-F83C168B-173D-4313-B631-F712588C0463With a CD loaded, press thebutton until
the CD mode is displayed on the screen.
Next/Previous Track and Fast
Forward/Rewind :
GUID-F83C168B-173D-4313-B631-F712588C0463When theorbutton is pushed and hold
while the CD is being played, the CD will play
while fast forwarding or rewinding. When the
button is released, the CD will return to normal
play speed.
When the
orbutton is pushed while
the CD is being played, the next track or the beginning of the current track on the CD will be
played. Push the
button again to select the
previous track.
RPT (repeat) button:GUID-F83C168B-173D-4313-B631-F712588C0463When thebutton is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
(Normal) Û1 Track Repeat
(CD with compressed audio files)
(Normal) ?1 Folder Repeat ?1 Track Repeat
? (Normal)
RDM (random) button:GUID-F83C168B-173D-4313-B631-F712588C0463When thebutton is pushed while a CD is
being played, the play pattern can be changed
as follows:
(CD)
(Normal) Û1 Disc Random
(CD with compressed audio files)
(Normal) ?1 Disc Random ?1 Folder
Random ?(Normal)
CD eject button:GUID-F83C168B-173D-4313-B631-F712588C0463When thebutton is pushed with the CD
loaded, the CD will be ejected.
&RQGLWLRQ


> (GLW    0RGHO )' @

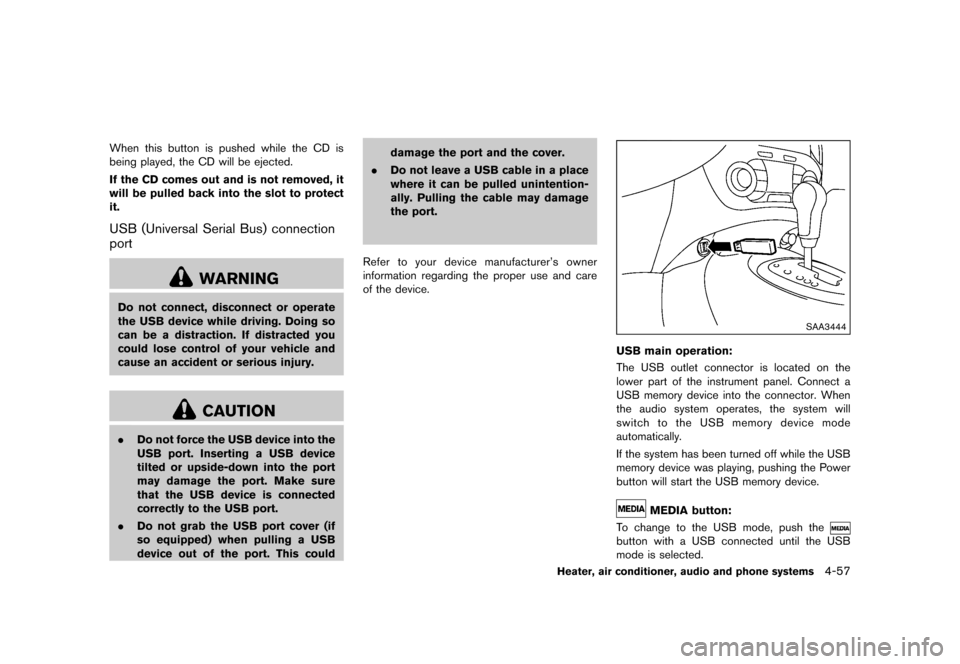

When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
USB (Universal Serial Bus) connection
port
GUID-F9909BDA-B75C-4538-A054-5FBF50966CD4
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting a USB device
tilted or upside-down into the port
may damage the port. Make sure
that the USB device is connected
correctly to the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling a USB
device out of the port. This could damage the port and the cover.
. Do not leave a USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
SAA3444
USB main operation:GUID-F83C168B-173D-4313-B631-F712588C0463The USB outlet connector is located on the
lower part of the instrument panel. Connect a
USB memory device into the connector. When
the audio system operates, the system will
switch to the USB memory device mode
automatically.
If the system has been turned off while the USB
memory device was playing, pushing the Power
button will start the USB memory device.
MEDIA button:GUID-F83C168B-173D-4313-B631-F712588C0463To change to the USB mode, push the
button with a USB connected until the USB
mode is selected.
Heater, air conditioner, audio and phone systems4-57
&RQGLWLRQ


> (GLW    0RGHO )' @
4-58Heater, air conditioner, audio and phone systems

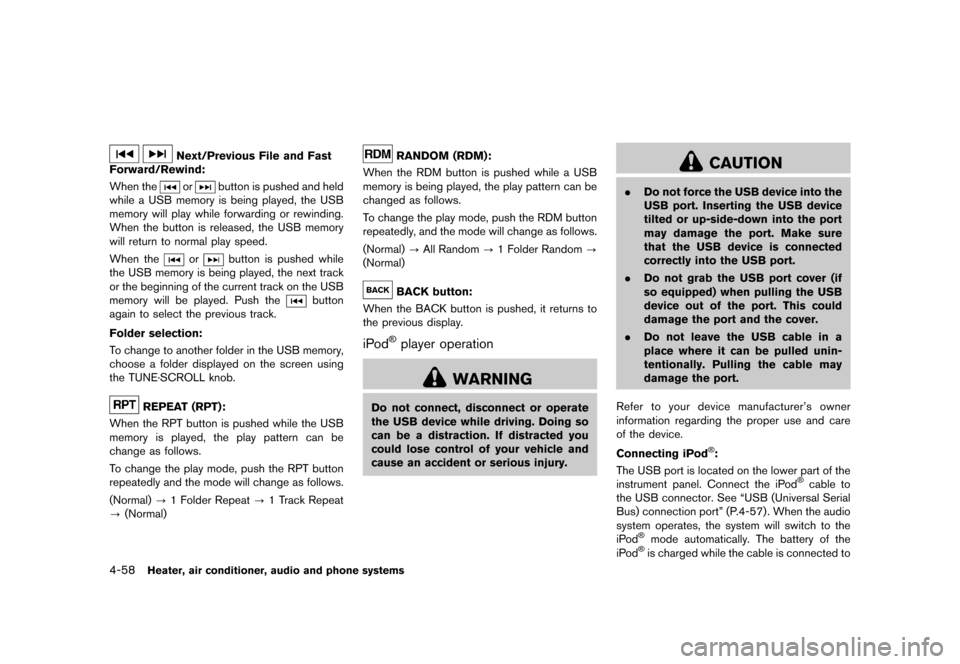

Next/Previous File and Fast
Forward/Rewind:
GUID-F83C168B-173D-4313-B631-F712588C0463When theorbutton is pushed and held
while a USB memory is being played, the USB
memory will play while forwarding or rewinding.
When the button is released, the USB memory
will return to normal play speed.
When the
orbutton is pushed while
the USB memory is being played, the next track
or the beginning of the current track on the USB
memory will be played. Push the
button
again to select the previous track.
Folder selection:
GUID-F83C168B-173D-4313-B631-F712588C0463To change to another folder in the USB memory,
choose a folder displayed on the screen using
the TUNE´SCROLL knob.
REPEAT (RPT):GUID-F83C168B-173D-4313-B631-F712588C0463When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
(Normal) ?1 Folder Repeat ?1 Track Repeat
? (Normal)
RANDOM (RDM):GUID-F83C168B-173D-4313-B631-F712588C0463When the RDM button is pushed while a USB
memory is being played, the play pattern can be
changed as follows.
To change the play mode, push the RDM button
repeatedly, and the mode will change as follows.
(Normal) ?All Random ?1 Folder Random ?
(Normal)
BACK button:GUID-F83C168B-173D-4313-B631-F712588C0463When the BACK button is pushed, it returns to
the previous display.
iPod


> (GLW    0RGHO )' @

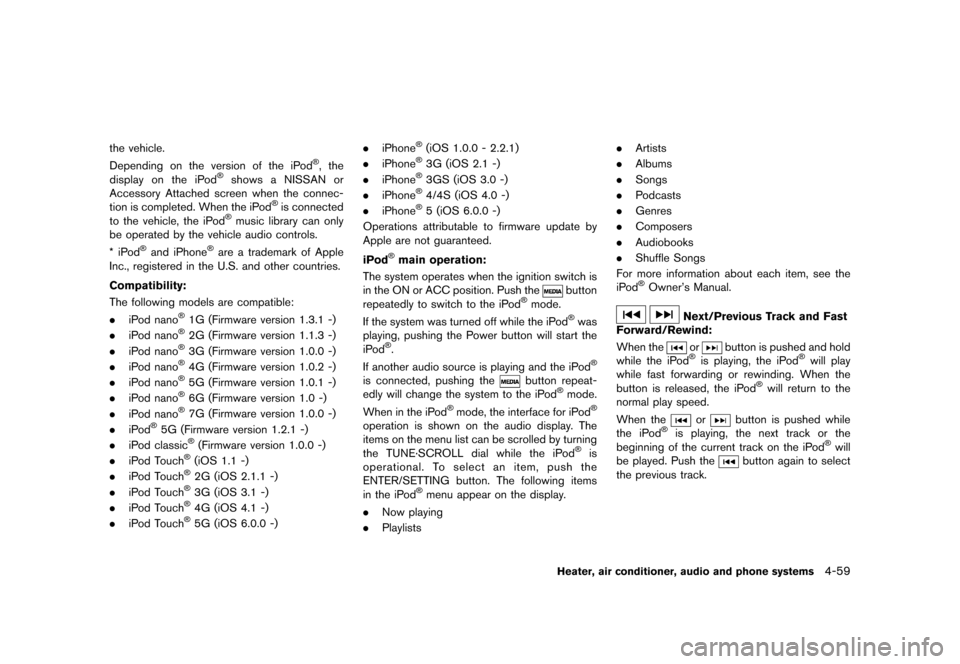

the vehicle.
Depending on the version of the iPod


> (GLW    0RGHO )' @
4-60Heater, air conditioner, audio and phone systems

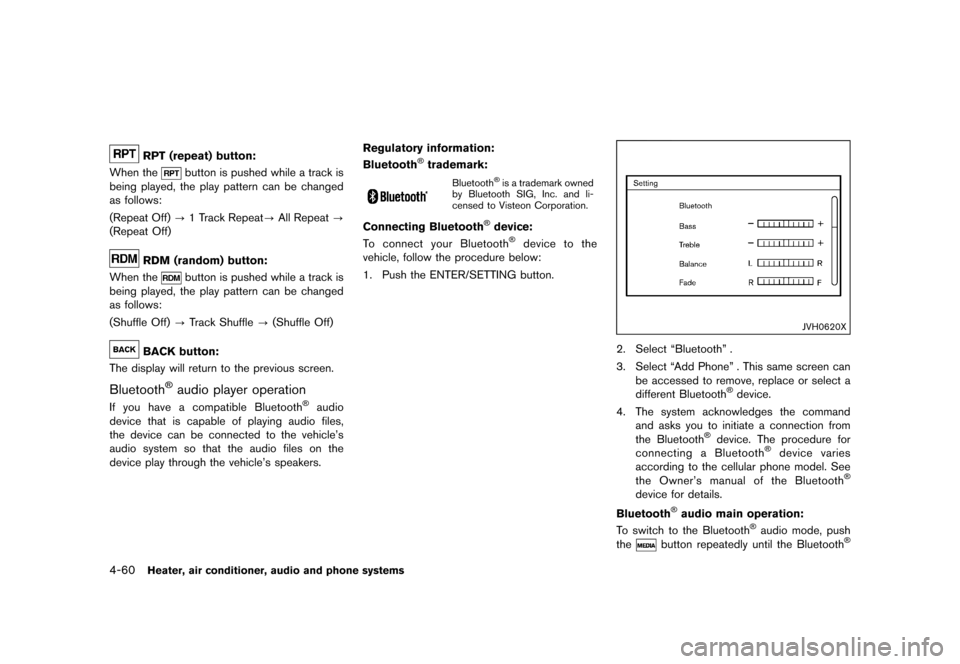

RPT (repeat) button:GUID-F83C168B-173D-4313-B631-F712588C0463When thebutton is pushed while a track is
being played, the play pattern can be changed
as follows:
(Repeat Off) ?1 Track Repeat? All Repeat?
(Repeat Off)
RDM (random) button:GUID-F83C168B-173D-4313-B631-F712588C0463When thebutton is pushed while a track is
being played, the play pattern can be changed
as follows:
(Shuffle Off) ?Track Shuffle ?(Shuffle Off)
BACK button:GUID-F83C168B-173D-4313-B631-F712588C0463The display will return to the previous screen.
Bluetooth


> (GLW    0RGHO )' @

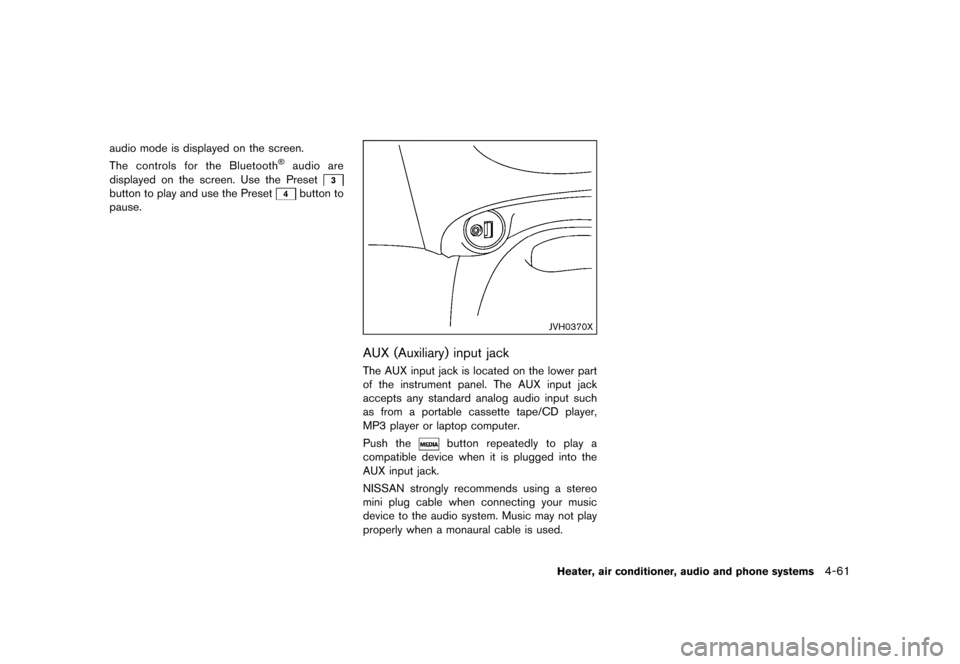

audio mode is displayed on the screen.
The controls for the Bluetooth


> (GLW    0RGHO )' @
4-62Heater, air conditioner, audio and phone systems

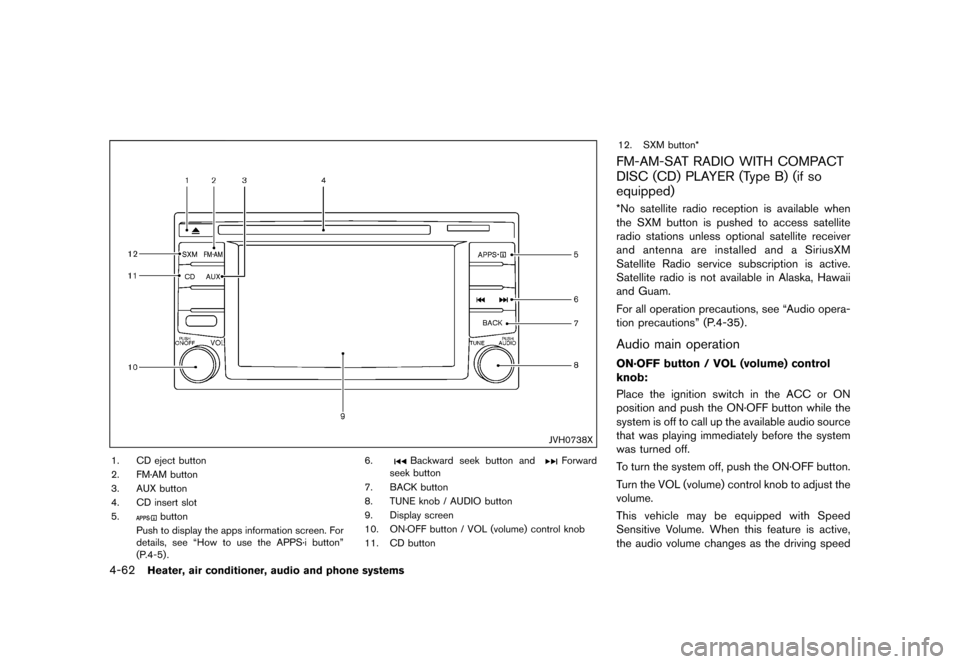

JVH0738X
1. CD eject button
2. FM´AM button
3. AUX button
4. CD insert slot
5.
button
Push to display the apps information screen. For
details, see ªHow to use the APPS´i buttonº
(P.4-5) . 6.
Backward seek button andForward
seek button
7. BACK button
8. TUNE knob / AUDIO button
9. Display screen
10. ON´OFF button / VOL (volume) control knob
11. CD button 12. SXM button*
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type B) (if so
equipped)
GUID-727D0517-0342-42E4-A806-B1F3DBF29FDC*No satellite radio reception is available when
the SXM button is pushed to access satellite
radio stations unless optional satellite receiver
and antenna are installed and a SiriusXM
Satellite Radio service subscription is active.
Satellite radio is not available in Alaska, Hawaii
and Guam.
For all operation precautions, see ªAudio opera-
tion precautionsº (P.4-35) .
Audio main operationGUID-52945E76-4F7B-4D3D-9238-E8D2041B313C
ON´OFF button / VOL (volume) control
knob:
GUID-F83C168B-173D-4313-B631-F712588C0463Place the ignition switch in the ACC or ON
position and push the ON´OFF button while the
system is off to call up the available audio source
that was playing immediately before the system
was turned off.
To turn the system off, push the ON´OFF button.
Turn the VOL (volume) control knob to adjust the
volume.
This vehicle may be equipped with Speed
Sensitive Volume. When this feature is active,
the audio volume changes as the driving speed
