2016 NISSAN JUKE Owners Manual


> (GLW    0RGHO )' @

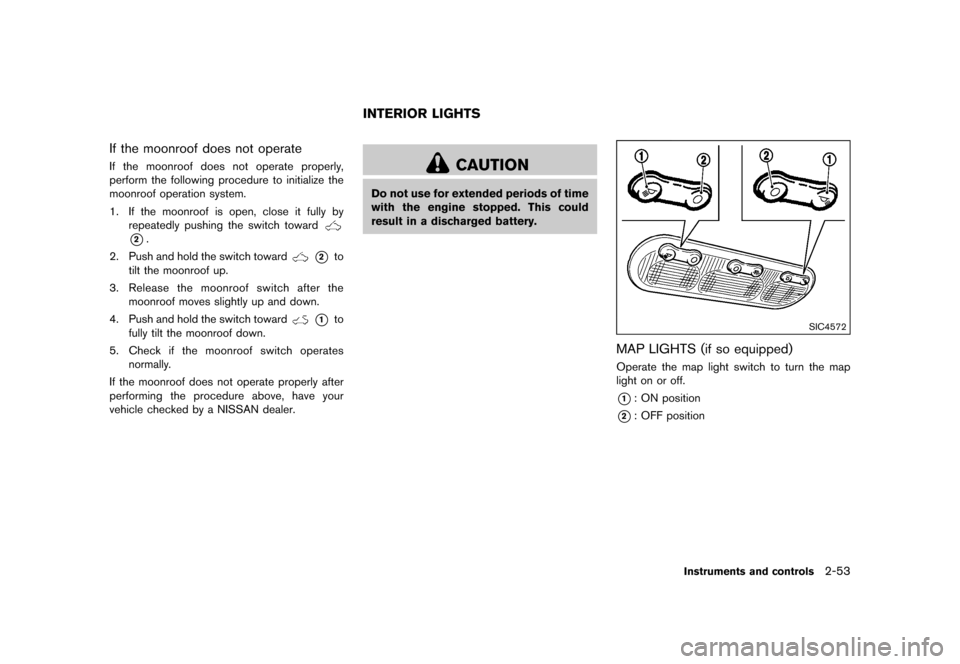

If the moonroof does not operateGUID-375D2428-A2C2-47EB-BFE4-FA7A4BDC9925If the moonroof does not operate properly,
perform the following procedure to initialize the
moonroof operation system.
1. If the moonroof is open, close it fully byrepeatedly pushing the switch toward
*2.
2. Push and hold the switch toward
*2to
tilt the moonroof up.
3. Release the moonroof switch after the
moonroof moves slightly up and down.
4. Push and hold the switch toward
*1to
fully tilt the moonroof down.
5. Check if the moonroof switch operates
normally.
If the moonroof does not operate properly after
performing the procedure above, have your
vehicle checked by a NISSAN dealer.
GUID-AC8C958B-C3DE-4C13-A406-ED56FDB6824E
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
SIC4572
MAP LIGHTS (if so equipped)GUID-1B5DECC4-5E3F-4B04-8666-6F7000099558Operate the map light switch to turn the map
light on or off.
*1: ON position
*2: OFF position
Instruments and controls2-53
INTERIOR LIGHTS
&RQGLWLRQ


> (GLW    0RGHO )' @
2-54Instruments and controls
SIC4573
MAP LIGHT CONTROL SWITCH (if so
equipped)
GUID-D030AC73-6A5E-41D1-B4E5-4C8B6A705368The map lights control switch has three posi-
tions: ON
*1, OFF*2and center.
ON positionGUID-96EAA639-DA91-44C2-B280-951FC4FE7379When the switch is in the ON position*1, the
map lights will illuminate.
OFF positionGUID-315173DD-FC92-4382-95FF-5966BDBA76F5When the switch is in the OFF position*2, the
map lights will not illuminate, regardless of the
condition.
Center positionGUID-2C777A6B-3617-446F-8361-A456EE072540When the switch is in the center position, the
map lights will illuminate under the following
conditions:
. ignition switch is placed in the OFF position
Ð remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK
button (on the Intelligent Key) or
the request switch with the ignition switch in
the LOCK position
Ð remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
Ð remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
Ð remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
CARGO LIGHTGUID-4E7D7193-19FC-43A7-8050-94552D64EF00The cargo room lights illuminate when the lift
gate is opened. When the lift gate is closed, the
lights will turn off.
&RQGLWLRQ


> (GLW    0RGHO )' @

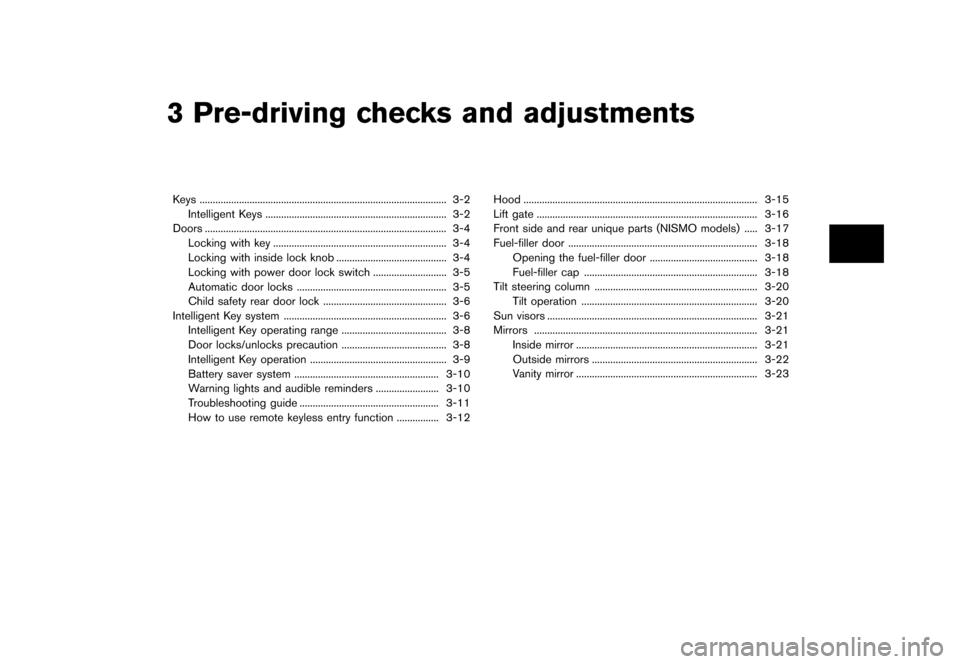

3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-2
Intelligent Keys ...
..................................................................... 3-2
Doors ...
........................................................................\
.................... 3-4
Locking with key ...
.................................................................. 3-4
Locking with inside lock knob ...
.......................................... 3-4
Locking with power door lock switch ...
............................ 3-5
Automatic door locks ...
......................................................... 3-5
Child safety rear door lock ...
............................................... 3-6
Intelligent Key system ...
.............................................................. 3-6
Intelligent Key operating range ...
........................................ 3-8
Door locks/unlocks precaution ...
........................................ 3-8
Intelligent Key operation ...
.................................................... 3-9
Battery saver system ...
....................................................... 3-10
Warning lights and audible reminders ...
........................ 3-10
Troubleshooting guide ...
..................................................... 3-11
How to use remote keyless entry function ...
................ 3-12 Hood
...
........................................................................\
................. 3-15
Lift gate ...
........................................................................\
............ 3-16
Front side and rear unique parts (NISMO models) ...
..... 3-17
Fuel-filler door ...
........................................................................\
3-18
Opening the fuel-filler door ...
......................................... 3-18
Fuel-filler cap ...
.................................................................. 3-18
Tilt steering column ...
.............................................................. 3-20
Tilt operation ...
................................................................... 3-20
Sun visors ...
........................................................................\
........ 3-21
Mirrors ...
........................................................................\
............. 3-21
Inside mirror ...
..................................................................... 3-21
Outside mirrors ...
............................................................... 3-22
Vanity mirror ...
..................................................................... 3-23
&RQGLWLRQ


> (GLW    0RGHO )' @
3-2Pre-driving checks and adjustments

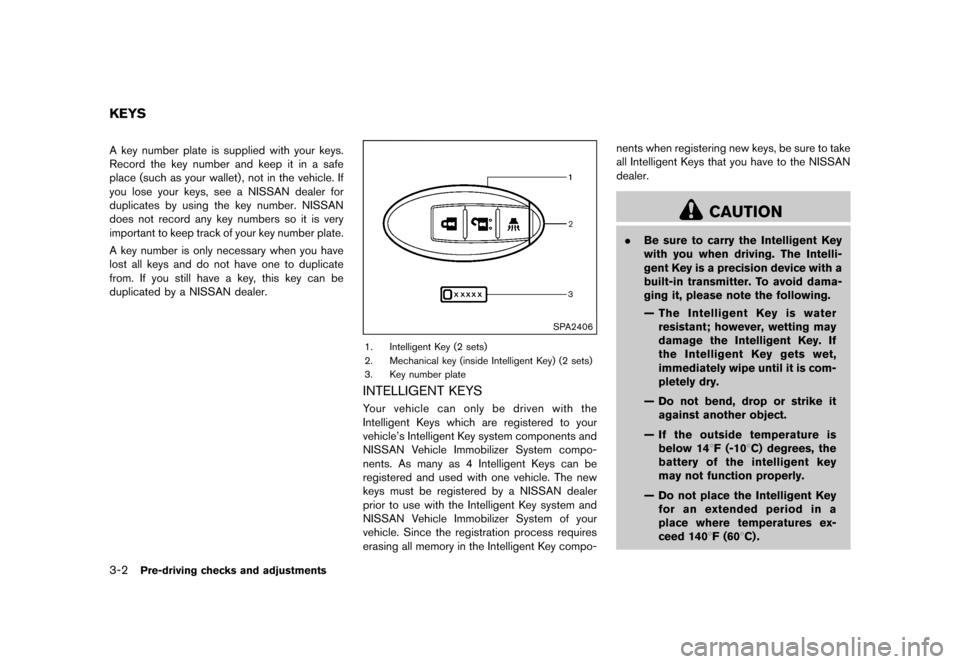

GUID-F7866A38-D962-41BD-9D0D-7935A4B2CC6CA key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2406
1. Intelligent Key (2 sets)
2. Mechanical key (inside Intelligent Key) (2 sets)
3. Key number plate
INTELLIGENT KEYSGUID-70B1A049-A959-47AA-AA04-4D59E2864492Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle's Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
CAUTION
.
Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
Ð The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
Ð Do not bend, drop or strike it against another object.
Ð If the outside temperature is below 148F (-108C) degrees, the
battery of the intelligent key
may not function properly.
Ð Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
ceed 1408F (608C) .
KEYS
&RQGLWLRQ


> (GLW    0RGHO )' @
Ð Do not change or modify theIntelligent Key.
Ð Do not use a magnet key holder.
Ð Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
Ð Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a NISSAN dealer.
SPA2033
Mechanical keyGUID-EED60269-A431-4073-A19B-5A82DD409AD0To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors. (See ªDoorsº (P.3-4).)
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
Pre-driving checks and adjustments3-3
&RQGLWLRQ


> (GLW    0RGHO )' @
3-4Pre-driving checks and adjustments
GUID-A67171A1-8A0F-4CD6-B876-B41D1675EF9C

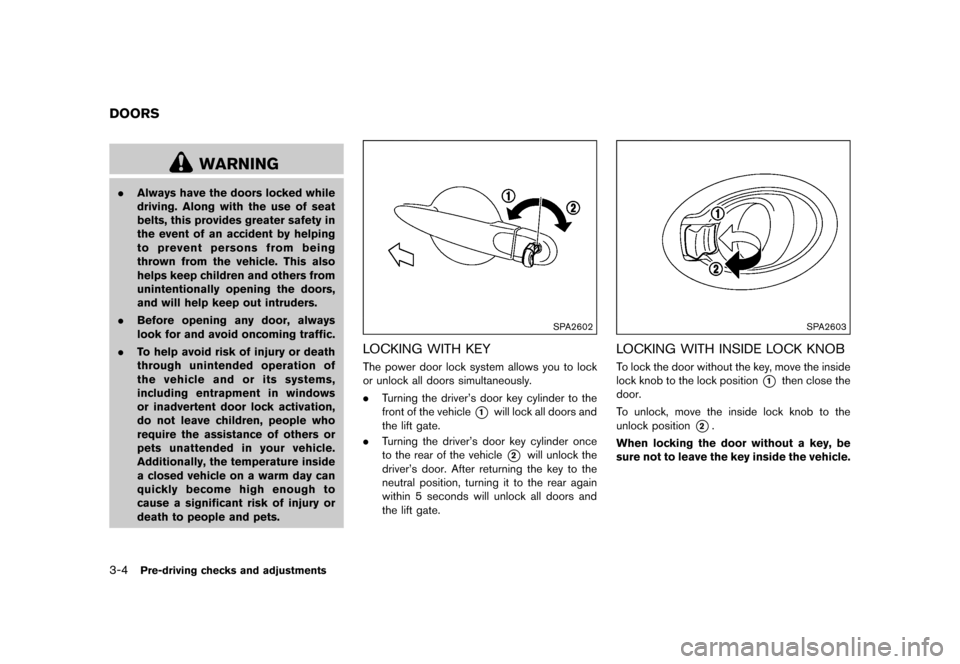

WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. To help avoid risk of injury or death
through unintended operation of
the vehicle and or its systems,
including entrapment in windows
or inadvertent door lock activation,
do not leave children, people who
require the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
SPA2602
LOCKING WITH KEYGUID-09541342-6724-4CE2-895E-4D3E3867B102The power door lock system allows you to lock
or unlock all doors simultaneously.
.Turning the driver's door key cylinder to the
front of the vehicle
*1will lock all doors and
the lift gate.
. Turning the driver's door key cylinder once
to the rear of the vehicle
*2will unlock the
driver's door. After returning the key to the
neutral position, turning it to the rear again
within 5 seconds will unlock all doors and
the lift gate.
SPA2603
LOCKING WITH INSIDE LOCK KNOBGUID-F1B3E7C3-1DFF-477D-801B-1C2FE94310FATo lock the door without the key, move the inside
lock knob to the lock position
*1then close the
door.
To unlock, move the inside lock knob to the
unlock position
*2.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
DOORS
&RQGLWLRQ


> (GLW    0RGHO )' @

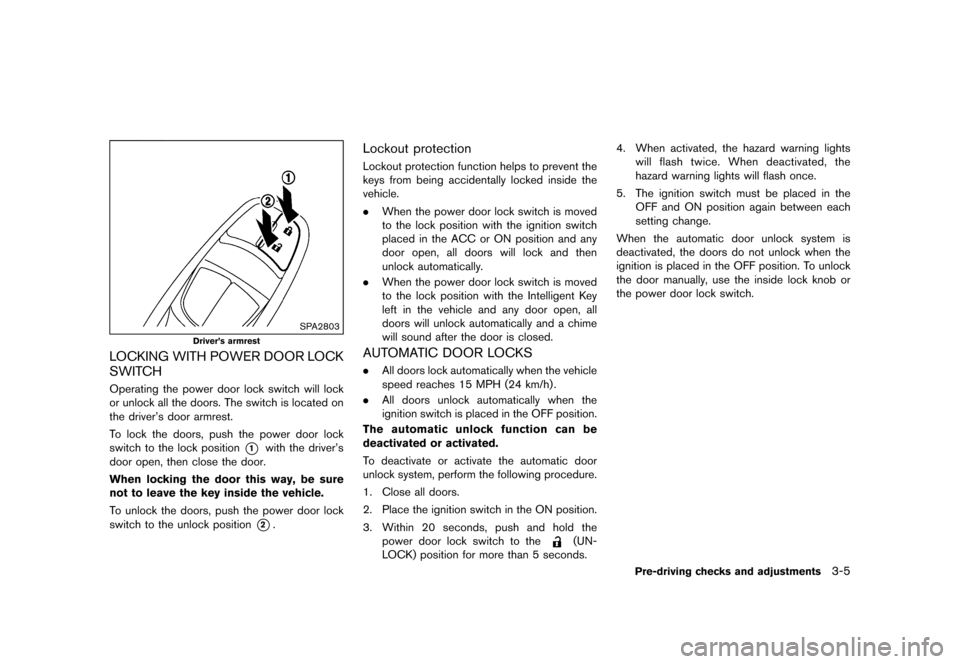

SPA2803
Driver's armrest
LOCKING WITH POWER DOOR LOCK
SWITCH
GUID-5256BBAD-C319-43C6-9C66-55957ADC778FOperating the power door lock switch will lock
or unlock all the doors. The switch is located on
the driver's door armrest.
To lock the doors, push the power door lock
switch to the lock position
*1with the driver's
door open, then close the door.
When locking the door this way, be sure
not to leave the key inside the vehicle.
To unlock the doors, push the power door lock
switch to the unlock position
*2.
Lockout protectionGUID-44F7A60E-83C3-4161-B6E9-F0CE6E62B151Lockout protection function helps to prevent the
keys from being accidentally locked inside the
vehicle.
. When the power door lock switch is moved
to the lock position with the ignition switch
placed in the ACC or ON position and any
door open, all doors will lock and then
unlock automatically.
. When the power door lock switch is moved
to the lock position with the Intelligent Key
left in the vehicle and any door open, all
doors will unlock automatically and a chime
will sound after the door is closed.
AUTOMATIC DOOR LOCKSGUID-FA60553F-2660-4078-8261-73A9AD2C0495.All doors lock automatically when the vehicle
speed reaches 15 MPH (24 km/h) .
. All doors unlock automatically when the
ignition switch is placed in the OFF position.
The automatic unlock function can be
deactivated or activated.
To deactivate or activate the automatic door
unlock system, perform the following procedure.
1. Close all doors.
2. Place the ignition switch in the ON position.
3. Within 20 seconds, push and hold the
power door lock switch to the
(UN-
LOCK) position for more than 5 seconds. 4. When activated, the hazard warning lights
will flash twice. When deactivated, the
hazard warning lights will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition is placed in the OFF position. To unlock
the door manually, use the inside lock knob or
the power door lock switch.
Pre-driving checks and adjustments3-5
&RQGLWLRQ


> (GLW    0RGHO )' @

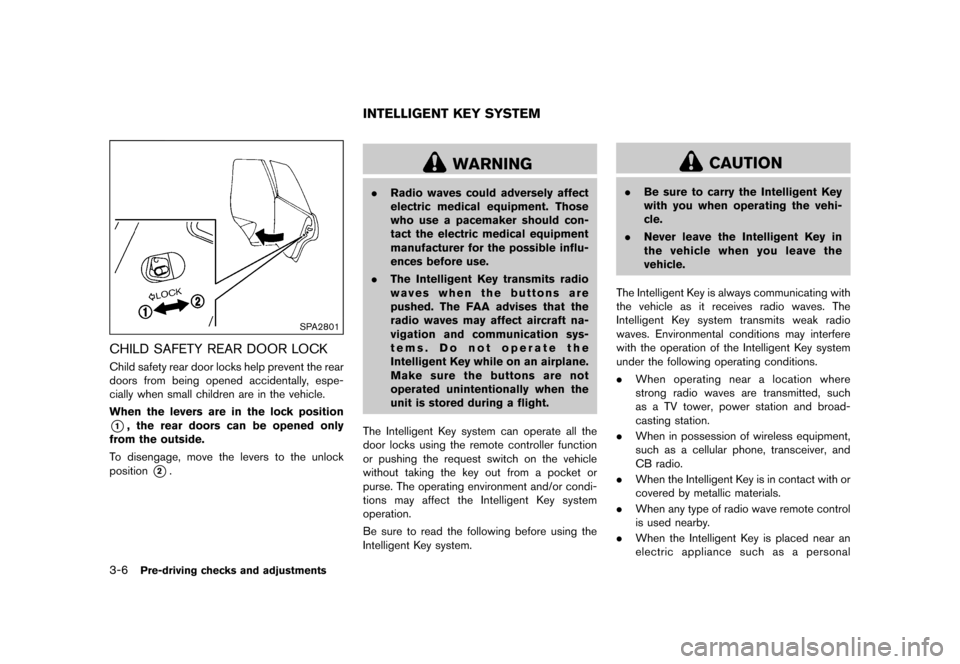

3-6Pre-driving checks and adjustments
SPA2801
CHILD SAFETY REAR DOOR LOCKGUID-23BE1446-C8BC-4A11-8767-2B460D5530B1Child safety rear door locks help prevent the rear
doors from being opened accidentally, espe-
cially when small children are in the vehicle.
When the levers are in the lock position
*1, the rear doors can be opened only
from the outside.
To disengage, move the levers to the unlock
position
*2.
GUID-469FCA8B-4CA7-4AE5-9396-44D8FD1027E9
WARNING
. Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
. The Intelligent Key transmits radio
waves when the buttons are
pushed. The FAA advises that the
radio waves may affect aircraft na-
vigation and communication sys-
tems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not
operated unintentionally when the
unit is stored during a flight.
The Intelligent Key system can operate all the
door locks using the remote controller function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
. Be sure to carry the Intelligent Key
with you when operating the vehi-
cle.
. Never leave the Intelligent Key in
the vehicle when you leave the
vehicle.
The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
. When operating near a location where
strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
. When in possession of wireless equipment,
such as a cellular phone, transceiver, and
CB radio.
. When the Intelligent Key is in contact with or
covered by metallic materials.
. When any type of radio wave remote control
is used nearby.
. When the Intelligent Key is placed near an
electric appliance such as a personal
INTELLIGENT KEY SYSTEM
&RQGLWLRQ
