2016 NISSAN JUKE Owners Manual


> (GLW    0RGHO )' @
GUID-ADD7704B-E089-476F-B602-46E63AF51822
JVC0850X

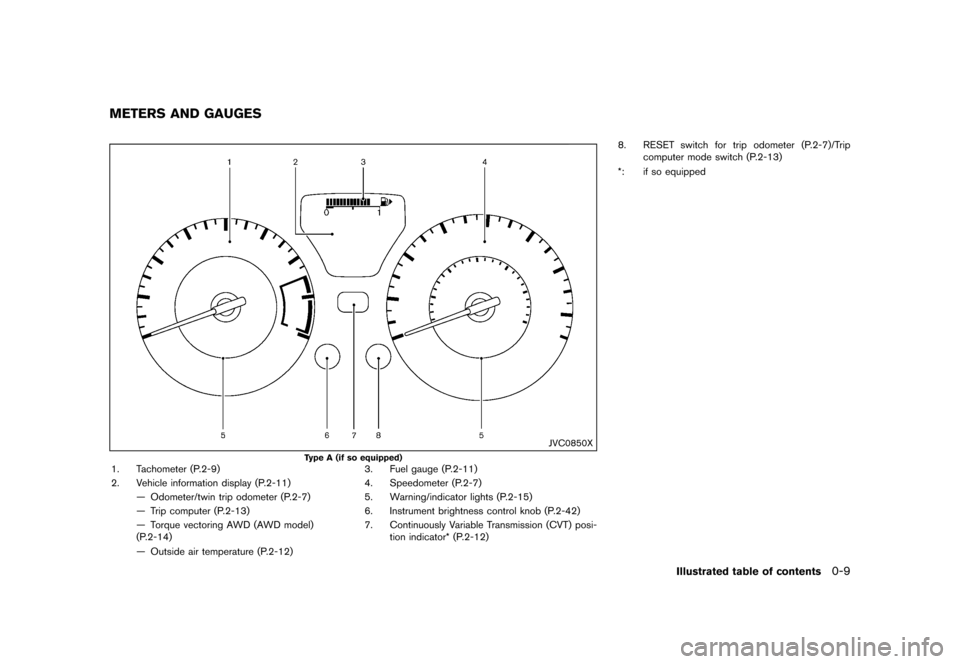

Type A (if so equipped)1. Tachometer (P.2-9)
2. Vehicle information display (P.2-11)Ð Odometer/twin trip odometer (P.2-7)
Ð Trip computer (P.2-13)
Ð Torque vectoring AWD (AWD model)
(P.2-14)
Ð Outside air temperature (P.2-12) 3. Fuel gauge (P.2-11)
4. Speedometer (P.2-7)
5. Warning/indicator lights (P.2-15)
6. Instrument brightness control knob (P.2-42)
7. Continuously Variable Transmission (CVT) posi-
tion indicator* (P.2-12) 8. RESET switch for trip odometer (P.2-7)/Trip
computer mode switch (P.2-13)
*: if so equipped
Illustrated table of contents0-9
METERS AND GAUGES
&RQGLWLRQ


> (GLW    0RGHO )' @
0-10Illustrated table of contents
SIC4601

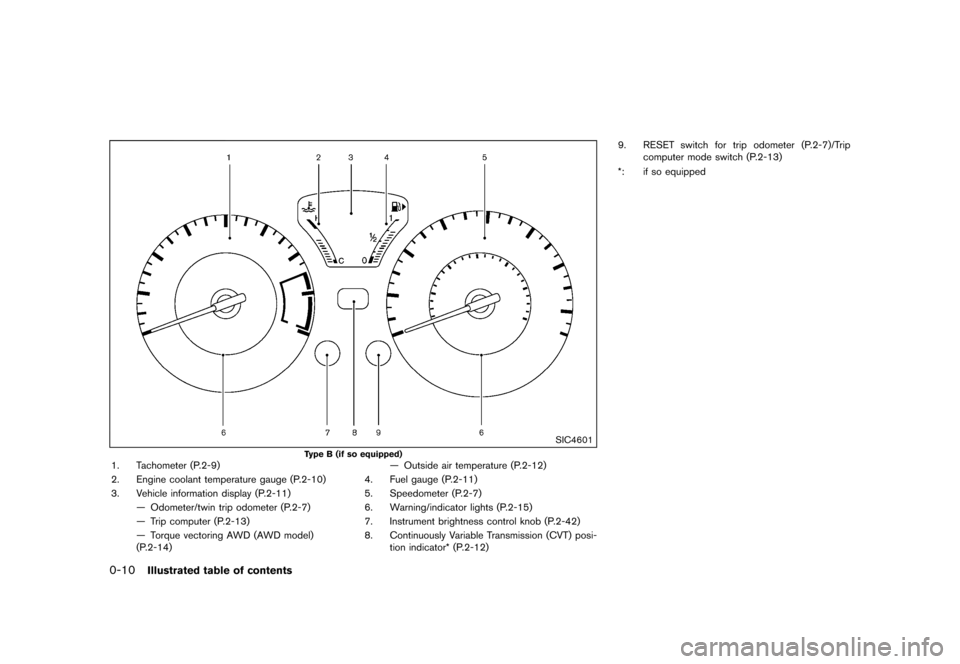

Type B (if so equipped)1. Tachometer (P.2-9)
2. Engine coolant temperature gauge (P.2-10)
3. Vehicle information display (P.2-11)Ð Odometer/twin trip odometer (P.2-7)
Ð Trip computer (P.2-13)
Ð Torque vectoring AWD (AWD model)
(P.2-14) Ð Outside air temperature (P.2-12)
4. Fuel gauge (P.2-11)
5. Speedometer (P.2-7)
6. Warning/indicator lights (P.2-15)
7. Instrument brightness control knob (P.2-42)
8. Continuously Variable Transmission (CVT) posi- tion indicator* (P.2-12) 9. RESET switch for trip odometer (P.2-7)/Trip
computer mode switch (P.2-13)
*: if so equipped
&RQGLWLRQ


> (GLW    0RGHO )' @
GUID-8EBBE60D-ED28-4099-9931-95512256E0F1
JVC0747X

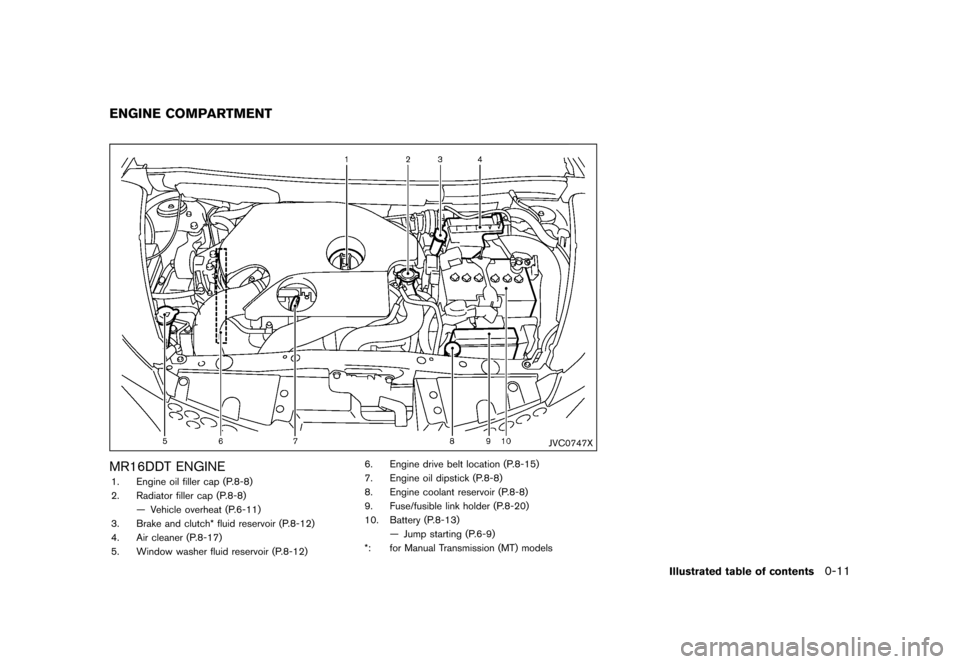

MR16DDT ENGINEGUID-D335D9EC-1753-4C7F-815E-51D57D34351D1. Engine oil filler cap (P.8-8)
2. Radiator filler cap (P.8-8)Ð Vehicle overheat (P.6-11)
3. Brake and clutch* fluid reservoir (P.8-12)
4. Air cleaner (P.8-17)
5. Window washer fluid reservoir (P.8-12) 6. Engine drive belt location (P.8-15)
7. Engine oil dipstick (P.8-8)
8. Engine coolant reservoir (P.8-8)
9. Fuse/fusible link holder (P.8-20)
10. Battery (P.8-13)
Ð Jump starting (P.6-9)
*: for Manual Transmission (MT) models
Illustrated table of contents0-11
ENGINE COMPARTMENT
&RQGLWLRQ


> (GLW    0RGHO )' @
0-12Illustrated table of contents
GUID-56F49709-8C97-4624-BC9E-EFFB2D8B65F4
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (yellow) (AWD model) 2-16
Anti-lock Braking System
(ABS) warning light2-16
Brake warning light
2-16
Charge warning light2-17
Door open warning light2-17
Electric power steering warning
light2-17
Engine oil pressure warning
light2-17
High temperature warning light
(if so equipped)
2-17
Intelligent Key system warning
light2-18
Low fuel warning light
2-18
Low tire pressure warning light2-18
Low washer fluid warning light
(if so equipped)2-19
P position selecting warning
light2-20
Seat belt warning light
2-20Warning
light Name
Page
Supplemental air bag warning
light 2-20
Vehicle Dynamic Control (VDC)
warning light
2-20Indicator
light Name
Page
All-Wheel Drive (AWD) indica-
tor light (green) (AWD model) 2-21
All-Wheel Drive (AWD) -V indi-
cator light (green) (AWD model)
2-21
Continuously Variable Trans-
mission (CVT) indicator light (if
so equipped)2-21
Cruise indicator light
2-21
Engine start operation indicator
light2-21
Exterior light indicator
2-21
Front fog light indicator light (if
so equipped)2-21
Front passenger air bag status
light2-21
High beam indicator light
2-22
Malfunction Indicator Light
(MIL)2-22
Security indicator light
2-22
Turn signal/hazard indicator
lights2-23
Vehicle Dynamic Control (VDC)
off indicator light
2-23
WARNING AND INDICATOR LIGHTS
&RQGLWLRQ


> (GLW    0RGHO )' @
1 Safety Ð Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Rear seats ...
........................................................................\
..... 1-4
Head restraints/headrests ...
....................................................... 1-5
Adjustable head restraint/headrest components ...
........ 1-6
Non-adjustable head
restraint/headrest components ...
........................................ 1-7
Remove ...
........................................................................\
.......... 1-7
Install ...
........................................................................\
.............. 1-7
Adjust ...
........................................................................\
............. 1-8
Front-seat Active Head Restraints (if
so equipped) ...
........................................................................\
1-9
Seat belts ...
........................................................................\
......... 1-10
Precautions on seat belt usage ...
.................................... 1-10
Pregnant women ...
.............................................................. 1-12
Injured persons ...
................................................................. 1-12
Three-point type seat belt ...
.............................................. 1-12
Seat belt extenders ...
.......................................................... 1-15
Seat belt maintenance ...
.................................................... 1-16
Child safety ...
........................................................................\
...... 1-16
Infants ...
........................................................................\
.......... 1-17
Small children ...
.................................................................... 1-17
Larger children ...
.................................................................. 1-17 Child restraints
...
....................................................................... 1-18
Precautions on child restraints ...
................................... 1-19
Lower Anchors and Tethers for CHildren
System (LATCH) ...
............................................................ 1-20
Rear-facing child restraint installation
using LATCH ...
................................................................... 1-23
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-25
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-28
Forward-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-31
Booster seats ...
.................................................................. 1-35
Supplemental restraint system ...
........................................... 1-38
Precautions on supplemental restraint system ...
....... 1-38
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-44
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
.................................... 1-51
Seat belts with pretensioners (front seats) ...
............. 1-52
Supplemental air bag warning labels ...
....................... 1-53
Supplemental air bag warning light ...
.......................... 1-54
Repair and replacement procedure ...
.......................... 1-54
&RQGLWLRQ


> (GLW    0RGHO )' @
1-2Safety Ð Seats, seat belts and supplemental restraint system
GUID-9968A6D7-C7DB-4923-8D40-B68E132879F1
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back and upright in the seat
with both feet on the floor and
adjust the seat properly. See ªPre-
cautions on seat belt usageº (P.1-
10) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
To help avoid risk of injury or death
through unintended operation of
the vehicle and/or its systems, do
not leave children, people who re-
quire the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
SEATS
&RQGLWLRQ


> (GLW    0RGHO )' @

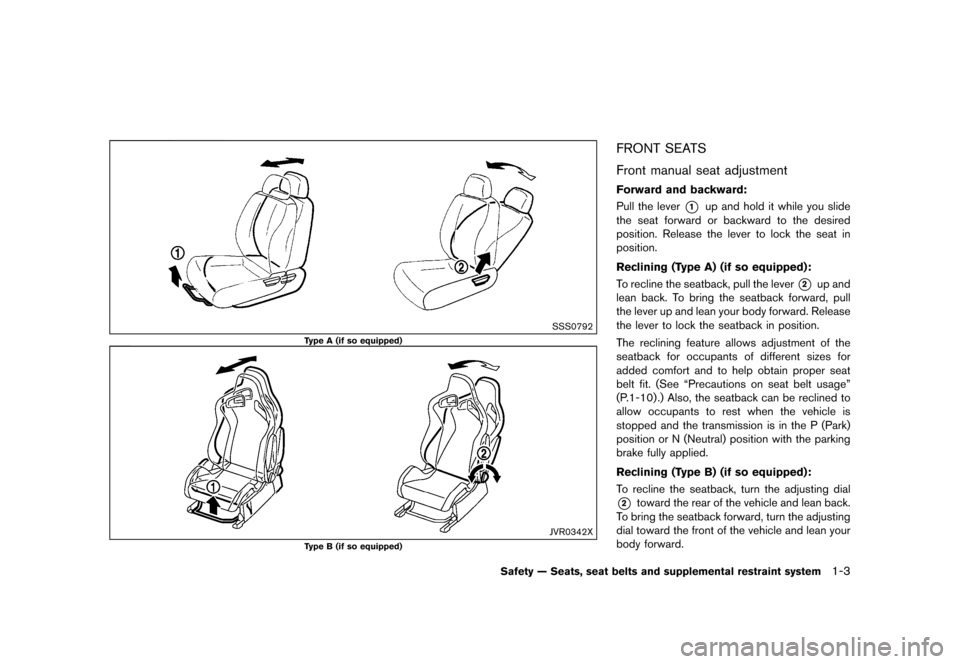

SSS0792
Type A (if so equipped)
JVR0342X
Type B (if so equipped)
FRONT SEATSGUID-55B40E63-3184-4977-9580-6F5DF10262BF
Front manual seat adjustmentGUID-5F8B59F4-CE83-4388-A330-B31F2E8A1C04
Forward and backward:GUID-F83C168B-173D-4313-B631-F712588C0463Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining (Type A) (if so equipped):
GUID-F83C168B-173D-4313-B631-F712588C0463To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See ªPrecautions on seat belt usageº
(P.1-10) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
Reclining (Type B) (if so equipped):
GUID-F83C168B-173D-4313-B631-F712588C0463To recline the seatback, turn the adjusting dial
*2toward the rear of the vehicle and lean back.
To bring the seatback forward, turn the adjusting
dial toward the front of the vehicle and lean your
body forward.
Safety Ð Seats, seat belts and supplemental restraint system1-3
&RQGLWLRQ


> (GLW    0RGHO )' @

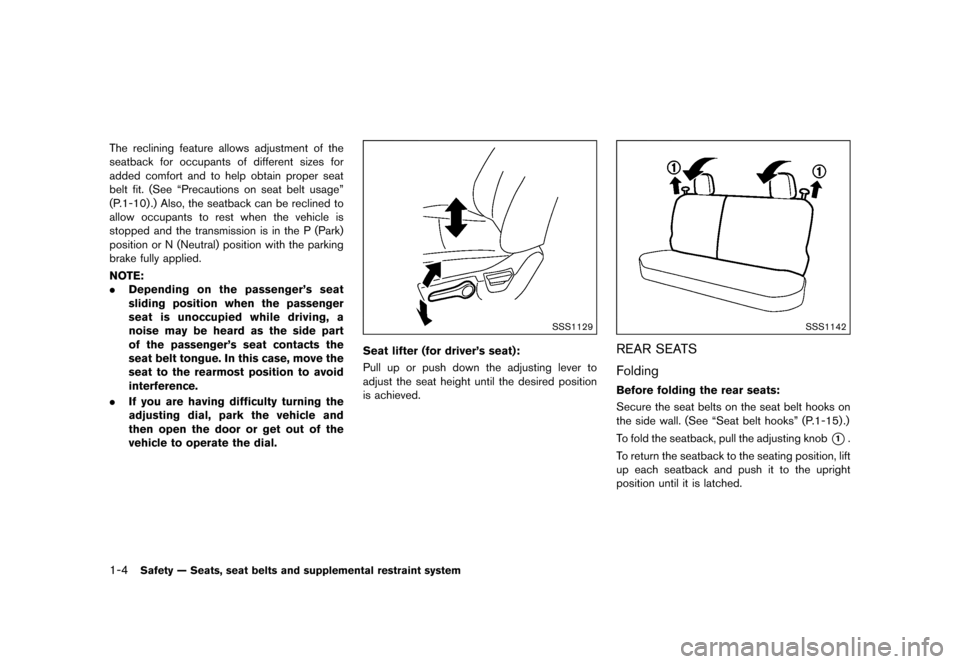

1-4Safety Ð Seats, seat belts and supplemental restraint system
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See ªPrecautions on seat belt usageº
(P.1-10) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
NOTE:
.Depending on the passenger's seat
sliding position when the passenger
seat is unoccupied while driving, a
noise may be heard as the side part
of the passenger's seat contacts the
seat belt tongue. In this case, move the
seat to the rearmost position to avoid
interference.
. If you are having difficulty turning the
adjusting dial, park the vehicle and
then open the door or get out of the
vehicle to operate the dial.
SSS1129
Seat lifter (for driver's seat):GUID-F83C168B-173D-4313-B631-F712588C0463Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
SSS1142
REAR SEATSGUID-2FD3862E-47A4-488D-87D0-EC77846BDDE4
FoldingGUID-93DCD3BA-E481-4D39-82ED-FEB595DFCE01
Before folding the rear seats:GUID-F83C168B-173D-4313-B631-F712588C0463Secure the seat belts on the seat belt hooks on
the side wall. (See ªSeat belt hooksº (P.1-15) .)
To fold the seatback, pull the adjusting knob
*1.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
