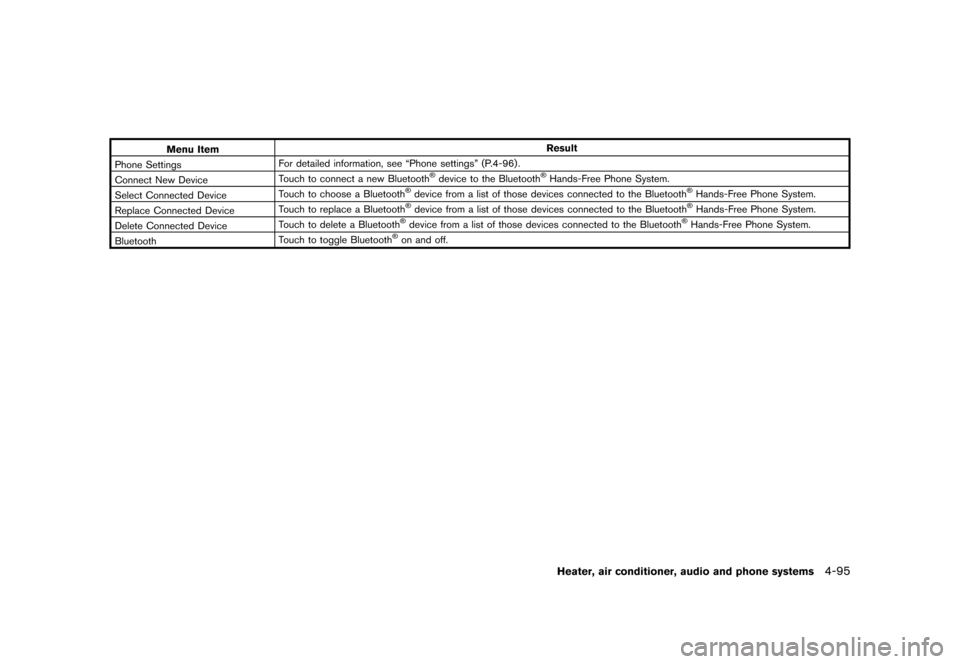

Menu ItemResult
Phone Settings For detailed information, see ªPhone settingsº (P.4-96) .
Connect New Device Touch to connect a new Bluetooth


> (GLW    0RGHO )' @
4-96Heater, air conditioner, audio and phone systems

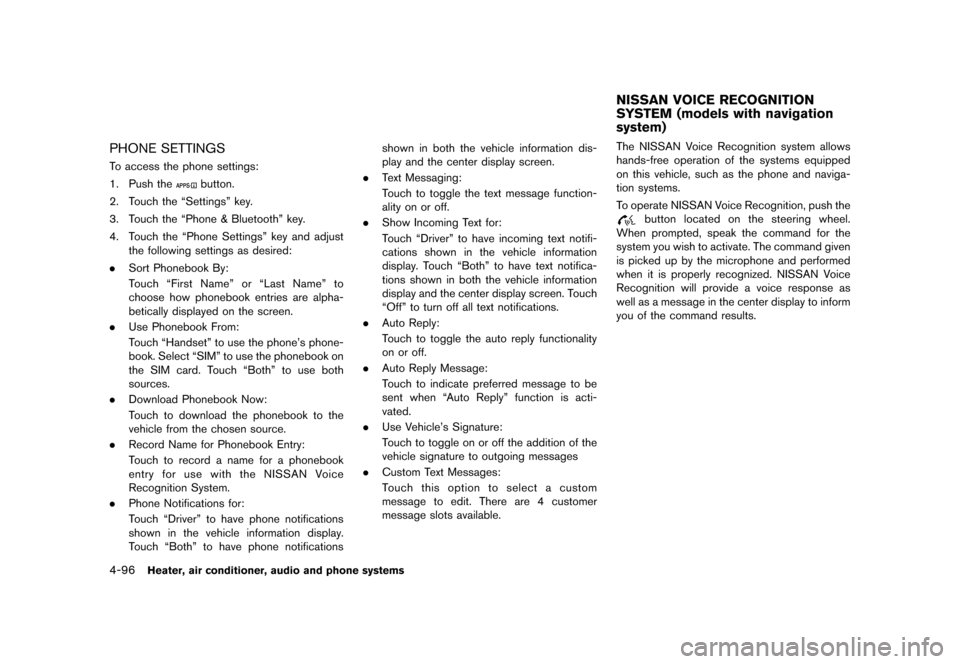

PHONE SETTINGSGUID-3D84110D-D0A3-4F6E-B8AF-BB9ED0B0757ATo access the phone settings:
1. Push the
button.
2. Touch the ªSettingsº key.
3. Touch the ªPhone & Bluetoothº key.
4. Touch the ªPhone Settingsº key and adjust the following settings as desired:
. Sort Phonebook By:
Touch ªFirst Nameº or ªLast Nameº to
choose how phonebook entries are alpha-
betically displayed on the screen.
. Use Phonebook From:
Touch ªHandsetº to use the phone's phone-
book. Select ªSIMº to use the phonebook on
the SIM card. Touch ªBothº to use both
sources.
. Download Phonebook Now:
Touch to download the phonebook to the
vehicle from the chosen source.
. Record Name for Phonebook Entry:
Touch to record a name for a phonebook
entry for use with the NISSAN Voice
Recognition System.
. Phone Notifications for:
Touch ªDriverº to have phone notifications
shown in the vehicle information display.
Touch ªBothº to have phone notifications shown in both the vehicle information dis-
play and the center display screen.
. Text Messaging:
Touch to toggle the text message function-
ality on or off.
. Show Incoming Text for:
Touch ªDriverº to have incoming text notifi-
cations shown in the vehicle information
display. Touch ªBothº to have text notifica-
tions shown in both the vehicle information
display and the center display screen. Touch
ªOffº to turn off all text notifications.
. Auto Reply:
Touch to toggle the auto reply functionality
on or off.
. Auto Reply Message:
Touch to indicate preferred message to be
sent when ªAuto Replyº function is acti-
vated.
. Use Vehicle's Signature:
Touch to toggle on or off the addition of the
vehicle signature to outgoing messages
. Custom Text Messages:
Touch this option to select a custom
message to edit. There are 4 customer
message slots available.
GUID-51334051-21B0-416B-9031-9372BED64572The NISSAN Voice Recognition system allows
hands-free operation of the systems equipped
on this vehicle, such as the phone and naviga-
tion systems.
To operate NISSAN Voice Recognition, push the
button located on the steering wheel.
When prompted, speak the command for the
system you wish to activate. The command given
is picked up by the microphone and performed
when it is properly recognized. NISSAN Voice
Recognition will provide a voice response as
well as a message in the center display to inform
you of the command results.
NISSAN VOICE RECOGNITION
SYSTEM (models with navigation
system)
&RQGLWLRQ


> (GLW    0RGHO )' @

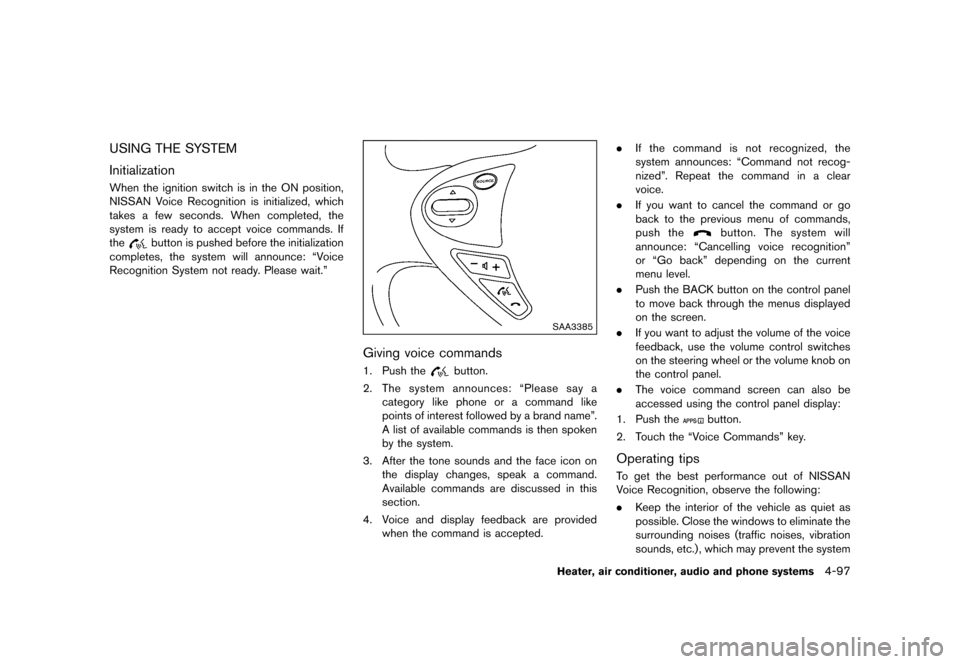

USING THE SYSTEMGUID-C136F8CB-A1BD-417A-B9C6-CF756E20C5F1
InitializationGUID-A4F9B9EB-11DC-4931-B4A8-6DC78158EC1DWhen the ignition switch is in the ON position,
NISSAN Voice Recognition is initialized, which
takes a few seconds. When completed, the
system is ready to accept voice commands. If
the
button is pushed before the initialization
completes, the system will announce: ªVoice
Recognition System not ready. Please wait.º
SAA3385
Giving voice commandsGUID-38A99285-9152-4C7F-A2F5-A539E6E69FD51. Push thebutton.
2. The system announces: ªPlease say a
category like phone or a command like
points of interest followed by a brand nameº.
A list of available commands is then spoken
by the system.
3. After the tone sounds and the face icon on the display changes, speak a command.
Available commands are discussed in this
section.
4. Voice and display feedback are provided when the command is accepted. .
If the command is not recognized, the
system announces: ªCommand not recog-
nizedº. Repeat the command in a clear
voice.
. If you want to cancel the command or go
back to the previous menu of commands,
push the
button. The system will
announce: ªCancelling voice recognitionº
or ªGo backº depending on the current
menu level.
. Push the BACK button on the control panel
to move back through the menus displayed
on the screen.
. If you want to adjust the volume of the voice
feedback, use the volume control switches
on the steering wheel or the volume knob on
the control panel.
. The voice command screen can also be
accessed using the control panel display:
1. Push the
button.
2. Touch the ªVoice Commandsº key.
Operating tipsGUID-8AE74C46-651B-41D6-84C3-EB1911EDC3A0To get the best performance out of NISSAN
Voice Recognition, observe the following:
. Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.) , which may prevent the system
Heater, air conditioner, audio and phone systems4-97
&RQGLWLRQ


> (GLW    0RGHO )' @
4-98Heater, air conditioner, audio and phone systems

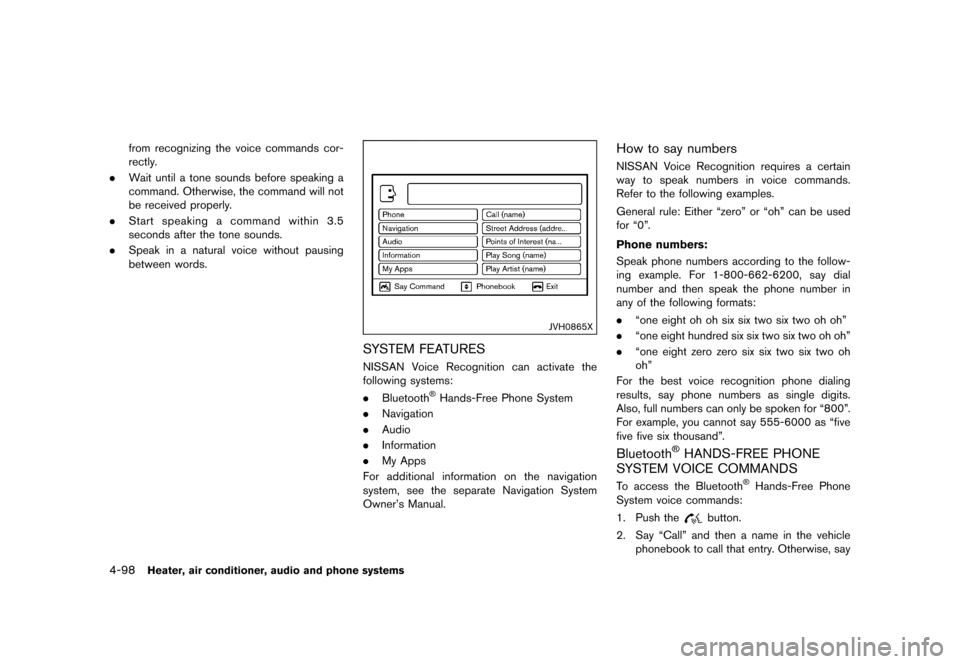

from recognizing the voice commands cor-
rectly.
. Wait until a tone sounds before speaking a
command. Otherwise, the command will not
be received properly.
. Start speaking a command within 3.5
seconds after the tone sounds.
. Speak in a natural voice without pausing
between words.
JVH0865X
SYSTEM FEATURESGUID-8F333E76-52F8-4B29-B0F3-BA93B4F939E0NISSAN Voice Recognition can activate the
following systems:
.Bluetooth


> (GLW    0RGHO )' @

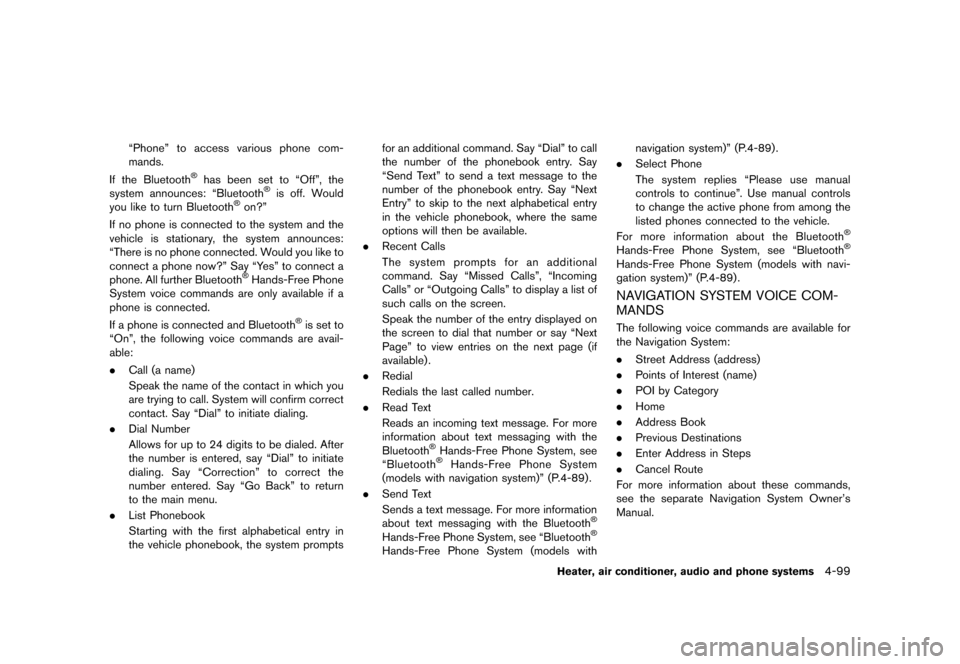

ªPhoneº to access various phone com-
mands.
If the Bluetooth


> (GLW    0RGHO )' @
4-100Heater, air conditioner, audio and phone systems

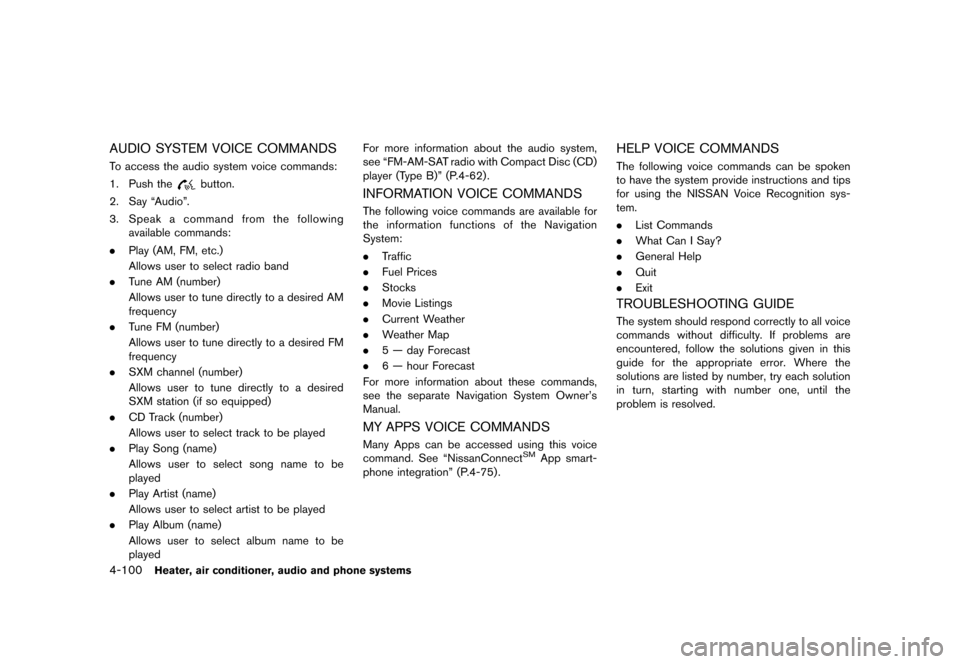

AUDIO SYSTEM VOICE COMMANDSGUID-4D15B57C-DDB8-49AB-9F43-F95624AD1EE2To access the audio system voice commands:
1. Push the
button.
2. Say ªAudioº.
3. Speak a command from the following
available commands:
. Play (AM, FM, etc.)
Allows user to select radio band
. Tune AM (number)
Allows user to tune directly to a desired AM
frequency
. Tune FM (number)
Allows user to tune directly to a desired FM
frequency
. SXM channel (number)
Allows user to tune directly to a desired
SXM station (if so equipped)
. CD Track (number)
Allows user to select track to be played
. Play Song (name)
Allows user to select song name to be
played
. Play Artist (name)
Allows user to select artist to be played
. Play Album (name)
Allows user to select album name to be
played For more information about the audio system,
see ªFM-AM-SAT radio with Compact Disc (CD)
player (Type B)º (P.4-62) .INFORMATION VOICE COMMANDSGUID-171CBBFE-A46D-429D-86D2-3E7A2671F101The following voice commands are available for
the information functions of the Navigation
System:
.
Traffic
. Fuel Prices
. Stocks
. Movie Listings
. Current Weather
. Weather Map
. 5 Ð day Forecast
. 6 Ð hour Forecast
For more information about these commands,
see the separate Navigation System Owner's
Manual.
MY APPS VOICE COMMANDSGUID-4BFC8758-C169-4735-A859-23581CD5220FMany Apps can be accessed using this voice
command. See ªNissanConnectSMApp smart-
phone integrationº (P.4-75) .
HELP VOICE COMMANDSGUID-42A9446A-DBB0-4D48-A24E-8D3703DA8916The following voice commands can be spoken
to have the system provide instructions and tips
for using the NISSAN Voice Recognition sys-
tem.
. List Commands
. What Can I Say?
. General Help
. Quit
. Exit
TROUBLESHOOTING GUIDEGUID-9A20B758-753D-425B-9C65-7CCF803B5D50The system should respond correctly to all voice
commands without difficulty. If problems are
encountered, follow the solutions given in this
guide for the appropriate error. Where the
solutions are listed by number, try each solution
in turn, starting with number one, until the
problem is resolved.
&RQGLWLRQ


> (GLW    0RGHO )' @

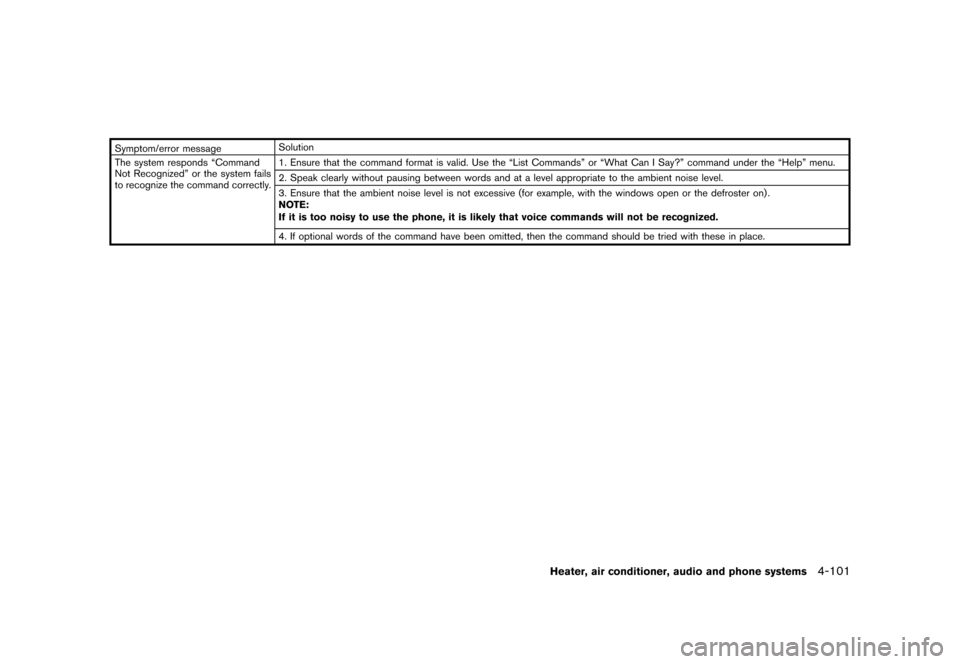

Symptom/error messageSolution
The system responds ªCommand
Not Recognizedº or the system fails
to recognize the command correctly. 1. Ensure that the command format is valid. Use the ªList Commandsº or ªWhat Can I Say?º command under the ªHelpº menu.
2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive (for example, with the windows open or the defroster on) .
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
4. If optional words of the command have been omitted, then the command should be tried with these in place.
Heater, air conditioner, audio and phone systems4-101
&RQGLWLRQ


> (GLW    0RGHO )' @
4-102Heater, air conditioner, audio and phone systems

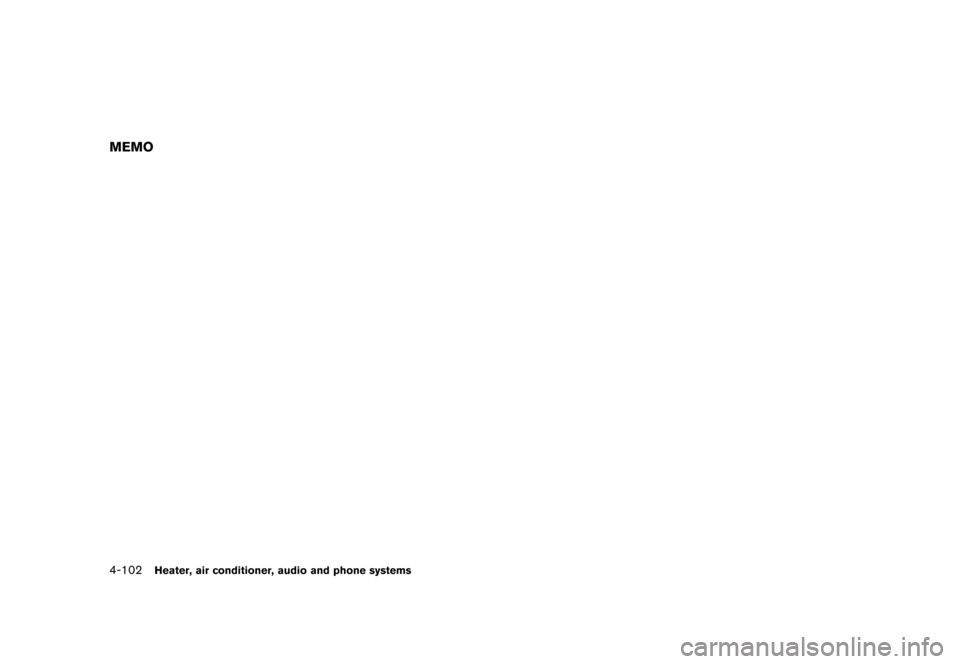

MEMO
