2016 NISSAN JUKE Owners Manual


> (GLW    0RGHO )' @

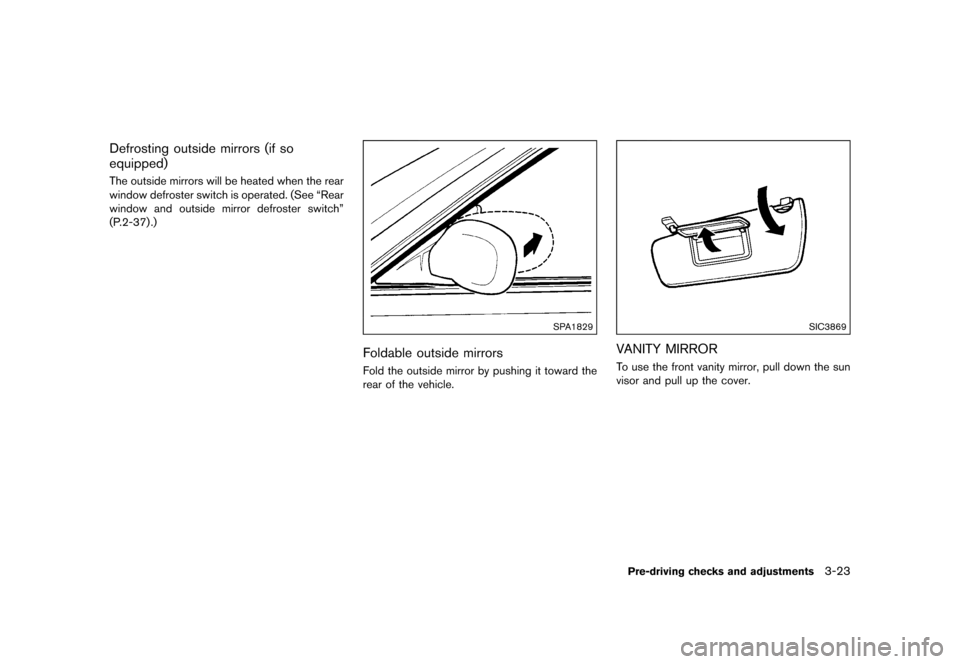

Defrosting outside mirrors (if so
equipped)
GUID-0E6517BD-BCCB-4DB1-84F6-0B2BB7759B83The outside mirrors will be heated when the rear
window defroster switch is operated. (See ªRear
window and outside mirror defroster switchº
(P.2-37) .)
SPA1829
Foldable outside mirrorsGUID-E3E5B6C2-2DF1-49B4-809C-998B5A0A1B3BFold the outside mirror by pushing it toward the
rear of the vehicle.
SIC3869
VANITY MIRRORGUID-21E8F75F-AC0C-4F4E-9E32-61A89D0A8B52To use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-23
&RQGLWLRQ


> (GLW    0RGHO )' @
3-24Pre-driving checks and adjustments
MEMO
&RQGLWLRQ


> (GLW    0RGHO )' @

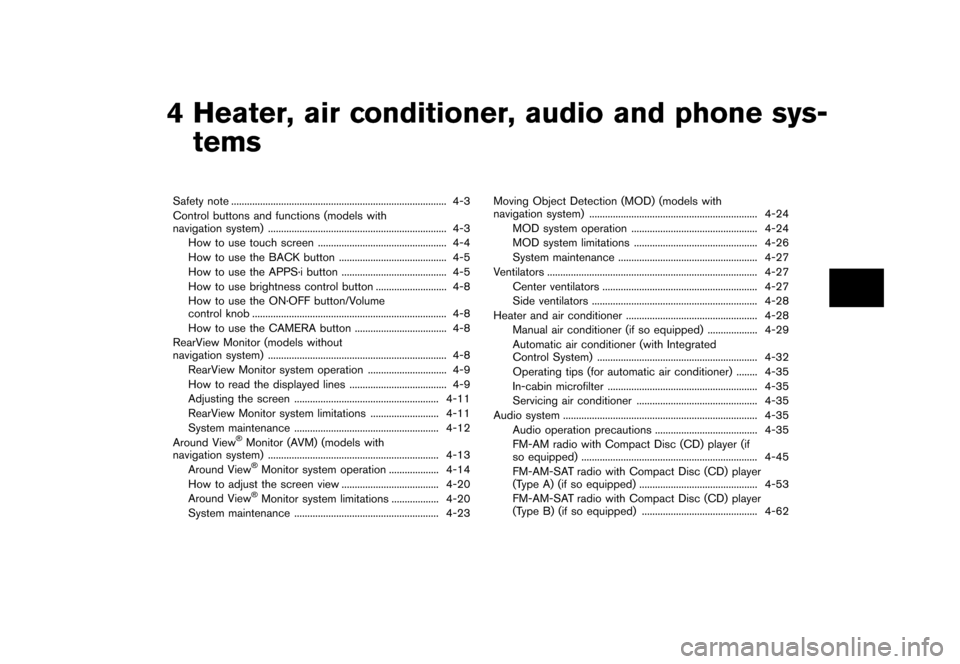

4 Heater, air conditioner, audio and phone sys-tems
Safety note ...
........................................................................\
.......... 4-3
Control buttons and functions (models with
navigation system) ...
.................................................................... 4-3
How to use touch screen ...
................................................. 4-4
How to use the BACK button ...
......................................... 4-5
How to use the APPS´i button ...
........................................ 4-5
How to use brightness control button ...
........................... 4-8
How to use the ON´OFF button/Volume
control knob ...
........................................................................\
.. 4-8
How to use the CAMERA button ...
................................... 4-8
RearView Monitor (models without
navigation system) ...
.................................................................... 4-8
RearView Monitor system operation ...
.............................. 4-9
How to read the displayed lines ...
..................................... 4-9
Adjusting the screen ...
....................................................... 4-11
RearView Monitor system limitations ...
.......................... 4-11
System maintenance ...
....................................................... 4-12
Around View


> (GLW    0RGHO )' @

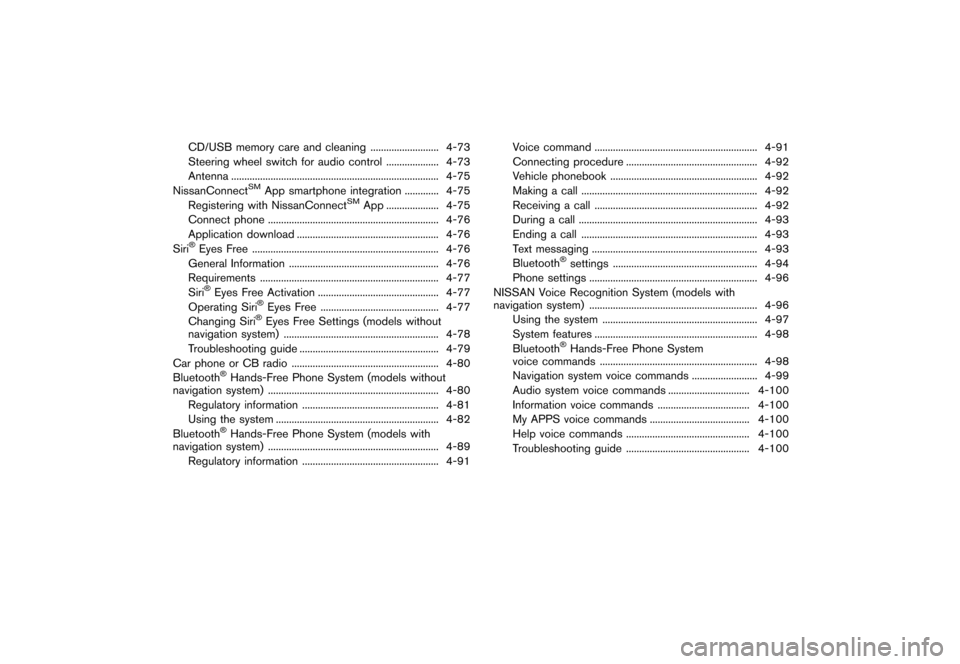

CD/USB memory care and cleaning...
.......................... 4-73
Steering wheel switch for audio control ...
.................... 4-73
Antenna ...
........................................................................\
....... 4-75
NissanConnect
SMApp smartphone integration ...
............. 4-75
Registering with NissanConnectSMApp ...
.................... 4-75
Connect phone ...
................................................................. 4-76
Application download ...
...................................................... 4-76
Siri


> (GLW    0RGHO )' @

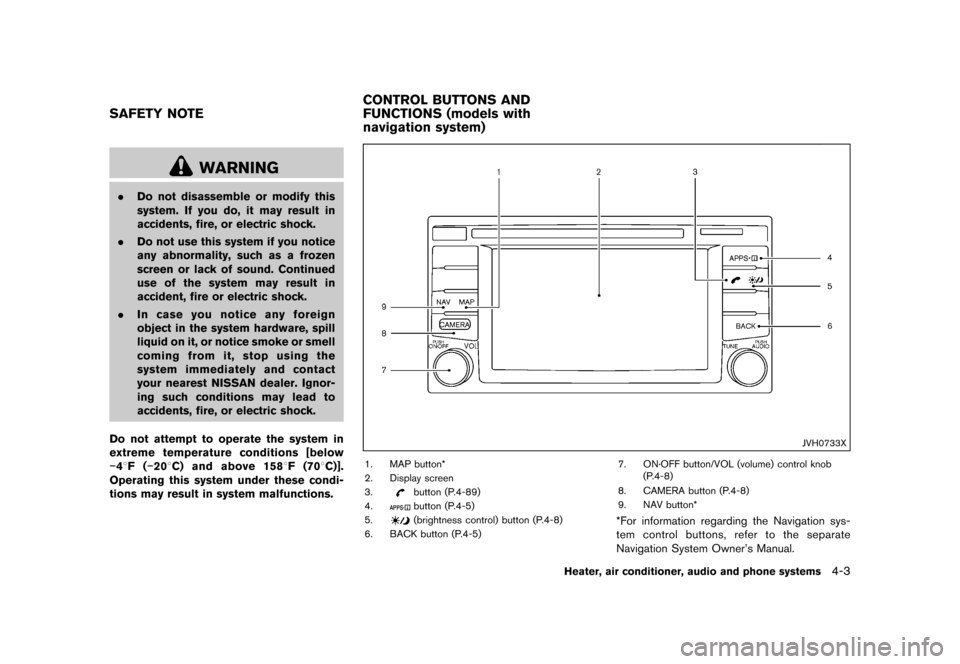

GUID-A94094A4-AFB5-4790-B5D0-B9A753AE417A
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
Do not attempt to operate the system in
extreme temperature conditions [below


> (GLW    0RGHO )' @

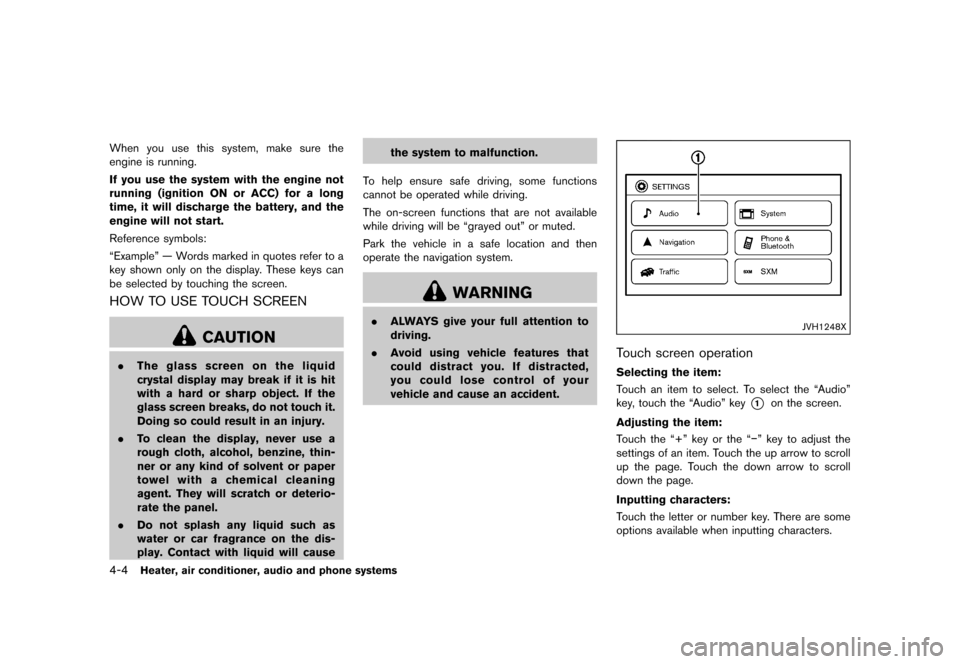

4-4Heater, air conditioner, audio and phone systems
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
ªExampleº Ð Words marked in quotes refer to a
key shown only on the display. These keys can
be selected by touching the screen.
HOW TO USE TOUCH SCREENGUID-7CCFD255-7CCA-4FE0-A64E-C9A30213AA2F
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner or any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause the system to malfunction.
To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not available
while driving will be ªgrayed outº or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.JVH1248X
Touch screen operationGUID-F45BCBA5-784B-4464-9407-86458F60C9EB
Selecting the item:GUID-F83C168B-173D-4313-B631-F712588C0463Touch an item to select. To select the ªAudioº
key, touch the ªAudioº key
*1on the screen.
Adjusting the item:
GUID-F83C168B-173D-4313-B631-F712588C0463Touch the ª+º key or the ª


> (GLW    0RGHO )' @

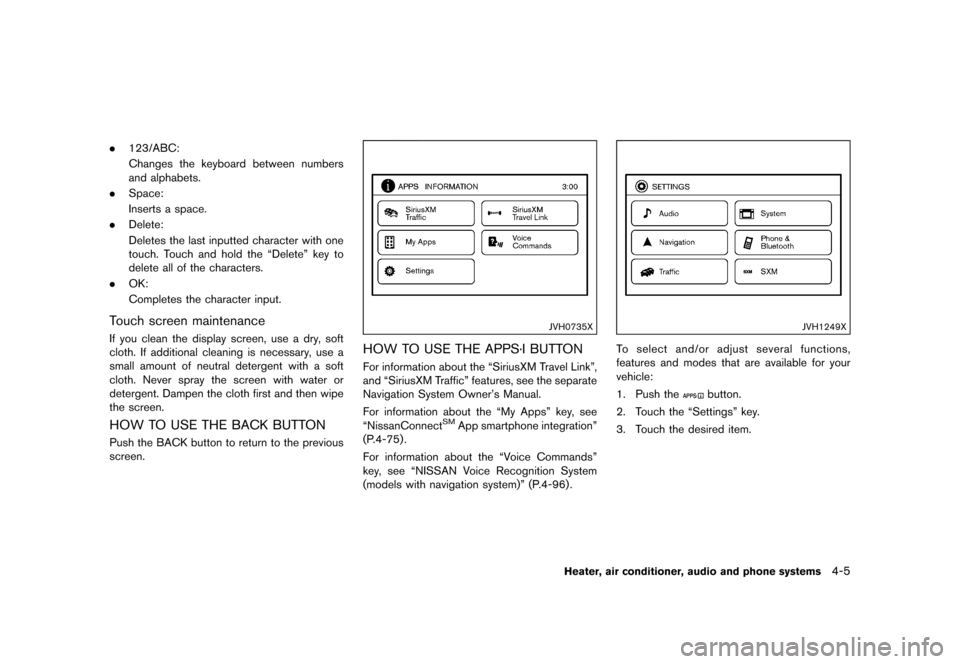

.123/ABC:
Changes the keyboard between numbers
and alphabets.
. Space:
Inserts a space.
. Delete:
Deletes the last inputted character with one
touch. Touch and hold the ªDeleteº key to
delete all of the characters.
. OK:
Completes the character input.
Touch screen maintenanceGUID-77C3133A-9596-4196-B911-A0948F0FFCA3If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first and then wipe
the screen.
HOW TO USE THE BACK BUTTONGUID-A5D1F746-2A2E-4A3C-BC32-793B3C61BD05Push the BACK button to return to the previous
screen.
JVH0735X
HOW TO USE THE APPS´I BUTTONGUID-EE87C90E-709A-44F4-A0A2-03BFBA7B5D5EFor information about the ªSiriusXM Travel Linkº,
and ªSiriusXM Trafficº features, see the separate
Navigation System Owner's Manual.
For information about the ªMy Appsº key, see
ªNissanConnect
SMApp smartphone integrationº
(P.4-75) .
For information about the ªVoice Commandsº
key, see ªNISSAN Voice Recognition System
(models with navigation system)º (P.4-96).
JVH1249X
To select and/or adjust several functions,
features and modes that are available for your
vehicle:
1. Push the
button.
2. Touch the ªSettingsº key.
3. Touch the desired item.
Heater, air conditioner, audio and phone systems4-5
&RQGLWLRQ


> (GLW    0RGHO )' @
4-6Heater, air conditioner, audio and phone systems

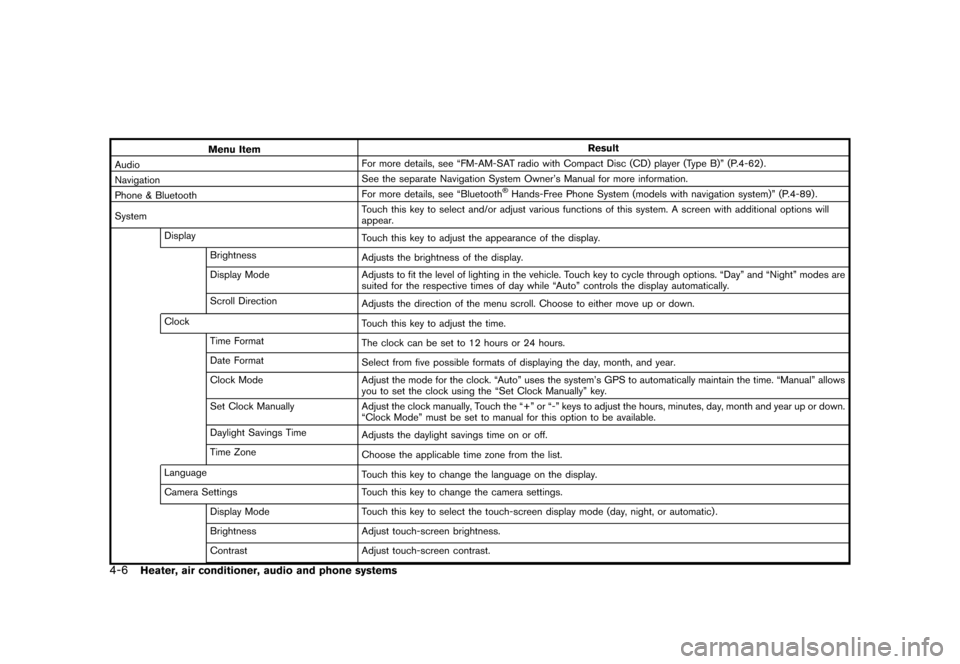

Menu ItemResult
Audio For more details, see ªFM-AM-SAT radio with Compact Disc (CD) player (Type B)º (P.4-62) .
Navigation See the separate Navigation System Owner's Manual for more information.
Phone & Bluetooth For more details, see ªBluetooth
