2016 NISSAN JUKE Owners Manual


> (GLW    0RGHO )' @
GUID-6AAA613A-3A26-4D80-957F-77DA08BE83AE
STI0787

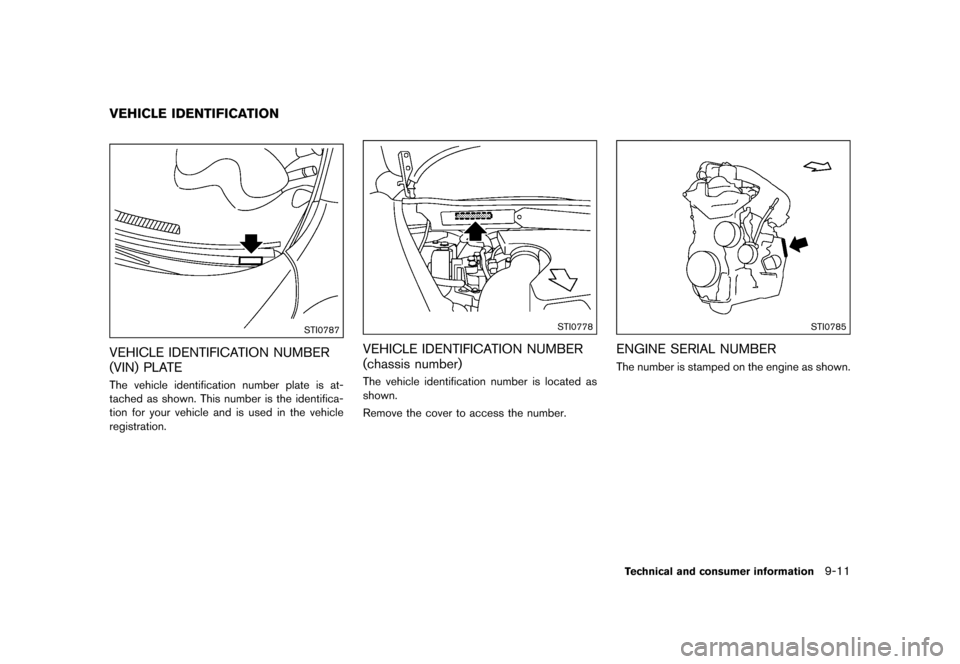

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
GUID-51E7278B-C689-451D-B20F-778B750F9EBCThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
STI0778
VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-E896692B-DC42-4E21-8AE0-BA295E7DE87EThe vehicle identification number is located as
shown.
Remove the cover to access the number.
STI0785
ENGINE SERIAL NUMBERGUID-3FD05154-07DB-44B5-AFC5-52E87A282E5CThe number is stamped on the engine as shown.
Technical and consumer information9-11
VEHICLE IDENTIFICATION
&RQGLWLRQ


> (GLW    0RGHO )' @
9-12Technical and consumer information
STI0814

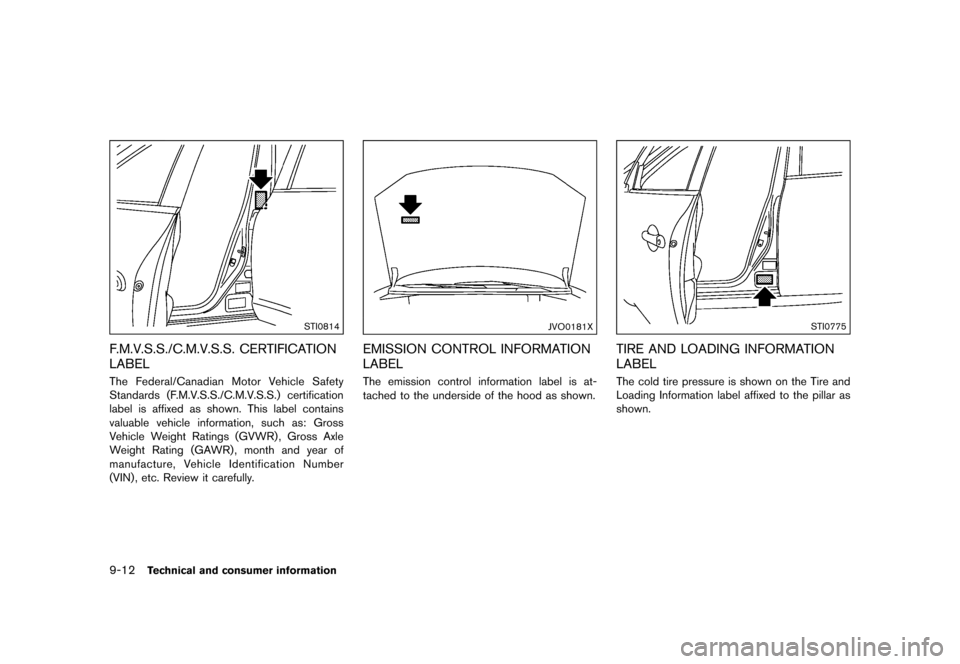

F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
GUID-5C38DE0E-6A92-4DC0-8D62-4E94E8B7C121The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
JVO0181X
EMISSION CONTROL INFORMATION
LABEL
GUID-8B286175-211A-4C8A-9CE7-8FA6334717D8The emission control information label is at-
tached to the underside of the hood as shown.
STI0775
TIRE AND LOADING INFORMATION
LABEL
GUID-2C654792-1156-4465-816B-E01C0EDBC8F9The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
shown.
&RQGLWLRQ


> (GLW    0RGHO )' @
STI0776

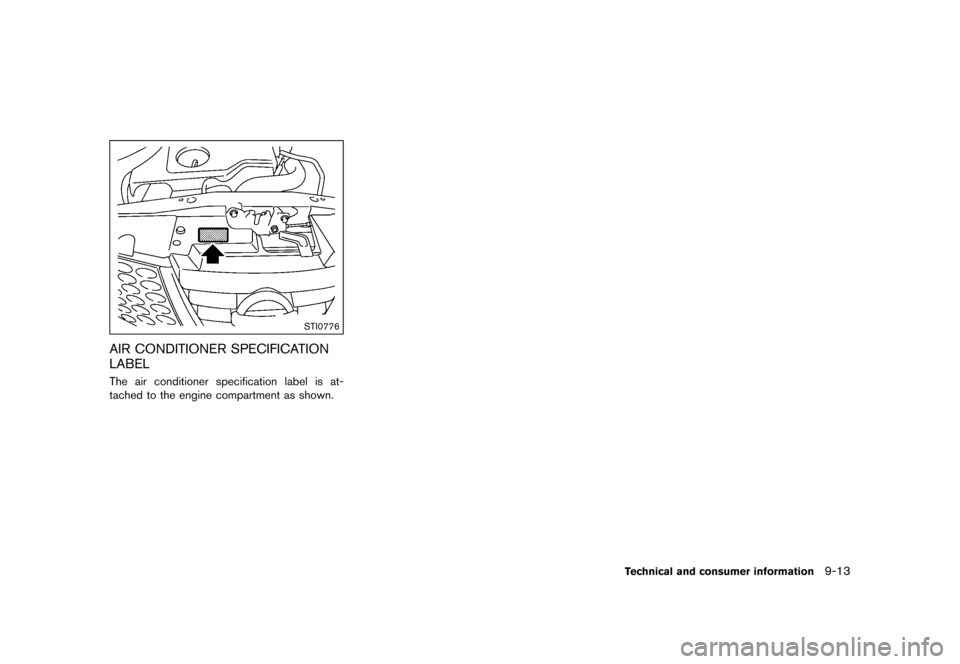

AIR CONDITIONER SPECIFICATION
LABEL
GUID-A1C6F964-FFE8-4D80-AF6C-198A60B0B66AThe air conditioner specification label is at-
tached to the engine compartment as shown.
Technical and consumer information9-13
&RQGLWLRQ


> (GLW    0RGHO )' @
9-14Technical and consumer information
GUID-84858CF9-B205-43B4-A3EA-91D90648CCE6
JVT0347X

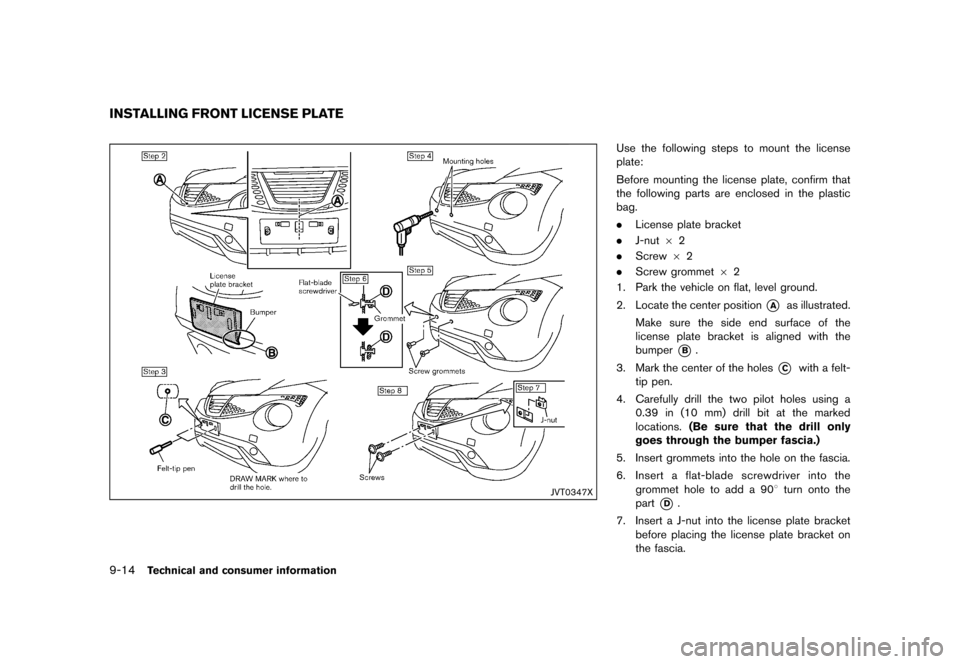

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
.License plate bracket
. J-nut 62
. Screw 62
. Screw grommet 62
1. Park the vehicle on flat, level ground.
2. Locate the center position
*Aas illustrated.
Make sure the side end surface of the
license plate bracket is aligned with the
bumper
*B.
3. Mark the center of the holes
*Cwith a felt-
tip pen.
4. Carefully drill the two pilot holes using a 0.39 in (10 mm) drill bit at the marked
locations. (Be sure that the drill only
goes through the bumper fascia.)
5. Insert grommets into the hole on the fascia.
6. Insert a flat-blade screwdriver into the
grommet hole to add a 908 turn onto the
part
*D.
7. Insert a J-nut into the license plate bracket before placing the license plate bracket on
the fascia.
INSTALLING FRONT LICENSE PLATE
&RQGLWLRQ


> (GLW    0RGHO )' @
8. Install the license plate bracket with thescrews.
9. Install the license plate with bolts that are not longer than 0.55 in (14 mm) .
GUID-D13722FD-DA1F-477D-B8A1-0FC43622889B
WARNING
.It is extremely dangerous to ride
in a cargo area inside the vehi-
cle. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.
.Do not allow people to ride in
any area of your vehicle that is
not equipped with seats and
seat belts.
.Be sure everyone in your vehicle
is in a seat and using a seat belt
properly.
TERMSGUID-368F295B-27F1-4F13-B6C1-C57DA271519BIt is important to familiarize yourself with the
following terms before loading your vehicle:
.Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard and optional equipment,
fluids, emergency tools, and spare tire
assembly. This weight does notin-
clude passengers and cargo.
.GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.
.GVWR (Gross Vehicle Weight Rating)
- maximum total combined weight of the
unloaded vehicle, passengers, luggage,
hitch, trailer tongue load and any other
optional equipment. This information is
located on the F.M.V.S.S./C.M.V.S.S.
label.
.GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified
for the front or rear axle. This informa-
tion is located on the F.M.V.S.S./C.M.V.
S.S. label.
.GCWR (Gross Combined Weight Rat-
ing) - The maximum total weight rating
of the vehicle, passengers, cargo, and
trailer.
.Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the vehicle.
This is the maximum combined weight
of occupants and cargo that can be
loaded into the vehicle. If the vehicle is
used to tow a trailer, the trailer tongue
Technical and consumer information9-15
VEHICLE LOADING INFORMATION
&RQGLWLRQ


> (GLW    0RGHO )' @
9-16Technical and consumer information
weight must be included as part of the
cargo load. This information is located
on the Tire and Loading Information
label.

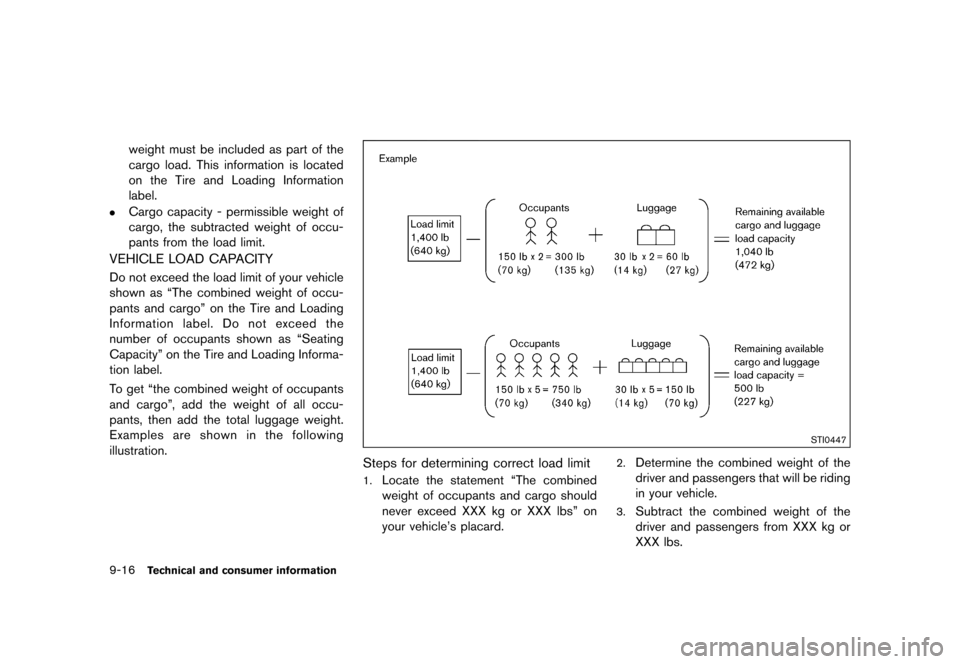

.Cargo capacity - permissible weight of
cargo, the subtracted weight of occu-
pants from the load limit.
VEHICLE LOAD CAPACITYGUID-5CF827C1-AFAB-440C-932A-9F3339533FE7Do not exceed the load limit of your vehicle
shown as ªThe combined weight of occu-
pants and cargoº on the Tire and Loading
Information label. Do not exceed the
number of occupants shown as ªSeating
Capacityº on the Tire and Loading Informa-
tion label.
To get ªthe combined weight of occupants
and cargoº, add the weight of all occu-
pants, then add the total luggage weight.
Examples are shown in the following
illustration.
STI0447
Steps for determining correct load limitGUID-CBC5F349-AD34-47D6-B03F-C50FF1F7A8EE1.Locate the statement ªThe combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbsº on
your vehicle's placard.
2.Determine the combined weight of the
driver and passengers that will be riding
in your vehicle.
3.Subtract the combined weight of the
driver and passengers from XXX kg or
XXX lbs.
&RQGLWLRQ


> (GLW    0RGHO )' @

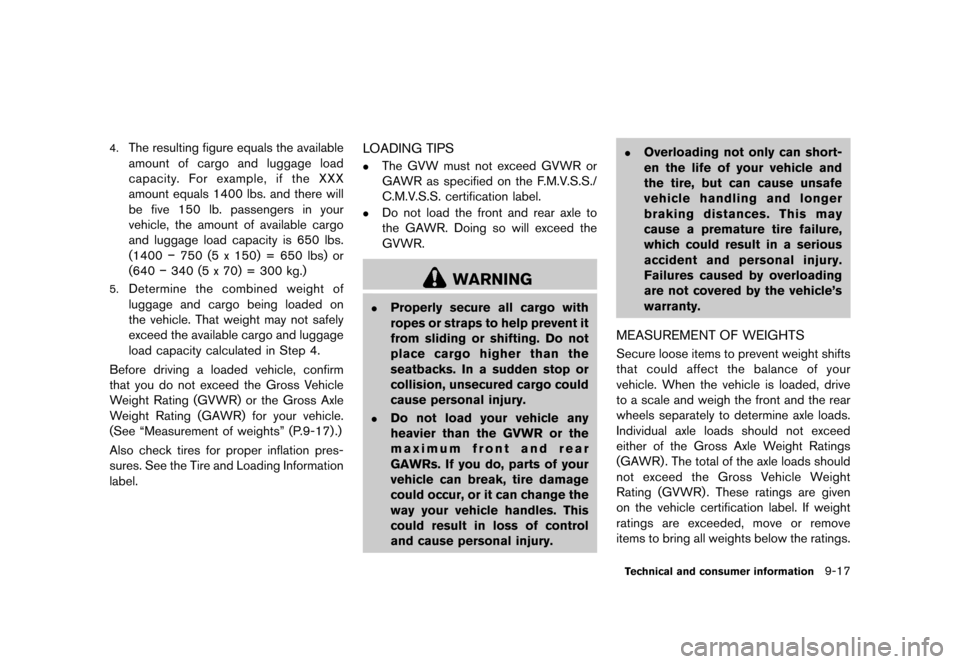

4.The resulting figure equals the available
amount of cargo and luggage load
capacity. For example, if the XXX
amount equals 1400 lbs. and there will
be five 150 lb. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400


> (GLW    0RGHO )' @
9-18Technical and consumer information

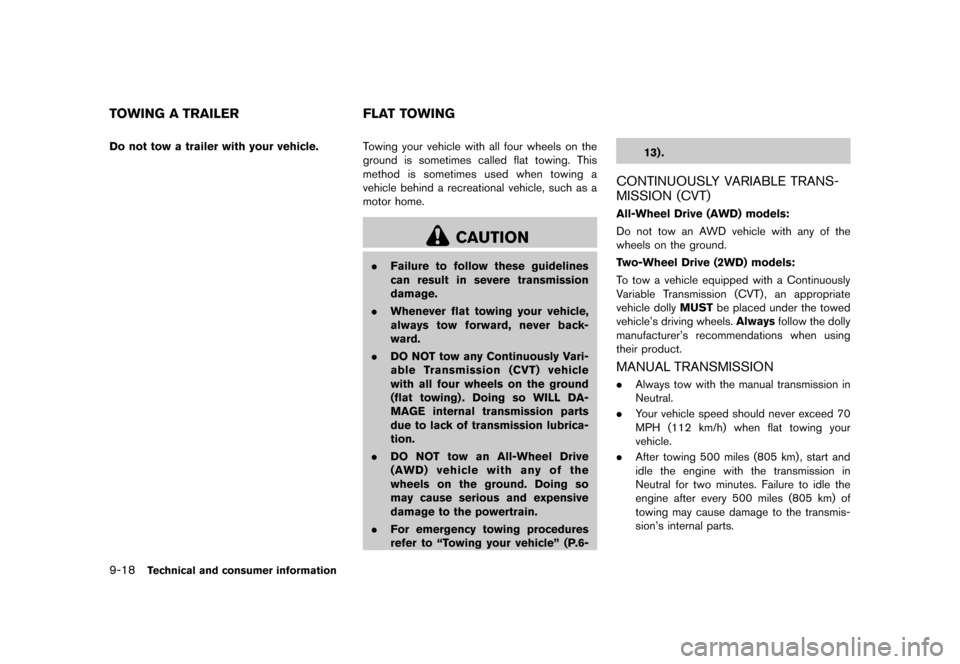

GUID-F20F5531-4E6B-4F82-BAD2-1E941D903DB6Do not tow a trailer with your vehicle.GUID-FC66003B-B76C-42AB-9FCA-588DF863F95ATowing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
.Failure to follow these guidelines
can result in severe transmission
damage.
. Whenever flat towing your vehicle,
always tow forward, never back-
ward.
. DO NOT tow any Continuously Vari-
able Transmission (CVT) vehicle
with all four wheels on the ground
(flat towing) . Doing so WILL DA-
MAGE internal transmission parts
due to lack of transmission lubrica-
tion.
. DO NOT tow an All-Wheel Drive
(AWD) vehicle with any of the
wheels on the ground. Doing so
may cause serious and expensive
damage to the powertrain.
. For emergency towing procedures
refer to ªTowing your vehicleº (P.6- 13) .
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)
GUID-A9F17C32-174D-4848-8C9E-543DA151F46EAll-Wheel Drive (AWD) models:
Do not tow an AWD vehicle with any of the
wheels on the ground.
Two-Wheel Drive (2WD) models:
To tow a vehicle equipped with a Continuously
Variable Transmission (CVT) , an appropriate
vehicle dolly
MUSTbe placed under the towed
vehicle's driving wheels. Alwaysfollow the dolly
manufacturer's recommendations when using
their product.
MANUAL TRANSMISSIONGUID-B117614A-9FD0-4D51-A6E3-47024288B9E1. Always tow with the manual transmission in
Neutral.
. Your vehicle speed should never exceed 70
MPH (112 km/h) when flat towing your
vehicle.
. After towing 500 miles (805 km) , start and
idle the engine with the transmission in
Neutral for two minutes. Failure to idle the
engine after every 500 miles (805 km) of
towing may cause damage to the transmis-
sion's internal parts.
TOWING A TRAILER FLAT TOWING
&RQGLWLRQ
