9-2Technical and consumer information
GUID-55EDCBAF-B574-46D1-AA57-587026C9991CThe following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the ª8. Maintenance and do-it-yourselfº section to determine the proper refill capacity.
Fluid typeCapacity (Approximate)Recommended specifications
US
measure Imp
measure Liter
Fuel 2WD model 13-1/4 gal 11 gal 50
See ªFuel informationº (P.9-4) .
AWD model 11-7/8 gal 9-7/8 gal 45
Engine oil*1 Drain and refill
*1: For additional in-
formation, see
ªChanging engine oil
and filterº (P.8-9) . With oil filter change For NISMO RS model 4-1/2 qt 3-3/4 qt 4.3 For NISMO RS models
.Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark*2, Viscosity SAE 5W-30*3
*2: For additional information, see ªEngine oil and oil filter recommendationº (P.9-7) .
*3: As an alternative to this recommended oil, SAE 5W-30 or SAE 10W-30 conventional
petroleum oils may be used and meet all specifications and requirements necessary to
maintain the New Vehicle Limited Warranty.
Except for NISMO RS models
. Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark*4, Viscosity SAE 0W-20*5
*4: For additional information, see ªEngine oil and oil filter recommendationº (P.9-7) .
*5: As an alternative to this recommended oil, SAE 5W-30 conventional petroleum oils may
be used and meet all specifications and requirements necessary to maintain the New Vehicle
Limited Warranty.
Except for NISMO RS model 4-3/4 qt 4 qt 4.5
Without oil filter
change For NISMO RS model 4-3/8 qt 3-5/8 qt 4.1
Except for NISMO RS model 4-1/2 qt 3-3/4 qt 4.3
Engine coolant With reservoir For NISMO RS modelCVT model 8-5/8 qt 7-1/8 qt 8.1
.Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
MT model 8-3/8 qt 7 qt 7.9
Except for
NISMO RS
model CVT model 9-1/4 qt 7-5/8 qt 8.7
MT model 8-3/8 qt 7 qt 8.5
Reservoir 5/8 qt 1/2 qt 0.6

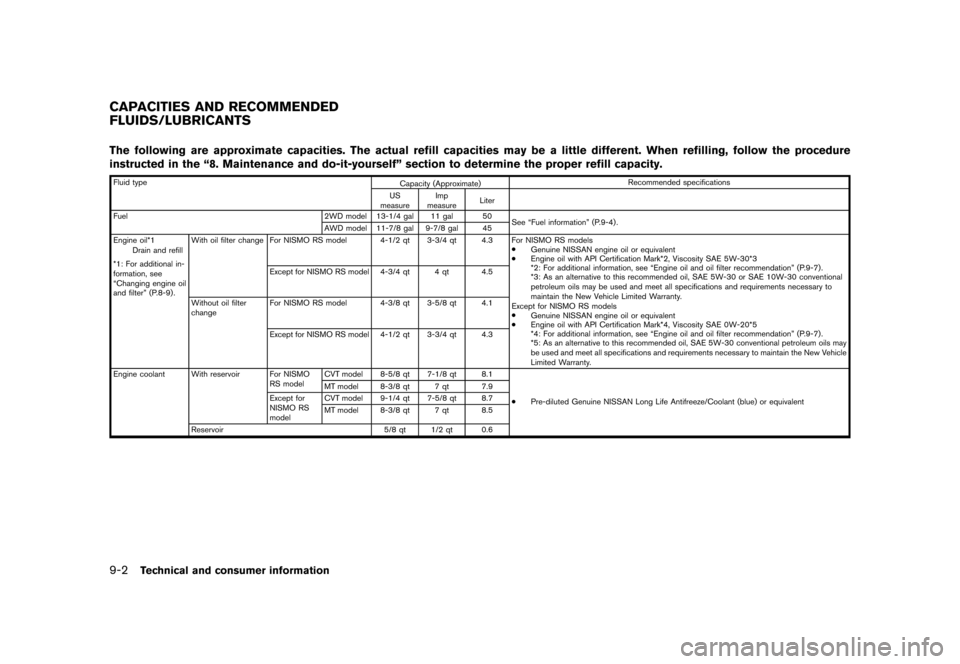

CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS
