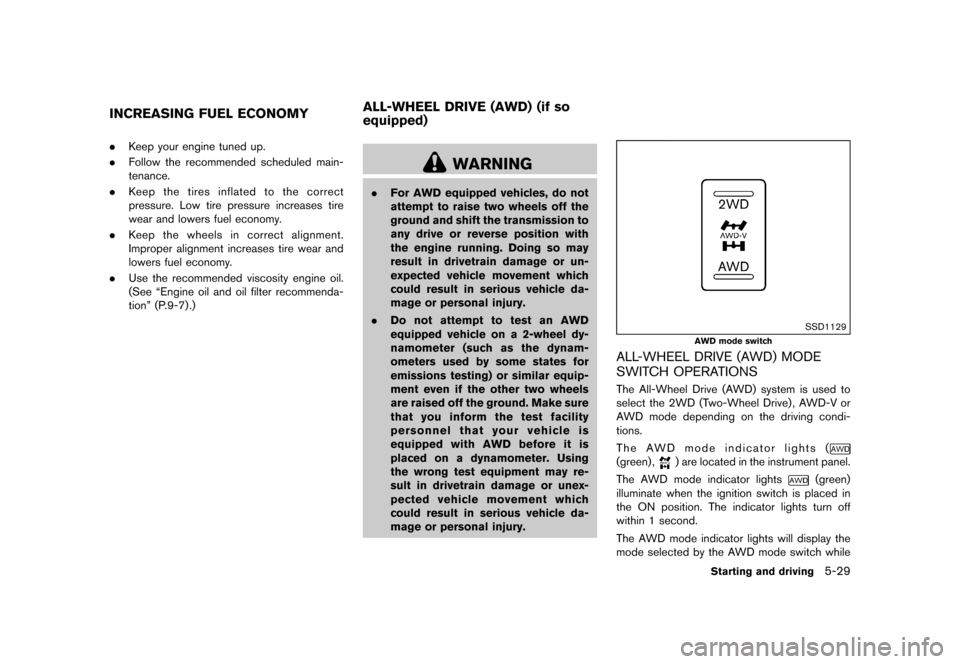

GUID-A7F7F37C-BB96-45E4-9A88-BFC0667354EF.Keep your engine tuned up.
. Follow the recommended scheduled main-
tenance.
. Keep the tires inflated to the correct
pressure. Low tire pressure increases tire
wear and lowers fuel economy.
. Keep the wheels in correct alignment.
Improper alignment increases tire wear and
lowers fuel economy.
. Use the recommended viscosity engine oil.
(See ªEngine oil and oil filter recommenda-
tionº (P.9-7) .)GUID-63E39624-CE54-4BBF-8A6D-1FF627669DD9
WARNING
.For AWD equipped vehicles, do not
attempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with
the engine running. Doing so may
result in drivetrain damage or un-
expected vehicle movement which
could result in serious vehicle da-
mage or personal injury.
. Do not attempt to test an AWD
equipped vehicle on a 2-wheel dy-
namometer (such as the dynam-
ometers used by some states for
emissions testing) or similar equip-
ment even if the other two wheels
are raised off the ground. Make sure
that you inform the test facility
personnel that your vehicle is
equipped with AWD before it is
placed on a dynamometer. Using
the wrong test equipment may re-
sult in drivetrain damage or unex-
pected vehicle movement which
could result in serious vehicle da-
mage or personal injury.
SSD1129
AWD mode switch
ALL-WHEEL DRIVE (AWD) MODE
SWITCH OPERATIONS
GUID-D1E25B84-9B31-4A3A-B30F-1ACF48815006The All-Wheel Drive (AWD) system is used to
select the 2WD (Two-Wheel Drive) , AWD-V or
AWD mode depending on the driving condi-
tions.
The AWD mode indicator lights (
(green) ,) are located in the instrument panel.
The AWD mode indicator lights
(green)
illuminate when the ignition switch is placed in
the ON position. The indicator lights turn off
within 1 second.
The AWD mode indicator lights will display the
mode selected by the AWD mode switch while
Starting and driving5-29
INCREASING FUEL ECONOMY ALL-WHEEL DRIVE (AWD) (if so
equipped)
&RQGLWLRQ


> (GLW    0RGHO )' @
9-2Technical and consumer information
GUID-55EDCBAF-B574-46D1-AA57-587026C9991CThe following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the ª8. Maintenance and do-it-yourselfº section to determine the proper refill capacity.
Fluid typeCapacity (Approximate)Recommended specifications
US
measure Imp
measure Liter
Fuel 2WD model 13-1/4 gal 11 gal 50
See ªFuel informationº (P.9-4) .
AWD model 11-7/8 gal 9-7/8 gal 45
Engine oil*1 Drain and refill
*1: For additional in-
formation, see
ªChanging engine oil
and filterº (P.8-9) . With oil filter change For NISMO RS model 4-1/2 qt 3-3/4 qt 4.3 For NISMO RS models
.Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark*2, Viscosity SAE 5W-30*3
*2: For additional information, see ªEngine oil and oil filter recommendationº (P.9-7) .
*3: As an alternative to this recommended oil, SAE 5W-30 or SAE 10W-30 conventional
petroleum oils may be used and meet all specifications and requirements necessary to
maintain the New Vehicle Limited Warranty.
Except for NISMO RS models
. Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark*4, Viscosity SAE 0W-20*5
*4: For additional information, see ªEngine oil and oil filter recommendationº (P.9-7) .
*5: As an alternative to this recommended oil, SAE 5W-30 conventional petroleum oils may
be used and meet all specifications and requirements necessary to maintain the New Vehicle
Limited Warranty.
Except for NISMO RS model 4-3/4 qt 4 qt 4.5
Without oil filter
change For NISMO RS model 4-3/8 qt 3-5/8 qt 4.1
Except for NISMO RS model 4-1/2 qt 3-3/4 qt 4.3
Engine coolant With reservoir For NISMO RS modelCVT model 8-5/8 qt 7-1/8 qt 8.1
.Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
MT model 8-3/8 qt 7 qt 7.9
Except for
NISMO RS
model CVT model 9-1/4 qt 7-5/8 qt 8.7
MT model 8-3/8 qt 7 qt 8.5
Reservoir 5/8 qt 1/2 qt 0.6
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS
&RQGLWLRQ


> (GLW    0RGHO )' @

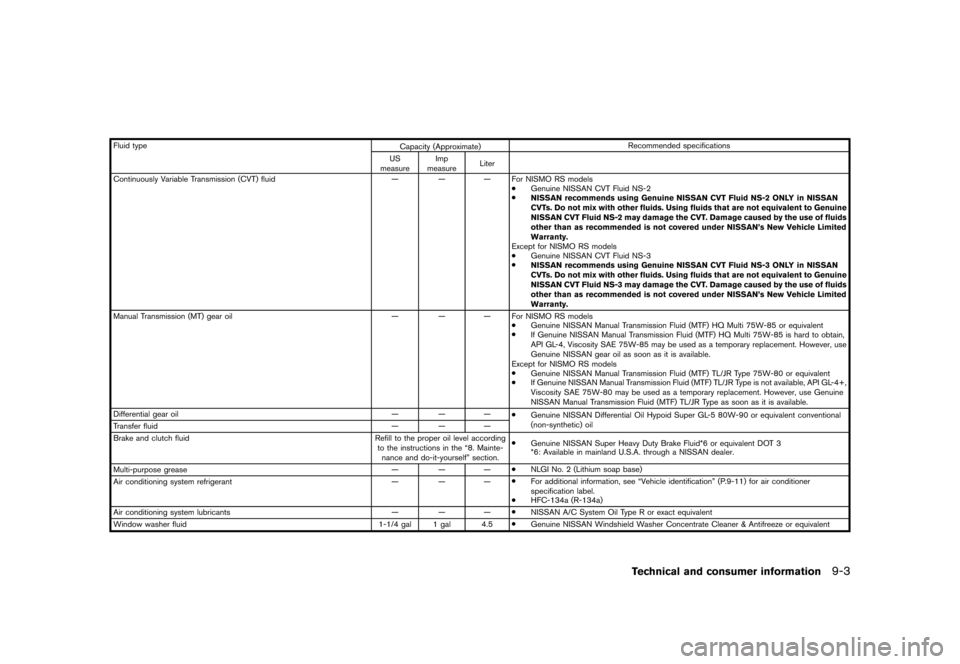

Fluid typeCapacity (Approximate)Recommended specifications
US
measure Imp
measure Liter
Continuously Variable Transmission (CVT) fluid Ð Ð Ð For NISMO RS models
.Genuine NISSAN CVT Fluid NS-2
. NISSAN recommends using Genuine NISSAN CVT Fluid NS-2 ONLY in NISSAN
CVTs. Do not mix with other fluids. Using fluids that are not equivalent to Genuine
NISSAN CVT Fluid NS-2 may damage the CVT. Damage caused by the use of fluids
other than as recommended is not covered under NISSAN's New Vehicle Limited
Warranty.
Except for NISMO RS models
. Genuine NISSAN CVT Fluid NS-3
. NISSAN recommends using Genuine NISSAN CVT Fluid NS-3 ONLY in NISSAN
CVTs. Do not mix with other fluids. Using fluids that are not equivalent to Genuine
NISSAN CVT Fluid NS-3 may damage the CVT. Damage caused by the use of fluids
other than as recommended is not covered under NISSAN's New Vehicle Limited
Warranty.
Manual Transmission (MT) gear oil Ð Ð Ð For NISMO RS models
.Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or equivalent
. If Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 is hard to obtain,
API GL-4, Viscosity SAE 75W-85 may be used as a temporary replacement. However, use
Genuine NISSAN gear oil as soon as it is available.
Except for NISMO RS models
. Genuine NISSAN Manual Transmission Fluid (MTF) TL/JR Type 75W-80 or equivalent
. If Genuine NISSAN Manual Transmission Fluid (MTF) TL/JR Type is not available, API GL-4+,
Viscosity SAE 75W-80 may be used as a temporary replacement. However, use Genuine
NISSAN Manual Transmission Fluid (MTF) TL/JR Type as soon as it is available.
Differential gear oil Ð Ð Ð.
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or equivalent conventional
(non-synthetic) oil
Transfer fluid Ð Ð Ð
Brake and clutch fluid Refill to the proper oil level according
to the instructions in the ª8. Mainte-
nance and do-it-yourselfº section. .
Genuine NISSAN Super Heavy Duty Brake Fluid*6 or equivalent DOT 3
*6: Available in mainland U.S.A. through a NISSAN dealer.
Multi-purpose grease Ð Ð Ð.
NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant Ð Ð Ð.
For additional information, see ªVehicle identificationº (P.9-11) for air conditioner
specification label.
. HFC-134a (R-134a)
Air conditioning system lubricants Ð Ð Ð.
NISSAN A/C System Oil Type R or exact equivalent
Window washer fluid 1-1/4 gal 1 gal 4.5.
Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
Technical and consumer information9-3
&RQGLWLRQ


> (GLW    0RGHO )' @

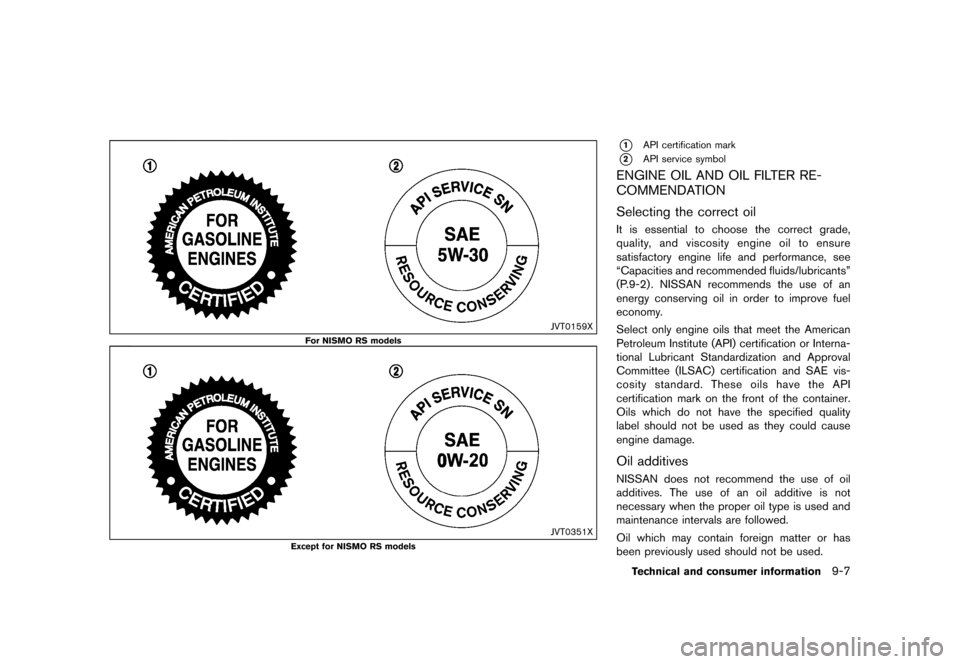

JVT0159X
For NISMO RS models
JVT0351X
Except for NISMO RS models
*1API certification mark
*2API service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
GUID-A342ED71-C8E2-473C-A5D7-EAB0C035485E
Selecting the correct oilGUID-9E90D203-83D7-49ED-A3A8-D5BEBEC09FACIt is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance, see
ªCapacities and recommended fluids/lubricantsº
(P.9-2) . NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API
certification mark on the front of the container.
Oils which do not have the specified quality
label should not be used as they could cause
engine damage.
Oil additivesGUID-BF1C00B1-1B2B-428D-B663-357F2194BB2FNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Technical and consumer information9-7
&RQGLWLRQ


> (GLW    0RGHO )' @
9-8Technical and consumer information

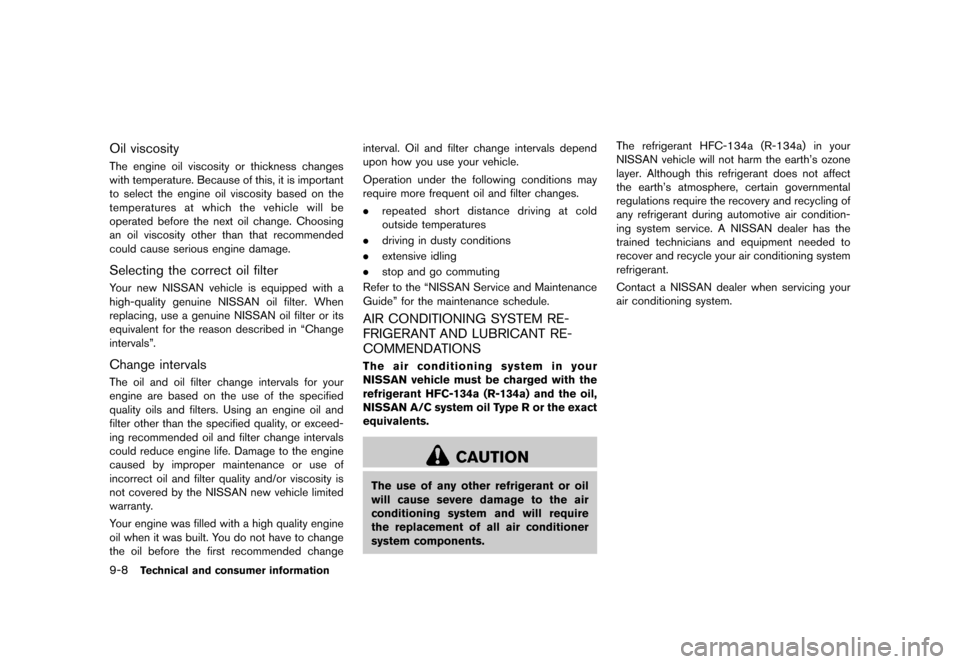

Oil viscosityGUID-BCEE526D-D9C0-45DD-A66C-608BC52BB421The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filterGUID-E092F020-AE07-4CC4-8E8D-232A83E5C488Your new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When
replacing, use a genuine NISSAN oil filter or its
equivalent for the reason described in ªChange
intervalsº.
Change intervalsGUID-C89B7EC6-8CEC-4212-BF64-40DDE64DEE9DThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using an engine oil and
filter other than the specified quality, or exceed-
ing recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of
incorrect oil and filter quality and/or viscosity is
not covered by the NISSAN new vehicle limited
warranty.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended changeinterval. Oil and filter change intervals depend
upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes.
.
repeated short distance driving at cold
outside temperatures
. driving in dusty conditions
. extensive idling
. stop and go commuting
Refer to the ªNISSAN Service and Maintenance
Guideº for the maintenance schedule.
AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS
GUID-C046CADC-EEC7-4559-80A5-8C3E565BC764The air conditioning system in your
NISSAN vehicle must be charged with the
refrigerant HFC-134a (R-134a) and the oil,
NISSAN A/C system oil Type R or the exact
equivalents.
CAUTION
The use of any other refrigerant or oil
will cause severe damage to the air
conditioning system and will require
the replacement of all air conditioner
system components. The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth's ozone
layer. Although this refrigerant does not affect
the earth's atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
ing system service. A NISSAN dealer has the
trained technicians and equipment needed to
recover and recycle your air conditioning system
refrigerant.
Contact a NISSAN dealer when servicing your
air conditioning system.
&RQGLWLRQ


> (GLW    0RGHO )' @

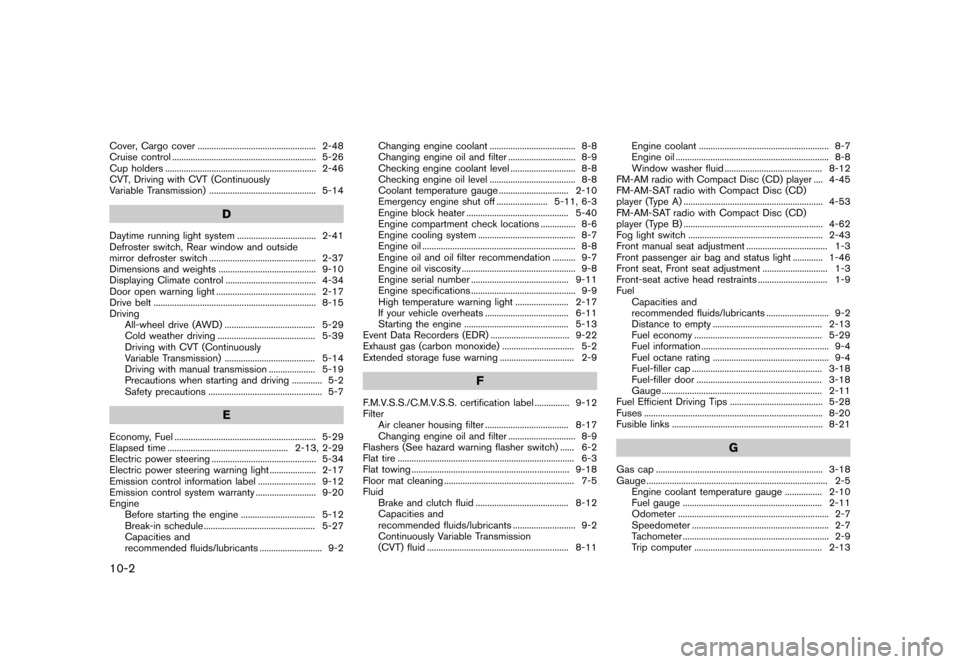

10-2
Cover, Cargo cover...
................................................... 2-48
Cruise control ...
.............................................................. 5-26
Cup holders ...
................................................................. 2-46
CVT, Driving with CVT (Continuously
Variable Transmission) ...
.............................................. 5-14
D
Daytime running light system ...
.................................. 2-41
Defroster switch, Rear window and outside
mirror defroster switch ...
.............................................. 2-37
Dimensions and weights ...
.......................................... 9-10
Displaying Climate control ...
....................................... 4-34
Door open warning light ...
........................................... 2-17
Drive belt ...
...................................................................... 8-15
Driving All-wheel drive (AWD) ...
....................................... 5-29
Cold weather driving ...
.......................................... 5-39
Driving with CVT (Continuously
Variable Transmission) ...
....................................... 5-14
Driving with manual transmission ...
.................... 5-19
Precautions when starting and driving ...
............. 5-2
Safety precautions ...
................................................. 5-7
E
Economy, Fuel ...
............................................................. 5-29
Elapsed time ...
.................................................... 2-13, 2-29
Electric power steering ...
............................................. 5-34
Electric power steering warning light ...
.................... 2-17
Emission control information label ...
......................... 9-12
Emission control system warranty ...
.......................... 9-20
Engine Before starting the engine ...
................................ 5-12
Break-in schedule ...
................................................ 5-27
Capacities and
recommended fluids/lubricants ...
........................... 9-2 Changing engine coolant
...
..................................... 8-8
Changing engine oil and filter ...
............................. 8-9
Checking engine coolant level ...
............................ 8-8
Checking engine oil level ...
..................................... 8-8
Coolant temperature gauge ...
.............................. 2-10
Emergency engine shut off ...
...................... 5-11, 6-3
Engine block heater ...
............................................ 5-40
Engine compartment check locations ...
............... 8-6
Engine cooling system ...
.......................................... 8-7
Engine oil ...
.................................................................. 8-8
Engine oil and oil filter recommendation ...
.......... 9-7
Engine oil viscosity ...
................................................. 9-8
Engine serial number ...
.......................................... 9-11
Engine specifications ...
............................................. 9-9
High temperature warning light ...
....................... 2-17
If your vehicle overheats ...
.................................... 6-11
Starting the engine ...
............................................. 5-13
Event Data Recorders (EDR) ...
.................................. 9-22
Exhaust gas (carbon monoxide) ...
............................... 5-2
Extended storage fuse warning ...
................................ 2-9
F
F.M.V.S.S./C.M.V.S.S. certification label ...
............... 9-12
Filter Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
............................. 8-9
Flashers (See hazard warning flasher switch) ...
...... 6-2
Flat tire ...
............................................................................ 6-3
Flat towing ...
.................................................................... 9-18
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake and clutch fluid ...
........................................ 8-12
Capacities and
recommended fluids/lubricants ...
........................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
............................................................. 8-11 Engine coolant
...
........................................................ 8-7
Engine oil ...
.................................................................. 8-8
Window washer fluid ...
.......................................... 8-12
FM-AM radio with Compact Disc (CD) player ...
.... 4-45
FM-AM-SAT radio with Compact Disc (CD)
player (Type A) ...
............................................................ 4-53
FM-AM-SAT radio with Compact Disc (CD)
player (Type B) ...
............................................................ 4-62
Fog light switch ...
.......................................................... 2-43
Front manual seat adjustment ...
................................... 1-3
Front passenger air bag and status light ...
............. 1-46
Front seat, Front seat adjustment ...
............................ 1-3
Front-seat active head restraints ...
.............................. 1-9
Fuel Capacities and
recommended fluids/lubricants ...
........................... 9-2
Distance to empty ...
............................................... 2-13
Fuel economy ...
....................................................... 5-29
Fuel information ...
....................................................... 9-4
Fuel octane rating ...
.................................................. 9-4
Fuel-filler cap ...
........................................................ 3-18
Fuel-filler door ...
...................................................... 3-18
Gauge ...
..................................................................... 2-11
Fuel Efficient Driving Tips ...
........................................ 5-28
Fuses ...
............................................................................. 8-20
Fusible links ...
................................................................. 8-21
G
Gas cap ...
........................................................................ 3-18
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
................ 2-10
Fuel gauge ...
............................................................ 2-11
Odometer ...
................................................................. 2-7
Speedometer ...
........................................................... 2-7
Tachometer ...
............................................................... 2-9
Trip computer ...
....................................................... 2-13
&RQGLWLRQ


> (GLW    0RGHO )' @

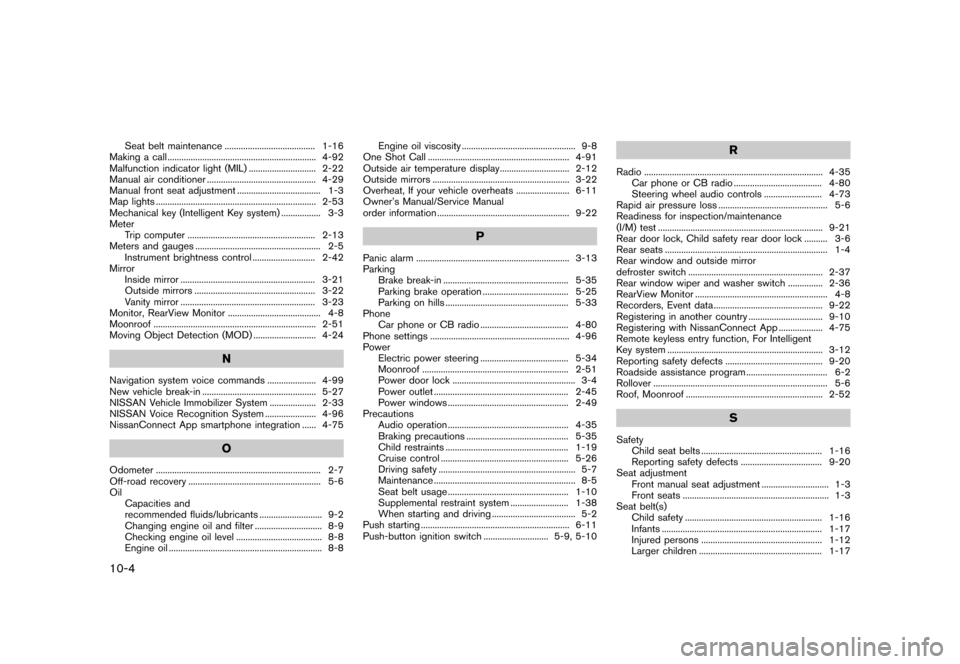

10-4
Seat belt maintenance...
....................................... 1-16
Making a call ...
................................................................ 4-92
Malfunction indicator light (MIL) ...
............................. 2-22
Manual air conditioner ...
............................................... 4-29
Manual front seat adjustment ...
.................................... 1-3
Map lights ...
..................................................................... 2-53
Mechanical key (Intelligent Key system) ...
................. 3-3
Meter Trip computer ...
....................................................... 2-13
Meters and gauges ...
...................................................... 2-5
Instrument brightness control ...
........................... 2-42
Mirror Inside mirror ...
.......................................................... 3-21
Outside mirrors ...
.................................................... 3-22
Vanity mirror ...
.......................................................... 3-23
Monitor, RearView Monitor ...
........................................ 4-8
Moonroof ...
...................................................................... 2-51
Moving Object Detection (MOD) ...
........................... 4-24
N
Navigation system voice commands ...
..................... 4-99
New vehicle break-in ...
................................................. 5-27
NISSAN Vehicle Immobilizer System ...
.................... 2-33
NISSAN Voice Recognition System ...
...................... 4-96
NissanConnect App smartphone integration ...
...... 4-75
O
Odometer ...
....................................................................... 2-7
Off-road recovery ...
......................................................... 5-6
Oil Capacities and
recommended fluids/lubricants ...
........................... 9-2
Changing engine oil and filter ...
............................. 8-9
Checking engine oil level ...
..................................... 8-8
Engine oil ...
.................................................................. 8-8 Engine oil viscosity
...
................................................. 9-8
One Shot Call ...
............................................................. 4-91
Outside air temperature display ...
.............................. 2-12
Outside mirrors ...
........................................................... 3-22
Overheat, If your vehicle overheats ...
....................... 6-11
Owner's Manual/Service Manual
order information ...
......................................................... 9-22
P
Panic alarm ...
.................................................................. 3-13
Parking Brake break-in ...
...................................................... 5-35
Parking brake operation ...
..................................... 5-25
Parking on hills ...
..................................................... 5-33
Phone Car phone or CB radio ...
...................................... 4-80
Phone settings ...
............................................................ 4-96
Power Electric power steering ...
...................................... 5-34
Moonroof ...
............................................................... 2-51
Power door lock ...
..................................................... 3-4
Power outlet ...
.......................................................... 2-45
Power windows ...
.................................................... 2-49
Precautions Audio operation ...
.................................................... 4-35
Braking precautions ...
............................................ 5-35
Child restraints ...
..................................................... 1-19
Cruise control ...
....................................................... 5-26
Driving safety ...
........................................................... 5-7
Maintenance ...
............................................................. 8-5
Seat belt usage ...
.................................................... 1-10
Supplemental restraint system ...
......................... 1-38
When starting and driving ...
.................................... 5-2
Push starting ...
................................................................ 6-11
Push-button ignition switch ...
............................ 5-9, 5-10
R
Radio ...
............................................................................. 4-35
Car phone or CB radio ...
...................................... 4-80
Steering wheel audio controls ...
......................... 4-73
Rapid air pressure loss ...
............................................... 5-6
Readiness for inspection/maintenance
(I/M) test ...
....................................................................... 9-21
Rear door lock, Child safety rear door lock ...
.......... 3-6
Rear seats ...
...................................................................... 1-4
Rear window and outside mirror
defroster switch ...
.......................................................... 2-37
Rear window wiper and washer switch ...
............... 2-36
RearView Monitor ...
......................................................... 4-8
Recorders, Event data ...
............................................... 9-22
Registering in another country ...
................................ 9-10
Registering with NissanConnect App ...
................... 4-75
Remote keyless entry function, For Intelligent
Key system ...
................................................................... 3-12
Reporting safety defects ...
.......................................... 9-20
Roadside assistance program ...
................................... 6-2
Rollover ...
........................................................................... 5-6
Roof, Moonroof ...
........................................................... 2-52
S
Safety
Child seat belts ...
.................................................... 1-16
Reporting safety defects ...
................................... 9-20
Seat adjustment Front manual seat adjustment ...
............................. 1-3
Front seats ...
............................................................... 1-3
Seat belt(s) Child safety ...
........................................................... 1-16
Infants ...
..................................................................... 1-17
Injured persons ...
.................................................... 1-12
Larger children ...
..................................................... 1-17
&RQGLWLRQ


> (GLW    0RGHO )' @

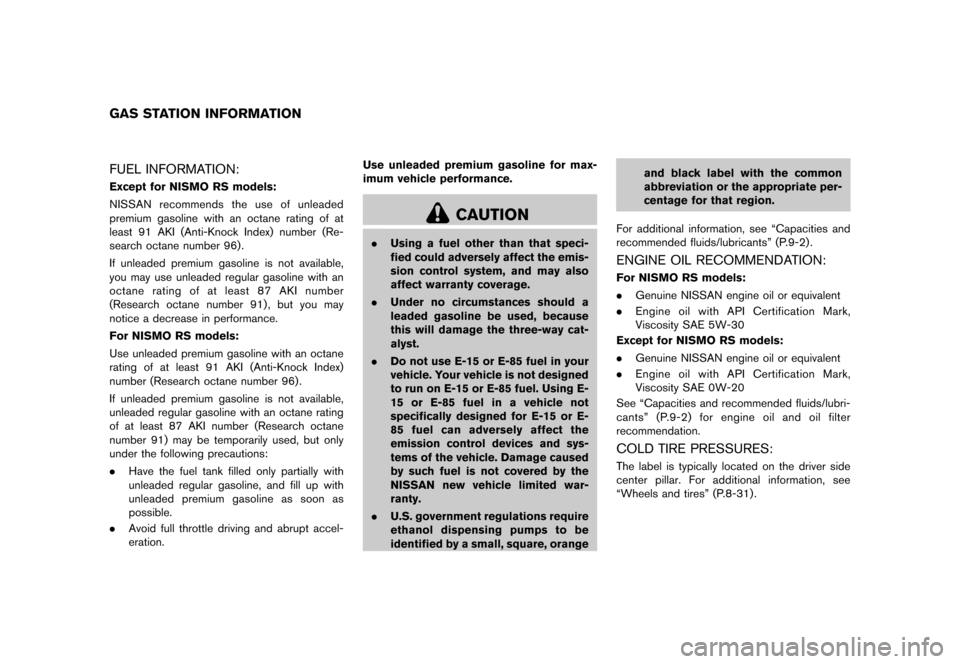

11 Gas station information
GUID-65089696-9315-4E34-8D54-D9EB5966EB4CFUEL INFORMATION:GUID-2C01D4FF-9843-4D63-B45E-70CFE4EEB783Except for NISMO RS models:
NISSAN recommends the use of unleaded
premium gasoline with an octane rating of at
least 91 AKI (Anti-Knock Index) number (Re-
search octane number 96) .
If unleaded premium gasoline is not available,
you may use unleaded regular gasoline with an
octane rating of at least 87 AKI number
(Research octane number 91) , but you may
notice a decrease in performance.
For NISMO RS models:
Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96) .
If unleaded premium gasoline is not available,
unleaded regular gasoline with an octane rating
of at least 87 AKI number (Research octane
number 91) may be temporarily used, but only
under the following precautions:
.Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as
possible.
. Avoid full throttle driving and abrupt accel-
eration. Use unleaded premium gasoline for max-
imum vehicle performance.
CAUTION
.
Using a fuel other than that speci-
fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way cat-
alyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.
. U.S. government regulations require
ethanol dispensing pumps to be
identified by a small, square, orange and black label with the common
abbreviation or the appropriate per-
centage for that region.
For additional information, see ªCapacities and
recommended fluids/lubricantsº (P.9-2) .
ENGINE OIL RECOMMENDATION:GUID-F5A9AF76-18BF-48BC-877D-8F48F0AA5F27For NISMO RS models:
. Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark,
Viscosity SAE 5W-30
Except for NISMO RS models:
. Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark,
Viscosity SAE 0W-20
See ªCapacities and recommended fluids/lubri-
cantsº (P.9-2) for engine oil and oil filter
recommendation.
COLD TIRE PRESSURES:GUID-02F03445-CAD7-4CC4-A25E-15D4C27C5795The label is typically located on the driver side
center pillar. For additional information, see
ªWheels and tiresº (P.8-31).
GAS STATION INFORMATION
&RQGLWLRQ
