2016 MITSUBISHI SHOGUN Owner's Manual (in English)

Upper box
To open the upper box, lift the left upper re-lease lever (A) and raise the lid.
Lower box
To open the lower box, lift the lower releaselever (B) and raise the lid.
Accessory box*
E00717900168
To open, push the lid.
Card holder
Insert the card all the way in to keep it in the
card holder (A). Pull out the card to remove it from the holder.
NOTEl The card holder can hold up to 3 cards.
l Do not insert receipts and other thin pieces
of paper.Side box*
E00722700092
The box for storing articles is located inside
the luggage compartment.
1- To open
2- To close
Luggage floor box
E00718700280
The box for storing articles is located inside
the luggage compartment.
Storage spaces
7-84OVWE16E1For pleasant driving7

3-door models
To use the box, raise the luggage floor boardby pulling up on the strap (A).
5-door models
To use the box, raise the luggage floor board.
NOTEl On
5-door models, the luggage floor board
can be removed. This is useful for storing large articles.Sunglasses holder*
E00718600322
To open, push the lid.
CAUTIONl The holder should not be used to store any-
thing heavier than sunglasses. These objects
could drop out.NOTEl The holder may not be able to accommodate
every possible size and shape of sunglasses;it is advisable to check compatibility before use.Cup holder
E00714500408CAUTIONlDo not drink beverages while driving the ve-
hicle; doing so could distract you and result
in an accident.
For the front seat
The cup holder is located in front of the cen-
tre console box.
Cup holder
7-85OVWE16E1For pleasant driving7

For the rear seat/second seat
E00716900321
3-door models
To use the cup holder, press the button (A) at the top of the armrest and allow the armrest
to drop down.
5-door models
1. Lift the head restraint (B) and tilt the
armrest.
2. Open the lid (C) while holding the side
face of the lid with your hand.
For the third seat*
E00719000075
The cup holder is located at the left side of the third seat.
The cup holder is designed for holding cups
or drink-cans securely in its holes.Rear shelf (3-door models)*
E00722800064
The rear shelf divides the passenger compart-
ment and luggage area.
NOTEl Do not place luggage or other items on the
rear shelf.
Remove the rear shelf when loading large
items of luggage.
Rear shelf (3-door models)*
7-86OVWE16E1For pleasant driving7

To remove
Raise the rear shelf, then pull it upward to re-move it from the groove (A) on each side of
the luggage area.
To refit
Refit the rear shelf by performing the remov- al steps in reverse.
Cargo area cover (5-door
models)* E00715500421
The cargo area cover divides the passengercompartment and cargo area.
NOTEl Do not put luggage on the cover.
To remove
1.
Unhook the hooks (A) on the cover from
the mounting grooves (B) on the side of the cargo area, and the cover will be rol- led back into the retracted position.
2. Pull up the cargo area cover (C) from the
mounting grooves (D).
To refit
Refit the cover by performing the removal steps in reverse.
NOTEl Gently shake the entire cover after fitting it
to make sure it is securely retained.Convenient hooks (5-door
models)* E00715600129
There are four hooks (A) on the side of theluggage compartment.
Cargo area cover (5-door models)*
7-87OVWE16E1For pleasant driving7

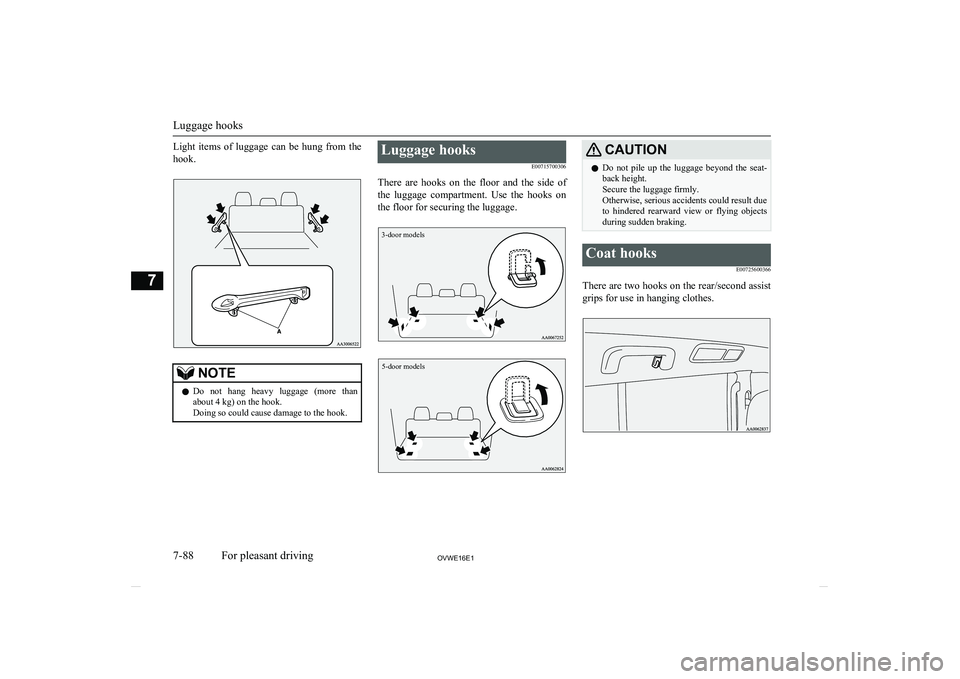

Light items of luggage can be hung from thehook.NOTEl Do not hang heavy luggage (more than
about 4 kg) on the hook.
Doing so could cause damage to the hook.Luggage hooks
E00715700306
There are hooks on the floor and the side of the luggage compartment. Use the hooks on
the floor for securing the luggage.
3-door models5-door models
CAUTIONl Do not pile up the luggage beyond the seat-
back height.
Secure the luggage firmly.
Otherwise, serious accidents could result due
to hindered rearward view or flying objects
during sudden braking.Coat hooks
E00725600366
There are two hooks on the rear/second assistgrips for use in hanging clothes.
Luggage hooks
7-88OVWE16E1For pleasant driving7

WARNINGlDo not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be propelled away with great force and could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on the coat hook (without using a hanger).
Make sure there are no heavy or sharp objects in the pockets of clothes that you
hang on the coat hook.Installation position for
warning triangle E00718400102
There are securing bands (A) for the warningtriangle on the backdoor.
To remove or install the warning triangle, turn the lock knobs (B) anticlockwise, then
remove the backdoor lid (C).
NOTEl The warning triangle shown in the illustra-
tion is not supplied with the vehicle. It is recommended one be obtained and carried for use if required.
Installation position for warning triangle
7-89OVWE16E1For pleasant driving7

OVWE16E1

If the vehicle breaks down.................................................................. 8-02Emergency starting............................................................................. 8-02
Engine overheating............................................................................. 8-04
Bleeding the fuel system (diesel-powered vehicles only)...................8-06
Removal of water from the fuel filter (diesel-powered ve- hicles only)......................................................................................8-06
Tool, jack and jack handle.................................................................. 8-07
How to change a tyre.......................................................................... 8-09
Towing................................................................................................ 8-16
Operation under adverse driving conditions....................................... 8-19For emergencies
