NOTElYou can call, edit or delete a name that is
being read out.
Press the SPEECH button and say “Call” to call the name, “Edit name” to edit it, or “De-
lete” to delete it.
The system will beep and then execute your command.
l If you press the SPEECH button and say
“Continue” or “Previous” while the list isbeing read, the system will advance or re- wind the list. Say “Continue” to proceed to the next entry or “Previous” to return to the
previous entry.Deleting a telephone number
E00740000039
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “Delete.”
4. The voice guide will say “Please say the
name of the entry you would like to de-
lete, or say list names.” Say the name of the phone book entry in which the tele-
phone number you want to delete is reg-
istered.
NOTEl Say “List names,” and the names registered
in the phone book will be read out in order.
Refer to “Listening to the list of registered names” on page 7-67.
5. If only one telephone number is regis-
tered in the selected phone book entry, the voice guide will say “Deleting .”
If multiple telephone numbers are regis- tered in the selected phone book entry,
the voice guide will say “Would you like to delete [home], [work], [mobile], [oth-
er], or all?”
Select the location to delete, and the voice guide will say “Deleting .”
NOTEl To delete the telephone numbers from all lo-
cations, say “All.”
6. The system will ask if you really want to
delete the selected telephone number(s)
to go ahead with the deletion, answer
“Yes.”
Answer “No,” the system will cancel de- leting the telephone number(s) and thenreturn to Step 4.
7. When the deletion of the telephone num-
ber is completed, the voice guide will
say “ deleted” and then the system will return to the main
menu.
If all locations are deleted, the system will say “ and all locations de-
leted” and the name will be removed from the phone book. If numbers still re-
main under the entry, the name will re- tain the other associated numbers.Erasing the phone book
E00740100030
You can delete all registered information from the vehicle phone book. 1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “Erase all.”
4. For confirmation purposes, the voice
guide will ask “Are you sure you want toerase everything from your hands-free system phone book?” Answer “Yes.”
Answer “No” to cancel the deletion of
all registered information in the phone
book and return to the main menu.
Bluetooth ®
2.0 interface*
7-68OVWE16E1For pleasant driving7

5.The voice guide will say “You are about
to delete everything from your hands-
free system phone book. Do you want to
continue?” Answer “Yes” to continue.
Answer “No” to cancel the deletion of all registered information in the phone
book and return to the main menu.
6. The voice guide will say “Please wait,
erasing the handsfree system phone book” and then the system will delete all
data in the phone book.
When the deletion is complete, the voice guide will say “Hands-free system phone
book erased” and then the system will
return to the main menu.Mobile phone book
E00763900051
All entries in the phone book stored in the cellular phone can be transferred in a batch
and registered in the mobile phone book.
Up to 7 mobile phone books, each containing
up to 1,000 names, can be registered.

The Bluetooth ®
2.0 interface automatically
converts from text to voice the names regis- tered in the transferred phone book entries,
and creates names.
NOTEl Only the mobile phone book transferred
from the connected cellular phone can be
used with that cellular phone.
l You cannot change the names and telephone
numbers in the phone book entries registered
in the mobile phone book. You cannot select and delete specific phone book entries, ei- ther.
To change or delete any of the above, change the applicable information in the
source phone book of the cellular phone and then transfer the phone book again.
To import a devices phone book
Follow the steps below to transfer to the mo-
bile phone book the phone book stored in the
cellular phone.
NOTEl Transfer should be completed while the ve-
hicle is parked.
Before transferring, make sure that the vehi- cle is parked in a safe location.
l The already stored phone book in the mobile
phone book is overwritten by the storedphone book in the cellular phone.
l All or part of data may not be transferred,
even when the cellular phone supports Blue-
tooth ®
, depending on the compatibility of
the device.NOTEl Only a home, a work, and a mobile number
can be imported.
l The maximum supported telephone number
length is 19 digits. Any telephone number of
20 digits or more will be truncated to the first 19 digits.
l If telephone numbers contain characters oth-
er than 0 to 9, *, # or +, these characters aredeleted before the transfer.
l For the connection settings on the cellular
phone side, refer to the instructions for the
cellular phone.
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Import contact.”
4. The voice guide will say “Would you
like to import a single entry or all con-
tacts?” Say “All contacts.”
5. The voice guide will say “Importing the
contact list from the mobile phone book. This may take several minutes to com-
plete. Would you like to continue?” An- swer “Yes,” transferring to the mobile
phone book the phone book stored in the cellular phone will start.
Answer “No,” to return to the main menu.
Bluetooth ®
2.0 interface*
7-69OVWE16E1For pleasant driving7

NOTElThe transfer may take some time to com-
plete depending on the number of contacts.
l If the Bluetooth ®
2.0 interface could not be
connected to the Bluetooth ®
compatible cel-
lular phone, the voice guide will say “Un- able to transfer contact list from phone” and
then the system will return to the main menu.
l If you press the
HANG-UP button or press
and hold the SPEECH button during the data
transfer, the transfer will be cancelled and
the system will return to the main menu.
l If an error occurs during the data transfer, all
transfer will be cancelled and the voice
guide will say “Unable to complete the phone book import” and then the system willreturn to the main menu.
l If there are no contacts in the phone book,
the voice guide will say “There are no con- tacts on the connected phone.”
6. When the transfer is complete, the voice
guide will say “Import complete” and then the system will return to the main
menu.
Bluetooth ®
2.0 interface*
7-70OVWE16E1For pleasant driving7

Enrollment commands
E00732400249
PhraseEnglishFrenchSpanishItalianGermanDutchPortugueseRussian11234567891234567891234567891234567891234567891234567891234567891234567892888 555 1212888 555 1212888 555 1212888 555 1212888 555 1212888 555 1212888 555 1212888 555 12123CallAppelerLlamarChiamaAnrufenBellenLigarВызов4DialComposerMarcarComponiWählenNummer keuzeMarcarНабор5SetupConfigurerConfiguraciónConfiguraEinrichtungSetupConfigurarНастройка6CancelAnnulerCancelarAnnullaAbbrechenAnnulerenCancelarОтмена7ContinueContinuerContinuarContinuaWeiterDoorgaanContinuarПродолжить8HelpAideAyudaAiutoHilfeHelpAjudaСправка

USB port*E00761901461
You can connect your USB memory device or iPod* to play music files stored in the USB memory device or iPod.
*: “iPod” is a registered trademark of Apple
Inc. in the United States and other countries.The USB port (A) is located in the indicated
position.How to connect a USB memory
device
E00762001472
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position.
2. Open the glove box.USB port*
7-71OVWE16E1For pleasant driving7Type 1
Type 2

3.Connect a commercially available USB
connector cable (A) to the USB memory
device (B).
4. Connect the USB connector cable (A) to
the USB port (C).
CAUTIONl Keep the lid of the glove box closed while
driving the vehicle. A lid or the contents of the glove box could otherwise cause injuries.NOTEl Do not connect the USB memory device to
the USB port directly.
The USB memory device may be damaged.
l When closing the glove box, be careful not
to trap the USB connector cable.
5. To remove the USB connector cable,
turn the ignition switch to the “LOCK”
position first and perform the installation steps in reverse.
How to connect an iPod
E00762101385
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position.
2. Open the glove box.
3. Connect the Dock connector (C) to the
iPod (B).
NOTEl Use a genuine Dock connector from Apple
Inc.
4. Connect the Dock connector (A) to the
USB port (C).
USB port*
7-72OVWE16E1For pleasant driving7

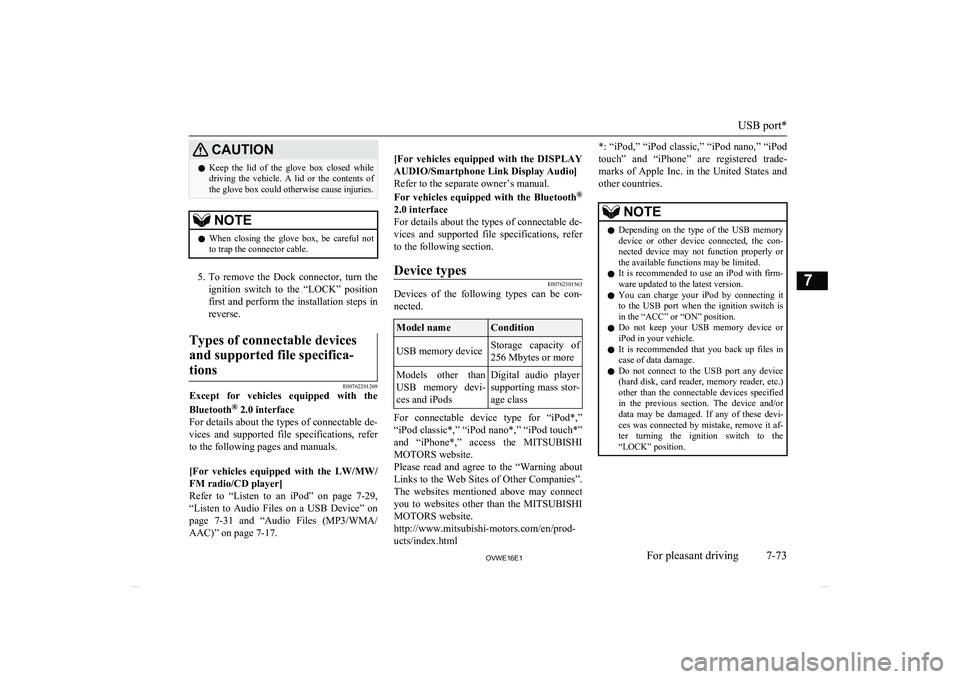

CAUTIONlKeep the lid of the glove box closed while
driving the vehicle. A lid or the contents of the glove box could otherwise cause injuries.NOTEl When closing the glove box, be careful not
to trap the connector cable.
5. To remove the Dock connector, turn the
ignition switch to the “LOCK” position
first and perform the installation steps in reverse.
Types of connectable devices
and supported file specifica-tions
E00762201269
Except for vehicles equipped with the Bluetooth ®
2.0 interface
For details about the types of connectable de-
vices and supported file specifications, referto the following pages and manuals.

[For vehicles equipped with the LW/MW/
FM radio/CD player]
Refer to “Listen to an iPod” on page 7-29,
“Listen to Audio Files on a USB Device” on page 7-31 and “Audio Files (MP3/WMA/
AAC)” on page 7-17.

[For vehicles equipped with the DISPLAY AUDIO/Smartphone Link Display Audio]
Refer to the separate owner’s manual.
For vehicles equipped with the Bluetooth ®
2.0 interface
For details about the types of connectable de-
vices and supported file specifications, refer to the following section.Device types
E00762301563
Devices of the following types can be con- nected.
Model nameConditionUSB memory deviceStorage capacity of
256 Mbytes or moreModels other than
USB memory devi- ces and iPodsDigital audio player
supporting mass stor-
age class
For connectable device type for “iPod*,”
“iPod classic*,” “iPod nano*,” “iPod touch*”
and “iPhone*,” access the MITSUBISHI
MOTORS website.
Please read and agree to the “Warning about Links to the Web Sites of Other Companies”.
The websites mentioned above may connect you to websites other than the MITSUBISHI
MOTORS website.
http://www.mitsubishi-motors.com/en/prod- ucts/index.html
*: “iPod,” “iPod classic,” “iPod nano,” “iPod
touch” and “iPhone” are registered trade- marks of Apple Inc. in the United States and
other countries.NOTEl Depending on the type of the USB memory
device or other device connected, the con-
nected device may not function properly or the available functions may be limited.
l It is recommended to use an iPod with firm-
ware updated to the latest version.
l You can charge your iPod by connecting it
to the USB port when the ignition switch is in the “ACC” or “ON” position.
l Do not keep your USB memory device or
iPod in your vehicle.
l It is recommended that you back up files in
case of data damage.
l Do not connect to the USB port any device
(hard disk, card reader, memory reader, etc.) other than the connectable devices specifiedin the previous section. The device and/or
data may be damaged. If any of these devi- ces was connected by mistake, remove it af- ter turning the ignition switch to the
“LOCK” position.
USB port*
7-73OVWE16E1For pleasant driving7

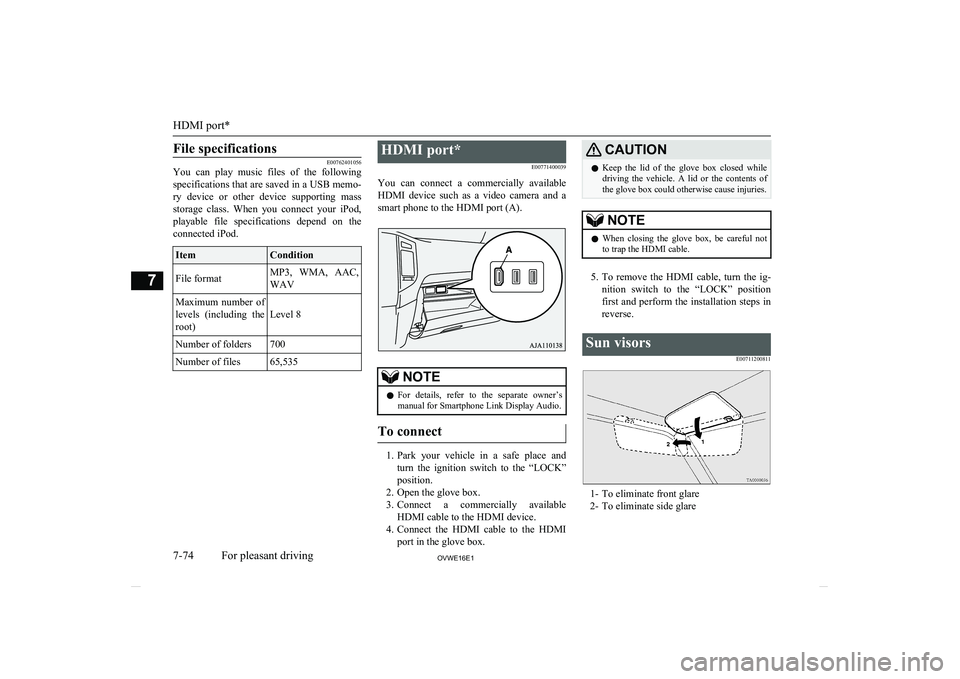

File specifications
E00762401056
You can play music files of the following
specifications that are saved in a USB memo-ry device or other device supporting mass
storage class. When you connect your iPod, playable file specifications depend on the connected iPod.
ItemConditionFile formatMP3, WMA, AAC,
WAVMaximum number of levels (including the root)
Level 8
Number of folders700Number of files65,535HDMI port*
E00771400039
You can connect a commercially available HDMI device such as a video camera and a
smart phone to the HDMI port (A).NOTEl For details, refer to the separate owner’s
manual for Smartphone Link Display Audio.
To connect
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position.
2. Open the glove box.
3. Connect a commercially available
HDMI cable to the HDMI device.
4. Connect the HDMI cable to the HDMI
port in the glove box.
CAUTIONl Keep the lid of the glove box closed while
driving the vehicle. A lid or the contents of the glove box could otherwise cause injuries.NOTEl When closing the glove box, be careful not
to trap the HDMI cable.
5. To remove the HDMI cable, turn the ig-
nition switch to the “LOCK” position first and perform the installation steps in
reverse.
Sun visors
E00711200811
1- To eliminate front glare2- To eliminate side glare
HDMI port*
7-74OVWE16E1For pleasant driving7

Vanity mirror
E00731900191
Type 1
A vanity mirror is fitted to the back of the sun visor.
Type 2
A vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will au-
tomatically turn on the mirror lamp (A).CAUTIONl If the lid of vanity mirror with lamp is kept
open for prolonged periods of time, the vehi-
cle’s battery will be discharged.Card holder
E00732000203
Cards can be slipped into the holder (A) on
the back of the sun visor.
Slide plate*
E00732100086
To block out the glare of the sunlight from
behind the inside rear-view mirror, swing down the sun visor, and then pull out the
slide plate (B).
Sun visors
7-75OVWE16E1For pleasant driving7
