Tyre pressure monitoring sys-tem warning lamp
E00637200052
When the ignition switch is turned to the
“ON” position the tyre pressure monitoring system warning lamp normally illuminates
and goes off a few seconds later.

If one or more of the vehicle tyres is signifi- cantly under-inflated, the warning lamp will
remain illuminated while the ignition switch is in ON.
Refer to “If the warning lamp illuminates while driving” on page 6-43 and take the nec-essary measures.
CAUTIONl If the warning lamp does not illuminate
when the ignition switch is turned to the
“ON” position it means that the tyre pressure monitoring system (TPMS) is not working
properly. Have the system inspected at a MITSUBISHI MOTORS Authorized Serv-
ice Point.
In such situations, a malfunctioning of the system may be preventing the monitoring of the tyre pressure. Avoid sudden braking,
sharp turning and high-speed driving.
l If a malfunction is detected in the tyre pres-
sure monitoring system (TPMS), the warn-
ing lamp will blink for approximately 1 mi-
nute and then remain continuously illumina- ted.
The warning lamp will issue further warn-
ings each time the engine is restarted as long
as the malfunction exists.
Check to see whether the warning lamp goes
off after few minutes driving.
If it then goes off during driving, there is no problem.
However, if the warning lamp does not go off, or if it blinks again when the engine is
restarted, have the vehicle inspected by a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
In such situations, a malfunctioning of the system may be preventing the monitoring of
the tyre pressure. For safety reasons, when the warning lamp appears while driving,
avoid sudden braking, sharp turning and high-speed driving.Each tyre, including the spare, should be
checked monthly when cold and inflated to the inflation pressure recommended by thevehicle manufacturer on the tyre inflation
pressure label. (If your vehicle has tyres of a different size than the size indicated on the
tyre inflation pressure label, you should de-
termine the proper tyre inflation pressure for those tyres.)
As an added safety feature, your vehicle has been equipped with the tyre pressure moni-
toring system (TPMS) that illuminates a low
tyre pressure telltale when one or more of
your tyres is significantly under-inflated.
Accordingly, when the low tyre pressure tell-
tale illuminates, you should stop and check your tyres as soon as possible, and inflate
them to the proper pressure. Driving on a sig- nificantly under-inflated tyre causes the tyre to overheat and can lead to tyre failure.
Under-inflation also reduces fuel efficiency
and tyre tread life, and may affect the vehi- cle’s handling and stopping ability.
Please note that the tyre pressure monitoring
system (TPMS) is not a substitute for proper tyre maintenance, and it is the driver’s re-sponsibility to maintain correct tyre pressure,
even if under-inflation has not reached the level to trigger illumination of the tyre pres-
sure monitoring system (TPMS) low tyre pressure telltale.
Tyre pressure monitoring system (TPMS)*
6-54OVWE16E1Starting and driving6

Your vehicle has also been equipped with a
warning lamp to indicate when the system is
not operating properly.
The warning lamp is combined with the low tyre pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately one mi- nute and then remain continuously illumina-
ted. This sequence will continue upon subse- quent vehicle start-ups as long as the mal-
function exists.
When the warning lamp is illuminated, the
system may not be able to detect or signal low tyre pressure as intended.
The tyre pressure monitoring system (TPMS)
malfunctions may occur for a variety of rea- sons, including the installation of replace- ment or alternate tyres or wheels on the vehi-cle that prevent the tyre pressure monitoring
system (TPMS) from functioning properly. Always check the tyre pressure monitoring
system (TPMS) malfunction telltale after re- placing one or more tyres or wheels on yourvehicle to ensure that the replacement or al- ternate tyres and wheels allow the tyre pres-
sure monitoring system (TPMS) to continue to function properly.If the warning lamp illuminates
while driving
E00637300082
1. If the warning lamp illuminates, avoid
hard braking, sharp steering manoeuvres
and high speeds. You should stop and
adjust the tyres to the proper inflation pressure as soon as possible. Refer to “Tyres” on page 10-12.NOTEl When inspecting or adjusting the tyre pres-
sure, do not apply excessive force to the valve stem to avoid breakage.
l After inspecting or adjusting the tyre pres-
sure, always reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could
get into the valve, resulting in damage to the tyre inflation pressure sensor.
l Do not use metal valve caps, which may
cause a metal reaction, resulting in corrosion
and damage of the tyre inflation pressure sensors.
l Once adjustments have been made, the
warning lamp will go off after a few minutes of driving.
2. If the warning lamp remains illuminated
after you have been driving for about 10
minutes after you adjust the tyre infla- tion pressure, one or more of the tyresmay have a puncture. Inspect the tyreand if it has a puncture, have it repaired
by a MITSUBISHI MOTORS Author-
ized Service Point as soon as possible.
WARNINGl If the warning lamp illuminates while you
are driving, avoid hard braking, sharp steering manoeuvres and high speeds.
Driving with an under-inflated tyre ad-
versely affects vehicle performance and
can result in an accident.CAUTIONl The warning lamp may not illuminate imme-
diately in the event of a tyre blowout or rap-
id leak.NOTEl To avoid the risk of damage to the tyre infla-
tion pressure sensors, have any punctured
tyre repaired by a MITSUBISHI MOTORS
Authorized Service Point. If the tyre repair is
not done by a MITSUBISHI MOTORS Au-
thorized Service Point, damage to the tyre
inflation pressure sensor is not covered by your warranty.
l Do not use an aerosol puncture-repair spray
on any tyre.
Such a spray could damage the tyre inflation
pressure sensors.
Have any puncture repaired by a MITSUBISHI MOTORS Authorized Serv-
ice Point.
Tyre pressure monitoring system (TPMS)*
6-55OVWE16E1Starting and driving6

The tyre pressure monitoring system (TPMS)
may not work normally in the following cir-
cumstances:
l A wireless facility or device using the
same frequency is near the vehicle.
l Snow or ice is stuck inside the fenders
and/or on the wheels.
l The tyre inflation pressure sensor’s bat-
tery is dead.
l Wheels other than
MITSUBISHI
MOTORS GENUINE wheels are being
used.
l Wheels that are not fitted with tyre infla-
tion pressure sensors are being used.
l Wheels whose ID codes are not memo-
rized by the vehicle are used.
l A window tint that affects the radio
wave signals is installed.NOTEl Tyre inflation pressures vary with the ambi-
ent temperature. If the vehicle is subjected to large variations in ambient temperature, the tyre inflation pressures may be underinflated
(causing the warning lamp come on) when the ambient temperature is relatively low. If
the warning lamp comes on, adjust the tyre inflation pressure.Whenever the tyres and wheels
are replaced with new ones
E00637400025
If new wheels with new tyre inflation pres-
sure sensors are installed, their ID codes must be programmed into the tyre pressure moni- toring system. Have tyre and wheel replace-
ment performed by a MITSUBISHI
MOTORS Authorized Service Point to avoid
the risk of damaging the tyre inflation pres- sure sensors. If the wheel replacement is not
done by a MITSUBISHI MOTORS Author-
ized Service Point, it is not covered by your warranty.
CAUTIONl The use of non-genuine wheels will prevent
the proper fit of the tyre inflation pressure sensors, resulting air leakage or damage of
the sensors.Reset of low tyre pressure
warning threshold
E00637500055
The threshold is set based on the tyre pres- sure which the reset function is executed by
following procedure. 1. Transit the display by the button (A) un-
til the tyre pressure monitoring system
(TPMS) SET indicator is displayed.
2. Hold down the button (A) for 3 seconds
or more.
3. The warning lamp start flashing slowly.
4. Drive for a while. The reset is completed
if the warning lamp goes out.
NOTEl The reset function should be executed every
time when the tyre pressure or tyre rotationis adjusted.
l The reset function should be executed when
the tyre is cold. If it is executed when the
tyre is warm (e.g. after driving), there may be a low tyre pressure warning earlier than
usual.
Tyre pressure monitoring system (TPMS)*
6-56OVWE16E1Starting and driving6

Tyre ID set change
E00637600056
In case that 2 sets of tyre inflation pressure
sensor ID are registered in the receiver, the
valid tyre ID set can be changed by following
procedure. 1. Transit the display by the button (A) un-
til the tyre pressure monitoring system (TPMS) SET indicator is displayed.
2. Hold down the button (A) for 10 seconds or more.
(Although the reset execution starts at
holding down the button for 3 seconds,
keep holding down the button continu-
ously.)
3. The valid tyre ID set is changed, and the
number of the tyre pressure monitoring
system (TPMS) SET indicator is changed.
NOTEl Each time this procedure is done, the tyre ID
set is changed. (1 - 2 - 1 - 2 …)
l The tyre ID set is NOT changed, in case that
only 1 set of ID is registered.
l When changing the tyre ID set, the reset
function of low tyre pressure warning
threshold is automatically started. (The warning lamp start flashing slowly.) If the
tyre is warm at this time. the reset function
should be executed again when the tyre is cold.Reversing sensor system*
E00615500055
This system operates when you are backingthe vehicle. It uses corner and back sensors to detect an obstacle and sounds a buzzer to in-form you of the approximate distance to the
obstacle.
CAUTIONl The reversing sensor system assists you in
determining the approximate distance be-
tween the vehicle and an obstacle located behind the vehicle. It has limitations in terms
of detectable areas and objects, and may not
properly detect some objects. Therefore, do
not place excessive confidence in the revers- ing sensor system and operate the vehicle ascarefully as you would do with a vehicle not equipped with this system.
l Make sure to check the surroundings with
your own eyes to ensure safety. Do not oper-
ate the vehicle by relying on the reversing sensor system alone.Corner and back sensor loca-
tions
E00618500014
There are two corner sensors (A) at the cor- ners of the rear bumper, and two back sensors
(B) in the spare wheel garnish.
Reversing sensor system*
6-57OVWE16E1Starting and driving6

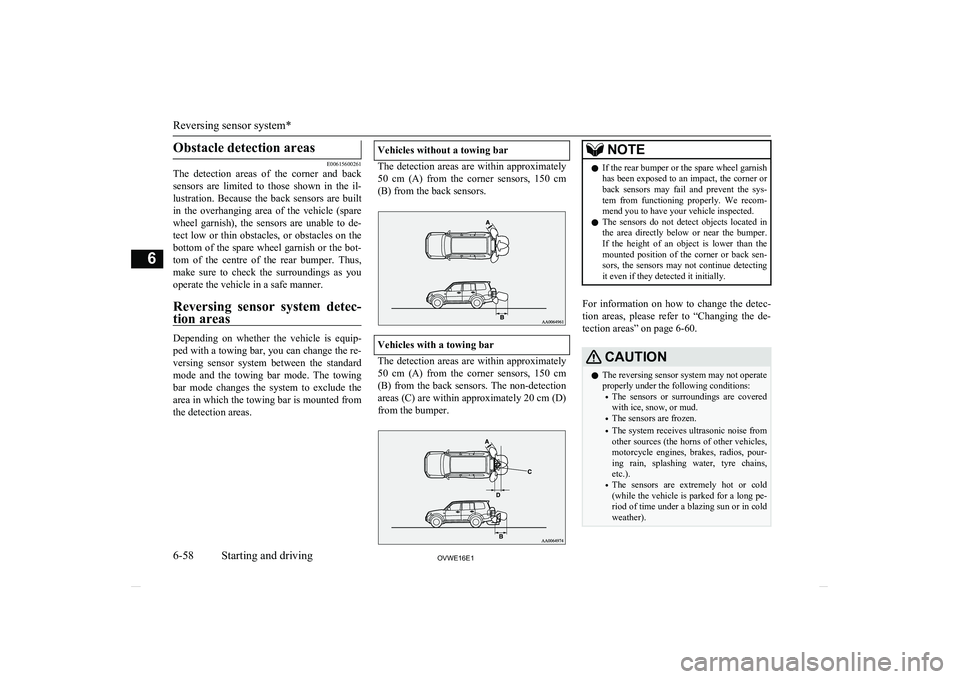

Obstacle detection areas
E00615600261
The detection areas of the corner and back
sensors are limited to those shown in the il- lustration. Because the back sensors are built
in the overhanging area of the vehicle (spare
wheel garnish), the sensors are unable to de- tect low or thin obstacles, or obstacles on the
bottom of the spare wheel garnish or the bot- tom of the centre of the rear bumper. Thus,
make sure to check the surroundings as you
operate the vehicle in a safe manner.
Reversing sensor system detec- tion areas
Depending on whether the vehicle is equip-
ped with a towing bar, you can change the re-
versing sensor system between the standard
mode and the towing bar mode. The towing bar mode changes the system to exclude thearea in which the towing bar is mounted from
the detection areas.
Vehicles without a towing bar
The detection areas are within approximately
50 cm (A) from the corner sensors, 150 cm
(B) from the back sensors.
Vehicles with a towing bar
The detection areas are within approximately 50 cm (A) from the corner sensors, 150 cm
(B) from the back sensors. The non-detection areas (C) are within approximately 20 cm (D)
from the bumper.
NOTEl If the rear bumper or the spare wheel garnish
has been exposed to an impact, the corner orback sensors may fail and prevent the sys-
tem from functioning properly. We recom- mend you to have your vehicle inspected.
l The sensors do not detect objects located in
the area directly below or near the bumper. If the height of an object is lower than themounted position of the corner or back sen-
sors, the sensors may not continue detecting
it even if they detected it initially.
For information on how to change the detec-
tion areas, please refer to “Changing the de- tection areas” on page 6-60.
CAUTIONl The reversing sensor system may not operate
properly under the following conditions:
• The sensors or surroundings are covered
with ice, snow, or mud.
• The sensors are frozen.
• The system receives ultrasonic noise from
other sources (the horns of other vehicles, motorcycle engines, brakes, radios, pour-
ing rain, splashing water, tyre chains, etc.).
• The sensors are extremely hot or cold
(while the vehicle is parked for a long pe- riod of time under a blazing sun or in coldweather).
Reversing sensor system*
6-58OVWE16E1Starting and driving6

CAUTION•The vehicle tilts significantly.
• The vehicle is driven on a rough road
(with a bumpy, gravel, hilly, or grassysurface).
• The vehicle is too close to an obstacle.
• The sensors or surroundings have been
wiped by hand, or stickers or accessories have been attached.
l The reversing sensor system may not proper-
ly detect the following:
• Objects that are thin, such as wire nets or
ropes.
• Objects that absorb sound waves, such as
snow.
• Objects that are shaped with a sharp an-
gle.
• Objects with a smooth surface, such as
glass.
• Objects that are low, such as kerbstones.NOTEl The buzzer may sound lower than the nor-
mal warning sound when the reversing sen-sor system is receiving ultrasonic noise from
other sources, but this is not a malfunction.
The buzzer will stop sounding and the sys- tem will return to normal operation after thenoise is no longer received.To operate
E00615701849
To operate the system, move the gearshift
lever to the “R” (Reverse) position (with
M/T ) or the selector lever to the “R” (RE-
VERSE) position (with A/T) while the igni-
tion switch is in the “ON” position. To stop the operation, push the “SONAR” switch.
LHDRHD
The “SONAR OFF” indication lamp will il- luminate to indicate that the system has stop-
ped operating.
It will flash in case there is a malfunction in
the system. For details, refer to “SONAR
OFF indication lamp” on page 6-61.
To return the system to the operating state, push the “SONAR” switch again. When the
system returns to the operating state, the buz- zer sounds once and the “SONAR OFF” indi-
cation lamp turns off.
NOTEl The “SONAR OFF” indication lamp flashes
once when the ignition switch is turned to
the “ON” position.
The warning buzzer sounds when the system
detects an obstacle during operation.
Reversing sensor system*
6-59OVWE16E1Starting and driving6

NOTElAfter pushing the “SONAR” switch, revers-
ing sensor system operation differs accord-ing to the detection area setting.
• Setting when towing bar is not equipped
When the gearshift lever is moved to the
“R” (Reverse) position (with M/T) or the
selector lever is moved to the “R” (RE-
VERSE) position (with A/T), the revers-
ing sensor system will operate even if cor- ner sensor operation was stopped by push-
ing the “SONAR” switch.
• Setting when towing bar is equipped
When reversing sensor system operation was stopped by pushing the “SONAR”
switch, the reversing sensor system will not operate until the engine has been stop- ped even if the gearshift lever is moved to
the “R” (Reverse) position (with M/T) or
the selector lever is moved to the “R”
(REVERSE) position (with A/T).
To resume reversing sensor system opera- tion, push the “SONAR” switch or stop and restart the engine, and then move the
gearshift lever is moved to the “R” (Re- verse) position (with M/T) or the selector
lever to the “R” (REVERSE) position (with A/T).
Warning for obstacles
If there is an obstacle behind the vehicle, a
warning buzzer sounds to indicate the dis- tance between the vehicle and the obstacle.
Corner sensorVehicle to obstacle
distanceWarning sound cy- cleApprox. 50 to 40 cmIntermittentApprox. 40 to 20 cmFast intermittentWithin approx.20 cmContinuous
Back sensor (vehicles without a towing
bar)
Vehicle to obstacle distanceWarning sound cy- cleApprox. 150 to80 cmIntermittentApprox. 80 to 40 cmFast intermittentWithin approx.40 cmContinuous
Back sensor (vehicles with a towing bar)
Vehicle to obstacle distanceWarning sound cy- cleApprox. 150 to120 cmIntermittentApprox. 120 to 60 cmFast intermittentVehicle to obstacle distanceWarning sound cy- cleWithin approx.60 cmContinuousCAUTIONlThe distances given are to be used for refer-
ence only, as errors may be caused by vari- ous factors, such as temperature, humidity,
or the shape of the obstacles.Changing the detection areas
E00615800032
The detection areas can be changed as fol-
lows:
Vehicles with a towing bar
While the operation of the system is stopped
at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and release it. The buzzer sounds twice to indi-
cate that the detection area has been changed.
Vehicles without a towing bar
While the operation of the system is stopped at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and
release it. The buzzer sounds once to indicate that the detection area has been changed.
Reversing sensor system*
6-60OVWE16E1Starting and driving6

NOTElThe detection area will not change if you
keep the “SONAR” switch pushed for 10
seconds or more.“SONAR OFF” indication
lamp
E00615901362
In case there is a malfunction in the reversing sensor system, the “SONAR OFF” indicationlamp will flash and the warning buzzer willsound for approximately 5 seconds. Even af-ter the buzzer has stopped sounding, the indi-
cation lamp will continue flashing until the
system reverts to the normal state. We rec- ommend you to have your vehicle inspection.
Rear-view camera*
E00618401980
The rear-view camera is a system that shows the view behind the vehicle on a screen of the
MITSUBISHI Multi Communication System
(MMCS), the DISPLAY AUDIO or the
Smartphone Link Display Audio.CAUTIONl The rear-view camera is an assistance sys-
tem that enables the driver to check for ob- stacles behind the vehicle. Its range of view
is limited, so you should not overly depend on it. Please drive just as carefully as you
would if the vehicle did not have the rear-
view camera.
l Be sure to visually confirm safety around the
vehicle with your own eyes. Do not depend entirely on the rear-view camera.
Range of view of rear-view
camera
The range of view of the rear-view camera is
limited to the area shown in the illustrations.
Because the camera is built in the overhang- ing area of the vehicle (spare wheel garnish),it cannot show the bottom of the spare wheel
garnish and the right behind the vehicle (rear bumper and backdoor).
When reversing, be sure to visually confirm
safety around the vehicle.
Location of rear-view camera
The rear-view camera (A) is integrated into
the spare wheel garnish.
Range of view of rear-viewcamera
Rear-view camera*
6-61OVWE16E1Starting and driving6
