2016 MITSUBISHI SHOGUN Owner's Manual (in English)

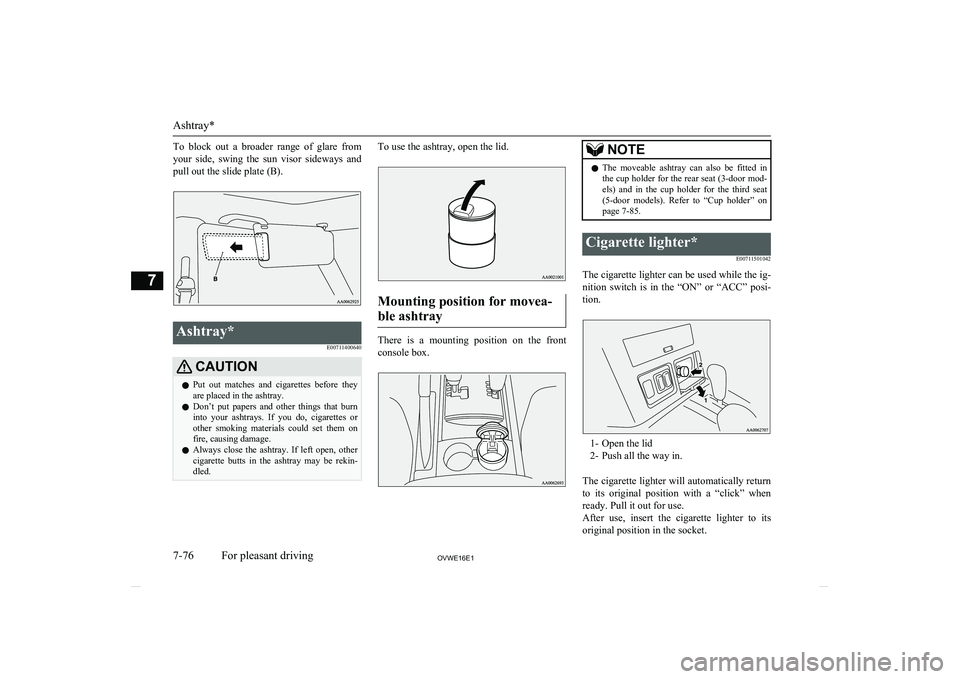

To block out a broader range of glare from
your side, swing the sun visor sideways and
pull out the slide plate (B).Ashtray*
E00711400640CAUTIONlPut out matches and cigarettes before they
are placed in the ashtray.
l Don’t put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire, causing damage.
l Always close the ashtray. If left open, other
cigarette butts in the ashtray may be rekin-
dled.To use the ashtray, open the lid.
Mounting position for movea-
ble ashtray
There is a mounting position on the front
console box.
NOTEl The moveable ashtray can also be fitted in
the cup holder for the rear seat (3-door mod-
els) and in the cup holder for the third seat (5-door models). Refer to “Cup holder” on
page 7-85.Cigarette lighter*
E00711501042
The cigarette lighter can be used while the ig-nition switch is in the “ON” or “ACC” posi-
tion.
1- Open the lid
2- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
Ashtray*
7-76OVWE16E1For pleasant driving7

NOTElDo not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.CAUTIONl Do not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
l Do not allow children to operate or play with
the cigarette lighter as burns may occur.
l Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in. We recommend you to have it checked.
l Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used
the cigarette lighter after damaging the sock- et, the cigarette lighter might pop out or fail
to come out after being pushed in.
l When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance without running the engine may
run down the battery.Accessory socket
E00711600987
The accessory socket can be used while the ignition switch is in the “ON” or “ACC” po-
sition.CAUTIONl Be aware that using electronic equipment
with the engine off may run the battery down.
l When you connect an electrical device,
make sure it is rated at 12 V and its electrical
capacity does not exceed 120 W. When us-
ing some sockets at the same time, make
sure the total power consumption of the
electrical accessories does not exceed 120 W
at 12 V.
l When the accessory socket is not in use, be
sure to close the cap or plug, because the
socket might become clogged by foreign
material and be short-circuited.NOTEl The two or more accessory sockets can be
used simultaneously.Type 1
Pull out the plug (A) in the instrument panel
to uncover the socket. Use it to plug in an
electrical device.
Instrument panel*
Accessory socket
7-77OVWE16E1For pleasant driving7

Type 2
Open the cap (B) on the centre console box
and the side wall of the luggage compartment to uncover the socket. Use it to plug in an
electrical device.
Console boxRear (3-door models)Rear (5-door models)
Interior lamps
E00712001015
1- Luggage compartment lamp2- Rear personal lamps
3- Door courtesy lamps
4- Ceiling lamp (Type 1)*
5- Ceiling lamp (Type 2)*
6- Interior lamp switch Room & map lamps
7- Foot lamps*
NOTEl If you leave the interior lamps on without
running the engine, you will run down the battery. Before you leave the vehicle, makesure that all the interior lamps are off.Interior lamp switch
E00717301680
The interior lamp switch can be used to turn
the room & map lamps and rear personal
lamps on and off.
1 () -The room & map lamps and rear
personal lamps go on regardless of opening and closing of the
doors and backdoor.NOTEl The luggage compartment lamp goes on
with the luggage compartment lamp switch
in “
” position, using the interior lamp
switch.Interior lamps
7-78OVWE16E1For pleasant driving7

2 (DOOR)
-The room & map lamps and rear
personal lamps go on when any of the doors or the backdoor is
opened. When all doors and
backdoor are closed, the room & map lamps and rear personallamps are illuminated and dim-
med gradually for 15 seconds and then go off.
However, the lamps go off im-
mediately without being dim-
med in the following cases:
l The doors and backdoor are
closed and the ignition switch is turned to the
“ON” position.
l All doors and the backdoor
are locked using the central door lock function or the
keyless entry system (if so equipped).NOTEl On vehicles with keyless entry system, if the
ignition key is removed with the doors and
backdoor closed, the room & map lamps and rear personal lamps are illuminated for
15 seconds and then go off.
The dimming period is also adjustable.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
l When the room & map lamp switch is in the
“ON” position, closing the doors and back- door does not cause the room & map lamps
to go off.3 () -The room & map lamps, rear
personal lamps and luggage
compartment lamp are off re- gardless of opening and closing
of the doors and backdoor.NOTEl When the room & map lamp switch is in the
“ON” position, the interior lamp switch can-not be used to turn off the room & map
lamps.
l When the luggage compartment lamp switch
is in the “
” position, the interior lamp
switch cannot be used to turn off the luggage
compartment lamp.
Room & map lamps
E00717400062
With the doors and backdoor closed and the
interior lamp switch in the “DOOR” or “
”
position, pressing the lens (A) illuminates the
room & map lamps and pressing the lens again turns them off.
If any of the doors or the backdoor is opened
with the interior lamp switch in the “DOOR”
position, the room & map lamps illuminate. When it is closed, the room & map lamps are
dimmed gradually for 15 seconds and then go
off.
NOTEl When any of the doors or the backdoor is
opened and the interior lamp switch in the “
” position, the room & map lamps re-
main on even when the lens is pressed.Interior lamps
7-79OVWE16E1For pleasant driving7

Rear personal lamps
E00712600290
With the doors and backdoor closed and the
interior lamp switch in the “DOOR” position,
pressing the lens (A) makes the lamp go on and pressing the lens again makes it go off.
If any of the doors or the backdoor is opened,
the lamps go on. When it is subsequently closed, the lamps are dimmed gradually for
15 seconds then go off.Type 1
*: Front of the vehicle
Type 2
*: Front of the vehicle
NOTEl When the interior lamp switch is in the “”
position, the lamp remains off even when the
lens (A) is pressed and any of the doors or the backdoor is opened.Luggage compartment lamp
E00712701748
1 () -The lamp illuminates.
Interior lamps
7-80OVWE16E1For pleasant driving7

2 () -With the interior lamp switch in“DOOR” position, the lamp
goes on when any of the doors or the backdoor is opened.
When all the doors and the backdoor are closed, the lamp is
illuminated for 15 seconds, then goes off.
However, the lamp goes off im-
mediately without being dim-
med in case of the followings:
l The ignition switch is
turned to the “ON” posi-
tion.
l All the doors and the back-
door are locked using thecentral door lock function
or the keyless entry system (if so equipped).NOTEl When the interior lamp switch is in the “”
position, the luggage compartment lamp will not come on.NOTEl On vehicles with keyless entry system, when
the ignition key is removed with the doors
and the backdoor closed, the lamp is illumi- nated for 15 seconds, then goes off.
The dimming period is also adjustable.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.3 () -The lamp goes off.Foot lamps and ceiling lamp
E00726601344
The front foot lamps (A), rear foot lamp (B)
and ceiling lamp (C) illuminate when the
lamp switch in the “
”, “”, or “AUTO”
position (vehicles with automatic lamp con-
trol).
Front foot lamps*Rear foot lamp*Ceiling lamp (Type 1)Ceiling lamp (Type 2)
Interior lamps
7-81OVWE16E1For pleasant driving7

Door courtesy lamps
E00717500047
Each door courtesy lamp illuminates when
the relevant door is opened and goes off when the door is closed.
FrontRear (5-door models)Interior lamp* auto-cutout
function (Vehicles with keylessentry system)
E00712902428
*: Room & map lamps, rear personal lamps
and luggage compartment lamp

If any of the interior lamps are left switched on with the ignition switch in any position
other than “ON” or “ACC”, it goes off auto- matically after approximately 30 minutes.
The lamp comes on again if the ignition switch is turned to the “ON” or “ACC” posi-
tion, any door or backdoor is opened and
closed, or the keyless entry remote control is
operated.
NOTEl The interior lamp auto-cut function period
can be adjusted or deactivated. We recom-
mend you to consult a MITSUBISHI
MOTORS Authorized Service Point for de-
tailed information and assistance.Storage spaces
E00713103088CAUTIONlNever leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans (including beer cans)
may rupture. The heat may also deform or crack plastic spectacle lenses and other spec-
tacle parts that are made of plastic.
l Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.NOTEl Do not leave valuables in any storage space
when leaving the vehicle.
Storage spaces
7-82OVWE16E1For pleasant driving7

1- Sunglasses holder*
2- Glove box
3- Accessory box*
4- Centre console box
5- Side box*
6- Luggage floor box
Glove box
E00717602824
The glove box can be locked and unlocked
using the key.
1- To lock
2- To unlock
3- To open, pull the lever
NOTEl When the lamp switch is in the “” or
“
” position, the lower glove box lamp il-
luminates.
l The Auxiliary Video connector (RCA) (A) is
located in the glove box (if so equipped).
l The USB port (B) is located in the glove box
(if so equipped). For details, refer to “USB
port*” on page 7-71.NOTEl Small articles can be stored in the upper area
(C) of the glove box.Centre console box
E00722600105
Upper and lower boxes are located inside the
centre console box.
The centre console box can also be used as an
armrest. Refer to “Armrest” on page 4-08.
1- Upper box
2- Lower box
Storage spaces
7-83OVWE16E1For pleasant driving7
