2016 Hyundai Genesis Owner's Manual - RHD (UK, Australia)

7-59
7

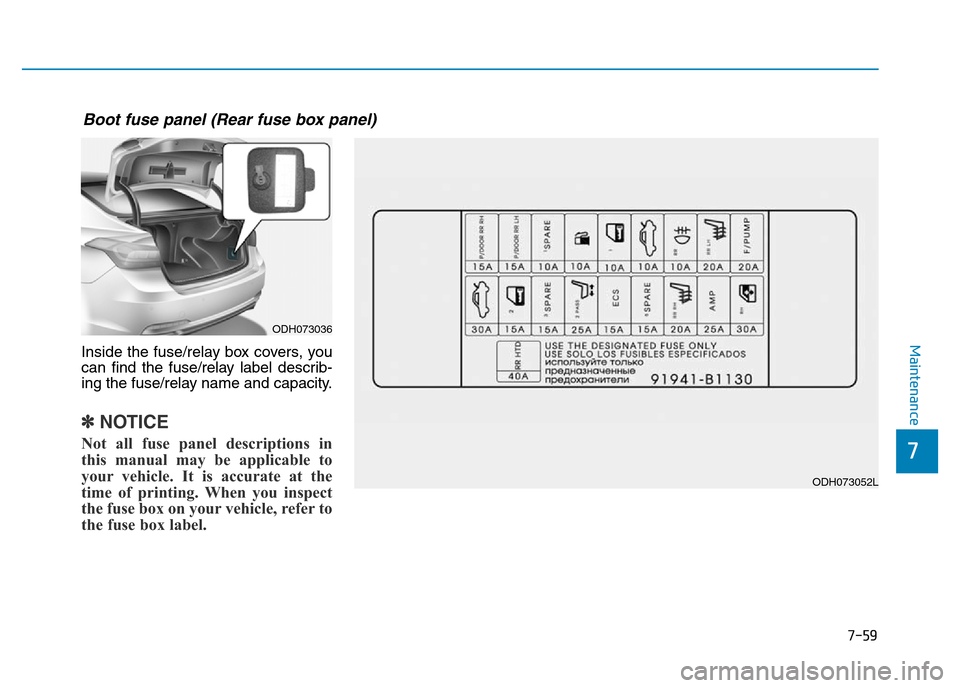

MaintenanceInside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing the fuse/relay name and capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
ODH073052L
ODH073036

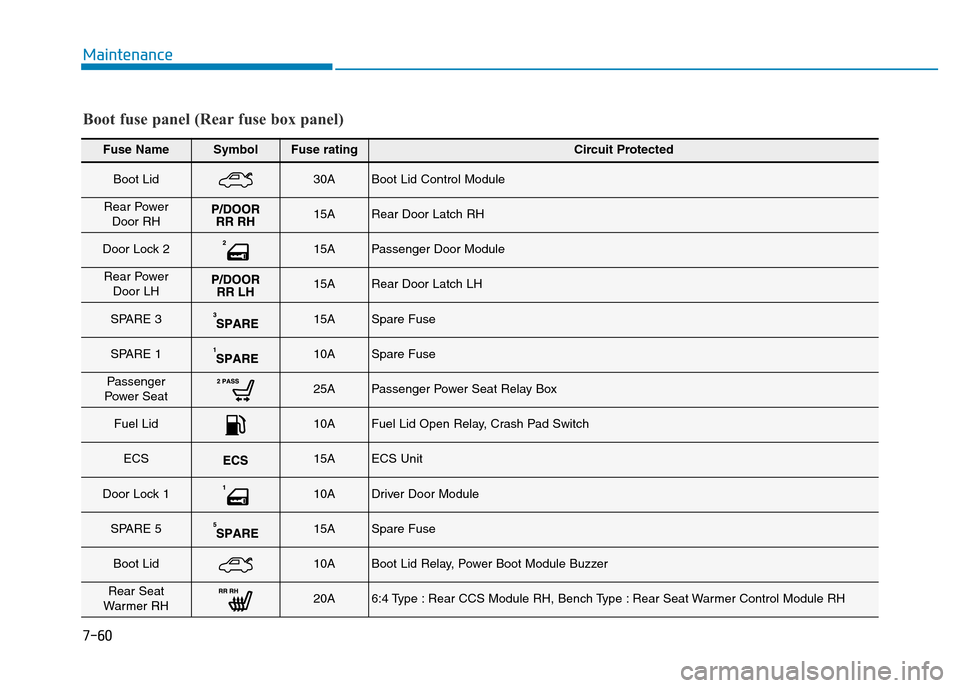

Boot fuse panel (Rear fuse box panel)

7-60
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Boot Lid30ABoot Lid Control Module
Rear Power
Door RH15ARear Door Latch RH
Door Lock 215APassenger Door Module
Rear Power
Door LH15ARear Door Latch LH
SPARE 315ASpare Fuse
SPARE 110ASpare Fuse
Passenger
Power Seat25APassenger Power Seat Relay Box
Fuel Lid10AFuel Lid Open Relay, Crash Pad Switch
ECS15AECS Unit
Door Lock 110ADriver Door Module
SPARE 515ASpare Fuse
Boot Lid10ABoot Lid Relay, Power Boot Module Buzzer
Rear Seat
Warmer RH20A6:4 Type : Rear CCS Module RH, Bench Type : Rear Seat Warmer Control Module RH

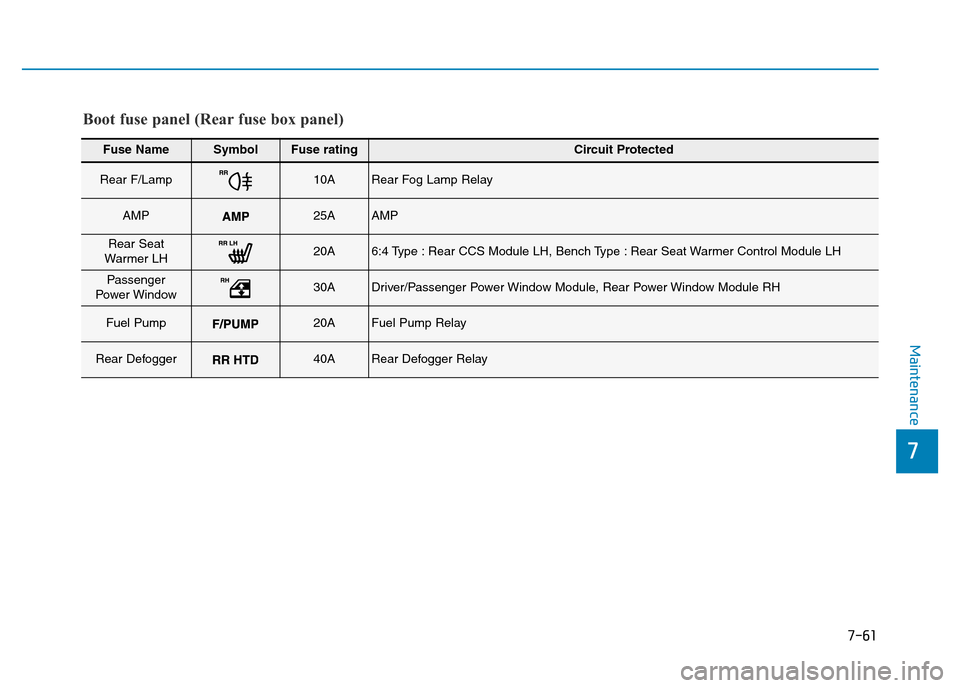

Boot fuse panel (Rear fuse box panel)

7-61
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Rear F/Lamp10ARear Fog Lamp Relay
AMP25AAMP
Rear Seat
Warmer LH20A6:4 Type : Rear CCS Module LH, Bench Type : Rear Seat Warmer Control Module LH
Passenger
Power Window30ADriver/Passenger Power Window Module, Rear Power Window Module RH
Fuel Pump20AFuel Pump Relay
Rear Defogger40ARear Defogger Relay
Boot fuse panel (Rear fuse box panel)

7-62
Maintenance
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing the fuse/relay name and capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
ODH073038L
• Battery box fuse panel
ODH073037

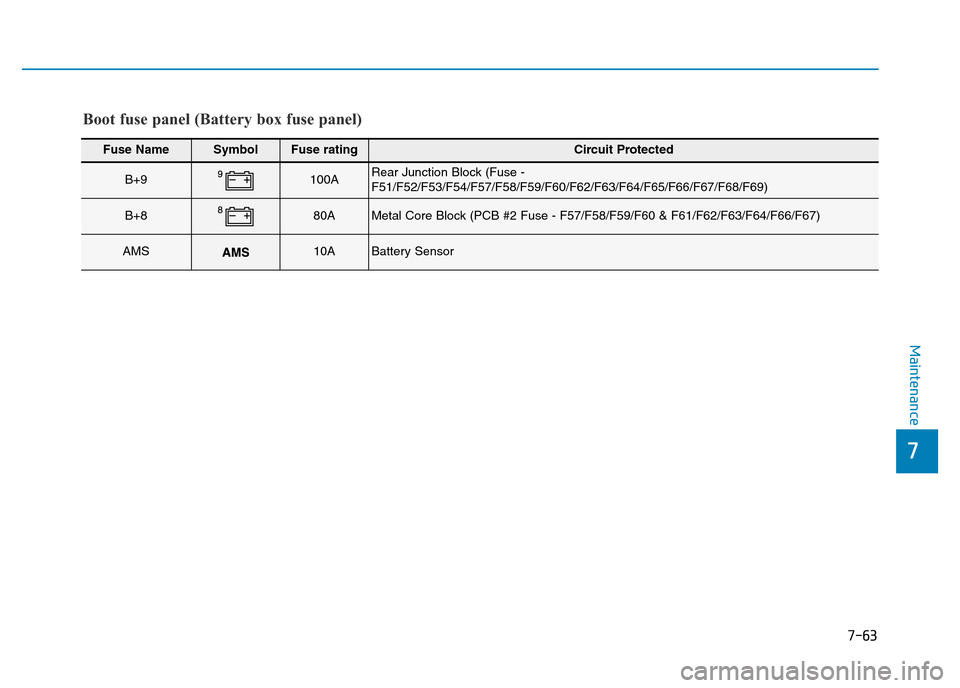

Boot fuse panel (Battery box fuse panel)

7-63
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
B+9100ARear Junction Block (Fuse -
F51/F52/F53/F54/F57/F58/F59/F60/F62/F63/F64/F65/F66/F67/F68/F69)
B+880AMetal Core Block (PCB #2 Fuse - F57/F58/F59/F60 & F61/F62/F63/F64/F66/F67)
AMS10ABattery Sensor
Boot fuse panel (Battery box fuse panel)

7-64
Maintenance
LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽NOTICE
After heavy driving, rain or wash-
ing, headlamp and tail lamp lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during rain and doesn’t
indicate a problem with your vehi-
cle. If the water leaks into the lamp
bulb circuitry, we recommend that
the system be checked by a
HYUNDAI authorised repairer.
❈Traffic Change (For Europe)
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direc-
tion, this asymmetric part will dazzle
oncoming car driver. To prevent daz-
zle, ECE regulation demand several
technical solutions (ex. automatic
change system, adhesive sheet,
down aiming). These headlamps are
designed not to dazzle opposite driv-
ers. So, you need not change your
headlamps in a country with oppo-
site traffic direction. Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.
CAUTION
If you don’t have the necessary
tools, the correct bulbs and the
expertise, consult a HYUNDAI
authorised repairer. In many
cases, it is difficult to replace
vehicle light bulbs because
other parts of the vehicle must
be removed before you can get
to the bulb. This is especially
true if you have to remove the
headlamp assembly to get to
the bulb(s).
Removing/installing the head-
lamp assembly can result in
damage to the vehicle.
CAUTION
Working on the lights
Prior to working on the light, firm-
ly apply the parking brake,
ensure that the Engine Start/Stop
button is turned to the OFF posi-
tion and turn off the lights to
avoid sudden movement of the
vehicle and burning your fingers
or receiving an electric shock.
WARNING

7-65
7
Maintenance

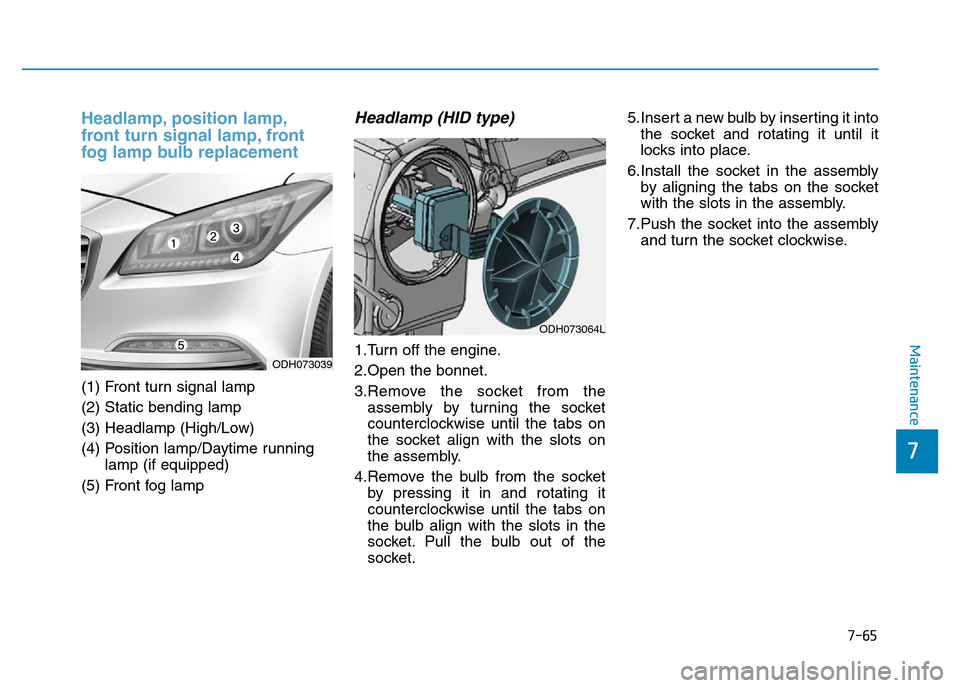

Headlamp, position lamp,
front turn signal lamp, front
fog lamp bulb replacement
(1) Front turn signal lamp
(2) Static bending lamp
(3) Headlamp (High/Low)
(4) Position lamp/Daytime running
lamp (if equipped)
(5) Front fog lamp
Headlamp (HID type)
1.Turn off the engine.
2.Open the bonnet.
3.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7.Push the socket into the assembly
and turn the socket clockwise.ODH073039
ODH073064L

7-66
Maintenance
✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs.
HID lamps are estimated by the
manufacturer to last twice as long or
longer than halogen bulbs depend-
ing on their frequency of use. They
will probably require replacement
at some point in the life of the vehi-
cle. Cycling the headlamps on and
off more than typical use will short-
en HID lamps life. HID lamps do not
fail in the same manner as halogen
incandescent lamps. If a headlamp
goes out after a period of operation
but will immediately relight when
the headlamp switch is cycled it is
likely the HID lamp needs to be
replaced. HID lighting components
are more complex than conventional
halogen bulbs thus have higher
replacement cost.
✽NOTICE
We recommend that the headlamp
aiming be adjusted after an accident
or after the headlamp assembly is
reinstalled at a HYUNDAI autho-
rised repairer.
Front turn signal lamp/
Static bending lamp
1.Turn off the engine.
2.Open the bonnet. HID Headlamp low beam
(if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by a HYUNDAI
authorised repairer.
WARNING
ODH073066L
ODH073065L
■Front turn signal lamp
■Static bending lamp
