2016 Hyundai Genesis Owner's Manual - RHD (UK, Australia)

3-166
Convenient features of your vehicle

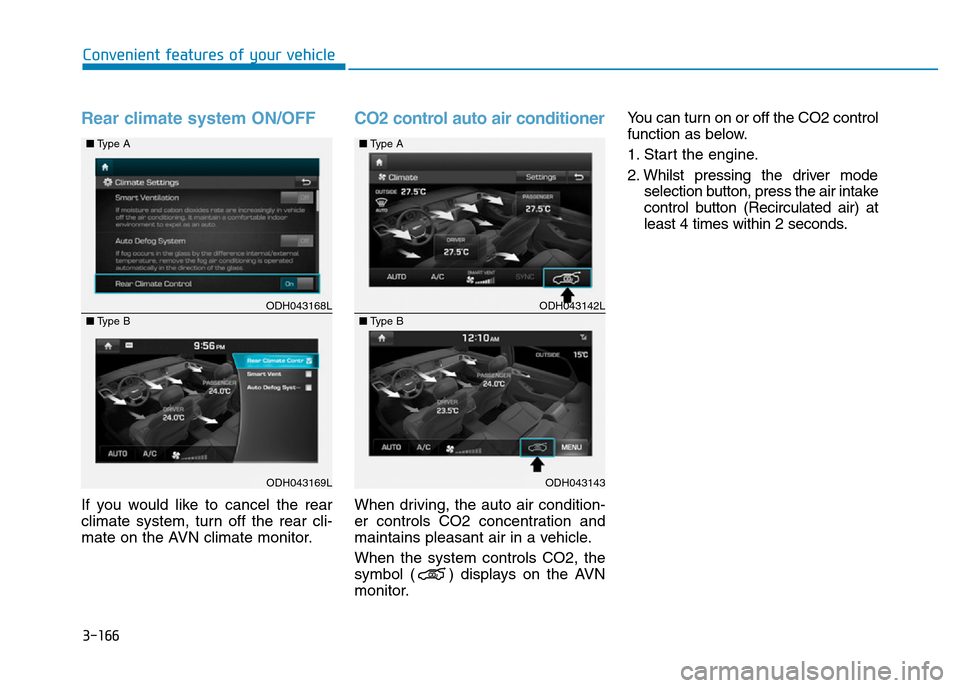

Rear climate system ON/OFF
If you would like to cancel the rear
climate system, turn off the rear cli-
mate on the AVN climate monitor.
CO2 control auto air conditioner
When driving, the auto air condition-
er controls CO2 concentration and
maintains pleasant air in a vehicle.
When the system controls CO2, the
symbol ( ) displays on the AVN
monitor.You can turn on or off the CO2 control
function as below.
1. Start the engine.
2. Whilst pressing the driver mode
selection button, press the air intake
control button (Recirculated air) at
least 4 times within 2 seconds.
ODH043168L
ODH043169L ■Type A
■Type B
ODH043142L
ODH043143 ■Type A
■Type B

3-167
Convenient features of your vehicle
3
STORAGE COMPARTMENT
Centre console storage
To open :
Press the button (1).
Rear console storage
To open :
Press the button (1). Never store cigarette lighters,
propane cylinders, or other
flammable/explosive materials
in the vehicle. These items may
catch fire and/or explode if the
vehicle is exposed to hot tem-
peratures for extended periods.
WARNING
ALWAYS keep the storage com-
partment covers closed secure-
ly whilst driving. Items inside
your vehicle are moving as fast
as the vehicle. If you have to
stop or turn quickly, or if there
is a crash, the items may fly out
of the compartment and may
cause an injury if they strike the
driver or a passenger.
WARNING
To avoid possible theft, do not
leave valuables in the storage
compartments.
CAUTION
ODH043357ODH043358

3-168
Convenient features of your vehicle
Glove box
The glove box can be locked and
unlocked with the mechanical key
(1).
To open:
Pull the lever (2).
Sunglasses holder (if equipped)
To open:
Press the cover and the holder will
slowly open. Place your sunglasses
in the compartment door with the
lenses facing out.
To close:
Push back into position.
Make sure the sunglasses holder is
closed whilst driving.
ODH044104R
ALWAYS close the glove box
door after use.
An open glove box door can
cause serious injury to a pas-
senger in an accident, even if the
passenger is wearing a seat belt.
WARNING
ODH043103
•Do not keep objects except
sunglasses inside the sun-
glasses holder. Such objects
can be thrown from the holder
in the event of a sudden stop or
an accident, possibly injuring
the passengers in the vehicle.
•Do not open the sunglasses
holder whilst the vehicle is
moving. The rearview mirror of
the vehicle can be blocked by
an open sunglasses holder.
•Do not put the sunglasses
forcibly into a sunglasses hold-
er. It may cause personal injury
if you try to open it forcibly
when the sunglasses are
jammed in holder.
WARNING

3-169
Convenient features of your vehicle
3

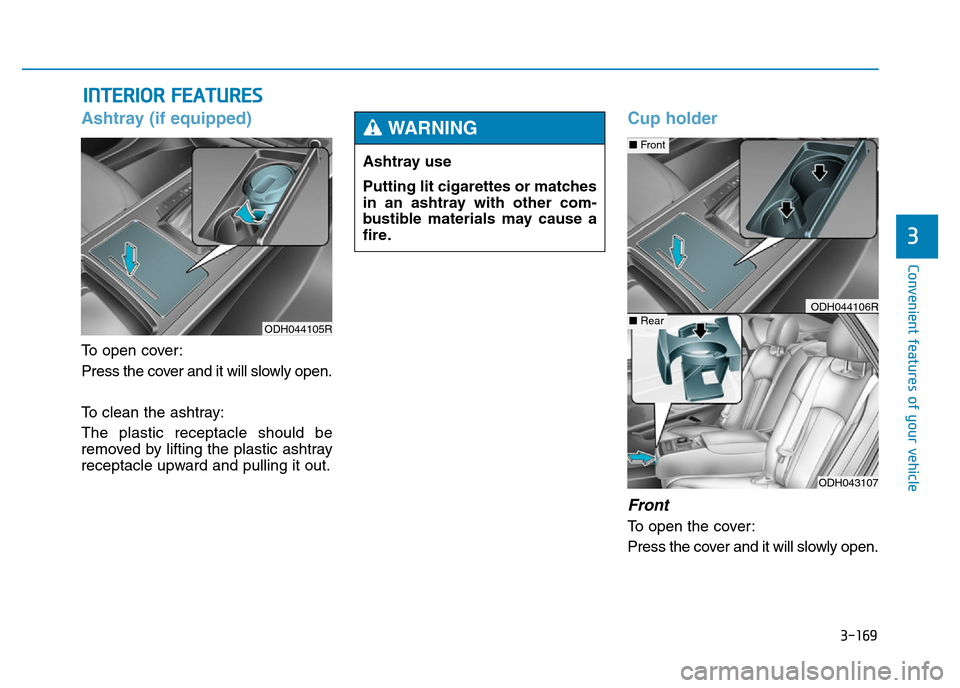

INTERIOR FEATURES
Ashtray (if equipped)
To open cover:
Press the cover and it will slowly open.
To clean the ashtray:
The plastic receptacle should be
removed by lifting the plastic ashtray
receptacle upward and pulling it out.
Cup holder
Front
To open the cover:
Press the cover and it will slowly open.
ODH044105R
Ashtray use
Putting lit cigarettes or matches
in an ashtray with other com-
bustible materials may cause a
fire.
WARNING
ODH043107
■Front
■RearODH044106R

3-170
Convenient features of your vehicle
Rear
To open the cover:
Press the button and it will slowly
open.
Sunvisor
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or back-
ward (4) as needed. Use the ticket
holder (5 and 6) to hold tickets.
•Keep your drinks sealed
whilst driving to prevent
spilling your drink. If liquid
spills, it may get into the vehi-
cle's electrical/electronic sys-
tem and damage
electrical/electronic parts.
•When cleaning spilled liquids,
do not dry the cup holder at
high temperature. This may
damage the chrome part of
the cup holder.
CAUTION
•Avoid abrupt starting and
braking when the cup holder
is in use to prevent spilling
your drink. If hot liquid spills,
you could be burned. Such a
burn to the driver could cause
loss of vehicle control result-
ing in an accident.
•Do not place uncovered or
unsecured cups, bottles,
cans, etc., in the cup holder
containing hot liquid whilst
the vehicle is in motion.
Injuries may result in the
event of sudden stop or colli-
sion.
•Only use soft cups in the cup
holders. Hard objects can
injure you in an accident.
WARNING
Keep cans or bottles out of
direct sun light and do not put
them in a hot vehicle. It may
explode.
WARNING
ODH044359R

3-171
Convenient features of your vehicle
3

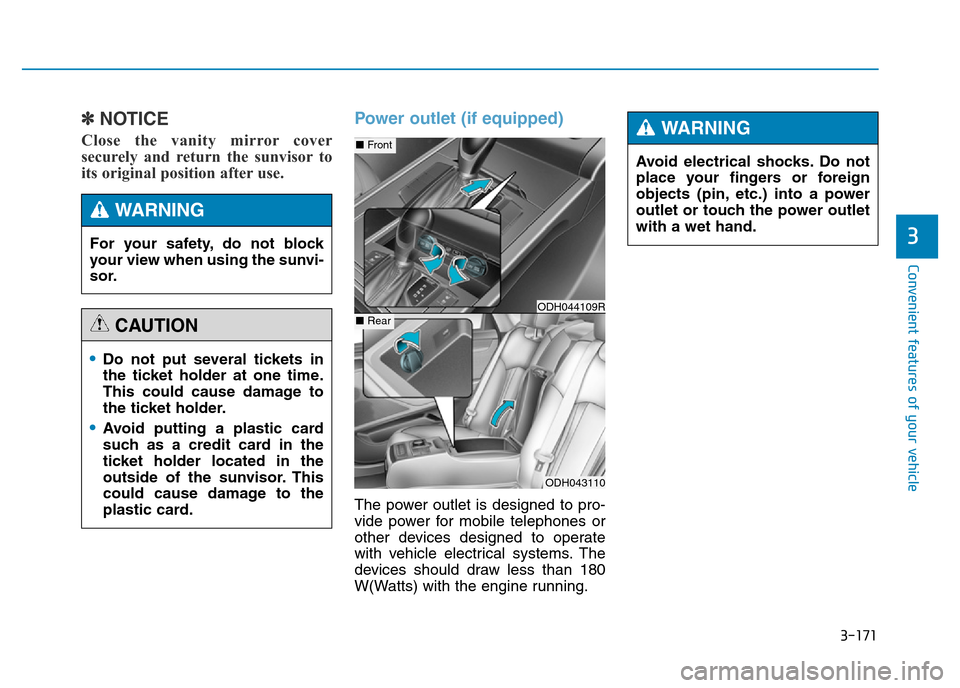

✽NOTICE
Close the vanity mirror cover
securely and return the sunvisor to
its original position after use.
Power outlet (if equipped)
The power outlet is designed to pro-
vide power for mobile telephones or
other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 180
W(Watts) with the engine running.
•Do not put several tickets in
the ticket holder at one time.
This could cause damage to
the ticket holder.
•Avoid putting a plastic card
such as a credit card in the
ticket holder located in the
outside of the sunvisor. This
could cause damage to the
plastic card.
CAUTION
For your safety, do not block
your view when using the sunvi-
sor.
WARNING
ODH043110
■Front
■RearODH044109R
Avoid electrical shocks. Do not
place your fingers or foreign
objects (pin, etc.) into a power
outlet or touch the power outlet
with a wet hand.
WARNING

3-172
Convenient features of your vehicle
Clock
You can set the clock by using the
AVN (Audio or Navigation).
For more details, please refer to the
Multimedia System Manual or DIS
Navigation System Manual that was
supplied with your vehicle. To prevent damage to the Power
Outlets :
•Use the power outlet only when
the engine is running and
remove the accessory plug
after use. Using the accessory
plug for prolonged periods of
time with the engine off could
cause the battery to discharge.
•Only use 12V electric acces-
sories which are less than 180
W(Watts) in electric capacity.
•Adjust the air conditioning or
heater to the lowest operating
level when using the power
outlet.
•Close the cover when not in
use.
(Continued)
(Continued)
•Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices
may cause excessive audio
static and malfunctions in
other electronic systems or
devices used in your vehicle.
•Push the plug in as far as it
will go. If good contact is not
made, the plug may overheat
and the fuse may open.
•Plug in battery equipped elec-
trical/electronic devices with
reverse current protection. The
current from the battery may
flow into the vehicle's electri-
cal/electronic system and
cause system malfunction.
CAUTION
Do not adjust the clock whilst
driving. You may lose your
steering control and cause an
accident that results in severe
personal injury or death.
WARNING
ODH044111R

3-173
Convenient features of your vehicle
3

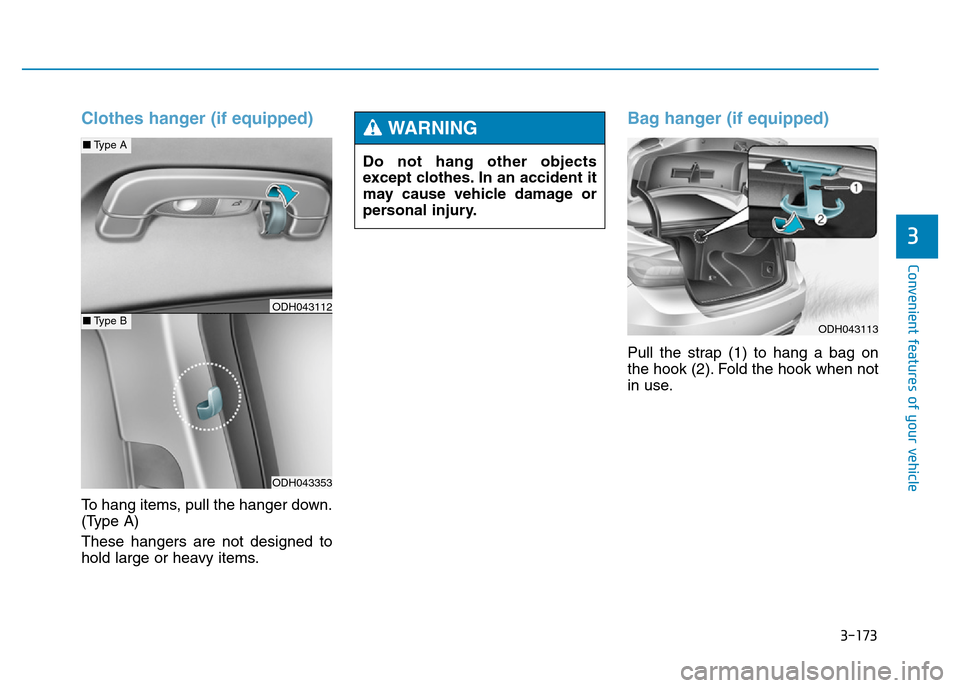

Clothes hanger (if equipped)
To hang items, pull the hanger down.
(Type A)
These hangers are not designed to
hold large or heavy items.
Bag hanger (if equipped)
Pull the strap (1) to hang a bag on
the hook (2). Fold the hook when not
in use.
ODH043353
■Type A
■Type BODH043112
Do not hang other objects
except clothes. In an accident it
may cause vehicle damage or
personal injury.
WARNING
ODH043113
