3-174
Convenient features of your vehicle
Floor mat anchor(s)
(if equipped)
ALWAYS use the Floor Mat Anchors
to attach the front floor mats to the
vehicle. The anchors on the front
floor carpet keep the floor mats from
sliding forward.
OVI043427
The following must be observed
when installing ANY floor mat in
the vehicle.
•Ensure that the floor mats are
securely attached to the vehi-
cle's floor mat anchor(s)
before driving the vehicle.
•Do not use ANY floor mat that
cannot be firmly attached to
the vehicle's floor mat anchors.
•Do not stack floor mats on top
of one another (e.g. all-weath-
er rubber mat on top of a car-
peted floor mat). Only a single
floor mat should be installed
in each position.
(Continued)
(Continued)
IMPORTANT - Your vehicle was
manufactured with driver's side
floor mat anchors that are
designed to securely hold the
floor mat in place. To avoid any
interference with pedal opera-
tion, HYUNDAI recommends
that the HYUNDAI floor mat
designed for use in your vehicle
be installed.WARNING

3-175
Convenient features of your vehicle
3

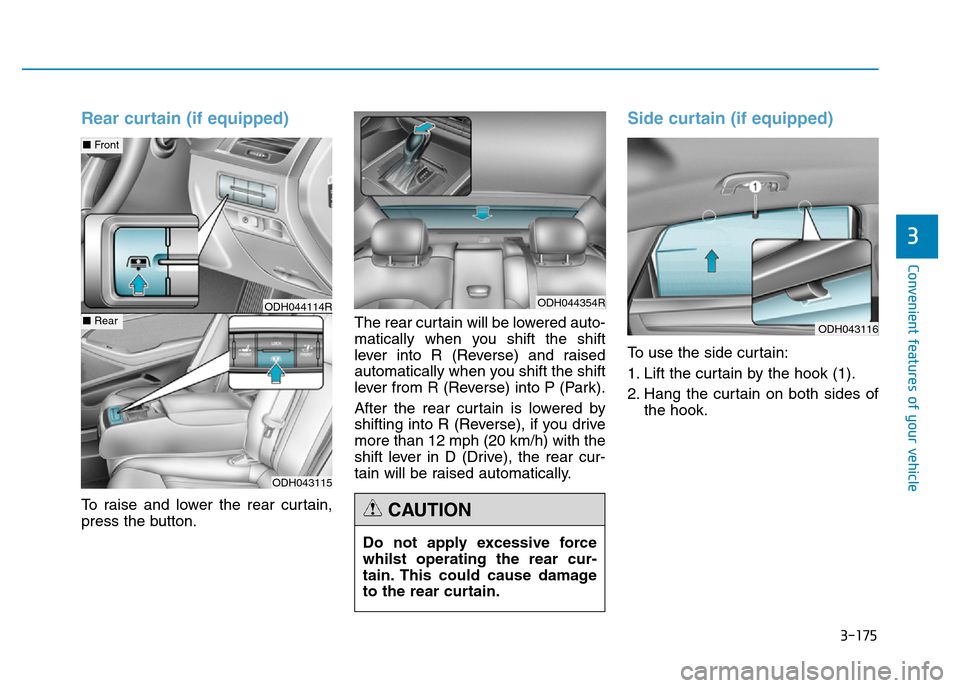

Rear curtain (if equipped)
To raise and lower the rear curtain,
press the button.The rear curtain will be lowered auto-
matically when you shift the shift
lever into R (Reverse) and raised
automatically when you shift the shift
lever from R (Reverse) into P (Park).
After the rear curtain is lowered by
shifting into R (Reverse), if you drive
more than 12 mph (20 km/h) with the
shift lever in D (Drive), the rear cur-
tain will be raised automatically.
Side curtain (if equipped)
To use the side curtain:
1. Lift the curtain by the hook (1).
2. Hang the curtain on both sides of
the hook.
Do not apply excessive force
whilst operating the rear cur-
tain. This could cause damage
to the rear curtain.
CAUTION
ODH043115
■Front
■RearODH044114RODH044354R
ODH043116

3-176
Convenient features of your vehicle

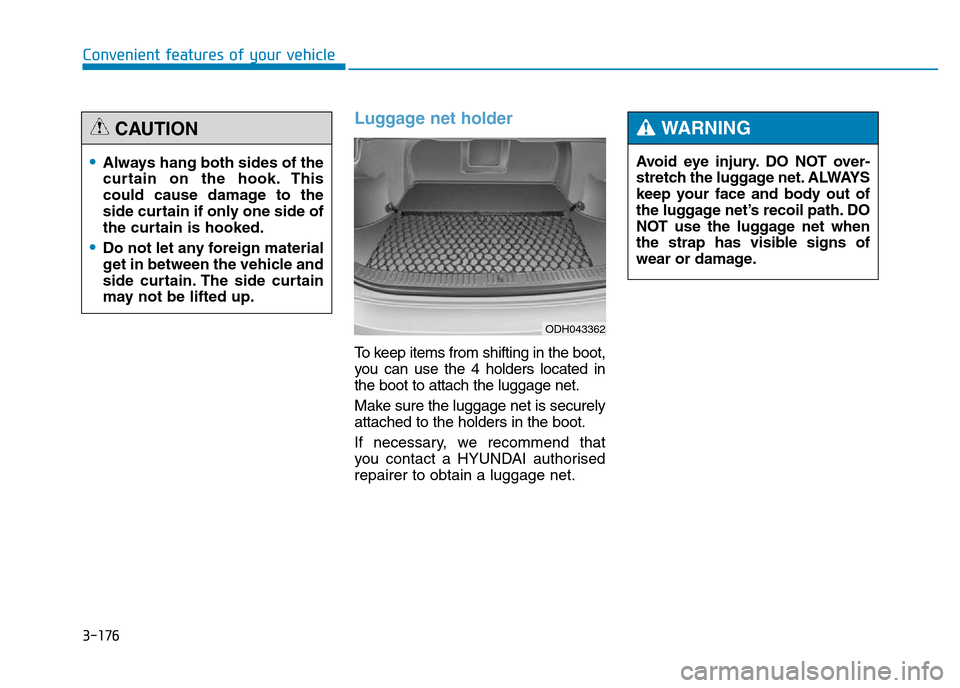

Luggage net holder
To keep items from shifting in the boot,
you can use the 4 holders located in
the boot to attach the luggage net.
Make sure the luggage net is securely
attached to the holders in the boot.
If necessary, we recommend that
you contact a HYUNDAI authorised
repairer to obtain a luggage net.
•Always hang both sides of the
curtain on the hook. This
could cause damage to the
side curtain if only one side of
the curtain is hooked.
•Do not let any foreign material
get in between the vehicle and
side curtain. The side curtain
may not be lifted up.
CAUTION
Avoid eye injury. DO NOT over-
stretch the luggage net. ALWAYS
keep your face and body out of
the luggage net’s recoil path. DO
NOT use the luggage net when
the strap has visible signs of
wear or damage.
WARNING
ODH043362

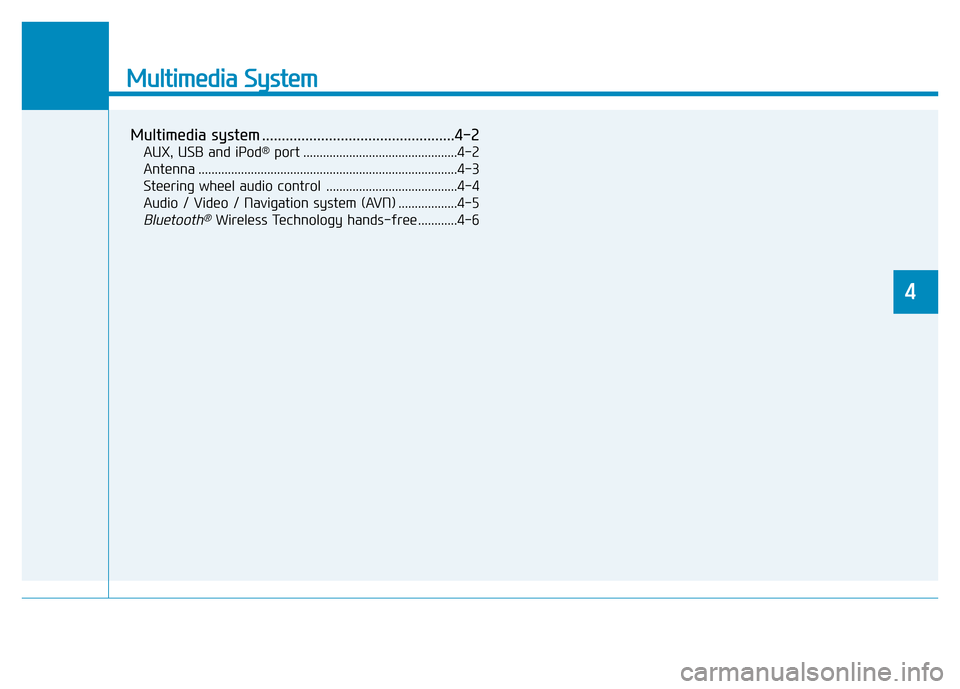

Multimedia System
Multimedia system .................................................4-2
AUX, USB and iPod®port ...............................................4-2
Antenna ...............................................................................4-3
Steering wheel audio control ........................................4-4
Audio / Video / Navigation system (AVN) ..................4-5
Bluetooth®Wireless Technology hands-free ............4-6
4

Detailed information about the multi-
media system (AV or AVN) is
described in a separately supplied
manual.
✽NOTICE
• If you install aftermarket HID
headlamp, your vehicle’s audio
and electronic device may mal-
function.
• Prevent chemicals such as per-
fume, cosmetic oil, sun cream,
hand cleaner, and air freshener
from contacting the interior parts
because they may cause damage
or discolouration.
AUX, USB and iPod®port
You can use an AUX port to connect
audio devices and an USB port to plug
in an USB and also in an iPod
®port.
(Rear Multimedia jack : USB only)
✽NOTICE
When using a portable audio device
connected to the power outlet, noise
may occur during playback. If this
happens, use the power source of the
portable audio device.
❈iPod®is a trademark of Apple Inc.
MULTIMEDIA SYSTEM
4-2
Multimedia System
ODH044121R
ODH043170
■Front
■Rear (if equipped)

Antenna
Shark fin antenna (1)
(For Europe, if equipped)
The shark fin antenna will receive the
transmit data. (for example : GPS
and DAB signal)
Glass antenna (2)
Your vehicle uses a glass antenna to
receive both AM and FM signals.
4-3
Multimedia System
4
ODH043117
•Do not clean the inside of the
rear window glass with a
cleaner or use a scraper to
remove foreign deposits as
this may cause damage to the
antenna elements.
•Avoid adding metallic coat-
ings such as Ni, Cd, and so on.
These can degrade the receiv-
ing AM and FM broadcast sig-
nals.
CAUTION
•To prevent damage to the rear
glass antenna, never use
sharp instruments or window
cleaner containing abrasives
to clean the window. Clean the
inside surface of the rear
glass window with a piece of
soft cloth.
•When putting a sticker on the
inside surface of the rear win-
dow, be careful not to damage
to the rear glass antenna.
•Do not put sharp instruments
nearby the rear glass antenna.
•A tinted rear window may
affect the proper functioning
of the antenna.
CAUTION

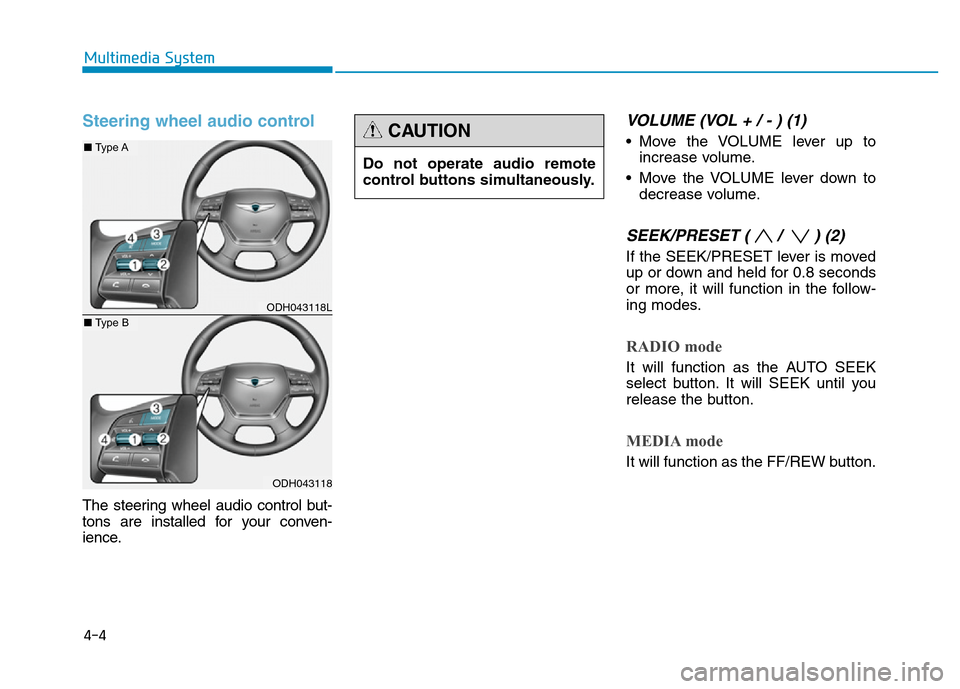

Steering wheel audio control
The steering wheel audio control but-
tons are installed for your conven-
ience.
VOLUME (VOL + / - ) (1)
• Move the VOLUME lever up to
increase volume.
• Move the VOLUME lever down to
decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET lever is moved
up or down and held for 0.8 seconds
or more, it will function in the follow-
ing modes.
RADIO mode
It will function as the AUTO SEEK
select button. It will SEEK until you
release the button.
MEDIA mode
It will function as the FF/REW button.
4-4
Multimedia System
ODH043118L
ODH043118
■Type A
■Type B
Do not operate audio remote
control buttons simultaneously.
CAUTION

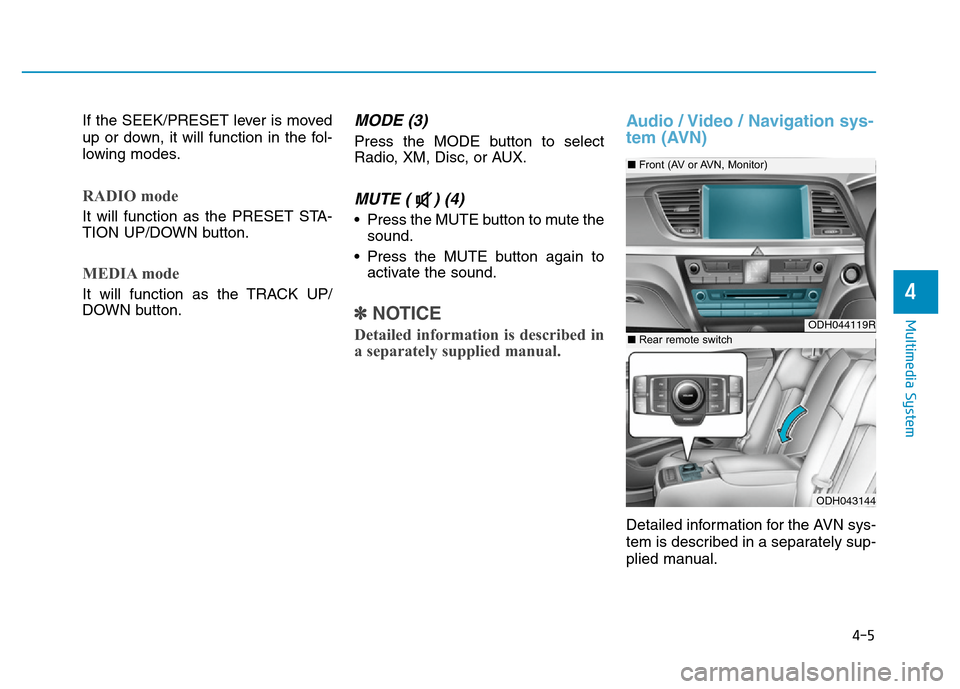

If the SEEK/PRESET lever is moved
up or down, it will function in the fol-
lowing modes.
RADIO mode
It will function as the PRESET STA-
TION UP/DOWN button.
MEDIA mode
It will function as the TRACK UP/
DOWN button.
MODE (3)
Press the MODE button to select
Radio, XM, Disc, or AUX.
MUTE ( ) (4)
• Press the MUTE button to mute the
sound.
• Press the MUTE button again to
activate the sound.
✽NOTICE
Detailed information is described in
a separately supplied manual.
Audio / Video / Navigation sys-
tem (AVN)
Detailed information for the AVN sys-
tem is described in a separately sup-
plied manual.
4-5
Multimedia System
4
ODH044119R
ODH043144
■Front (AV or AVN, Monitor)
■Rear remote switch
