2016 Hyundai Genesis Owner's Manual - RHD (UK, Australia)

2-7
Safety system of your vehicle
2
To prevent injury:
•Do not adjust your seat whilst
wearing your seat belt.
Moving the seat cushion for-
ward may cause strong pres-
sure on your abdomen.
•Do not allow your hands or
fingers to get caught in the
seat mechanisms whilst the
seat is moving.
WARNING (Continued)
•Do not allow anything to inter-
fere with the normal position
and proper locking of the seat-
back.
•Do not place a cigarette lighter
on the floor or seat. When you
operate the seat, gas may exit
out of the lighter causing a fire.
•Use extreme caution when
picking small objects trapped
under the seats or between the
seat and the centre console.
Your hands might be cut or
injured by the sharp edges of
the seat mechanism.
•If there are occupants in the
rear seats, be careful whilst
adjusting the front seat posi-
tion.
To prevent damage to the seats:
•Always stop adjusting the
seats when the seat has been
adjusted as far forward or
rearward as possible.
•Do not adjust the seats longer
than necessary when the
engine is turned off. This may
result in unnecessary battery
drain.
•Do not operate two or more
seats at the same time. This
may result in an electrical mal-
function.
CAUTION
NEVER allow children in the
vehicle unattended. The power
seats are operable when the
engine is turned off.
WARNING

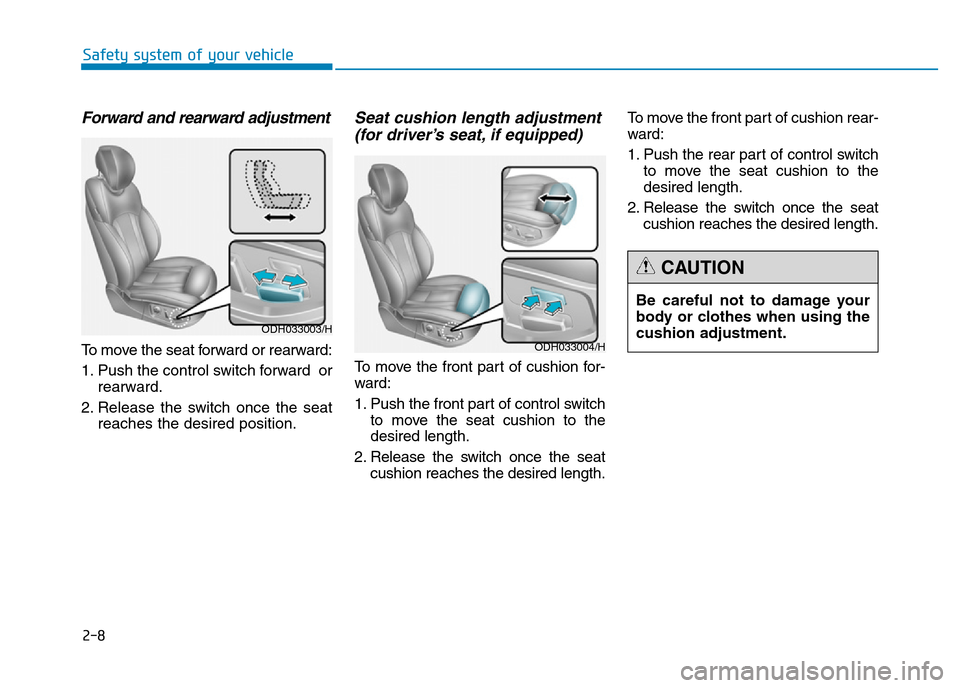

2-8
Safety system of your vehicle
Be careful not to damage your
body or clothes when using the
cushion adjustment.
CAUTION
Forward and rearward adjustment
To move the seat forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
reaches the desired position.
Seat cushion length adjustment
(for driver’s seat, if equipped)
To move the front part of cushion for-
ward:
1. Push the front part of control switch
to move the seat cushion to the
desired length.
2. Release the switch once the seat
cushion reaches the desired length.To move the front part of cushion rear-
ward:
1. Push the rear part of control switch
to move the seat cushion to the
desired length.
2. Release the switch once the seat
cushion reaches the desired length.
ODH033003/H
ODH033004/H

2-9
Safety system of your vehicle
2
Seatback angle
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat-
back reaches the desired position.Reclining seatback
Sitting in a reclined position when
the vehicle is in motion can be dan-
gerous. Even when buckled up, the
protections of your restraint system
(seat belts and air bags) is greatly
reduced by reclining your seatback.Seat belts must be snug against your
hips and chest to work properly.
When the seatback is reclined, the
shoulder belt cannot do its job
because it will not be snug against
your chest. Instead, it will be in front
of you. During an accident, you could
be thrown into the seat belt, causing
neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or
the passenger’s neck will strike the
shoulder belt.
ODH033005/H
NEVER ride with a reclined seat-
back when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious
or fatal injuries in the event of a
collision or sudden stop.
Driver and passengers should
ALWAYS sit well back in their
seats, properly belted, and with
the seatbacks upright.
WARNING

2-10
Safety system of your vehicle
Seat cushion height
To change the height of the seat
cushion:
1. Push the front portion of the con-
trol switch up to raise or down to
lower the front part of the seat
cushion.
Push the rear portion of the control
switch up to raise or down to lower
the height of the seat cushion.
2. Release the switch once the seat
reaches the desired position.
Lumbar support (if equipped)
• The lumbar support can be adjust-
ed by pressing the lumbar support
switch.
• Press the front portion of the
switch (1) to increase support or
the rear portion of the switch (2) to
decrease support.
• To move the support position up or
down, press switch (3) or (4).
The lumbar support does not operate
up or down when the lumbar support
is in the rearmost position.
In this case, to use the system, slight-
ly increase support by pushing the
front portion of the switch (1).
Seat bolster adjustment
(for driver’s seat, if equipped)
To change the height of seat bolster:
1. Pull or push the lever.
2. Release the lever once the bolster
reaches the desired position.
ODH033006/HODH034007R
ODH033008/H

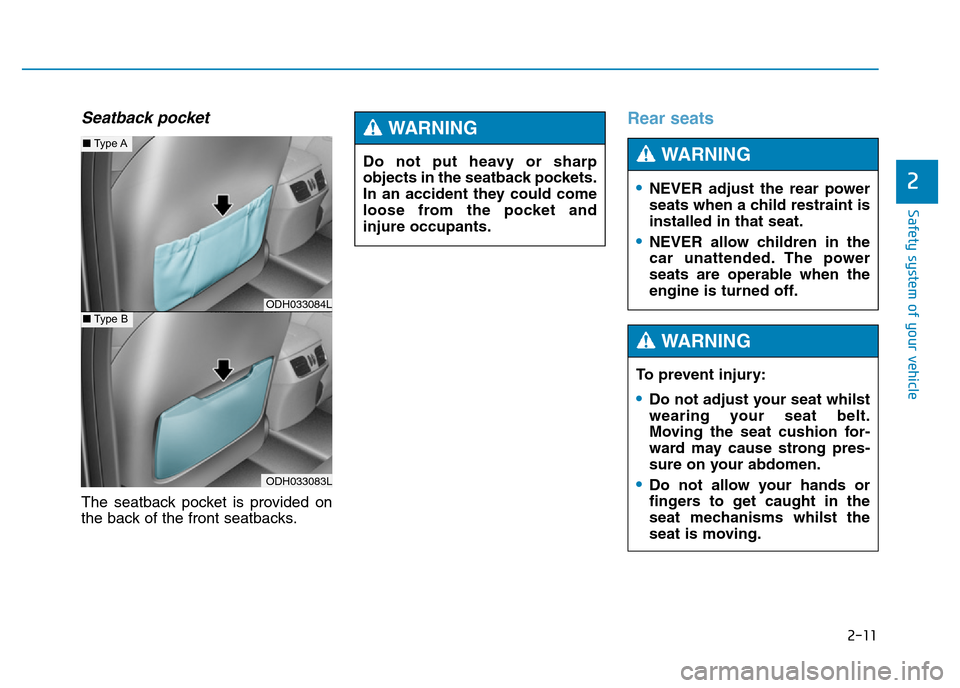

2-11
Safety system of your vehicle
2
Seatback pocket
The seatback pocket is provided on
the back of the front seatbacks.
Rear seats
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure occupants.
WARNING
•NEVER adjust the rear power
seats when a child restraint is
installed in that seat.
•NEVER allow children in the
car unattended. The power
seats are operable when the
engine is turned off.
WARNING
To prevent injury:
•Do not adjust your seat whilst
wearing your seat belt.
Moving the seat cushion for-
ward may cause strong pres-
sure on your abdomen.
•Do not allow your hands or
fingers to get caught in the
seat mechanisms whilst the
seat is moving.
WARNING
ODH033084L
ODH033083L
■Type A
■Type B

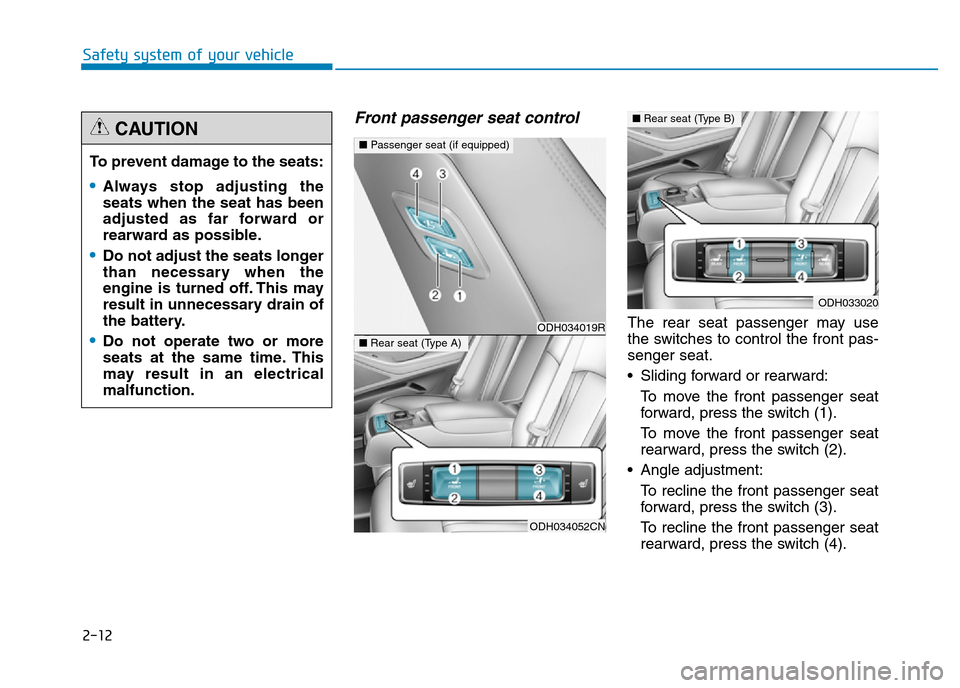

2-12
Safety system of your vehicle
Front passenger seat control
The rear seat passenger may use
the switches to control the front pas-
senger seat.
• Sliding forward or rearward:
To move the front passenger seat
forward, press the switch (1).
To move the front passenger seat
rearward, press the switch (2).
• Angle adjustment:
To recline the front passenger seat
forward, press the switch (3).
To recline the front passenger seat
rearward, press the switch (4).
ODH033020
ODH034019R
ODH034052CN
■Passenger seat (if equipped)
■Rear seat (Type A)
■Rear seat (Type B)■Rear seat (Type B)
To prevent damage to the seats:
•Always stop adjusting the
seats when the seat has been
adjusted as far forward or
rearward as possible.
•Do not adjust the seats longer
than necessary when the
engine is turned off. This may
result in unnecessary drain of
the battery.
•Do not operate two or more
seats at the same time. This
may result in an electrical
malfunction.
CAUTION

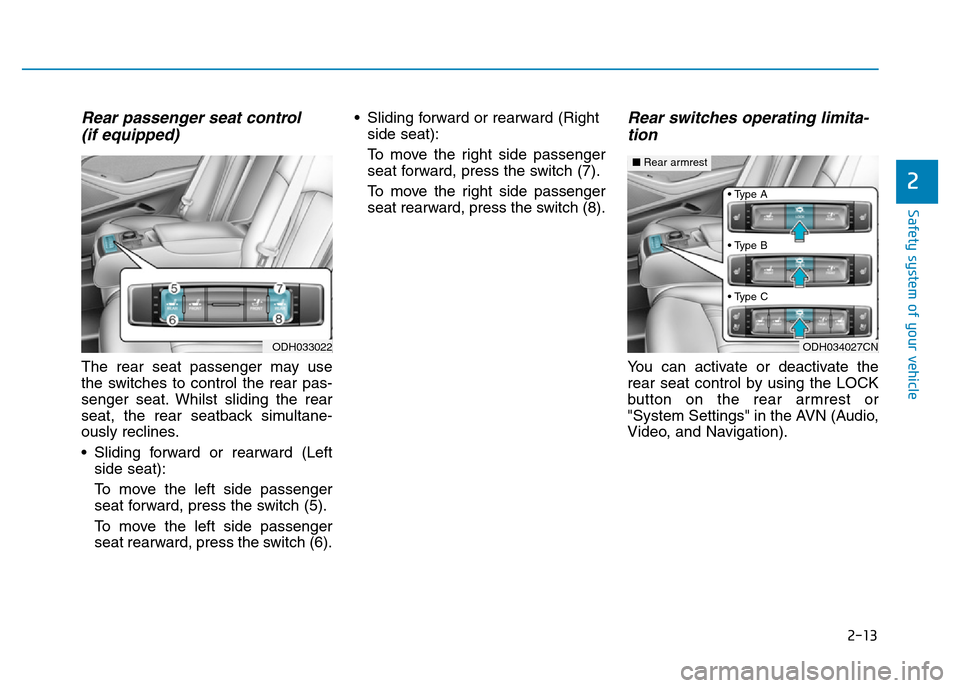

2-13
Safety system of your vehicle
2
Rear passenger seat control
(if equipped)
The rear seat passenger may use
the switches to control the rear pas-
senger seat. Whilst sliding the rear
seat, the rear seatback simultane-
ously reclines.
• Sliding forward or rearward (Left
side seat):
To move the left side passenger
seat forward, press the switch (5).
To move the left side passenger
seat rearward, press the switch (6).• Sliding forward or rearward (Right
side seat):
To move the right side passenger
seat forward, press the switch (7).
To move the right side passenger
seat rearward, press the switch (8).
Rear switches operating limita-
tion
You can activate or deactivate the
rear seat control by using the LOCK
button on the rear armrest or
"System Settings" in the AVN (Audio,
Video, and Navigation).
ODH034027CN • Type A
• Type B
• Type CODH033022
■Rear armrest

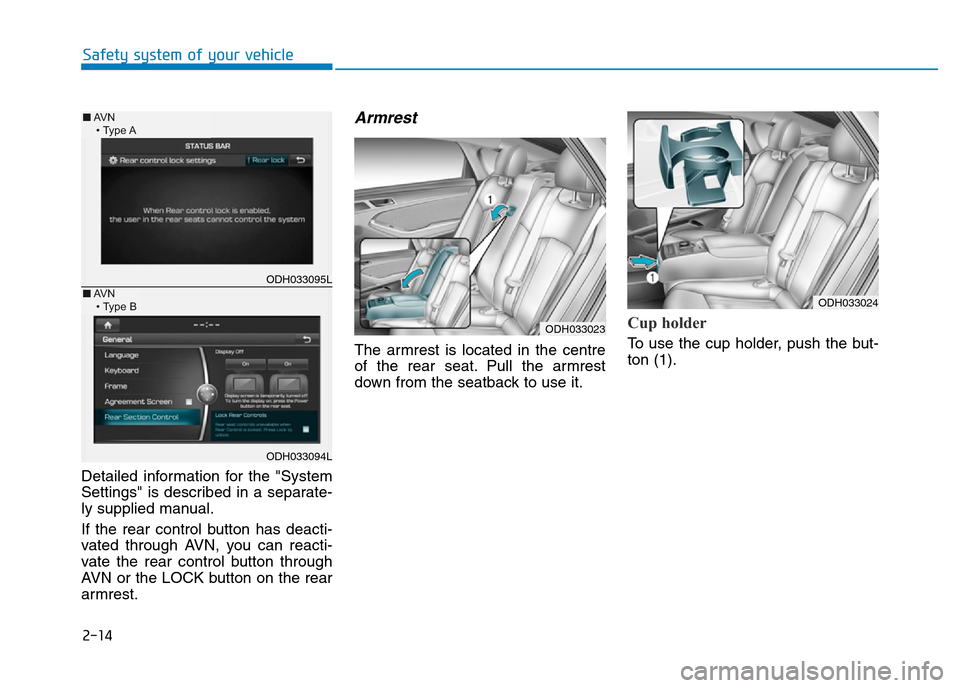

2-14
Safety system of your vehicle
Detailed information for the "System
Settings" is described in a separate-
ly supplied manual.
If the rear control button has deacti-
vated through AVN, you can reacti-
vate the rear control button through
AVN or the LOCK button on the rear
armrest.
Armrest
The armrest is located in the centre
of the rear seat. Pull the armrest
down from the seatback to use it.
Cup holder
To use the cup holder, push the but-
ton (1).
ODH033095L
ODH033094L
■AV N
• Type A
■AV N
• Type B
ODH033023
ODH033024
