2016 Hyundai Genesis Owner's Manual - RHD (UK, Australia)

F9

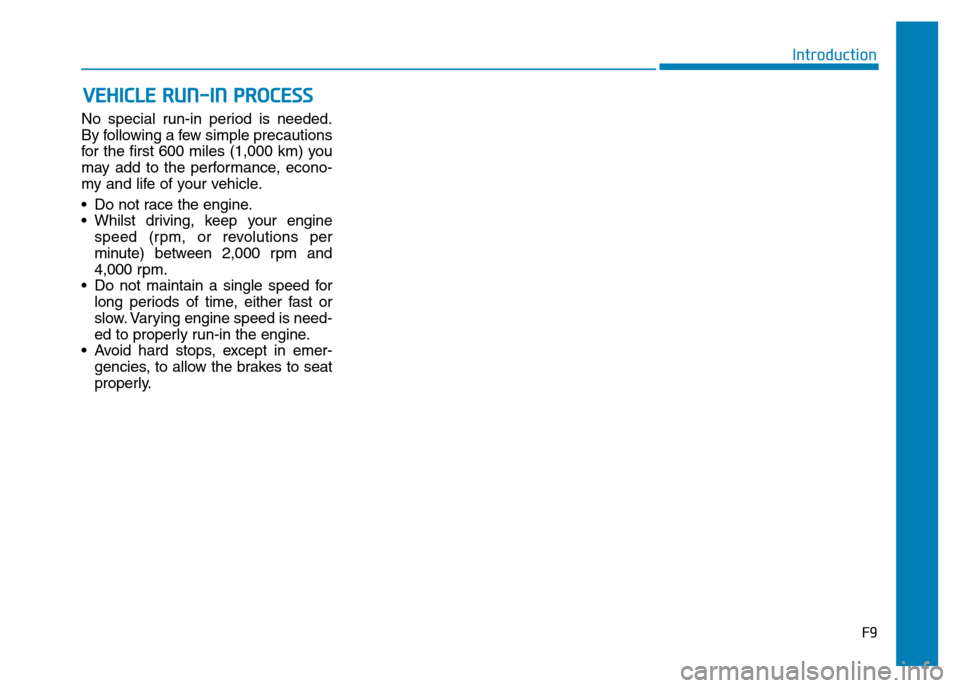

Introduction
No special run-in period is needed.
By following a few simple precautions
for the first 600 miles (1,000 km) you
may add to the performance, econo-
my and life of your vehicle.
• Do not race the engine.
• Whilst driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is need-
ed to properly run-in the engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
VEHICLE RUN-IN PROCESS

1
2
3
4
5
6
7
8

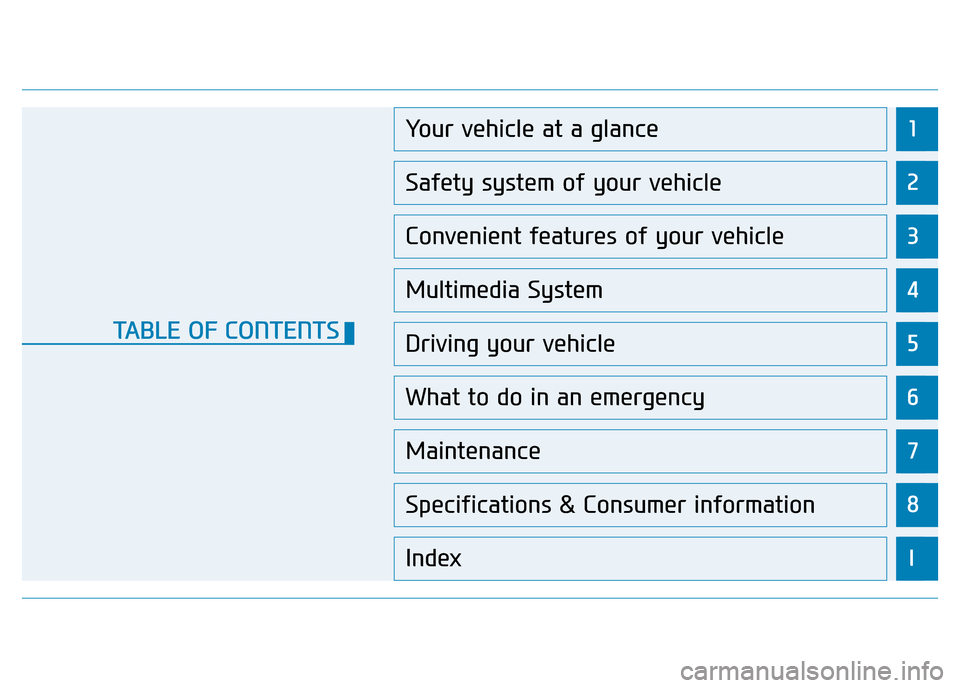

I
Your vehicle at a glance
Safety system of your vehicle
Convenient features of your vehicle
Multimedia System
Driving your vehicle
What to do in an emergency
Maintenance
Specifications & Consumer information
Index
TABLE OF CONTENTS

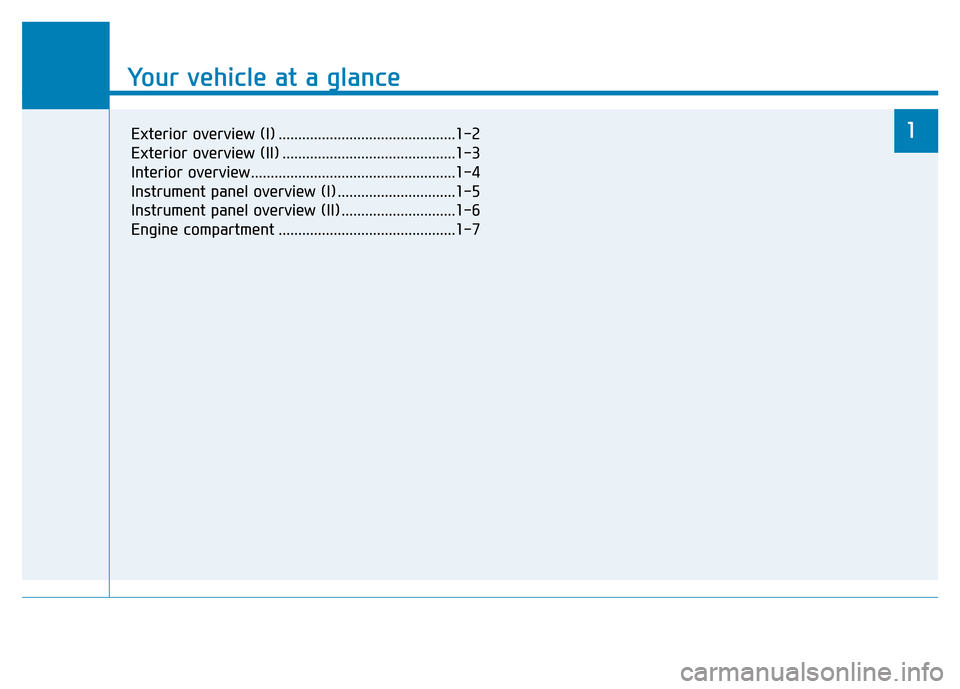

Your vehicle at a glance
1
Your vehicle at a glance
1Exterior overview (I) .............................................1-2
Exterior overview (II) ............................................1-3
Interior overview ....................................................1-4
Instrument panel overview (I) ..............................1-5
Instrument panel overview (II) .............................1-6
Engine compartment .............................................1-7

1-2
EXTERIOR OVERVIEW (I)
Your vehicle at a glance
1. Bonnet ...............................................3-34
2. Headlamp ..........................................7-65
3. Front fog light.....................................7-65
4. Tyres and wheels ...............................7-30
5. Outside rearview mirror .....................3-22
6. Panorama sunroof .............................3-30
7. Front windscreen wiper blades ..........7-25
8. Windows ............................................3-26
ODH014001R
■Front view
The actual shape may differ from the illustration.

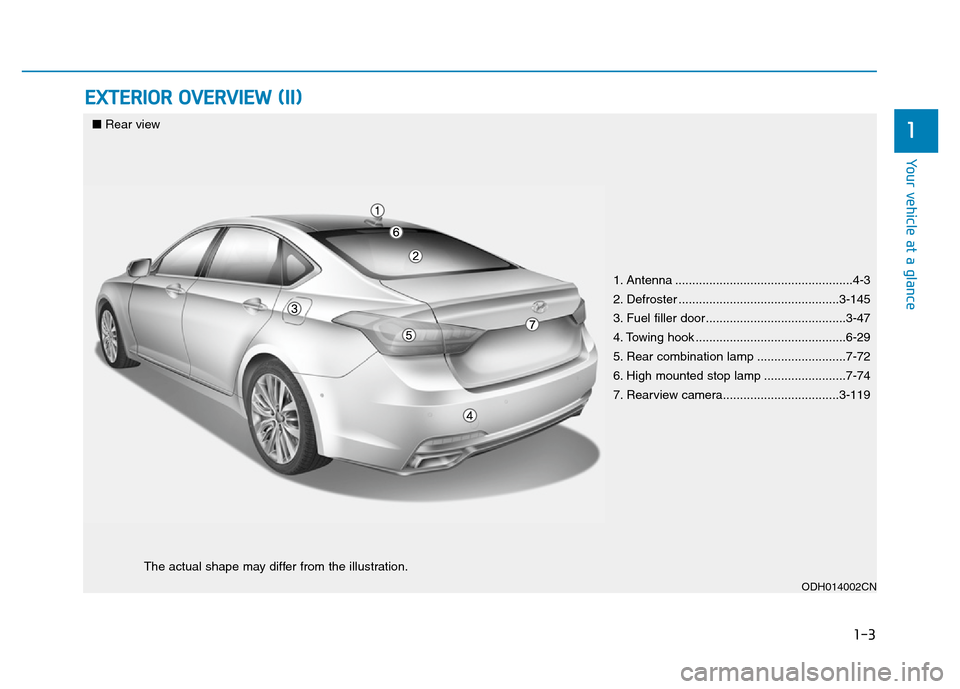

1-3
Your vehicle at a glance
EXTERIOR OVERVIEW (II)
1
1. Antenna ....................................................4-3
2. Defroster ...............................................3-145
3. Fuel filler door.........................................3-47
4. Towing hook ............................................6-29
5. Rear combination lamp ..........................7-72
6. High mounted stop lamp ........................7-74
7. Rearview camera..................................3-119
ODH014002CN
■Rear view
The actual shape may differ from the illustration.

1-4
Your vehicle at a glance
INTERIOR OVERVIEW
1. Door lock/unlock button .....................3-12
2. Power window switches .....................3-26
3. Power window lock switch .................3-29
4. Central door lock switch ....................3-13
5. Outside rearview mirror control
switch.................................................3-23
6. Outside rearview mirror folding
button.................................................3-24
7. Fuel filler door release button............3-47
8. Instrument panel illumination
control switch .....................................3-51
9. Boot release button ...........................3-36
10. Lane departure warning system* .......5-70
Lane keeping assist system button* ..5-74
11. Blind spot detection system button* ..5-83
12. Rear curtain button* ......................3-175
13. Electric parking brake switch* .........5-26
14. Steering wheel.................................3-18
15. Steering wheel
tilt/telescope control .........................3-19
16. Seat ...................................................2-4
17. Bonnet release lever........................3-34
18. Brake pedal .....................................5-23
19. Accelerator pedal
* : if equipped
ODH014003RThe actual shape may differ from the illustration.

1-5
Your vehicle at a glance
1
INSTRUMENT PANEL OVERVIEW (I)
ODH014004R
1. Light control/Turn signals.................3-101
2. Steering wheel audio controls*............4-4
3.
Bluetooth®phone controls* .................4-6
4. Instrument cluster ..............................3-50
5. Horn...................................................3-20
6. Driver’s front air bag ..........................2-52
7. Wiper/Washer ..................................3-116
8. Cruise controls* ........................5-51, 5-55
9. Engine start/stop button ......................5-5
10. Automatic transmission ...................5-11
11. Seat warmers and coolers ..............2-20
12. Heated steering wheel button .........3-20
13. Drive mode integrated control
system .............................................5-43
14. AUTO HOLD* ..................................5-31
15. Smart parking assist system .........3-123
16. Parking assist system....................3-120
17. Around view monitoring (AVM)
system ...........................................3-143
18. Glove box.......................................3-168
* : if equipped
ODH014004RThe actual shape may differ from the illustration.
