2016 Hyundai Genesis Owner's Manual - RHD (UK, Australia)

7-51
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Sunroof25ASunroof Motor
Brake
Switch10AStop Lamp Switch, Smart Key Control Module
Power
Outlet 220AFront Power Outlet & Cigarette Lighter
Steering
W/Heater15AClock Spring (Steering Wheel Heated Module)
Driver
P/Seat30ADriver IMS Control Module, Driver Power Seat Relay Box
Driver
P/Door15ADriver Door Latch
Module 210ABCM, Smart Key Control Module, Overhead Console Lamp,
Analog Clock, A/V & Navigation Head Unit, Keyboard,
I-Box, Front Monitor, Around View Unit, Parking Guide Unit

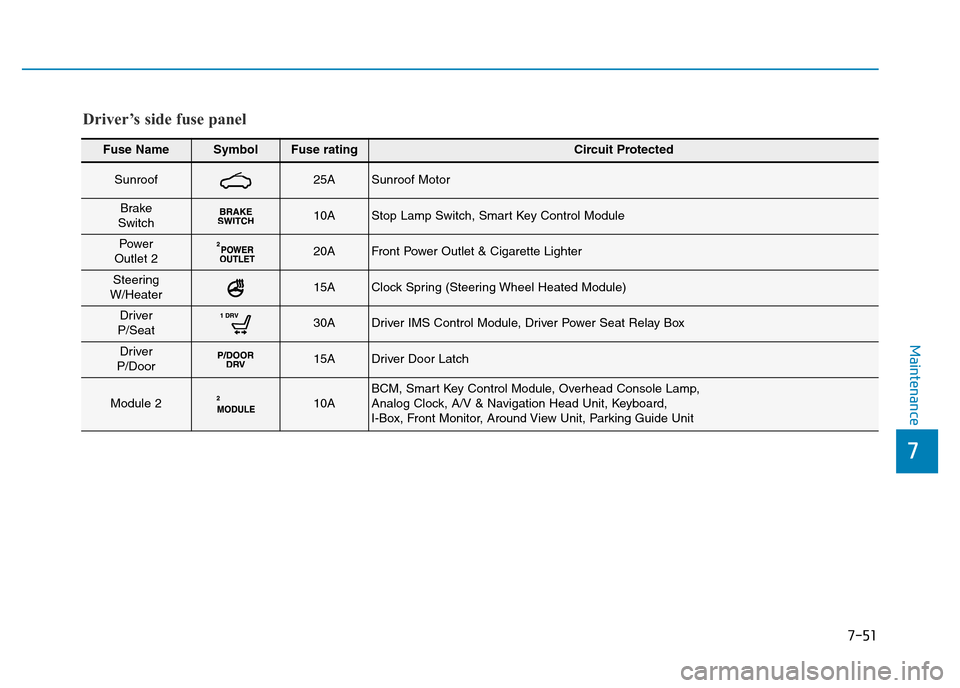

Driver’s side fuse panel

7-52
Maintenance

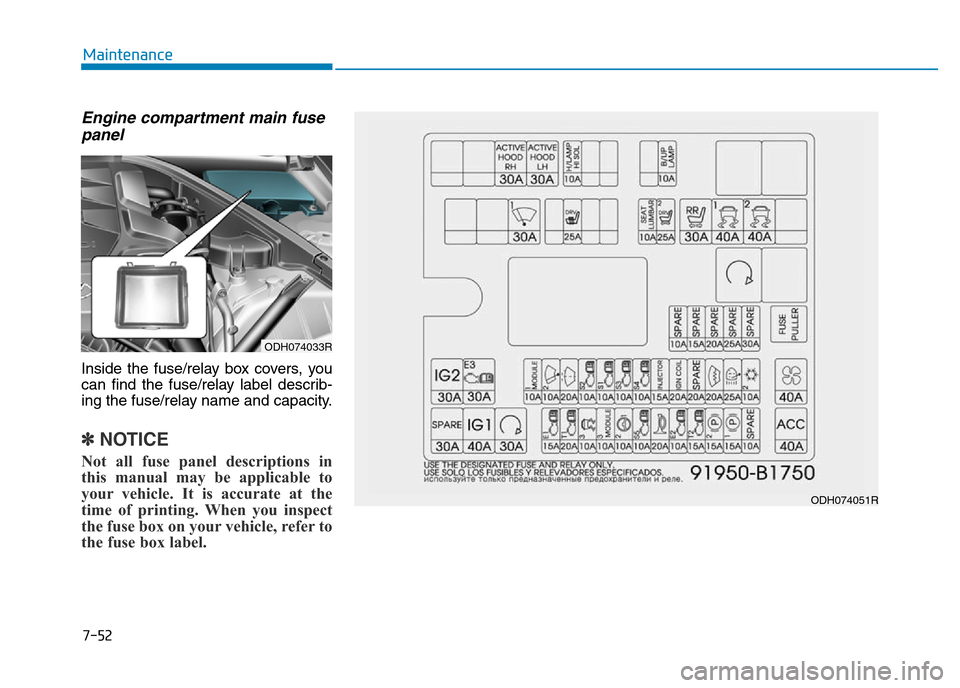

Engine compartment main fuse
panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing the fuse/relay name and capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
ODH074033R
ODH074051R

7-53
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
IGN 230AIG2 Relay
ECU 330AEngine Control Relay
Module 110AAWD ECM, Smart Cruise Control Radar
Wiper 210AMetal Core Block (PCB #2 - Wiper Relay)
Washer Relay20AWasher Relay
Sensor 210AECM, Oxygen Sensor #1/#2/#3/#4
Sensor 110AECM, Oxygen Sensor #1/#2/#3/#4
Sensor 310AECM, Rear Junction Block (Fuel Pump Relay)
Sensor 410ARLY. 1 (Cooling Fan Relay) : LHD (E/R Junction Block), RHD (Sub E/R Junction Block)
Injector15AInjector Drive Box
Ignition Coil20AG6DG/G6DH/G6DJ : Condenser, Ignition Coil #1/#2/#3/#4/#5/#6,
G8BE : Condenser #1/#2, Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8
Deicer Relay20AMetal Core Block (PCB #2 - Front Deicer Relay)
Engine compartment main fuse panel

7-54
Maintenance

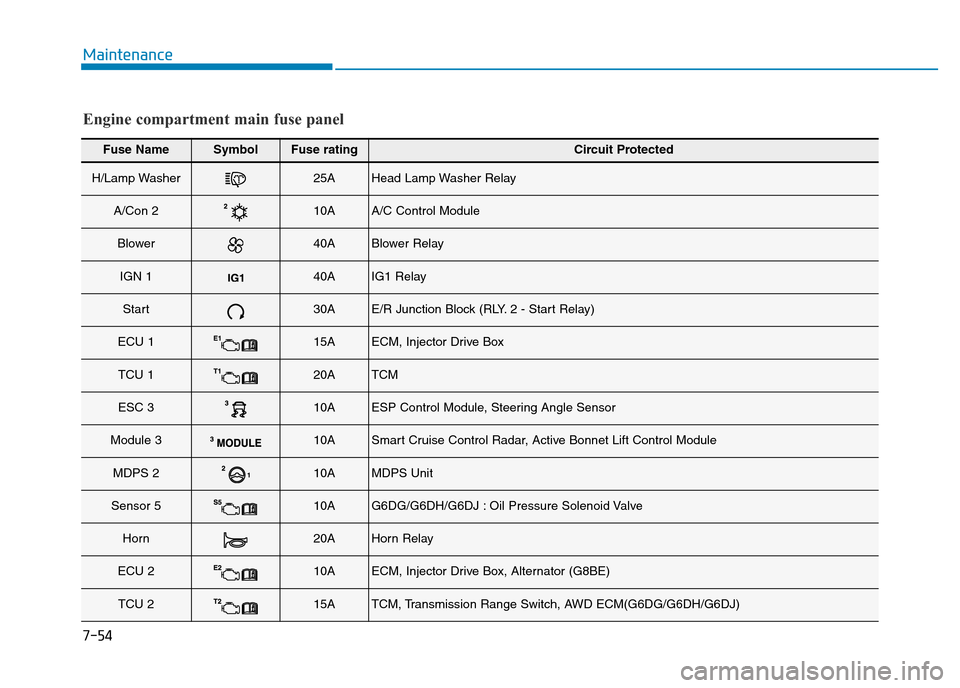

Fuse NameSymbolFuse ratingCircuit Protected
H/Lamp Washer25AHead Lamp Washer Relay
A/Con 210AA/C Control Module
Blower40ABlower Relay
IGN 140AIG1 Relay
Start30AE/R Junction Block (RLY. 2 - Start Relay)
ECU 115AECM, Injector Drive Box
TCU 120ATCM
ESC 310AESP Control Module, Steering Angle Sensor
Module 310ASmart Cruise Control Radar, Active Bonnet Lift Control Module
MDPS 210AMDPS Unit
Sensor 510AG6DG/G6DH/G6DJ : Oil Pressure Solenoid Valve
Horn20AHorn Relay
ECU 210AECM, Injector Drive Box, Alternator (G8BE)
TCU 215ATCM, Transmission Range Switch, AWD ECM(G6DG/G6DH/G6DJ)
Engine compartment main fuse panel

7-55
7
Maintenance
Engine compartment main fuse panel
Fuse NameSymbolFuse ratingCircuit Protected
EPB 215AElectric Parking Brake Module
EPB 115AElectric Parking Brake Module
ACC40AACC Relay
Back-Up Lamp10ATCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic
Mirror, A/V & Navigation Head Unit
Rear
Power Seat30ARear Power Seat Relay Box
ESC140AESP Control Module, Multipurpose Check Connector
ESC240AESP Control Module, Multipurpose Check Connector
Lumbar Seat10ADriver/Passenger Power Seat Relay Box, Driver/Passenger Lumbar Support Unit
Driver P/Seat 225ADriver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box
Active Bonnet LH30AActive Bonnet Lift Control Module
Active Bonnet RH30AActive Bonnet Lift Control Module
Wiper130AWiper Motor
Driver Seat
Warmer25ADriver CCS Module, Driver Seat Warmer Control Module
H/Lamp Hi
Solenoid10AMetal Core Block (PCB #2 - Head Lamp High Solenoid Relay)

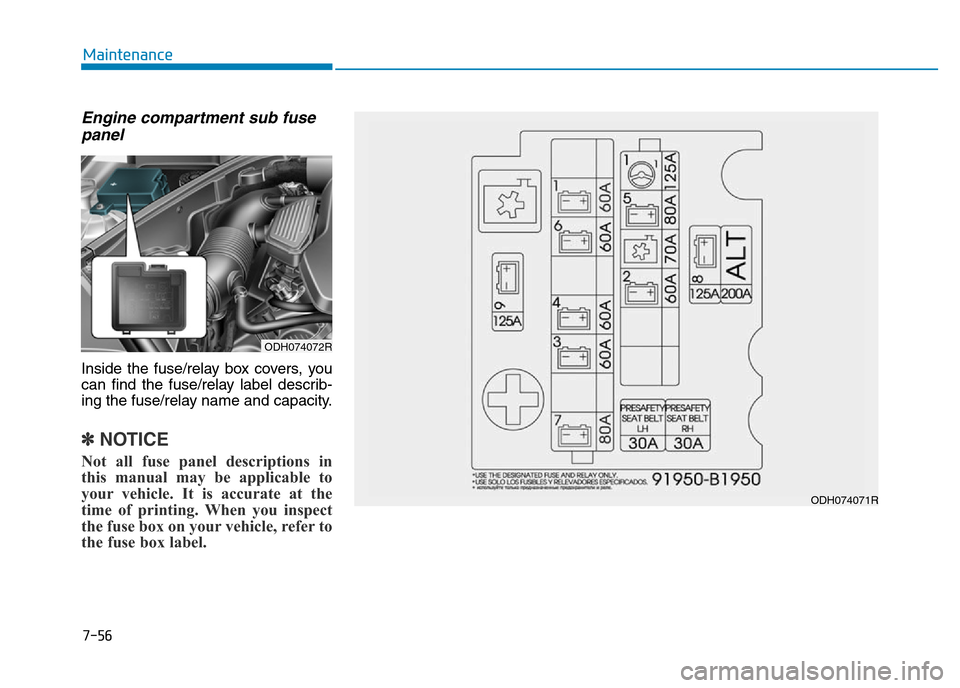

Engine compartment sub fuse
panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing the fuse/relay name and capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
7-56
Maintenance
ODH074072R
ODH074071R

7-57
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
ALT200AAlternator, Multifuse (BATT) - F12/F13/F14/F15, Fuse - F24
B+160AIGPM (Fuse - F16/F42, Leak Current Autocut Device (Fuse - F2/F9/F10/F17/F35), IPS 1)
B+360AIGPM (Fuse - F11/F18/F30/F36, IPS 2/IPS 3/IPS 5/IPS 7)
B+460AIGPM (Fuse - F24/F29, IPS 4/IPS 6)
B+660AMetal Core Block (PCB #1 Fuse - F40/F41/F42)
B+780AMetal Core Block (PCB #2 Fuse - F65/F68/F69/F71)
B+260AIGPM (Fuse - F1/F8/F15/F22/F28/F33/F39/F40/F45/F46)
Cooling Fan70ARLY. 1 (Cooling Fan Relay)
B+580AMetal Core Block (PCB #1 Fuse - F52/F53/F54/F55)
MDPS125AMDPS Unit
B+8125AE/R Junction Block (Fuse - F19/F20/F21/F22/F23)
B+9125AE/R Junction Block (Fuse - F26/F27/F28/F30/F33/F34/F35/F39)
Engine compartment sub fuse panel

7-58
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Pre-Safety
Seat Belt 130APre-Safe Seat Belt Module
Pre-Safety
Seat Belt 230APre-Safe Seat Belt Module
Engine compartment sub fuse panel
