EMISSION CONTROL SYSTEM
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Warranty
Booklet in your vehicle.
Your vehicle is equipped with an
emission control system to meet all
emission regulations.
There are three emission control
systems which are as follows.
(1) Crankcase emission control sys-
tem
(2) Evaporative emission control sys-
tem
(3) Exhaust emission control system
In order to assure the proper function
of the emission control systems, it is
recommended that you have your
car inspected and maintained by a
HYUNDAI authorised repairer in
accordance with the maintenance
schedule in this manual.Caution for the Inspection and
Maintenance Test (With Electronic
Stability Control (ESC) system)
• To prevent the vehicle from mis-
firing during dynamometer test-
ing, turn the Electronic Stability
Control (ESC) system off by
pressing the ESC switch.
• After dynamometer testing is
completed, turn the ESC system
back on by pressing the ESC
switch again.
1. Crankcase emission control
system
The positive crankcase ventilation
system is employed to prevent air
pollution caused by blow-by gases
being emitted from the crankcase.
This system supplies fresh filtered air
to the crankcase through the air
intake hose. Inside the crankcase,
the fresh air mixes with blow-by
gases, which then pass through the
PCV valve into the induction system.
2. Evaporative emission con-
trol system
The Evaporative Emission Control
System is designed to prevent fuel
vapours from escaping into the
atmosphere.
Canister
Fuel vapours generated inside the
fuel tank are absorbed and stored in
the onboard canister. When the
engine is running, the fuel vapours
absorbed in the canister are drawn
into the surge tank through the purge
control solenoid valve.
Purge Control Solenoid Valve
(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms-up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.

7-84
Maintenance
3. Exhaust emission control
system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
whilst maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
• If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
• Carbon monoxide can be present
with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.• Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
• When the vehicle is stopped in an
open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
• Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
• When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to
the emission control system. Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colourless and odourless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poison-
ing.
WARNING

7-85
7
Maintenance
Operating precautions for cat-
alytic converters (if equipped)Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
• Use only UNLEADED FUEL for
petrol engine.
• Do not operate the vehicle when
there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
• Do not misuse or abuse the
engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
• Do not operate the engine at high
idle speed for extended periods (5
minutes or more).
• Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by a
HYUNDAI authorised repairer.
• Avoid driving with a very low fuel
level. If you run out of petrol, it
could cause the engine to misfire
and result in excessive loading of
the catalytic converter.Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Fire
•A hot exhaust system can
ignite flammable items under
your vehicle. Do not park,
idle, or drive the vehicle over
or near flammable objects,
such as dry grass, paper,
leaves, etc.
•The exhaust system and cat-
alytic system are very hot
whilst the engine is running or
immediately after the engine
is turned off. Keep away from
the exhaust system and cat-
alytic, you may get burned.
Also, do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.
WARNING

8
Specifications & Consumer information
8
Specifications & Consumer information
8

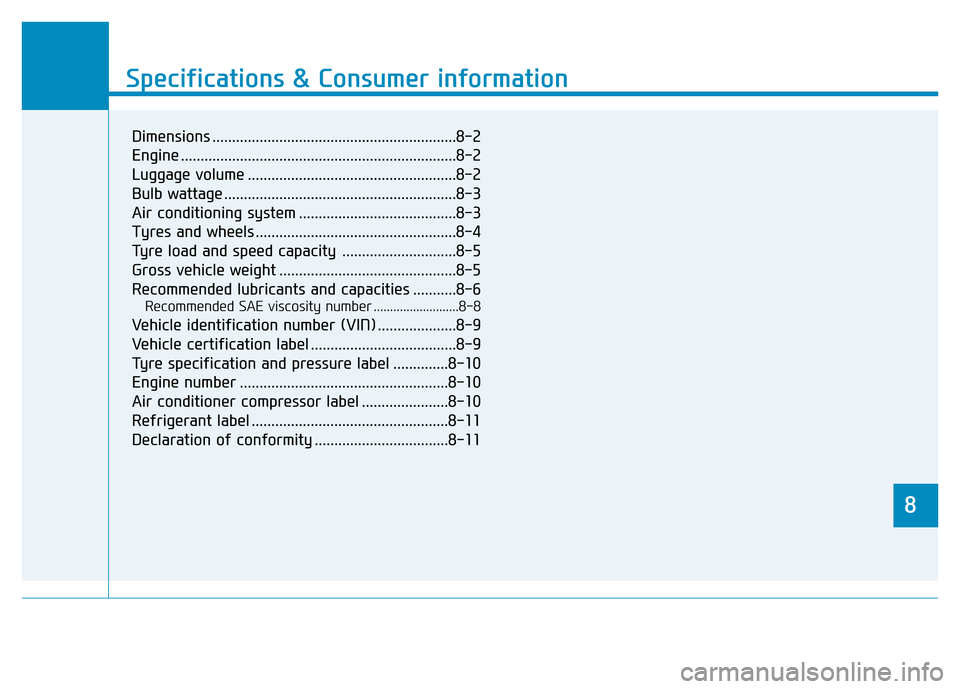

Dimensions ..............................................................8-2
Engine ......................................................................8-2
Luggage volume .....................................................8-2
Bulb wattage ...........................................................8-3
Air conditioning system ........................................8-3
Tyres and wheels ...................................................8-4
Tyre load and speed capacity .............................8-5
Gross vehicle weight .............................................8-5
Recommended lubricants and capacities ...........8-6
Recommended SAE viscosity number ..........................8-8
Vehicle identification number (VIN) ....................8-9
Vehicle certification label .....................................8-9
Tyre specification and pressure label ..............8-10
Engine number .....................................................8-10
Air conditioner compressor label ......................8-10
Refrigerant label ..................................................8-11
Declaration of conformity ..................................8-11

8-2
Specifications & Consumer information

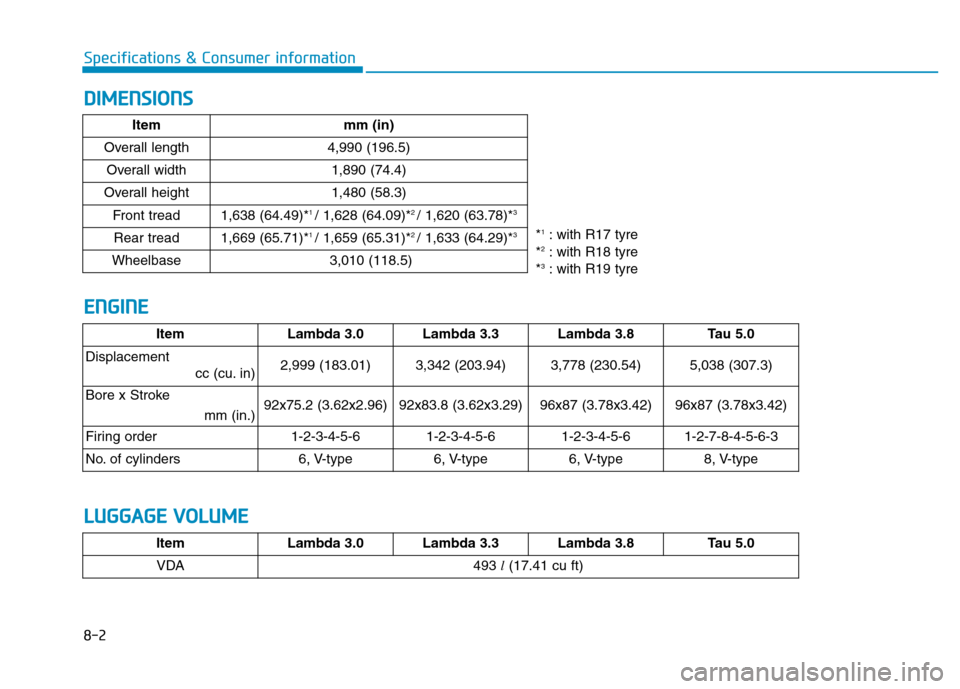

DIMENSIONS
ENGINE
ItemLambda 3.0 Lambda 3.3Lambda 3.8Ta u 5 . 0
Displacement
cc (cu. in)
2,999 (183.01) 3,342 (203.94)3,778 (230.54)5,038 (307.3)
Bore x Stroke
mm (in.)
92x75.2 (3.62x2.96) 92x83.8 (3.62x3.29)96x87 (3.78x3.42)96x87 (3.78x3.42)
Firing order
1-2-3-4-5-6 1-2-3-4-5-61-2-3-4-5-61-2-7-8-4-5-6-3
No. of cylinders
6, V-type 6, V-type6, V-type8, V-type
Item mm (in)
Overall length 4,990 (196.5)
Overall width 1,890 (74.4)
Overall height 1,480 (58.3)
Front tread 1,638 (64.49)*
1 / 1,628 (64.09)*2 / 1,620 (63.78)*3
Rear tread 1,669 (65.71)*1 / 1,659 (65.31)*2 / 1,633 (64.29)*3
Wheelbase 3,010 (118.5)
*1: with R17 tyre
*2: with R18 tyre
*3: with R19 tyre
ltem Lambda 3.0 Lambda 3.3 Lambda 3.8 Tau 5.0
VDA493 l(17.41 cu ft)
LUGGAGE VOLUME

8-3
8
Specifications & Consumer information

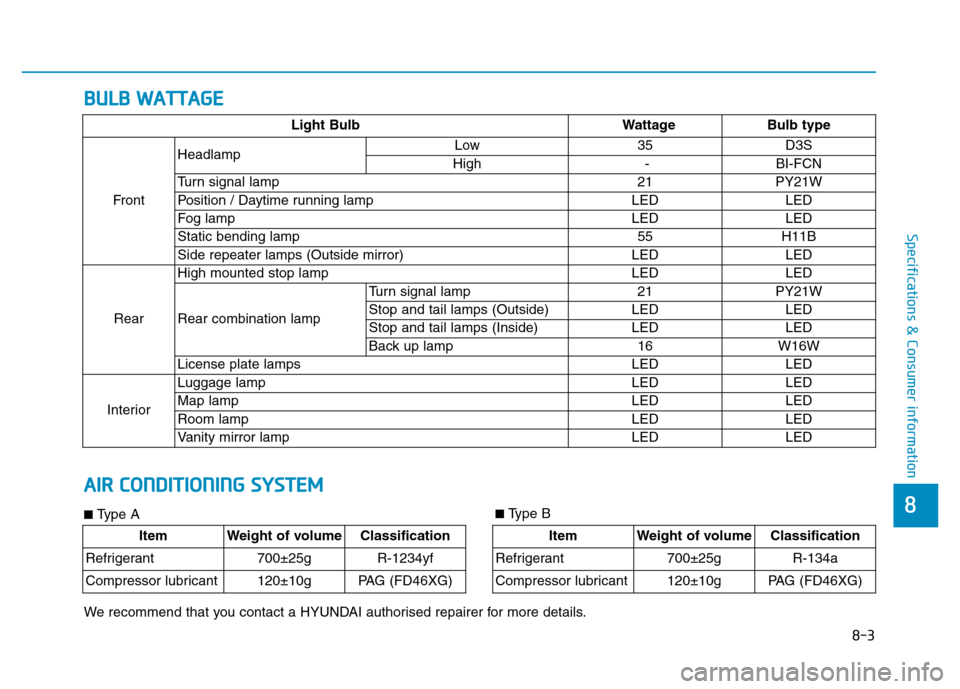

BULB WATTAGE
Light Bulb Wattage Bulb type
FrontHeadlamp
Low 35 D3S
High - BI-FCN
Turn signal lamp 21 PY21W
Position / Daytime running lamp LED LED
Fog lamp LED LED
Static bending lamp 55 H11B
Side repeater lamps (Outside mirror) LED LED
Rear
High mounted stop lampLEDLED
Rear combination lamp
Turn signal lamp 21 PY21W
Stop and tail lamps (Outside) LED LED
Stop and tail lamps (Inside) LED LED
Back up lamp 16 W16W
License plate lamps LED LED
InteriorLuggage lamp LED LED
Map lamp LED LED
Room lamp LED LED
Vanity mirror lamp LED LED
AIR CONDITIONING SYSTEM
ItemWeight of volume Classification
Refrigerant
700±25g R-1234yf
Compressor lubricant
120±10g PAG (FD46XG)
■Type A
Item
Weight of volume Classification
Refrigerant
700±25g R-134a
Compressor lubricant
120±10g PAG (FD46XG)
■Type B
We recommend that you contact a HYUNDAI authorised repairer for more details.

8-4
Specifications & Consumer information
TYRES AND WHEELS
Item Tyre size Wheel sizeInflation pressure, bar (kPa, psi)
Wheel lug nut torque
kg•m (lb•ft, N•m) Normal load *1Maximum load
Front Rear Front Rear
Full size tyre225/55R17 7.0JX17 2.3 (230, 33) 2.3 (230, 33) 2.3 (230, 33) 2.3 (230, 33)
9~11
(65~79, 88~107) 245/45R18 8.0JX18 2.3 (230, 33) 2.3 (230, 33) 2.3 (230, 33) 2.3 (230, 33)
245/40R19 8.5JX19 2.3 (230, 33) - 2.3 (230, 33) -
275/35R199.0JX19-2.4 (240, 35)-2.4 (240, 35)
Compact spare
tyre
(if equipped)T135/90D174.0TX174.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
T135/80R184.0TX184.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
T135/70R194.0TX194.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or not work properly.
CAUTION
*1 : Normal load : Up to 3 persons

8-5
8
Specifications & Consumer information
TYRE LOAD AND SPEED CAPACITY
*1LI : LOAD INDEX
*2SS : SPEED SYMBOLItem Tyre size Wheel sizeLoad Capacity Speed Capacity
LI *
1kg SS *2km/h
Full size tyre225/55R17 7.0JX17 97 730 W 270
245/45R18 8.0JX18 96 710 W 270
245/40R198.5JX1994670W270
275/35R199.0JX1996710W270
Compact spare tyre
(if equipped)
T135/90D174.0TX17103875M130
T135/90D174.0TX17104900M130
T135/80R184.0TX18104900M130
T135/70R194.0TX19105925M130
GROSS VEHICLE WEIGHT
Lambda 3.0 Lambda 3.3 Lambda 3.8 Tau 5.0
2WD AWD 2WD 2WD AWD 2WD
2470 (5445.4) 2520 (5555.65) - 2470 (5445.4) 2520 (5555.65) -
kg (lbs)
