2016 Hyundai Genesis Owner's Manual - RHD (UK, Australia)

3-118
Convenient features of your vehicle
Windscreen washers
In the OFF (O) position, pull the lever
gently toward you to spray washer
fluid on the windscreen and to run the
wipers 1-3 cycles. The spray and
wiper operation will continue until you
release the lever. If the washer does
not work, you may need to add wash-
er fluid to the washer fluid reservoir.If equipped with a Headlamp Washer,
washer fluid will be sprayed on the
headlamp at the same time you oper-
ate the windscreen washer when:
1. The Engine Start/Stop button is in
the ON position.
2. The light switch is in the headlamp
position.
ODH043079When the outside temperature is
below freezing, ALWAYS warm
the windscreen using the
defroster to prevent the washer
fluid from freezing on the wind-
screen and obscuring your
vision which could result in an
accident and serious injury or
death.
WARNING
•To prevent possible damage
to the washer pump, do not
operate the washer when the
fluid reservoir is empty.
•To prevent possible damage
to the wipers or windscreen,
do not operate the wipers
when the windscreen is dry.
•To prevent damage to the
wiper arms and other compo-
nents, do not attempt to move
the wipers manually.
•To prevent possible damage
to the wipers and washer sys-
tem, use anti-freezing washer
fluids in the winter season or
cold weather.
CAUTION

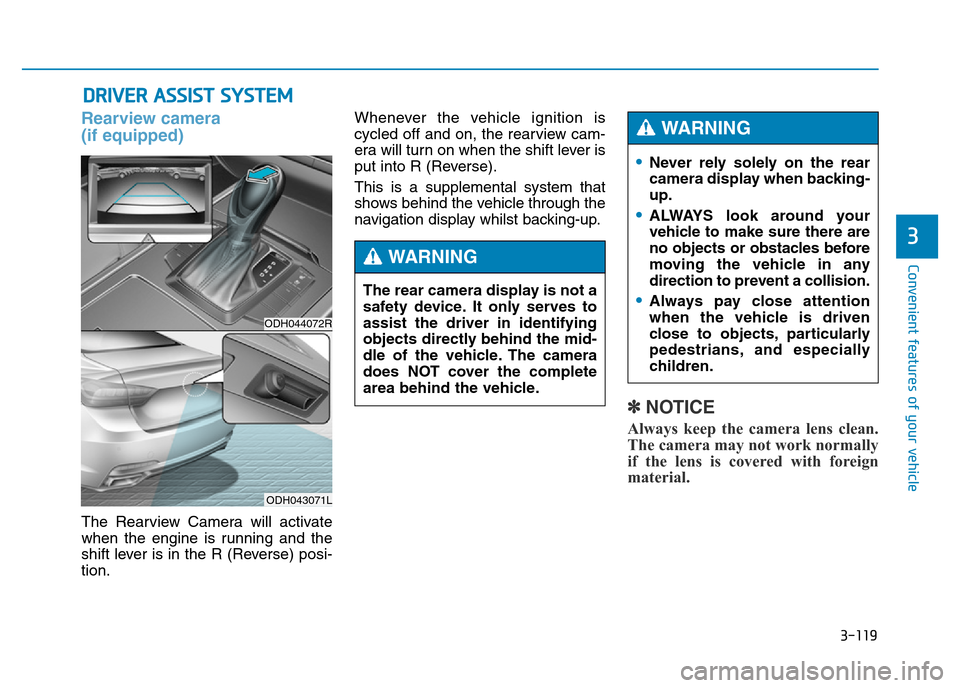

3-119
Convenient features of your vehicle
3
DRIVER ASSIST SYSTEM
Rearview camera
(if equipped)
The Rearview Camera will activate
when the engine is running and the
shift lever is in the R (Reverse) posi-
tion.Whenever the vehicle ignition is
cycled off and on, the rearview cam-
era will turn on when the shift lever is
put into R (Reverse).
This is a supplemental system that
shows behind the vehicle through the
navigation display whilst backing-up.
✽NOTICE
Always keep the camera lens clean.
The camera may not work normally
if the lens is covered with foreign
material.
ODH044072R
ODH043071L
The rear camera display is not a
safety device. It only serves to
assist the driver in identifying
objects directly behind the mid-
dle of the vehicle. The camera
does NOT cover the complete
area behind the vehicle.
WARNING
•Never rely solely on the rear
camera display when backing-
up.
•ALWAYS look around your
vehicle to make sure there are
no objects or obstacles before
moving the vehicle in any
direction to prevent a collision.
•Always pay close attention
when the vehicle is driven
close to objects, particularly
pedestrians, and especially
children.
WARNING

3-120
Convenient features of your vehicle
Parking Assist System
(if equipped)
The Parking Assist System assists
the driver during movement of the
vehicle by chiming if any object is
sensed within the distance of 100 cm
(39 inches) in front and 120 cm (47
inches) behind the vehicle.This system is a supplemental sys-
tem that senses objects within the
range and location of the sensors, it
cannot detect objects in other areas
where sensors are not installed.
Operation of the Parking Assist
System
Operating condition
• This system will activate when the
Parking Assist System button is
pressed with the engine running.
•ALWAYS look around your vehi-
cle to make sure there are no
objects or obstacles before
moving the vehicle in any direc-
tion to prevent a collision.
•Always pay close attention
when the vehicle is driven close
to objects, particularly pedestri-
ans, and especially children.
•Be aware that some objects
may not be visible on the
screen or be detected by the
sensors, due to the objects
distance, size or material, all of
which can limit the effective-
ness of the sensor.
WARNING
ODH044068R
ODH043066
ODH043067L
■Front
■Rear
Sensor
Sensor

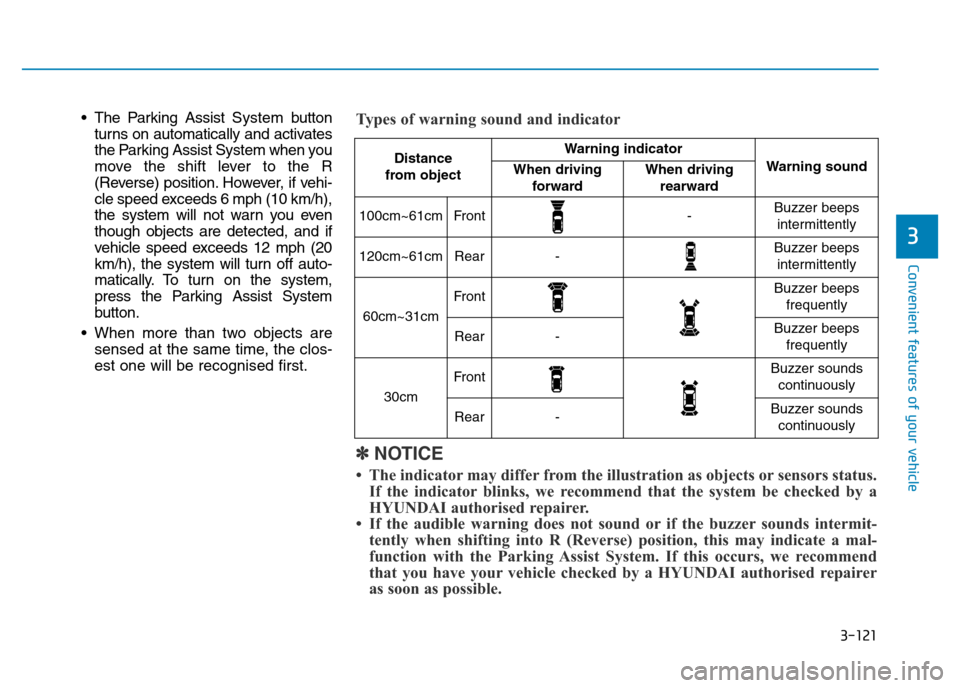

3-121
Convenient features of your vehicle
3
• The Parking Assist System button
turns on automatically and activates
the Parking Assist System when you
move the shift lever to the R
(Reverse) position. However, if vehi-
cle speed exceeds 6 mph (10 km/h),
the system will not warn you even
though objects are detected, and if
vehicle speed exceeds 12 mph (20
km/h), the system will turn off auto-
matically. To turn on the system,
press the Parking Assist System
button.
• When more than two objects are
sensed at the same time, the clos-
est one will be recognised first.
Distance
from object Warning indicator
Warning soundWhen driving
forwardWhen driving
rearward
100cm~61cmFront-Buzzer beeps
intermittently
120cm~61cmRear-Buzzer beeps
intermittently
60cm~31cm
FrontBuzzer beeps
frequently
Rear-Buzzer beeps
frequently
30cm
FrontBuzzer sounds
continuously
Rear-Buzzer sounds
continuously
✽NOTICE
• The indicator may differ from the illustration as objects or sensors status.
If the indicator blinks, we recommend that the system be checked by a
HYUNDAI authorised repairer.
• If the audible warning does not sound or if the buzzer sounds intermit-
tently when shifting into R (Reverse) position, this may indicate a mal-
function with the Parking Assist System. If this occurs, we recommend
that you have your vehicle checked by a HYUNDAI authorised repairer
as soon as possible. Types of warning sound and indicator

3-122
Convenient features of your vehicle
Non-operational conditions of
Parking Assist System
Parking Assist System may not
operate normally when:
• Moisture is frozen to the sensor.
• Sensor is covered with foreign mat-
ter, such as snow or water, or the
sensor cover is blocked.
There is a possibility of Parking
Assist System malfunction when:
• Driving on uneven road surfaces
such as unpaved roads, gravel,
bumps, or gradients.
• Objects generating excessive noise
such as vehicle horns, loud motor-
cycle engines, or truck air brakes
can interfere with the sensor.
• Heavy rain or water spray is present.
• Wireless transmitters or mobile
phones are present near the sensor.
• The sensor is covered with snow.
• Any non-factory equipment or
accessories have been installed, or
if the vehicle bumper height or sen-
sor installation has been modified.
Detecting range may decrease
when:
• Outside air temperature is
extremely hot or cold.
• Undetectable objects smaller than
1 m and narrower than 14 cm in
diameter.
The following objects may not be
recognised by the sensor:
• Sharp or slim objects such as
ropes, chains or small poles.
• Objects, which tend to absorb sen-
sor frequency such as clothes,
spongy material or snow.

3-123
Convenient features of your vehicle
3
✽NOTICE
Sensor may not recognize objects
less than 30 cm from the sensor, or it
may sense an incorrect distance.
Smart Parking Assist System
(SPAS) (if equipped)The Smart Parking Assist System
helps drivers park their vehicle by
using sensors to measure parking
spaces, control the steering wheel to
semi-automatically park the vehicle
and provide instruction on the LCD
display to help through parking.
Additionally, the system provides
assistance when leaving (parallel
exit) a parking space.
The volume for the Smart Parking
Assist System can be adjusted from
the User Settings Mode on the LCD
display. For more details, refer to
"LCD Display" in this chapter. Do not push, scratch or strike
the sensor with any hard
objects that could damage the
surface of the sensor. Sensor
damage could occur.
CAUTION
Your new vehicle warranty does
not cover any accidents or dam-
age to the vehicle or injuries to
its occupants related to a
Parking Assist System. Always
drive safely and cautiously.
WARNING
ODH044179R
ODH043180
ODH043181
■Parallel parking
■Reverse parking
■Parallel exit

3-124
Convenient features of your vehicle
✽NOTICE
• The vehicle will not stop for pedes-
trians or objects that may be in its
path, so the driver must monitor
the manoeuvre.
• Use the system only in parking lots
and places used for parking.
• The system does not work if there is
no car parked in front of the park-
ing space you are planning to park
or if it is a diagonal parking space.
• After parking your vehicle using
the system, the vehicle may not be
parked at the exact spot you have
wished. For example, the space
between your vehicle and wall
may not be the distance you have
desired.
• Deactivate the system and park
your vehicle manually, when the sit-
uation requires parking manually.
• The Parking Assist System's front
and rear warning sound activates
when the Smart Parking Assist
System is activated.
(Continued)(Continued)
• After searching for a parking
space is completed, the Smart
Parking Assist System will be can-
celled if the Parking Assist System
is cancelled by pressing the button
to the OFF position.
•The Smart Parking Assist
System should only be consid-
ered as a supplementary func-
tion. The driver must check the
front and rear view for objects.
The operational function of the
Smart Parking Assist System
can be affected by many fac-
tors and conditions of the sur-
roundings, so the responsibili-
ty rests always with the driver.
•The system may not operate
normally if the vehicle needs
wheel alignment adjustment.
We recommend that you have
the vehicle checked by a
HYUNDAI authorised repairer.
•If you use a different tyre or
wheel size rather than the size
recommended by the HYUNDAI
dealer, the system may not
work properly. Always use the
same size tyre and wheel.
•If you use additional frame on
the license plate, SPAS may
generate abnormal warning
sound.
WARNING

3-125
Convenient features of your vehicle
3
Operating conditionThe system will help park the vehicle
in the middle or back of a parked
vehicle. Use the system when all the
below conditions are met.
• When the parking space is a
straight line
• When parallel parking or reverse
(perpendicular) parking is required
• When there is a parked vehicle
• When there is enough space to
move the vehicleNon-operating condition
Never use the Smart Parking Assist
System in the below conditions.
• At a curved parking space
• At a diagonal parking space
• On inclined roads
• On bumpy roads
• On slippery or uneven roads
• When there is a vehicle loaded
with longer or wider cargo com-
pared to the vehicle
• When big vehicles such as buses
or trucks are parked
• When a motorcycle or bicycle is
parked
• When there is heavy snow or rain
• When there is heavy wind
• When there is strong sunlight or
very cold weather
• When there is a circular pillar or
narrow pillar, or a pillar surrounded
by objects such as fire extinguish-
er, etc.
ODH043182
ODH043183
ODH043184
■Parallel parking
■Reverse parking
■Parallel exit
