2016 Hyundai Genesis Owner's Manual - RHD (UK, Australia)

3-142
Convenient features of your vehicle

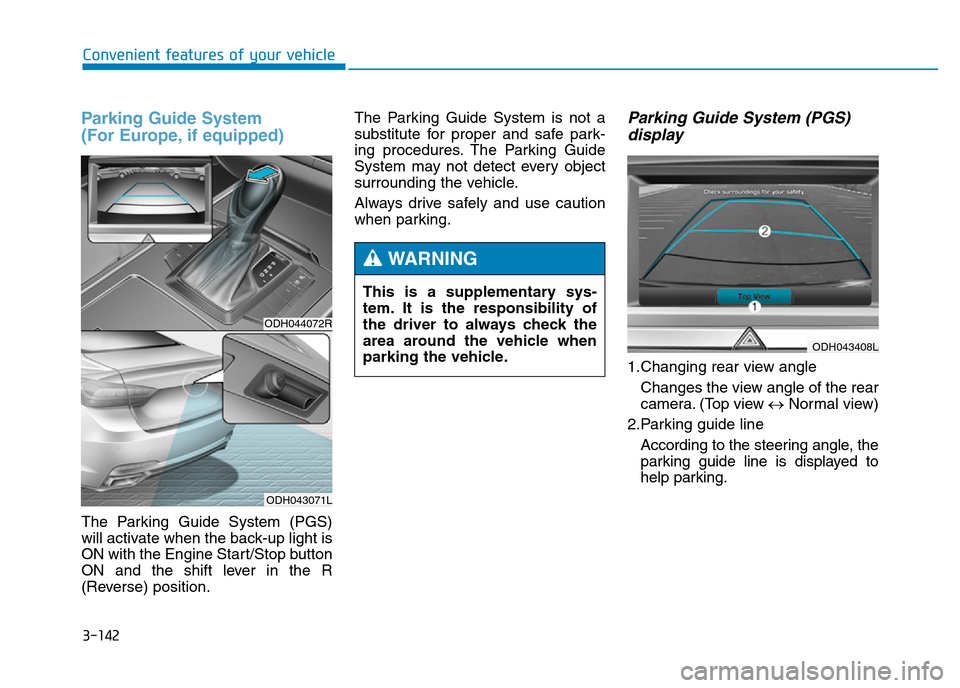

Parking Guide System
(For Europe, if equipped)
The Parking Guide System (PGS)
will activate when the back-up light is
ON with the Engine Start/Stop button
ON and the shift lever in the R
(Reverse) position.The Parking Guide System is not a
substitute for proper and safe park-
ing procedures. The Parking Guide
System may not detect every object
surrounding the vehicle.
Always drive safely and use caution
when parking.
Parking Guide System (PGS)
display
1.Changing rear view angle
Changes the view angle of the rear
camera. (Top view ↔Normal view)
2.Parking guide line
According to the steering angle, the
parking guide line is displayed to
help parking.
ODH044072R
ODH043071L
This is a supplementary sys-
tem. It is the responsibility of
the driver to always check the
area around the vehicle when
parking the vehicle.
WARNING
ODH043408L

3-143
Convenient features of your vehicle
3

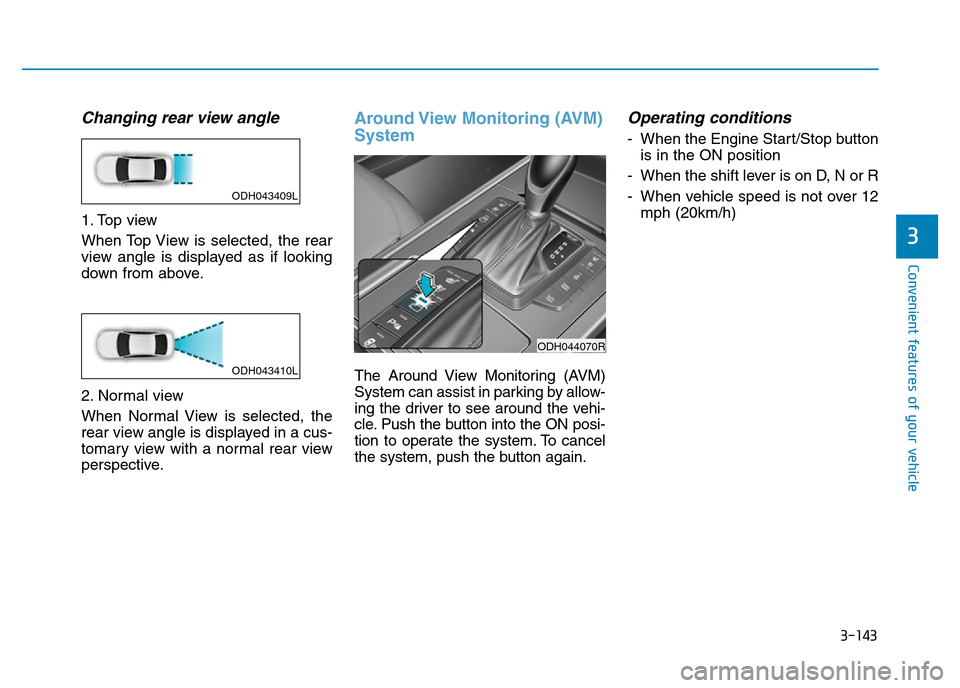

Changing rear view angle
1. Top view
When Top View is selected, the rear
view angle is displayed as if looking
down from above.
2. Normal view
When Normal View is selected, the
rear view angle is displayed in a cus-
tomary view with a normal rear view
perspective.
Around View Monitoring (AVM)
System
The Around View Monitoring (AVM)
System can assist in parking by allow-
ing the driver to see around the vehi-
cle. Push the button into the ON posi-
tion to operate the system. To cancel
the system, push the button again.
Operating conditions
- When the Engine Start/Stop button
is in the ON position
- When the shift lever is on D, N or R
- When vehicle speed is not over 12
mph (20km/h)
ODH044070R
ODH043409L
ODH043410L

3-144
Convenient features of your vehicle
✽NOTICE
• When vehicle speed is over 12 mph
(20km/h), the AVM system will
turn off. The system will not auto-
matically turn on again, even if
vehicle speed returns to below 12
mph (20 km/h). Push the AVM
button again, to turn on the sys-
tem.
• When the vehicle is backing up,
the AVM system will turn ON
regardless of vehicle speed or
AVM button status. However, if
vehicle speed is over 6 mph (10
km/h) when driving forward, the
AVM system will turn off.
• A warning appears on the AVM
system when:
- The boot is opened
- The driver's door is opened
- A passenger's door is opened
- The outside rearview mirror is
folded
• If the AVM system is not operating
normally, the system should be
checked by a HYUNDAI autho-
rised repairer.
For more details, please refer to the
Multimedia System Manual or DIS
Navigation System Manual that was
supplied with your vehicle. (1) Front camera
(2) Left/Right
camera
(3) Rear camera
• Around View Monitoring (AVM)
System only serves to assist
the driver in parking. ALWAYS
look around your vehicle to
make sure there are no objects
or obstacles before moving the
vehicle.
• Always keep the camera lens
clean. The camera may not
work normally if the lens is
covered with foreign material.CAUTION
OHYK045008

3-145
Convenient features of your vehicle
3

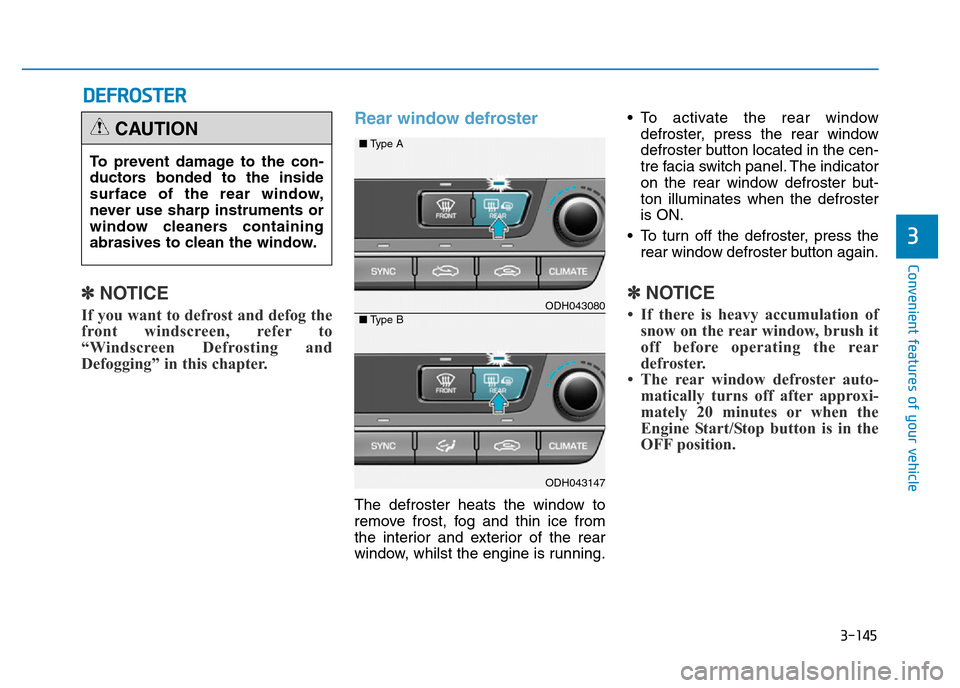

DEFROSTER
✽
NOTICE
If you want to defrost and defog the
front windscreen, refer to
“Windscreen Defrosting and
Defogging” in this chapter.
Rear window defroster
The defroster heats the window to
remove frost, fog and thin ice from
the interior and exterior of the rear
window, whilst the engine is running.• To activate the rear window
defroster, press the rear window
defroster button located in the cen-
tre facia switch panel. The indicator
on the rear window defroster but-
ton illuminates when the defroster
is ON.
• To turn off the defroster, press the
rear window defroster button again.
✽NOTICE
• If there is heavy accumulation of
snow on the rear window, brush it
off before operating the rear
defroster.
• The rear window defroster auto-
matically turns off after approxi-
mately 20 minutes or when the
Engine Start/Stop button is in the
OFF position.
To prevent damage to the con-
ductors bonded to the inside
surface of the rear window,
never use sharp instruments or
window cleaners containing
abrasives to clean the window.
CAUTION
ODH043080
ODH043147
■Type A
■Type B

3-146
Convenient features of your vehicle
Outside mirror defroster
If your vehicle is equipped with the
outside mirror defrosters, they will
operate at the same time you turn on
the rear window defroster.
Front wiper deicer
If your vehicle is equipped with the
wiper deicer, it will operate at the
same time you turn on the rear win-
dow defroster.

3-147
Convenient features of your vehicle
3

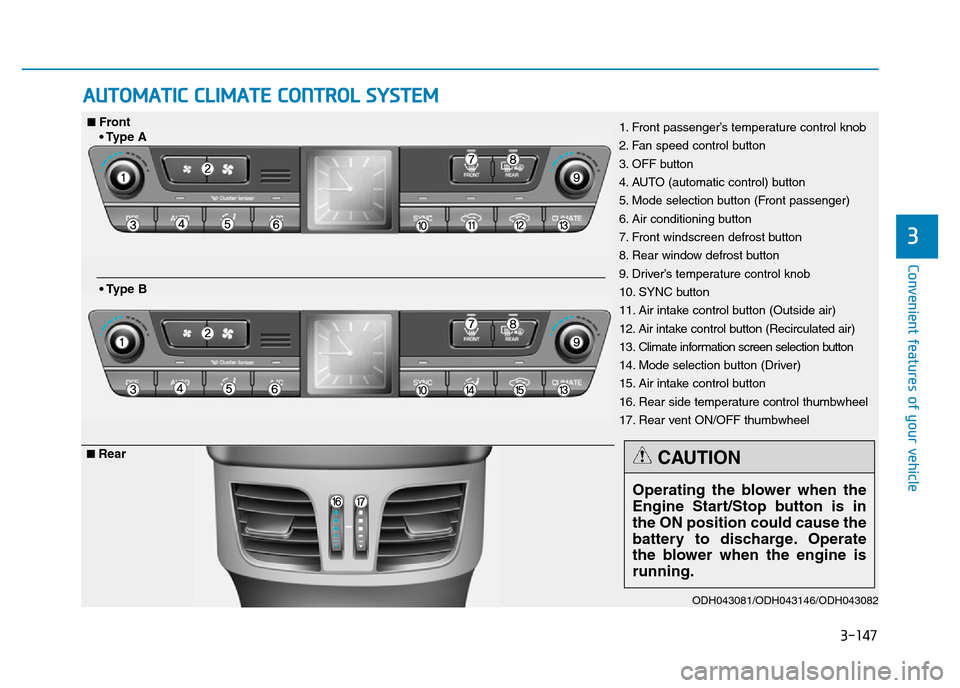

AUTOMATIC CLIMATE CONTROL SYSTEM
ODH043081/ODH043146/ODH043082
1. Front passenger’s temperature control knob
2. Fan speed control button
3. OFF button
4. AUTO (automatic control) button
5. Mode selection button (Front passenger)
6. Air conditioning button
7. Front windscreen defrost button
8. Rear window defrost button
9. Driver’s temperature control knob
10. SYNC button
11. Air intake control button (Outside air)
12. Air intake control button (Recirculated air)
13. Climate information screen selection button
14. Mode selection button (Driver)
15. Air intake control button
16. Rear side temperature control thumbwheel
17. Rear vent ON/OFF thumbwheel■Front
• Type A
• Type B
■Rear
Operating the blower when the
Engine Start/Stop button is in
the ON position could cause the
battery to discharge. Operate
the blower when the engine is
running.
CAUTION

3-148
Convenient features of your vehicle
Automatic heating and air con-
ditioning
1. Press the AUTO button.
The modes, fan speeds, air intake
and air conditioning will be controlled
automatically according to the tem-
perature setting.
2. Turn the temperature control knob
to set the desired temperature.
✽NOTICE
• To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Front windscreen defrost button
(Press the button one more time
to deselect the front windscreen
defroster function. The 'AUTO'
sign will illuminate on the infor-
mation display once again.)
- Fan speed control button
The selected function will be con-
trolled manually whilst other
functions operate automatically.
• For your convenience, use the
AUTO button and set the temper-
ature to 23°C (73°F).
ODM043083
ODH044084R
ODH043085
■Front
■Rear

3-149
Convenient features of your vehicle
3
✽NOTICE
Never place anything near the sen-
sor to ensure better control of the
heating and cooling system.
Manual heating and air condi-
tioning
The heating and cooling system can
be controlled manually by pushing
buttons other than the AUTO button.
In this case, the system works
sequentially according to the order of
buttons selected. When pressing any
button except the AUTO button whilst
using automatic operation, the func-
tions not selected will be controlled
automatically.
1.Start the engine.
2.Set the mode to the desired posi-
tion.
For improving the effectiveness of
heating and cooling;
- Heating:
- Cooling:
3.Set the temperature control to the
desired position.
4.Set the air intake control to the out-
side (fresh) air position.5.Set the fan speed control to the
desired speed.
6.If air conditioning is desired, turn
the air conditioning system on.
Press the AUTO button in order to
convert to full automatic control of
the system.
ODH044086R
