2016 AUDI RS7 SPORTBACK Owners Manual

.. To increase or reduce the brightness, turn the
knob and press it.
The interior lig hting turns on when you switch
the headlights on whi le the ignition is on .
(D Tips
The setting is automat ically stored and as­
signed to the remote control key that is in
use.
Instrument illumination
The brightness of the illumination for the instru­
ments, display and head-up display* can
be ad­
justed .
Fig. 43 Instrument illum ination
.. Press the knob to release it .
.. Turn the knob toward " -" or" +" to reduce or in ­
crease the brightness .
.. Press the knob aga in to return it to its o riginal
pos it ion.
@ Tips
The instrument illumination for the need les
and d ia ls t urns on when the ignition is turned
on and the lights are turned off. The illumina­
tion for the dials reduces automatically and
eventua lly turns off as brightness outside in­
creases . This function reminds the driver to
turn the headlights on at the appropriate
time.
Lights and V ision
Vision
Adjusting the exterior mirrors
Fig. 44 Driver 's doo r: knob fo r the exterio r mirrors
Turn the knob to the desired position:
Q/P -adjusting the left/right exterior mirror.
Move the knob in the des ired direct ion .
Qill -Heating the mir ror glass depend ing on the
outside temperature .
8- Folding exte rior mirro rs* . In the Infota in­
ment system , you can se lect if t he mirro rs fo ld in
automat ica lly when you lock the vehicle
~ page 33.
Front passenger 's e xterior mirror tilt
function *
To help you see the curb when backing into a parking space, the surface of the mirro r tilts
slight ly . For this to happen, the knob must be in
the position for the front passenger's outside
mirror.
You can adjust the tilted mir ror surface by turn ­
ing the knob in the desired direction . When you
move out of reverse and into another gear, the
new mirror position is stored and assigned to the
key you are using.
The m irror goes back into its or iginal pos ition
once you drive forward faster than 9 mph (15
km/h) or switch the ignition off.
A WARNING
-Curved (i .e. convex) m irror surfaces increase
your f ield of view. Remember that vehicles or
other objects will appear smaller and farther
away than when seen in a flat m irro r. If yo u
47

Lights and Vision
use th is mirror to estimate d istances of fol­
lowing veh icles when changing lanes, you
cou ld estimate incorrectly and cause an acci­
dent .
CD Note
-If the mirror housing was moved by force
(for example, by running into an object
when maneuvering the vehicle), the mirror must be folded all the way i n using the pow­
er folding function. The mirror housing
must not be moved bac k into place by hand
because this would impa ir the f unction of
the m irro r mech an ism.
- If you wash the ve hicle in an automatic car
wa sh, yo u m ust fold the e xte rior m irrors i n
to reduce the risk of damage to the mirrors.
Never fold power folding exterior m irrors*
by hand. Only fo ld them in and out usi ng
the power contro ls.
@ Tips
- If the power adj usting function ma lfunc ­
tions, the g lass in both mirrors can be ad­
j u sted by press ing on the edge of it by hand .
- The ex terior mirror se ttings are stored with
the memory function" ~
page 56.
Dimming the mirrors
Fig. 4 5 Auto m atic d immin g rea rv iew mirr or*
Manual anti-glare adjustment
~ Move the sma ll lever (locate d on the bottom
edge of the m irror) to the rear.
Automatically dimming mirrors*
~ To dim the rearview m irror and both exterior
mirrors, press the@ button. The diode @
48
0 ... M 9 :x:
~
turns on. The rearview and exter ior mirrors dim
automat ically when light shines on them, for
example from headlights on a vehicle to the
rear.
A WARNING
Elect rolyte fluid can leak from automatic d im­
ming mirrors if the glass is broken . Electro ­
lyte flu id can irr itate s kin, eyes and respirato­
ry system.
- Repeated or prolonged exposure to electro­
lyte can cause irritat ion to the resp iratory
sys tem, especially among people wi th ast h­
ma or o ther respiratory conditi ons. Get
fresh air immediately by leaving the vehicle
or, if that is not possible, open windows and
doors all the way .
- If electro lyte ge ts into the eyes, flush them
thorough ly w ith large amounts of clean wa­
ter for at least 15 min utes; medical atten­
tion is recommended .
- If electro lyte contacts skin, flush affected
area with clean water for at least 15 mi­
nutes and then wash affected area with
soap and water; medical attention is recom­
mended . Tho ro ughly wash affected clothing
and shoes before reuse.
- If swallowed and person is conscious, rinse
mouth w ith wate r for at least 15 minutes .
Do not induce vomiting unless inst ructed to
do so by med ical professional. Get medical
a tt en tion immed ia tely.
CD Note
Liqu id e lectrolyte lea king from bro ken m irro r
glass w ill damage any plastic s urfaces it
comes in co ntact with . Clean up sp il led e lec­
tro lyte i mmediately with clean wa ter an d a
spo nge.
(j) Tips
- Switching o ff the dimming functio n of the
inside rear view mirro r also deactiv ates the
au tom atic d imm ing fu nction of th e ex terior
mi rrors .

-The automatic dimming mirrors do not dim
when the interior lighting is turned on or
the reverse gear is selected.
- Automatic dimming for the mirror only op­
erates properly if the light striking the in­
side mirror is not hindered in any way.
Sun visors
( J
Fig. 46 Front passenger 's side: sun viso r
The sun visors for the driver and passenger can
be released from their brackets and turned to­
ward the doors
(D .
The mirror light switches on when the cover over
the vanity mirror @opens.
Sun shade
Applies to: veh icles with sunshade
The sun shade is located on the luggage com­
portment shelf.
@ 0
.___ •a_:__.~ ,~
Fig. 47 Sun shade in lowe red position
When the sun shade is in the lowered position, it
is secured in the retainer@.
.. To raise @ the sun shade, remove it from the
retainer .
Lights and Vision
A WARNING
-Do not use the sun shade to secure cargo. The
luggage compartment cover is not a surface
for storing objects . Objects placed on the cov­
er could endanger all vehicle occupants dur­ ing sudden braking maneuvers or in a crash.
Windshield wipers
Switching the windshield wipers on
Fig. 48 Winds hield w iper lever
Move the windshield wiper lever to the corre­
sponding position:
@ -Windshield wipers off
~
"' 0 :i: (D -Rain sensor mode . The windshield wipers
switch on once the vehicle speed exceeds approx ­
imately 2 mph (4 km/h) and it is raining . The
higher the rain sensor sensitivity is set (switch @
to the right), the earlier the windshield wipers re­
act to moisture on the windshield. You can deac­
tivate rain sensor mode in the MMI, which will
then activate intermittent mode. Select:
! CARI
function button > (Car)* systems control button
> Driver assist> Rain sensor > Off. In intermit­
tent mode, you can adjust the interval time using
the switch @.
@ -Slow wiping
@ -Fast wiping
@-Single wipe . If you hold the lever in this posi­
tion longer, the wipers switch from slow wiping
to fast wiping.
®-Clean the windshield. The wipers wipe one
time after several seconds of driving to remove
water droplets. You can switch this function off .,,_
49

Lights and Vision
by moving the lever to position® within 10 sec­
onds of the after-wipe. The after-wipe function is
react ivated the next time you switch the ignition
on.
Cleaning the headlights*. The headlight washer
system* operates only when the low beam head­ lights are on. If you move the lever to position
@ , the headlights and the night vision assist
camera* are washed in intervals.
A WARNING
-The rain sensor is only intended to assist the
driver . The driver is still responsible for
manually switching the wipers on according
to the visibility conditions.
- The windshield may not be treated with wa­
ter-repelling windshield coating agents. Un­
favorable conditions, such as wetness, dark­
ness or low sun, can result in increased
glare, which increases the risk of an acci­
dent. Wiper blade chatter is also possible.
- Properly functioning windshield wiper
blades are required for a clear view and safe
driving ~
page 50, Replacing windshield
wiper blades.
(Jd) Note
- If there is frost, make sure the windshield
wiper blades are not frozen to the wind­
shield. Switching on the windshield wipers
when the blades are frozen to the wind­
shield can damage the wiper blades.
- Prior to using a car wash, the windshield
wiper system must be switched off (lever in position 0). This prevents unintentional
switching on and damage to the windshield
wiper system.
(Di Tips
- The windshield wipers switch off when the
ignition is turned off. You can activate the
windshield wipers after the ignition is
switched back on by moving the windshield
wiper lever to any position.
- Worn or dirty windshield wiper blades result
in streaking . This can affect the rain sensor
so
function. Check your windshield wiper
blades regularly.
- The washer fluid nozzles of the windshield
washer system are heated at low tempera­
tures when the ignition is on.
- When stopping temporarily, such as at a
traffic light, the speed of the windshield
wipers automatically reduces by one level.
Cleaning windshield wiper blades
Clean the wiper blades when you see wiper
streaks. Use a soft cloth and a glass cleaner.
.,. Place the windshield wiper arms in the service
position
c:> page 50.
.,. Fold the windshield wiper arms away from the
windshield.
A WARNING
Dirty windshield wiper blades can impair vi­
sion, which increases the risk of an accident.
Replacing windshield wiper blades
Fig. 49 Removing windshield wiper blades
Wiper service position/blade replacement
position
.,. Switch the ignition off and move the windshield
wiper lever to position
@ briefly c:> page 49,
fig. 48. The windshield wipers move into the
service position.
.,. To bring the wiper blades back into the original
position, switch the ignition on and operate the
windshield wiper lever.
You can also turn the service position on or off in
the Infotainment system:
IJll-

~ Switch the windshield wipers off (position@
¢page 49, fig. 48).
~ Se lect : the ICARI function button > (Car)* Sys­
tems
control button > Service & control > Wip·
er change position
> On/Off.
Removing the wiper blade
~ Fold the windshield wiper arm away from the
windshield.
~ Press the locking knob(!)¢ fig. 49 on the wiper
blade . Hold the wiper blade firmly.
~ Remove the wiper blade in the direction of the
arrow .
Installing the wiper blade
~ Insert the new wiper blade into the mount on
the wiper arm@ until you hear it latch into
place.
~ Place the wiper arm back on the windshield.
~ Turn the serv ice position off .
A WARNING
-
For safety reasons, the windsh ield wiper
blades should be replaced once or twice each
year.
0 Note
- Only fold the windshield wipers away when
i t is in the serv ice position . Otherwise, you
r isk damaging the paint on the hood or the
windsh ield wipe r motor.
- You should not move your vehicle o r operate
the windshie ld wiper lever when the wiper
arms are folded away from the windshield.
The windshield wipers would move back in­
to their original position and could damage
the hood and windshield.
(D Tips
- You can also use the service position, for ex­
ample, if you want to protect the windshield
from icing by using a cover.
- You cannot activate the service position
when the hood is open.
Lights and Vision
51

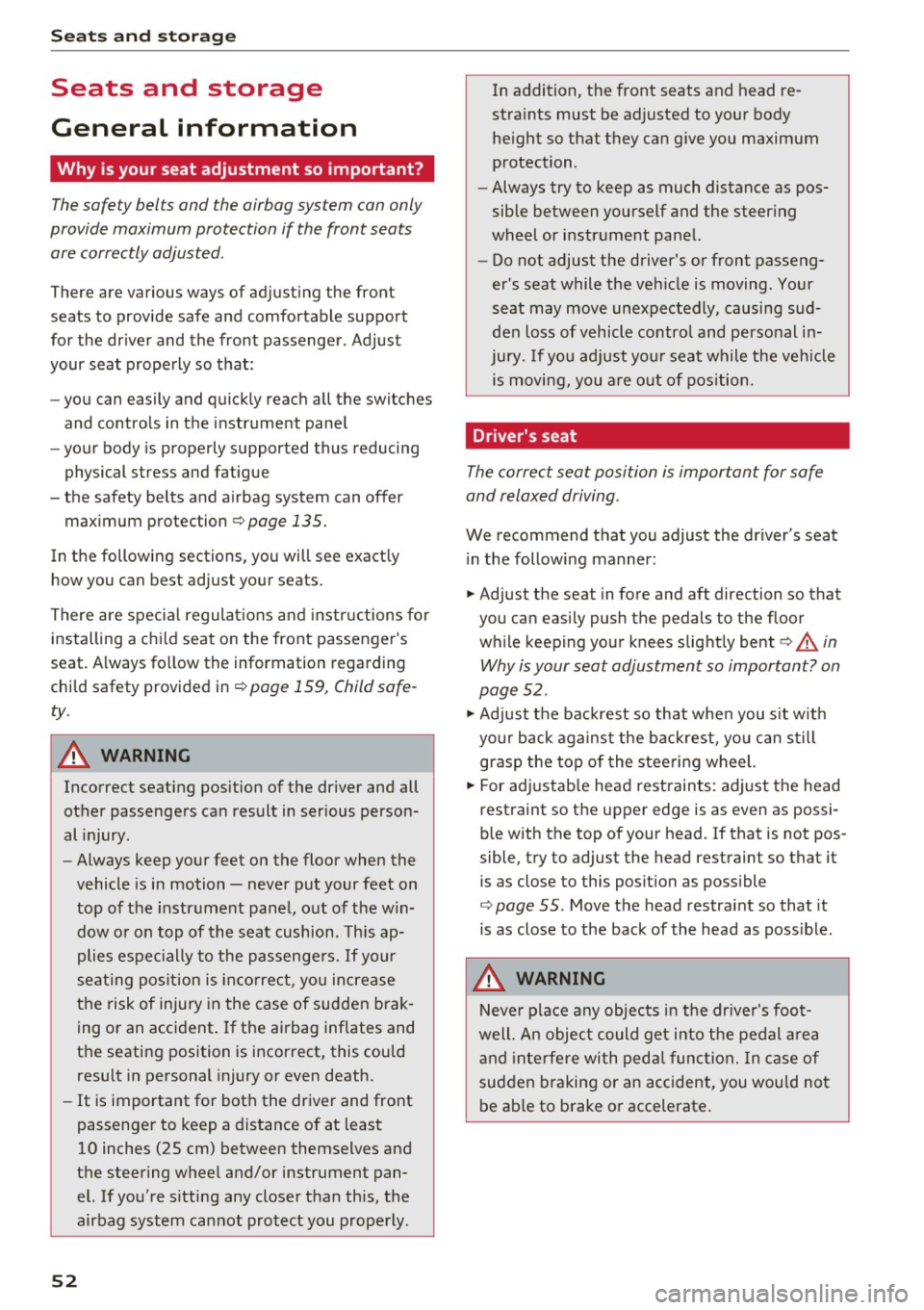

Seat s and sto rage
Seats and storage
General information
Why is your seat adjustment so important?
The safety belts and the airbag system can only
provide maximum protection if the front seats are correctly adjusted .
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the dr iver and the front passenger . Adjust
your seat properly so that:
- you can easily and quickly reach all the switches
and controls in the instrument panel
- your body is properly supported thus reducing
physical stress and fatigue
- the safety belts and a irbag system can offer
maximum protection ¢
page 135.
In the following sections, you will see exact ly
how you can best adjust your seats.
There are spec ial regulat ions and instr uctions for
installing a c hild seat on the front passenger's
seat. Always follow the information regarding
child safety provided in ¢
page 159, Child safe­
ty .
A WARNING
Incorrect seating position of the driver and all
other passengers can result in serious person­
al injury.
- Always keep your feet on the floor when the
vehicle is in motion - never put your feet on
top o f the instr ument pane l, o ut of the win­
dow o r on top of the sea t cushion. This ap­
plies espe cially to the passenge rs.
If your
seat ing pos ition is inco rre ct, you increase
the risk of injury in the case of sudden brak­
ing or an accident . If the airbag inf lates and
the seating position is incor rect, this could
result in personal injury or even death.
- It is important for both the driver and front
passenge r to keep a d istance o f at least
10 inches (25 cm) between themselves and
the steering wheel and/or instrument pan­ el. If you're s itting any closer than this, the
airbag system cannot pro tect you properly.
52
In addition, the front seats and head re­
straints must be adjusted to your body
he ight so that they can give you maximum
protection .
- Always try to keep as much distance as pos­
sible between yourself and the steer ing
wheel or instrument panel.
- Do not adjust the driver's or front passeng­
er's seat while the veh icle is moving. Yo ur
seat may move unexpectedly, causing sud­
den loss of vehicle contro l and personal in­
jury. If you ad just yo ur seat while the veh icle
is moving, you a re o ut of po sition.
, Driver's seat
The correct seat position is important for safe
and relaxed driving .
We recommend that you adjust the dr iver's seat
i n the following manner:
.. Adjust the seat in fore and aft direction so that
you can easi ly push the pedals to the floor
while keep ing your knees slightly bent¢
A. in
Why is your seat adjustment so important? on
page 52 .
.. Adjust the bac krest so that whe n you s it w it h
your back agains t the backrest, yo u can s till
gras p the top of the steering wheel.
.. For adj ustab le head rest raints: adj ust the head
restraint so t he upper edge is as even as possi­
ble with the top of your head . If that is not pos­
sible, try to adjust the head restraint so that it
is as close to this posit io n as poss ible
¢ page 55 . Move the head restraint so that it
is as close to the back of the head as poss ible .
A WARNING
Neve r place a ny objec ts in the dr iver's foo t­
well. An objec t could get into the pedal a rea
a nd interfere with pedal func tion. In c ase of
sud den bra king or an accident, you would not
be ab le to b rake or accelerate .
-

Front passenger's seat
Always move the front passenger seat into the
rearmost position .
To avoid contact with the airbag while it is de­
ploying, do not sit any closer to the instrument
panel than necessary and always wear the three ­
point safety belt provided adjusted correctly. We
recommend that you adjust the passenger's seat
in the following manner:
.. Bring the backrest up to an (almost) upright
posit ion . Do not ride with the seat reclined .
.. For adjustable head restraints: adjust the head
restraint so the upper edge is as even as poss i­
ble with the top of your head. If that is not pos­
sible, try to adjust the head restraint so that it
is as close to this position as possible
¢ page 55. Mov e the head restraint so that it
is as close to the back of the head as possible.
.. Place your feet on the floor in front of the pas­
senger's seat.
Front seats
Controls
Moving the seat forward or back and adjusting
the height, backrest angle and seat angle.
Fig. SO Front seat: adjusting the seat
@ -Moving the seat forward/back: press the but­
ton forward/back¢
A.
@ -Moving the seat up/down: press the button
up/down ¢
A. To adjust the front section of the
seat, press the front button up/down¢
A. To
adjust the rear section of the seat, press the rear
button up/down
c> A .
Seats and storage
@-Turn the massage function* on/off. You can
select the type of massage using the multifunc­
tion button
¢ page 54 .
© -Backrest forward/back : press the button for­
ward/back ¢
A.
(D -Lumbar support*: press the button in the
corresponding position¢
A or multifunction
button*¢
A , ¢ page 54 .
& WARNING
=
-Never adjust the driver's or front passeng-
er 's seat while the vehicle is moving. If you
do this while the vehicle is moving, you will
be out of position. Always adjust the driver's
or front passenger's seat when the vehicle is
not moving.
- Be careful when adjusting the seat height.
Check to see that no one is in the way, or se­
rious injury could result!
- Because the seats can be electrically adjust­
ed with the ignition off, never leave children
unattended in the vehicle . Unsupervised use
of the electric seat adjustments may cause
serious injury.
- To reduce the r isk of injury in the case of
sudden braking or accident, front passen­
gers must never ride in a moving vehicle
with the backrest reclined. Safety belts and
the airbag system only offer maximum pro­
tection when the backrest is upright and the
safety belts are properly positioned on the body. The more the backrest is reclined, the
greater the risk of personal injury from an
incorrect seating position and improperly
positioned safety belts.
-
53

Sea ts and stor age
Multifunction button
Applies to: ve hicles w ith memory funct ion
You con adjust the massage function, lumbar
support, side bolsters and seating surface using
the multifunction button .
Fig . 5 1 MMI display: seat settings
Operating
.. The MMI displays the possible sea t settings @
when you turn the m ultif unct ion button
CD
¢ page 53, fig. 50 to the left or right¢ fig. 51,
¢ £ .
.. To select a seat setting, turn the multifunction
button
CD until the desired seat setting is high­
lighted with a red border .
.. The arrows @ indicate the possible adjust­
ments . For example, to
move the lumbar sup­
port down, press the mult ifunct ion button
CD
down. The corresponding arrow © lights up.
The following seat sett ings @are possible:
Massage function* -Massage type Wave, Kno ck­
ing, Stretch , Lumb ar, Shoulder or Off .
You can
set the massage strength level from 1 to S. You
can turn the selected massage on/off us ing the
button @¢
page 53, fig . 50 .
Lumbar support -Moving the lumbar support
up/down and making it firmer/softer¢&.
Side bolste rs* -Increasing/reducing the side
support in the seat using the side bo lsters on the
seating surface and backrest¢& .
Seating surfac e -Mak ing the seating surface lon­
ger/shorter ¢& .
54
A WARNING
-Never adjust the driver's or front passeng­
er's seat while the veh icle is moving. If you
do this while the veh icle is moving, you will
be out of posit ion . Always ad just the d river 's
or front passenger's seat when the vehicle is
no t moving.
- Be ca refu l when adjust ing the seat height .
Check to see t hat no one is in the way, or se­
rio us inju ry could resu lt!
- Because the seats can be electrically adjust­
ed w ith the ignition off,
never leave children
unattended in the vehicle . Unsupervised use
of the e lectric seat adjustments may cause
serious injury.
- To reduce the risk of injury in the case of
sudden braking or accident, front passen­
ge rs must never ride in a moving veh icle
with the backrest reclined. Safety belts and
the airbag system only offer maximum pro­
tect ion when the backrest is upr ight and the
safety bel ts are properly positioned on the
body. T he mo re the backrest is reclined, the
greater the risk of pe rsonal inju ry from an
incor rect seating posi tion and imprope rly
positioned safety belts .
(D Tips
- T he massage funct io n sw itches off auto­
matically after approximate ly 10 m inutes.
- T he side bolsters* deflate when the driver's
door is opened . This allows you to enter and
ex it comfortab ly. The side bolste rs infla te
again once you begin driving.
