.. While driving in reverse gear, adjust the steer ­
ing wheel ang le to fit the parkin g space with
the a id of the orange orientation lines
c::> A in
General information on page 109 ,
c:>(D in Gen­
eral information on page 110. @
displays the
rear bumper . Stop the veh icle, at the latest,
when the red or ientat io n line @ borders an ob­
ject.
Parallel parking
App lies to: veh icles wit h rearv iew camera
This view may be used when parallel parking
along the side of a street.

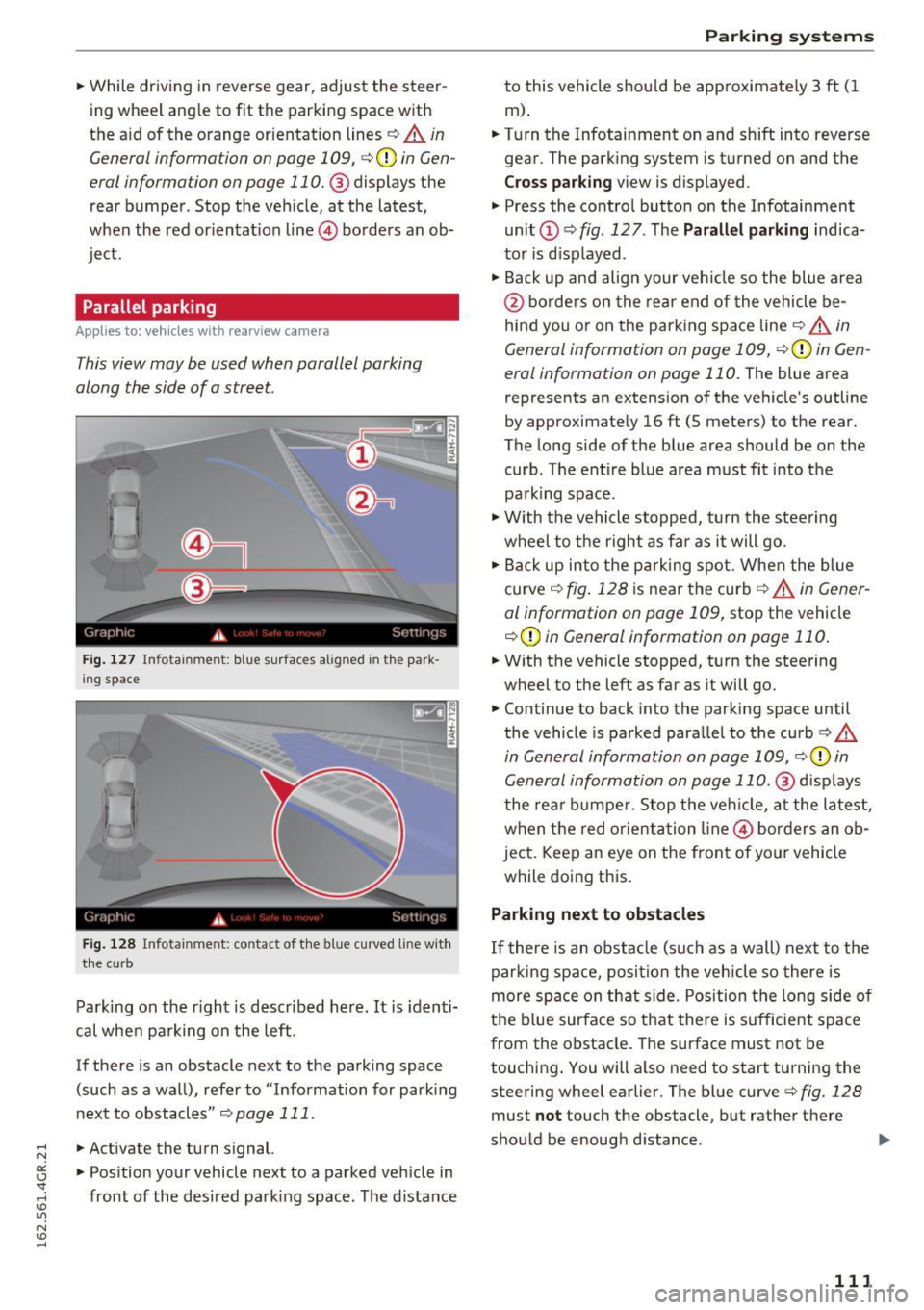

Fi g. 127 Infotai nmen t: b lue surface s alig n ed in t he park ­
i ng s pace
Fig . 12 8 In fota inmen t: co ntac t of t he blue curved li ne w it h
t he curb
Park ing on the r ight is descr ibed here. It is iden ti­
cal whe n pa rking on the left .
If there is an obstacle next to the pa rking space
(such as a wall), refe r to "Information for park ing
nex t to obstacles"
c:> page 111 .
.. Activate the turn s ignal.
.. Pos ition your vehicle next to a parked veh icle in
front of the desired parking space. The d istance
Parking systems
to this vehicle shou ld be app roximately 3 ft ( 1
m).
.. Turn the Infotainment on and shift into reverse
gear . The park ing system is turned on and the
Cross pa rking v iew is displayed .
.,. Press the contro l button on the Infotainment
un it
(D c:> fig . 127 . The Parallel parking indica­
to r is d isp layed .
.,. Back up and align your veh icle so the blue a rea
@ bo rde rs on the re a r end of the vehicle be­
hind you o r on the park ing spa ce line
c::> A in
General information on page 109,
c::> (D in Gen­
eral information on page 110.
The blue area
represents an extension of the veh icle's outline
by approximate ly 16 ft (5 meters) to the rear.
The long side of the b lue area should be on the
curb . The ent ire blue area must fit into the
pa rk ing space .
.,. With the vehicle s topped, t urn the stee ring
wheel to the r ight as far as it will go .
.,. Back up into the park ing spot. Whe n the blue
curve
c::> fig . 128 is near the curb c::> A in Gen er­
al information on page 109,
stop the vehicle
c::> (D in General information on page 110 .
.. W ith the vehicle stopped, t urn the steering
wheel to the left as far as it will go .
.. Continue to back into the parking space until
the vehicle is parked para llel to the curb
c:> .&.
in General information on page 109, c::> (D in
Gen eral information on page 110 .@
d isp lays
t he rea r bu mpe r. Stop the ve hicle, at the la test,
when the red o rient ation line @ bor ders an ob­
ject. Keep a n eye on the fron t of yo ur vehicle
while do ing this.
Parking next to obstacles
If there is an obstacle (such as a wall) next to t he
par king space, posi tion the vehicle so there is
more space on th at s ide . Pos ition the long side o f
the b lue surface so that there is s ufficient s pace
from the obstacle. The surface must not be
touching . You will a lso need to start turning the
steering wheel earlier. The blue curve
c:> fig. 128
must not touch the obstacle, but rathe r the re
sho uld be enough d istance .
111

Parking system s
(D Note
Keep enough distance from the curb to avoid
damage to the rims .
@ Tips
The left or right orientation lines and surfaces
will be displayed, depending on the turn sig­
nal being used.
Peripheral cameras
Introduction
Applies to: vehicles with peripheral cameras
With this equipment, die parking system plus* is
supp lemented with var io us peripheral cameras
¢page 108. Depend ing on vehicle equipment,
you are provided with the following views: a rea
around the vehicle, front corner view and rear
corner view, view in front of the vehicle and be­ h ind the vehicle.
General information
Applies to : vehicles with peripheral cameras
Fig . 12 9 Location of periphera l cameras
The periphera l came ras are located in the radia­
tor gri lle and in the luggage compartment lid
¢fig . 129.
Make sure that the lenses are not covered by de­
posits or any other obstructions as it may impa ir
the system. Fo r information on cleaning, refer to
¢page 193.
The accuracy of the orientation lines a nd the blue
surfaces is reduced if the adaptive ai r suspen ­
sion* is faulty, if the vehicle is lifted or if the
Dy­
nam ic mode is activated¢ page 95.
112
A WARNING
- Always read and follow the applicab le warn­
ings¢ .&
in General information on
page 107.
- If the position or the installat ion angle of a
camera was changed, after a collis ion for ex­
ample, do not continue to use the system
for safety reasons. Have it chec ked by your
authorized Audi dealer or authori zed A udi
Serv ice Facility.
- Use the
Rear mode and the corner view
( rear )
mode only when the l uggage com­
partment lid is fu lly closed. Otherwise the
image in the d isp lay will be distor ted.
- The vehicle sur roundi ngs a re shown using
the camera images. The vehicle image is
shown by the system. Objects and obstacles
above the camera a re not displayed .
- Camera lenses enlarge and distort the field of vision. The objects appear both altered
and inaccurate on the screen.
{[) Note
- Always read and fo llow the applicable wa rn­
ings ¢(!)
in General information on
page 107.
- T he Infotainment d isp lay shows the direc ­
t ion in which the rear of the vehicle is travel­
ing based on the steering wheel ang le . The
front of the vehicle swings out more than
the rear of the vehicle. Maintain plenty of distance so that your outs ide mirror or a
co rner of your vehicle does not collide with
any obstacles .
(D Tips
The driver's door/front passenger's door/lug­
gage compartment lid is open when the~ or
~ symbol appears and the co rresponding
a rea of the disp lay is grayed out.

Switching on or off
Appl ies to: ve hicles with per ip heral cameras

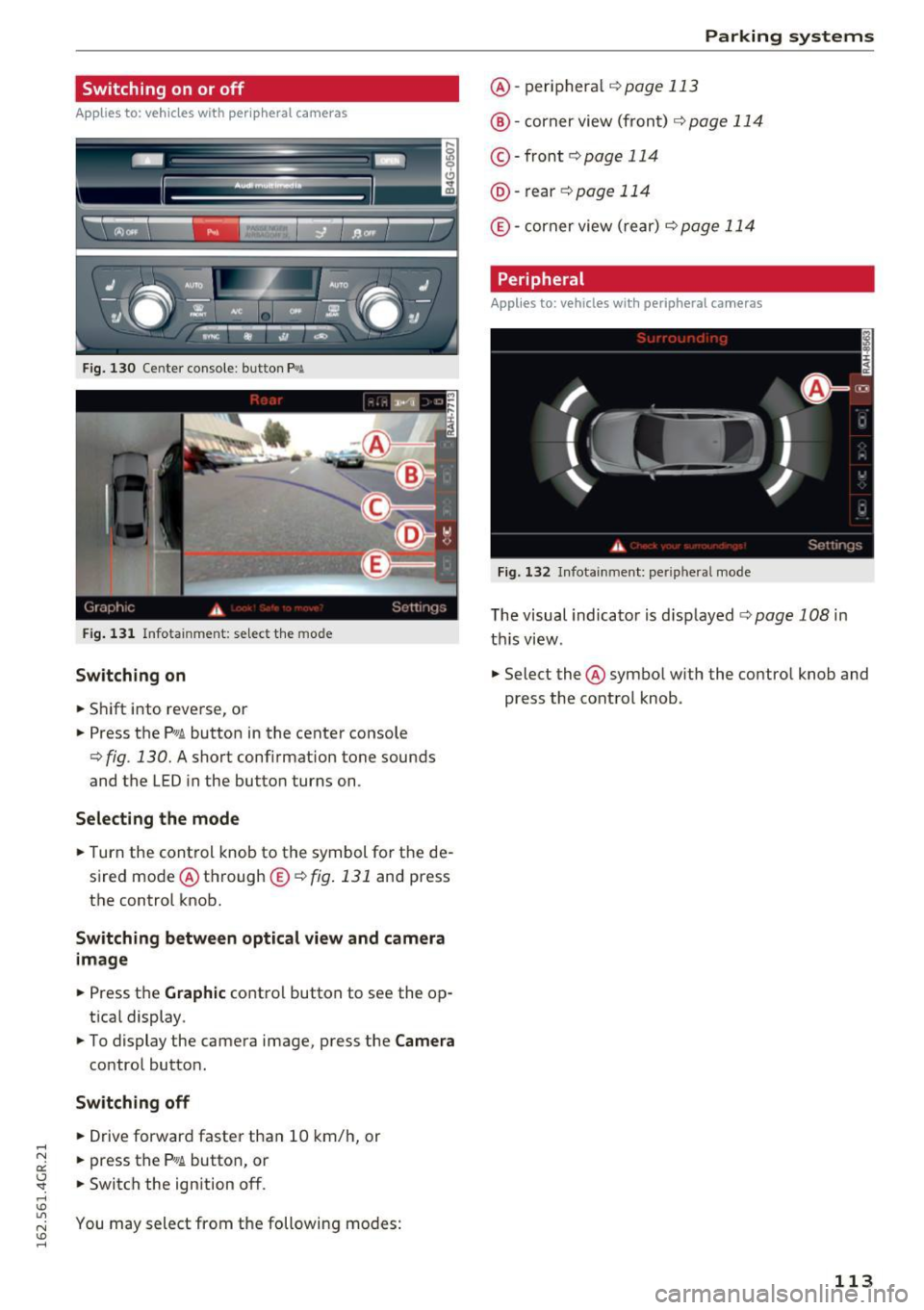

Fig . 13 0 Cente r conso le: butto n f¾A
Fig. 1 31 Infotainment: se lect the mode
Switching on
• Shift into reve rse, or
• Press the
p,,, A button in the cente r console
¢ fig . 130. A short conf irmation tone sounds
and the LED in the butto n turns on.
Selecting the mode
• Turn the cont rol knob to the symbol fo r the de­
s ired mode @th rough @c:>
fig. 131 and press
the control knob.
Switching between optical view and camera image
• Press t he Graphic co ntrol button to see the op ­
t ica l display.
• To display the camera image, press the
Camera
co ntro l butto n.
Switching off
• Drive forwar d faste r than 10 km/ h, or
• press the
PwA button, or
• Switch the ign ition off.
You may sele ct from the following modes:
Parking systems
@ -peri phera l ¢page 113
@ -corner view (fron t) c:> page 11 4
©-front c:> page 114
@-rear c:> page 114
® -corner view ( re ar) c:> page 114
Peripheral
Applies to: vehicles wit h peripheral ca meras
Fig. 13 2 In fo tainme nt: per iphera l m ode
The visual indicato r is d isp layed c:> page 108 in
t hi s vi ew .
• Select the @sym bo l w ith the contro l knob and
press the cont rol knob .
113

Parking system s

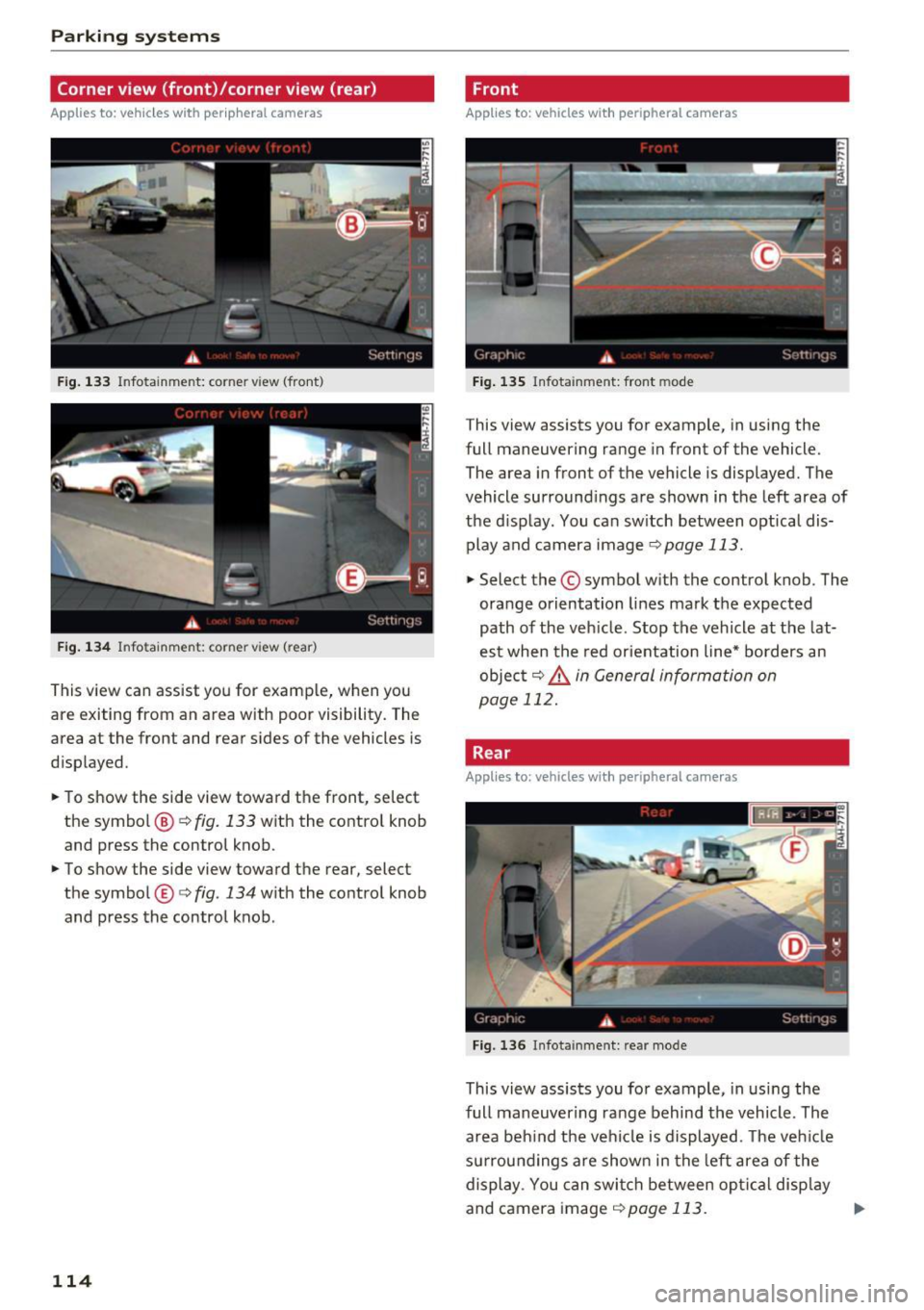

Corner view (front)/corner view (rear)
