2016 AUDI RS7 SPORTBACK Owners Manual

-An Advanced Airbag with gas generator and
control valve for the driver inside the steering
wheel hub.
- An Advanced Airbag with gas generator and
control valve inside the instrument panel for
the front passenger.
- A capacitive passenger detection system under­
neath the front passenger seat cover. This sys­
tem measures the electrical capacitance of the
person in the seat. The information registered
is sent continuously to the electronic control
unit to regulate deployment of the front Ad­
vanced Airbag on the passenger side .
- An airbag monitoring system and indicator
light in the instrument cluster
~ page 146.
-A sensor in each front seat registers the dis­
tance between the respective seat and the
steering wheel or instrument panel. The infor­
mation registered is sent continuously to the
electronic control unit to regulate deployment
of the front Advanced Airbags.
- The
PASSENGER AIR BAG OFF light comes on
and stays on in the center of the instrument
panel ~
page 147, fig. 157 and tells you when
the front Advanced Airbag on the passenger side has been turned off.
- A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and
transmits this information to the electronic control unit.
A WARNING
Damage to the front passenger seat can pre­
vent the front airbag from working properly.
- Improper repair or disassembly of the front
passenger and driver seat will prevent the
Advanced Airbag System from functioning properly.
- Repairs to the front passenger seat must be
performed by qualified and properly trained
workshop personnel.
- Never remove the front passenger or driver
seat from the vehicle.
- Never remove the upholstery from the front
passenger seat.
- Never disassemble or remove parts from the
seat or disconnect wires from it.
Airbag system
-Never carry sharp objects in your pockets or
put them on the seat. The capacitive pas­
senger detection mat in the front passenger
seat will not function properly if it is punc­
tured.
- Never carry things on your lap or carry ob­
jects on the front passenger seat. Such ob­
jects can influence the capacitance regis­
tered by the capacitive passenger detection
system, so that incorrect information is pro­
vided to the airbag control unit.
- Never store items under the front passenger
seat. Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, preventing them and the airbag sys­
tem from working properly.
- Never place seat covers or replacement up­
holstery that have not been specifically ap­
proved by Audi on the front seats.
- Seat covers can prevent the Advanced Air­
bag System from recognizing child re­
straints or occupants on the front passenger
seat and prevent the side airbag in the seat
backrest from deploying properly.
- If a seat heater has been retrofitted or oth­
erwise added to the front passenger seat,
never install any child restraint system on
this seat.
- Never use cushions, pillows, blankets, or
similar items on the front passenger seat.
The additional layers prevent the capacitive
passenger detection system from accurately
measuring the capacitance of the child safe­
ty seat and/or the person on the seat and
thus keep the Advanced Airbag System from
working properly.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heater
for child seats) on the front passenger seat if the device is connected to the 12-volt
socket or the cigarette lighter socket. Such
devices can influence the capacitance regis­
tered by the capacitive passenger detection
system, so that incorrect information is pro­
vided to the airbag control unit.
- If you must use a child restraint on the front
passenger seat and the child restraint
~
143

Airbag syste m
manufacturer's instructions require the use
of a towel, foam cushion or someth ing else
to properly pos ition the child restraint,
make certain that the
PAS SENGE R A IR BAG
OFF
light comes on and stays on whenever
the chi ld restraint is installed on the front
passenge r seat.
- If the
PASSEN GER AIR BAG OFF light does
not come on and stay on, immediately in­
sta ll child restraint in a rear seating position
and have the airbag system inspected by
your Audi dealer.
_& WARNING
If the front passenger seat gets wet, dry it im­
mediately .
- If liquid soaks into the fron t passenger sea t,
t h is can keep the a irbag system from work ­
ing properly and may, for instance, deacti­
vate the passenger frontal airbag. If this
happens, the
PA SSENGER AIR BAG OFF
light will come on and stay on together with
the airbag indicator light
fl (USA models)/
El (Canada models) in the instrument clus­
te r.
- If liquid is pooled on the seat, but has not
soaked in, this may also keep the airbag sys­
tem from working properly and ca use the
passenge r frontal a irbag to be e nabled
(tu rned on), even though there is a properly
ins talled chi ld restraint system on the seat.
Wet towe ls or other wet things on the seat
cushion can have the same effect. If the
front passenger frontal airbag is turned on,
the
PAS SENGER AIR BAG OFF light will go
out.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the side
ai rbags s upplement the protection offered by the
front three-po int safety belts with pretensioners
and load limiters and the adjustable head re ­
stra ints* to help reduce the risk of injury in a
wide range of accident and crash situations. Be sure to read the important information about
safety and heed the WARNINGS in th is chapter.
144
Deployment of the Advanced A irbag System and
the activation of the safety belt pretensioners de ­
pend on the dece leration measured by the crash
sensors and registered by the electronic contro l
unit. Crash severity depends on speed and decel­
e ration as well as the mass and stiffness of the
vehicle or object involved in the crash .
On the passenger side, regard less of safety belt
use, the front passenger frontal airbag will be
turned off if the e lectr ica l capacitance measured
by the capacitive passenger detection system on
the front passenger seat is less than the amount programmed in the elec tron ic cont rol unit . The
front passenger fron tal a irbag w ill also be turned
off if the capacitance measured by the system for
the front passenger seat equals that of an infant
of about one year of age in one of the child seats
that was used to certify the Advanced Airbag Sys­
tem under Federal Motor Vehicle Safety Standard 208. The
PAS SENGER AIR BAG OFF light comes
on and stays on to tell you when the front Ad ­
vanced Airbag System on the passenger side has been tu rned off
c:> page 147 .
_& WARNING
To reduce the ris k of injury when an airbag in­
flates, always we ar safe ty belts prope rly.
- If you are un restrai ned, leaning forward, sit­
ting sideways or out of posi tion in any way,
your r isk o f injury is much highe r.
- You will a lso receive ser ious injuries and
co uld even be killed if yo u are up agains t the
ai rbag or too close to it when i t inflates -
even with an Advanced Airbag
c:> page 135.
More important things to know about front
airbags
Fig . 156 Inflated front a irbags
" "' 0 ± ., a,

Safety belts are important to help keep front
seat occupants in the proper seated position so
that airbags can unfold properly and provide sup­ p lemental protection in a frontal collision.
The front airbags are designed to provide addi­
tional protection for the chest and face of the
driver and the front seat passenger when:
- safety belts are worn prope rly,
- the seats have been positioned so that the oc -
c u pant is properly sea ted as far as possible
from the airbag,
- and for adjustable head restraints: the head re-
straints have been properly adjusted.
Because airbags inflate in the blink of an eye w ith
g reat fo rce , things you have on your lap or have
p laced on the seat cou ld become dangerous pro­
jectiles , and be p ushed into you if the ai rbag in ­
flates.
When an a irbag deploys, fine dust is released.
This is normal and is not caused by a fire in the
ve hicl e. Thi s dust is made up mostly of a powder
used to lubricate the airbags as they deploy. It
could irritate skin.
I t is important to remember that whi le the s up­
p lemental airbag sys tem is designed to reduce
the likelihood of serious injuries, other inj uries,
for example swelling , bruising and minor abra­
sions, can a lso happen when airbags inflate . Air­
bags do not protect the arms or the lower parts
of the body. Front airbags supplement the three­
point safety belts only in some frontal collisions
i n which the ve hicle decelerat io n is high enough
to deploy the airbags .
Front airbag s will not deploy:
- if the ignit ion is switched off when a crash oc-
curs,
- in side collisions,
- in rear-end collisions,
- in rollove rs,
- when the c rash decelerat io n meas ured by the
airbag system is less than the minimum thresh-
;::: old needed for airbag deployment as registered
er: u by the electronic contro l unit. 'SI: ,...., N Airb ag sys tem
The front passenge r airbag also will not
deplo y:
-when the front passenger seat is not occupied,
- when the e lectrica l capaci tance measured by
the capacitive passenger detection system for
the front pass enger seat indicates that the pas­
senger s ide frontal airbag must be switched off
by the electronic control un it (the
PA SSENGER
AIR BAG OFF
light c:> page 147 and how they
work comes on and stays on) .
A WARNING ,..__ -Sitting in the wrong position can increase the
r isk of ser ious injury in crashes.
- To reduce the r isk of injury when the ai rbags
inflate, the drive r and passenge rs must al­
ways sit in an up right posit ion, m ust not
lean aga inst or place any part of their body
too close to the area where the airbags are located .
- Occupants who are unbelted, out of posit ion
or too close to the airbag can be serio usly
injured by an airbag as it unfolds with great
force in the blink of an eye c:> page 136.
A WARNING
A child in a rearward-facing child seat instal­ l ed on the front passenger seat will be seri­
ously injured and can be killed if the front air­
bag inflates -even with an Advanced Airbag
System .
- The inflating airbag will h it the ch ild seat or
infant carrier with great force and wi ll
smash the child seat and child against the
backrest, center armrest, doo r o r r oof.
- Always install rear-fac ing child seats on the
rear seat .
- If you must install a rea rwa rd facing child
seat on the front passenge r seat because of
except ional circumstances and the
PASSEN­
GER AIR BAG OFF
l ight does not come on
a nd stay on, immed iate ly install the rear ­
facing child seat in a rear seating posit ion
and have the airbag system inspected by
your Audi dea ler.
145

Airbag syste m
A WARNING
Objects between you and the airbag will in ­
cr ease the risk of inju ry in a cras h by interfer­
ing w ith the way the airbag unfol ds or by be­
ing pushed into you as the a irbag inflates.
- Never hold th ings in your hands or on your
lap when the vehicle is in use.
- Never transport items on or in the area of
the front passenger seat . Objects could
move into the area of the front airbags du r­
ing bra king or other sudden maneuve rs and
become dangerous projectiles that can
ca use serious pe rsonal injury if the a irbags
inflate.
- Never pl ace or attach accessor ies or o ther
objects (such as cup ho lders, te lephone
brackets, large, heavy o r bulky objects) on
the doors, over or near the area marked "AIRBAG" on the steering wheel, instru­
ment pane l, seat backrests or between
those areas and yourself. These objects
could cause injury in a crash, especially
when the airbags inflate.
- Never recline the front passenger's seat to transport objec ts. Items can also move into
t h e a rea of the side airbag o r the front a ir­
bag during braking or in a s udden maneu­
ver. Objects near the airbags can become
projectiles and cause in ju ry, particularly
when the seat is reclined.
- Never pl ace or transport o bje cts on the
front passenge r seat . Objects on the front
passenge r seat co uld cause the capac itive
sensor in the seat to signal to airbag system
that the seat is occupied by a person when it
in fact is not, or that the person on the seat
is heavier than he or she actually is. The
change in elect ric capac itance because of
s u ch objects can cause the passenger front
airbag to be turned on when it shou ld be
off, or ca n cause the a irbag to wo rk i n a way
that is diffe rent from the way it would have
wor ked witho ut objects on the seat.
- Alway s m ake sure th at the re is nothing on
t h e fron t passenger seat that w ill cause the
capacit ive passenger detection system in
the seat to signa l to the Airbag System that
146
the seat is occup ied by a person when it is
not, or to signal that it is occupied by some­
one who is heavier than the person actually
sitt ing on the seat . The presence of an ob­
ject could ca use the passenger front airbag
to be turned on when it should be off, or
could cause the airbag to work in a way that is diffe rent from the w ay it would have
wo rked withou t the object on the seat.
A WARNING
-
The fine dus t created when airbags deploy c an
cause breathing prob lems for peo ple with a
h istory of asthma or othe r breath ing cond i­
tions.
- To reduce the r is k of breathing p roblems,
those with asthma o r other respiratory con­
ditions shou ld get fresh a ir right away by
getting out of the vehicle or opening win­
dows or doors .
- If you are in a co llision in which airbags de­
ploy, wash yo ur hands and face with m ild
soap and water before eating.
- Be ca refu l not to get the dust into your eyes,
or into any cuts or scratches.
- If the residue sho uld get into your eyes,
flush them w ith wate r.
Monitoring the
Advanced Airbag System
t~ (USA models) !!I: (Canada models)
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System: the airbag moni­
toring indicator light and the
PASSENGER AIR
BAG OFF
light.
The Advanced A irbag System as well as t he side
airbags and side curta in airbags w ith ejection
mitigation features (including the electronic con­
tro l unit, senso rs and system w iring) are all
monito red cont inuo usly to make sure that they
a re functioning properly whenever the ignition is
o n. Every time you tu rn o n the ign ition, the air­
bag sys tem indi cato r li ght
II (USA models) a
(Canada mode ls) will come on for a few seconds
(function check). .,.

The system must be inspected when the indicato r light
II (USA models ) !E,I
( Canada models):
- does not come on when the ignitio n is switched
on,
- does not go out a few seconds after you have
switched on the ign ition, or
- comes on while driving.
I f an airbag system malf unct io n is de tected, the
indicator light wi ll first start flashing to catch the
driver's attention and then stay on co nti nuo usly
to se rve as a constant reminder to have the sys ­
tem i nspected immed iate ly.
If a malfunction occ urs that turns the front air­
bag on the passenger si de
off, the PASSENGER
AIR BAG OFF
light will come on and stay on
whenever the ignit io n is on.
A WARNING
An airbag system that is not funct io ning prop ­
erly cannot provide supp lemen tal p rotec tion
in a front al c rash .
- If the air bag indicato r ligh t
c:;, page 17
come s whe n the vehicle is be ing use d, have
th e sys te m in sp ecte d im med iate ly by yo ur
au thoriz ed Au di deale r.
It is po ss ible that
th e air bag wi ll inf late w hen it is not sup ­
posed to, or will not i nfla te w hen it s hou ld .

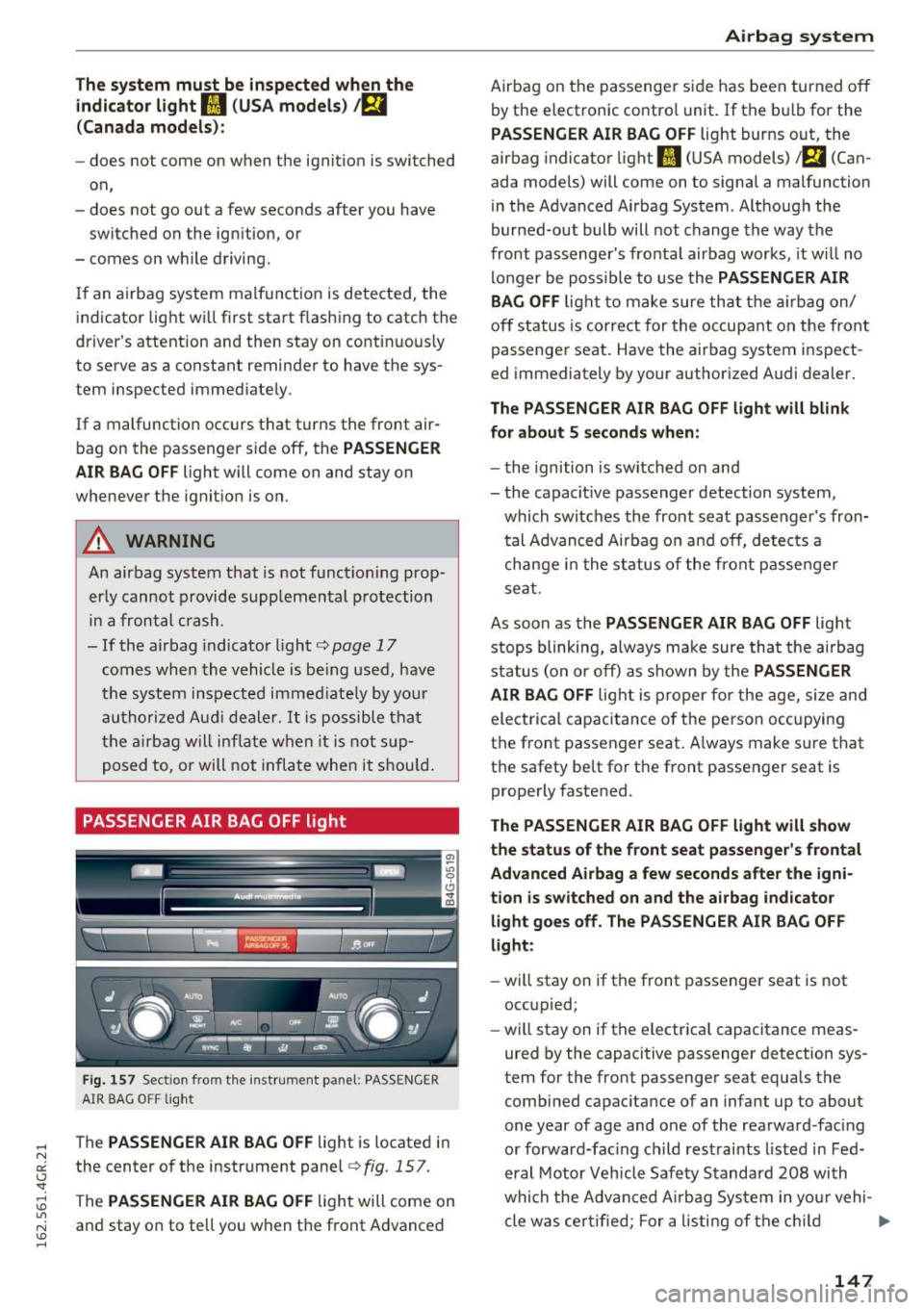

PASSENGER AIR BAG OFF light
Fi g. 157 Sect ion from t he inst rum ent pa ne l: PASSENGER
AIR BAG OFF lig ht
The PASSENGER AIR BAG OFF light is located i n
the center o f the instr ument panel
c:;, fig . 157.
The PASSENGER AIR BAG OFF light will come on
and stay on to te ll you when the front Advanced
Airbag system
Airba g on the pas senge r si de has been turned o ff
by the electronic contro l unit. If t he bulb for the
PASSENGER AIR BAG OFF light burns out, the
airbag indicato r light
II (US A models) a (Can­
ada models) will come on to signal a malfunction
i n the Advanced Airbag System . Alt hough the
bur ned-out bulb will not change the way the
front passenge r's fronta l airbag work s, it w ill no
lo nger be poss ible to use the
PASSENGER AIR
BAG OFF
lig ht to ma ke sure th at th e air bag on/
of f st atus is corre ct for the occup ant on the fron t
p assenge r seat. Have the air bag system i nsp ect ­
ed immediately by your author ized Audi dealer.
The PASSENGER AIR BAG OFF light will blink
for about 5 seconds when:
- th e ignition is switche d on an d
- the capacit ive passenger detection system,
which switc hes the front sea t passe nger' s fron ­
t al A dva nced Airbag o n an d off, de tec ts a
ch ange in the st atu s of the fr ont passe nger
se at.
As soon as the
PASSENGER AIR BAG OFF light
s top s blinking , always m ake sure th at the air bag
s tatu s (o n or off) as shown by the
PASSENGER
AIR BAG OFF
lig ht is pr oper for the age, siz e and
ele ctrica l capaci tance o f the pe rso n occu pying
t h e front passenger seat. A lwa ys make s ure t hat
t h e safety be lt fo r th e front passen ger seat is
prope rly faste ned .
The PASSENGER AIR BAG OFF light will show
the status of the front seat passenger 's frontal
Advanced Airbag a few seconds after the igni·
tion is switched on and the airbag indicator light goes off. The PASSENGER AIR BAG OFF
light:
- will stay on if t he front passenger seat is not
occ upied;
- wi ll stay on if t he e lectrica l capacitance meas ­
ured by the capacitive passenger detection sys ­
tem for the front passenger seat equa ls the
combined ca pac ita nce of an infa nt up to ab out
one year of age and one of the rearwa rd -facing
or fo rwar d-fac ing ch ild rest raints l isted in Fe d­
e ral Motor V ehicl e Safe ty S tandard 20 8 wi th
whi ch th e A dvanc ed Airbag Sys tem i n yo ur vehi-
cle w as ce rtifie d; For a listin g of t he c hild .,.
147

Airbag system
restraints that were used to certify your vehi­
cle's compliance with the U.S . Safety Standard
~ page 161.
-will go out if the front passenger seat is occu­
pied by an adult as registered by the capacitive
passenger detection system.
- The
PASSENGER AIR BAG OFF light must come
on and stay on if the ignition is on and ...
- a car bed has been installed on the front pas­
senger seat, or
- a rearward -facing child restraint has been in­
sta lled on the front passenger seat, or
- a fo rwa rd-facing child restraint has been instal­
led on the front passenger seat,
- and if the electrica l capacitance registered on
the front passenger seat is equa l to or less than
the comb ined capacitance of a typica l 1 year ­
o ld infant and one of the rearward-facing or
forward-facing child restraints listed in Federal
Motor Vehicle Safety Standard 208 with which
the Advanced Airbag System in your vehicle was
certified.
If the front passenger seat is not occupied, the
front airbag w ill not deploy, and the
PASSENGER
AIR BAG OFF light will stay on. Never install a
rearward-fac ing ch ild restraint on the front pas­
senger seat, the safest place for a child in any
kind of child restraint is at one of the seating po­
sitions on the rear seat~
page 136, Child re­
straints on the front seat -some important
things to know
and ¢ page 159, Child safety .
If the PASSENGER AIR BAG light comes
on ...
If the PASSENGER AIR BAG OFF light comes on
when one of the conditions listed above is met,
be sure to check the light regularly to make cer­
tain that the
PASSENGER AIR BAG OFF light
stays on continuous ly whenever the ign ition is
on. If the
PASSENGER AIR BAG OFF light does
not appear on and does not stay on all the time,
stop as soon as it is safe to do so and
- reactivate the system by turning the ignition off for more than 4 seconds and then turning it
on again;
- remove and reinstall the child restraint. Make
sure that the child restraint is properly instal-
148
led and that the safety belt for the front pas­
senger seat has been correctly routed through
the child restraint as described in the child re­
straint manufacturer's instructions;
- make sure that the convertible locking retrac­
tor on the safety belt for the front passenger
seat has been activated and that the safety belt
has been pulled tight.
- make sure that no electrical device (such as a laptop, CD player, electron ic games device,
power inverter or seat heater for child seats) is
placed or used on the front passenger seat if
the device is connected to the 12-volt socket or
the cigarette lighter socket;
- make sure that no seat heater has been retro­
fitted or otherw ise added to the front passen­
ger seat;
- make sure that noth ing can interfere with the
safety belt buckles and that they are not ob­
structed;
- make sure that there are no wet objects (such
as a wet towe l) and no water or other liquids on
the front passenger seat cushion.
If the PASSENGER AIR BAG light still does
not come on ...
If the PASSENGER AIR BAG OFF light still does
not come on and does not stay on continuously
(when the ignition is switched on),
- take the child restra int off the front passenger
seat and insta ll it p roperly at one of the rear
seat positions. Have the airbag system inspect­
ed by yo ur Audi dealer immediate ly.
- move the child to a rear seat position and make
sure that the child is properly restrained in a
child restraint that is appropriate for its size
and age .
The PASSENGER AIR BAG light should NOT
come on .. .
The PASSENGER AIR BAG OFF light should NOT
come on when the ignition is on and an adu lt is
sitting in a proper seating position on the front
passenger seat. If the
PASSENGER AIR BAG OFF
light comes on and stays on or flashes for about
5 seconds while dr iv ing, under these c ircumstan-
ces, make sure that: ..,.

-the adult on the front passenger seat is proper ­
l y seated on the center of the seat cushion with
his or her back up aga inst the backrest and the
backrest is not reclined ,
- the adult is not taking weight off the seat by
holding on to the passenger assist handle
above the front passenger door or supporting
their we ight on the armrest,
- the safety be lt is be ing properly worn and that
there is not a lo t of slack in the safety belt web­
bing,
- there are no aftermarket seat covers or cush­
ions or other things (such as blankets) on the
front passenger seat that might cause the ca ­
pacit ive passenger detection system to miscal­
cu late elect rical capac itance.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
- If the status of the Adva need A irbag System
has changed while the vehicle is moving, the
PASSENGER AIR BAG OFF light blinks fo r
about 5 se conds to cat ch the driver's atten­
t ion. If th is happens , al ways stop as soon as
it is safe to do so and check the steps descri­
bed above.
- If the
PASSENGER AIR BAG OFF light does
not go of f when an adult who is not very
small is sitting on the front passenger seat
after taking the steps descri bed above,
make sure the adult is properly seated and
restra ined at one of the rear seating posi­
t ions. Have the airbag system inspected by
yo ur authorized Aud i dealer before trans­
porting anyone on the front passenger seat .
A WARNING
An airbag system that is not functioning prop­
e rl y cannot provide supplemental p rotection
in a frontal cra sh .
-If the airbag indicato r light ¢ page 17
comes when the vehicle is be ing use d, have
the system inspected immed iate ly by yo ur
authorized Au di dealer. It is possible that
Airb ag sys tem
the airbag will in flate when it is not sup­
posed to, or w ill not inf late when it should.
A WARNING
-
If the front a irbag inflates, a ch ild witho ut a
chi ld restraint, or in a rea rward-facing child
safety seat, or in a forward-fac ing child re ­
stra int that has not been properly insta lled
will be serious ly injured and can be killed .
- Even tho ugh your vehicle is equipped with
an Advanced A irbag System, make certain
that all children, espec ially 12 years a nd
younge r, always ride on t he bac k sea t prop­
erly rest raine d for the ir age and s ize.
- Always install fo rwa rd o r rea r-fa cing child
seats on the rea r seat -even w ith an Ad­
van ce d Ai rbag System.
- If you must install a rea rw ar d-facing child
se at o n the fron t passenge r seat because of
except ional circumstances an d the
PASSEN­
GER AIR BAG OFF
light does not appear an d
stay on, immed iate ly install the rea r-facing
child seat in a rear seat ing pos ition and have
the airbag system inspected by your Audi
deale r.
- If, in exceptional circ umstances, you must
install a forward-facing child restraint on
the front passenger seat, always move the
seat into i ts rearmost posi tion in the seat 's
fore and aft a djustment range, as far away
fr om the a irbag as poss ible. The back res t
m ust be adjus ted to an upr igh t position .
Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
wheneve r the ignit ion is switched on .
A WARNING
-If the PASSENGER AIR BAG OFF light does
not go out when an adult is sitting on the
front passenger seat after tak ing the steps
described above, make sure the adult is
proper ly seated and restra ined a t one of the
rear seating posit ions .
- Have the airbag system inspected by your
Aud i deale r before transporting anyone on
the front passenge r seat .
149

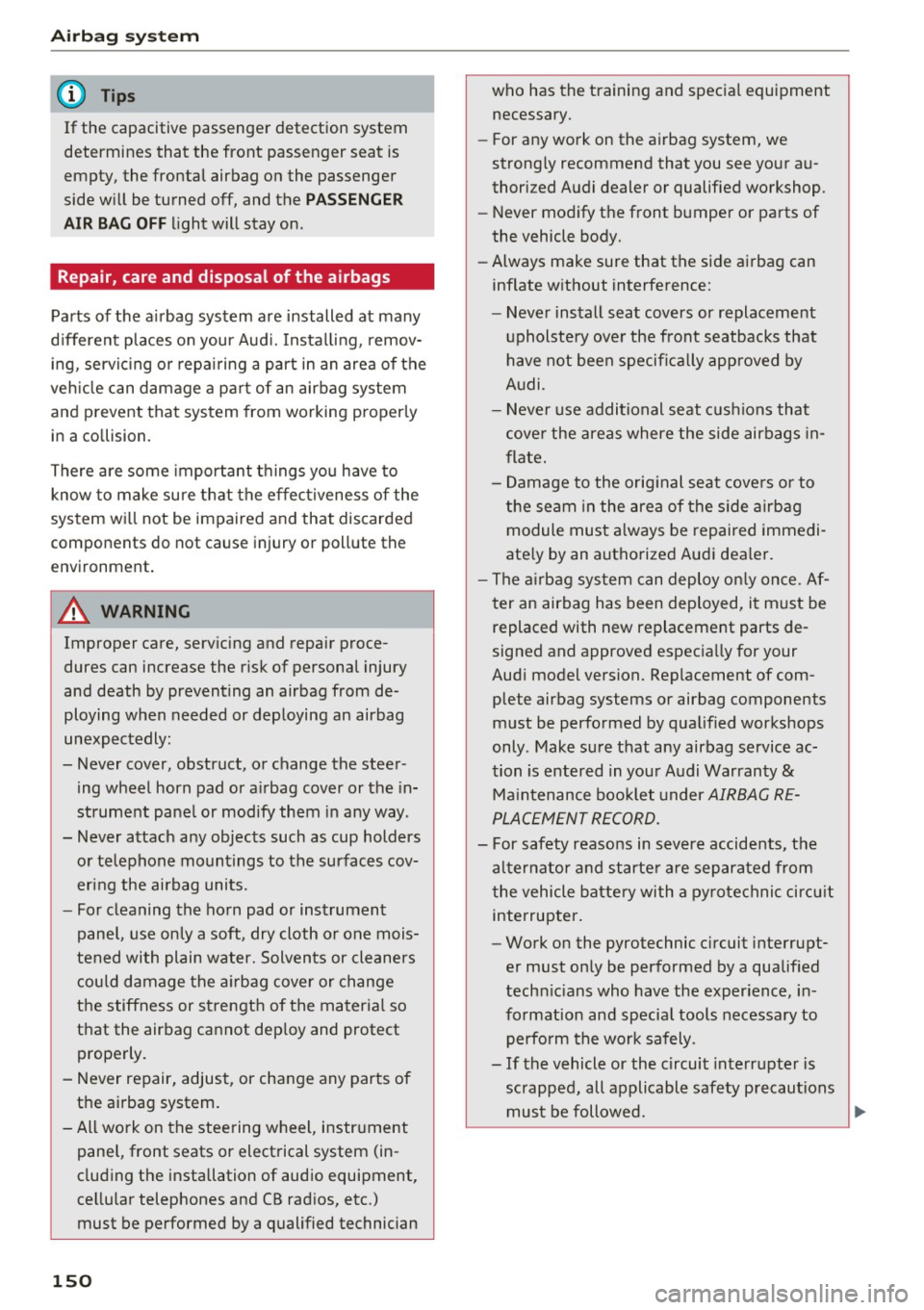

Airbag system
(D Tips
If the capacitive passenger detection system
determines that the front passenger seat is
empty, the frontal airbag on the passenger
side will be turned off, and the
PASSENGER
AIR BAG OFF
light will stay on.
Repair , care and disposal of the airbags
Parts of the airbag system are installed at many
different places on your Audi. Installing, remov­
ing, servicing or repairing a part in an area of the
vehicle can damage a part of an airbag system
and prevent that system from working properly
in a collision.
There are some important things you have to
know to make sure that the effectiveness of the
system will not be impaired and that discarded
components do not cause injury or pollute the
environment.
A WARNING
-Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing an airbag from de­
ploying when needed or deploying an airbag
unexpectedly:
- Never cover, obstruct, or change the steer­ ing wheel horn pad or airbag cover or the in­
strument panel or modify them in any way.
- Never attach any objects such as cup holders or telephone mountings to the surfaces cov­
ering the airbag units.
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one mois­
tened with plain water. Solvents or cleaners could damage the airbag cover or change
the stiffness or strength of the material so
that the airbag cannot deploy and protect
properly.
- Never repair, adjust, or change any parts of the airbag system.
- All work on the steering wheel, instrument
panel, front seats or electrical system (in­
cluding the installation of audio equipment,
cellular telephones and CB radios, etc.)
must be performed by a qualified technician
150
who has the training and special equipment necessary.
- For any work on the airbag system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified workshop.
- Never modify the front bumper or parts of
the vehicle body.
- Always make sure that the side airbag can
inflate without interference:
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi.
- Never use additional seat cushions that
cover the areas where the side airbags in­
flate.
- Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer.
- The airbag system can deploy only once. Af­
ter an airbag has been deployed, it must be
replaced with new replacement parts de­
signed and approved especially for your
Audi model version. Replacement of com­ plete airbag systems or airbag components
must be performed by qualified workshops
only . Make sure that any airbag service ac­
tion is entered in your Audi Warranty
&
Maintenance booklet under AIRBAG RE­
PLACEMENT RECORD.
- For safety reasons in severe accidents, the
alternator and starter are separated from
the vehicle battery with a pyrotechnic circuit
interrupter.
- Work on the pyrotechnic circuit interrupt­
er must only be performed by a qualified
technicians who have the experience, in­
formation and special tools necessary to perform the work safely.
- If the vehicle or the circuit interrupter is
scrapped, all applicable safety precautions must be followed.
~
