6Vehicle specifications
505
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications Maintenance data (fuel, oil level, etc.).......... 506
Fuel information ................ 523
6-2. Customization Customizable features ...... 526
6-3. Initialization Items to initialize ............... 528

506
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*: Unladen vehicles
Overall length 3930 mm (154.7 in.)
Overall width 1725 mm (67.9 in.)
Overall height*
2WD
models 1525 mm (60.0 in.)
4WD
models1540 mm (60.6 in.)
Wheelbase 2460 mm (96.9 in.)
TreadFront 1485 mm (58.5 in.)
Rear 1490 mm (58.7 in.)
Gross vehicle
mass
Gasoline
engine1590 kg (3505 lb.)
Diesel
engine2WD models
1625 kg (3583 lb.)
4WD models 1700 kg (3748 lb.)
Maximum
permissible axle
capacity
Front 895 kg (1973 lb.)
Rear 2WD models
825 kg (1819 lb.)
4WD models 865 kg (1907 lb.)
Drawbar load 50 kg (110 lb.)
To w i n g c a p a c i t y
With
brake 800 kg (1764 lb.)
Without
brake550 kg (1213 lb.)

507
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Vehicle identification

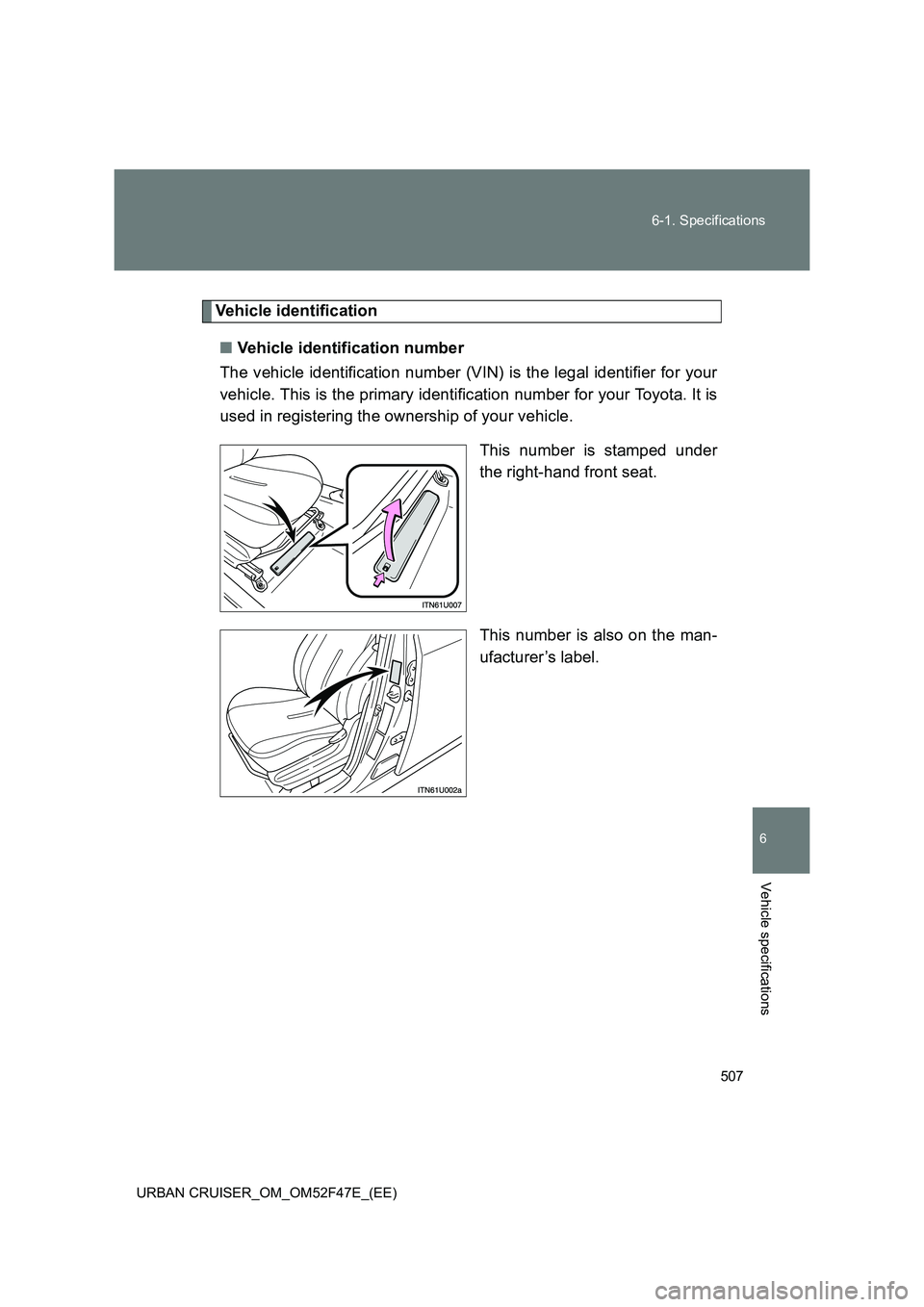

■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the man-
ufacturer’s label.

508
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)
■ Engine number
The engine number is stamped on the engine block as shown.
Gasoline engine
Diesel engine

509
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Engine
Gasoline engine
Diesel engine
Model 1NR-FE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 72.5 x 80.5 mm (2.85 x 3.17 in.)
Displacement 1329 cm3 (81.1 cu. in.)
Valve clearance
(engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Model 1ND-TV
Type 4-cylinder in line, 4-cycle, diesel
Bore and stroke 73.0 x 81.5 mm (2.87 x 3.21 in.)
Displacement 1364 cm3 (83.2 cu. in.)
Valve clearance
(engine cold)Intake: 0.11
 0.17 mm (0.004  0.007 in.)
Exhaust: 0.14  0.20 mm (0.006  0.008 in.)
Drive belt tension Automatic adjustment
NOTICE
■Drive belt type (1ND-TV engine only)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.

510
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)

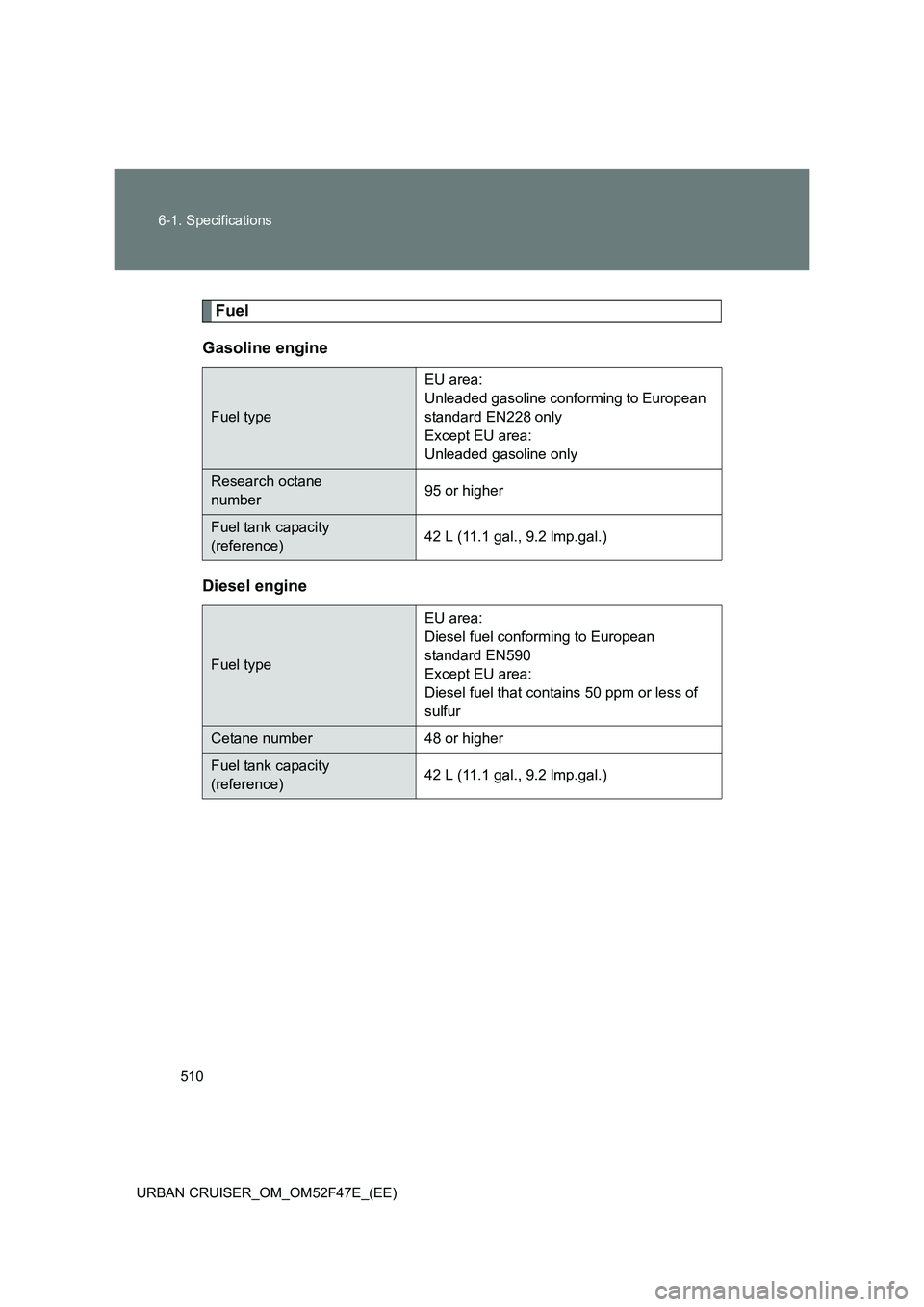

Fuel
Gasoline engine
Diesel engine
Fuel type EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number
95 or higher
Fuel tank capacity
(reference)42 L (11.1 gal., 9.2 lmp.gal.)
Fuel typeEU area:
Diesel fuel conforming to European
standard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of
sulfur
Cetane number 48 or higher
Fuel tank capacity
(reference)
42 L (11.1 gal., 9.2 lmp.gal.)

511
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Lubrication system
Gasoline engine
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Oil capacity
(Drain and refill —
reference)
With filter
Without filter 3.4 L (3.6 qt., 3.0 Imp.qt.)
3.2 L (3.4 qt., 2.8 Imp.qt.)

512
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)

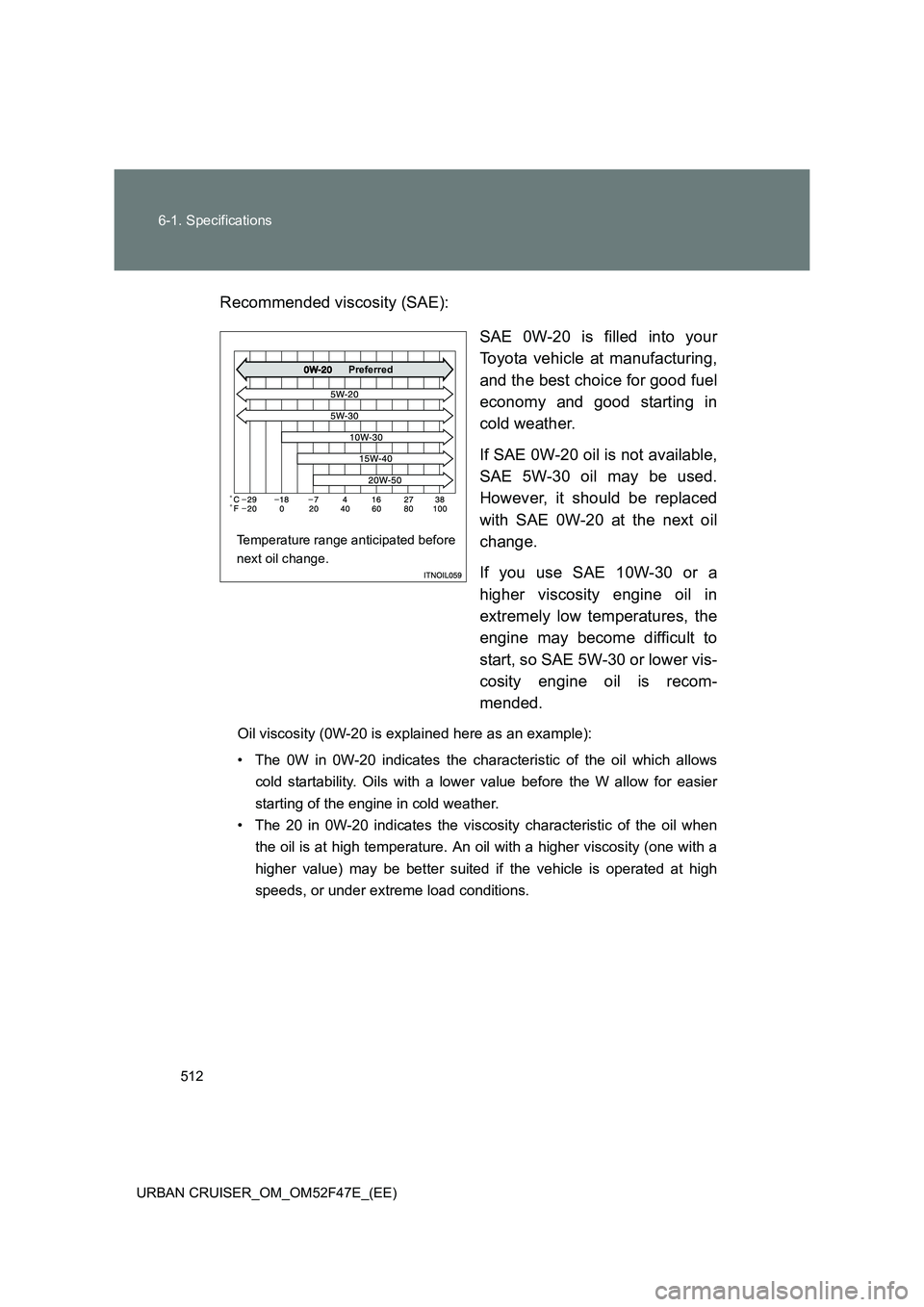

Recommended viscosity (SAE): SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred
