2014 TOYOTA URBAN CRUISER Owners Manual

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
FuseAmpereCircuit
9 ABS1/VSC1 50 A ABS, VSC
10 HTR 40 A Air conditioning system 11 RDI 30 A Electric cooling fan
12
HTR SUB1*3
30 A Air conditioning system
HTR SUB2*7
13 H-LP CLN/PWR
HTR*530 A Air conditioning system
HTR SUB3
*7
14 FR DEF 20 A No circuit
15 ABS2/VSC2 30 A ABS, VSC
16 H-LP MAIN 30 A “H-LP HI LH”, “H-LP HI RH”, “H-LP
RH/H-LP LO RH”, “H-LP LH/H-LP
LO LH” fuses
17 ST 30 A Starting system
18 S-LOCK 20 A Smart entry & start system
19 DOME 15 A Interior light, personal lights, lug-
gage compartment light, smart
entry & start system, wireless
remote control, audio system
20 ECU-B 7.5 A Daytime running light system,
power windows, power door lock
system, smart entry & start system,
gauges and meters, air condition-
ing system, VSC, Active Torque
Control 4WD system, Stop & Start
system

410
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
*1: Gasoline engine (vehicles with a Stop & Start system)
*2: Gasoline engine (vehicles without a Stop & Start system)
*3: Gasoline engine (vehicles with PTC heater)
*4: Gasoline engine (vehicles without PTC heater)
*5: Diesel engine (vehicles with power heater)
*6: Diesel engine (vehicles without power heater)
*7: Diesel engine (vehicles with PTC heater)
*8: Diesel engine (vehicles without PTC heater)
FuseAmpereCircuit
21
ALT-S*1, 2, 3, 47.5 A Charging system, fuel system
F/PMP*5, 6, 7, 830 A
22 ETCS 10 A Electronic throttle control system
23 HAZ 10 A Turn signal lights, emergency
flashers
24
BBC*140 A Stop & Start system
AMT*5, 6, 7, 850 A No circuit
25 H-LP RH/H-LP
LO RH 10 A Right-hand headlight
26 H-LP LH/H-LP
LO LH 10 A Left-hand headlight
27 EFI2
*1, 2, 3, 4
10 A Multi-port fuel injection system/
sequential multi-port fuel injection
system
ECD2
*5, 6, 7, 8
28 ECD3*5, 6, 7, 87.5 A Multi-port fuel injection system/
sequential multi-port fuel injection
system

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■

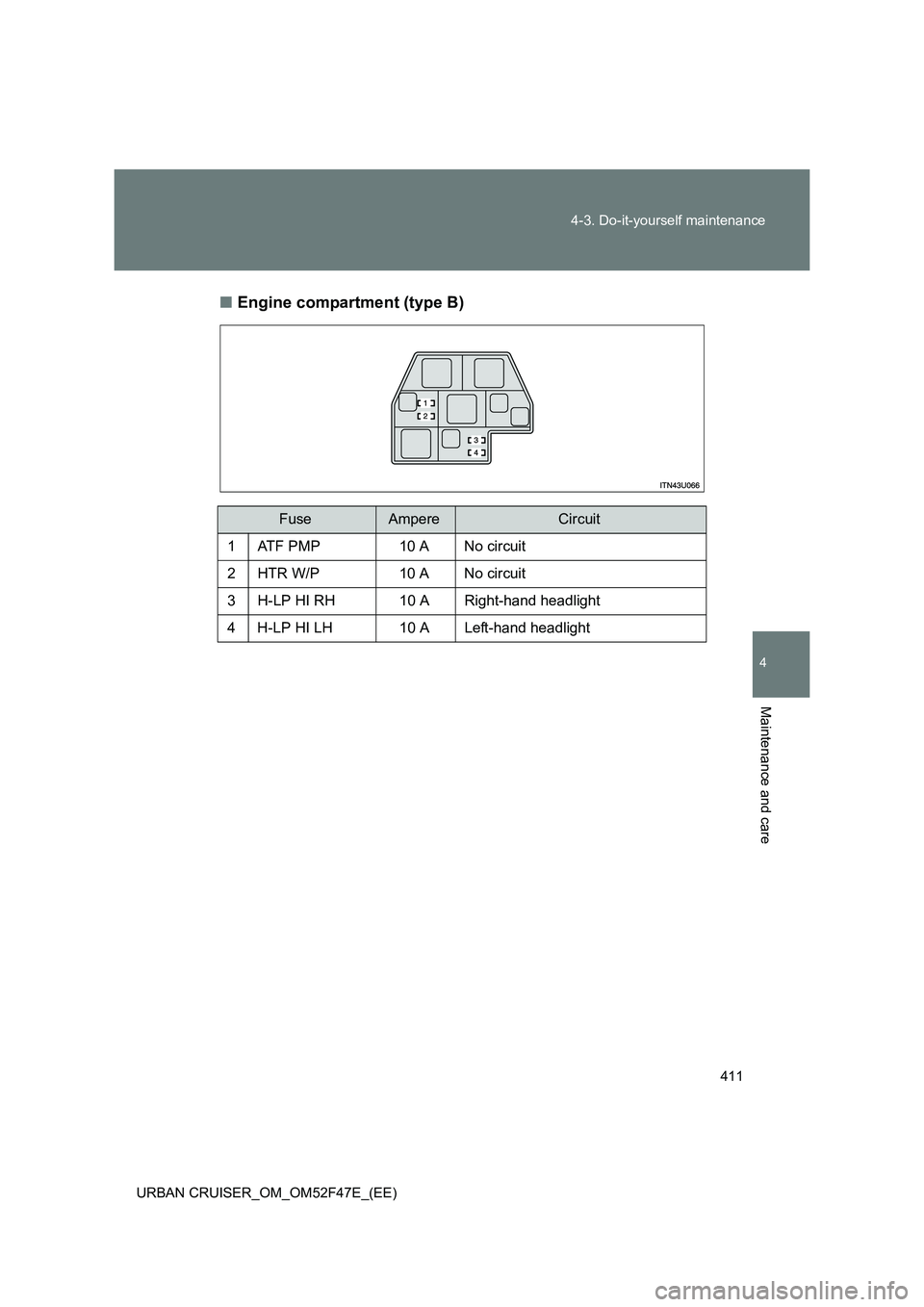

Engine compartment (type B)
FuseAmpereCircuit
1AT F P M P10 A No circuit
2HTR W/P10 A No circuit
3H-LP HI RH10 A Right-hand headlight
4H-LP HI LH
10 A Left-hand headlight

412
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
■ Under the instrument panel (type A)
Fuse nameAmpereCircuit
1 TA I L
*110 A
Front position lights, tail lights,
license plate lights, manual head-
light leveling dial, multi-port fuel
injection system/sequential multi-
port fuel injection system, instru-
ment cluster lights
PA N E L 2
*27.5 A
2 PANEL1
*27.5 A Switch illuminations, instrument
cluster lights, steering switches,
Stop & Start system, gauges and
meters
3 A/C 7.5 A Air conditioning system, rear win-
dow defogger, power heater

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

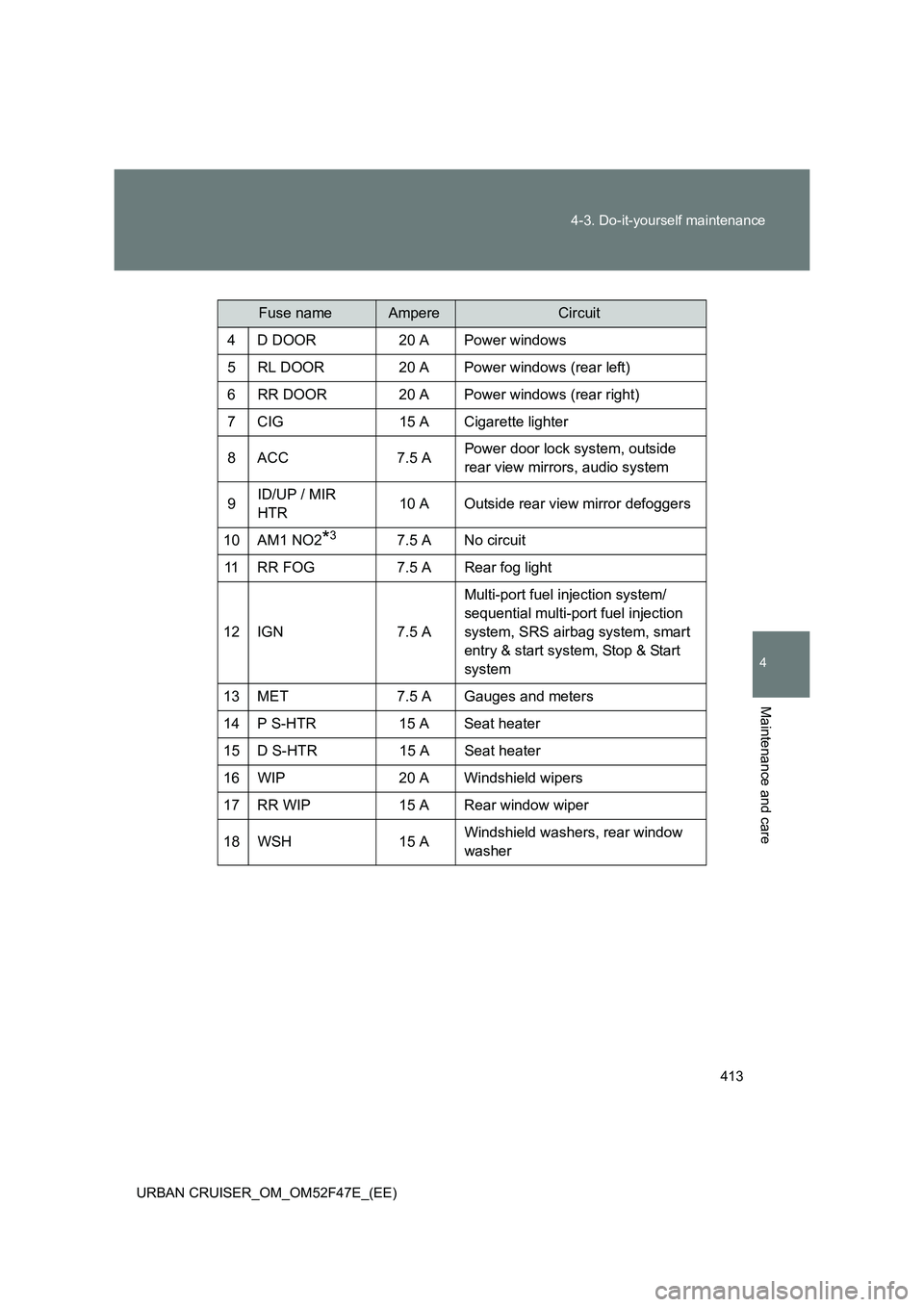

Fuse nameAmpereCircuit
4 D DOOR 20 A Power windows
5 RL DOOR 20 A Power windows (rear left)
6 RR DOOR 20 A Power windows (rear right)
7 CIG 15 A Cigarette lighter
8 ACC 7.5 A Power door lock system, outside
rear view mirrors, audio system
9 ID/UP / MIR
HTR 10 A Outside rear view mirror defoggers
10 AM1 NO2
*37.5 A No circuit
11 RR FOG 7.5 A Rear fog light
12 IGN 7.5 A Multi-port fuel injection system/
sequential multi-port fuel injection
system, SRS airbag system, smart
entry & start system, Stop & Start
system
13 MET 7.5 A Gauges and meters
14 P S-HTR 15 A Seat heater
15 D S-HTR 15 A Seat heater
16 WIP 20 A Windshield wipers
17 RR WIP 15 A Rear window wiper
18 WSH 15 A Windshield washers, rear window
washer

414
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
Fuse nameAmpereCircuit
19 ECU-IG 10 A Daytime running light system, ABS,
electric power steering, power win-
dows, power door lock system,
VSC, Active Torque Control 4WD
system, smart entry & start system,
Stop & Start system, electric cool-
ing fan
20 GAUGE 10 A Charging system, turn signal lights,
emergency flashers, back-up
lights, air conditioning system, rear
window defogger, gauges and
meters
21 OBD2 7.5 A On-board diagnosis system
22 STOP 10 A Stop lights, high mounted stop-
light, multi-port fuel injection sys-
tem/sequential multi-port fuel
injection system, ABS, VSC
23 D/L 25 A Power door lock system, double
locking system
24 FR FOG 15 A Front fog lights
25 4WD 7.5 A Active Torque Control 4WD system

415
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

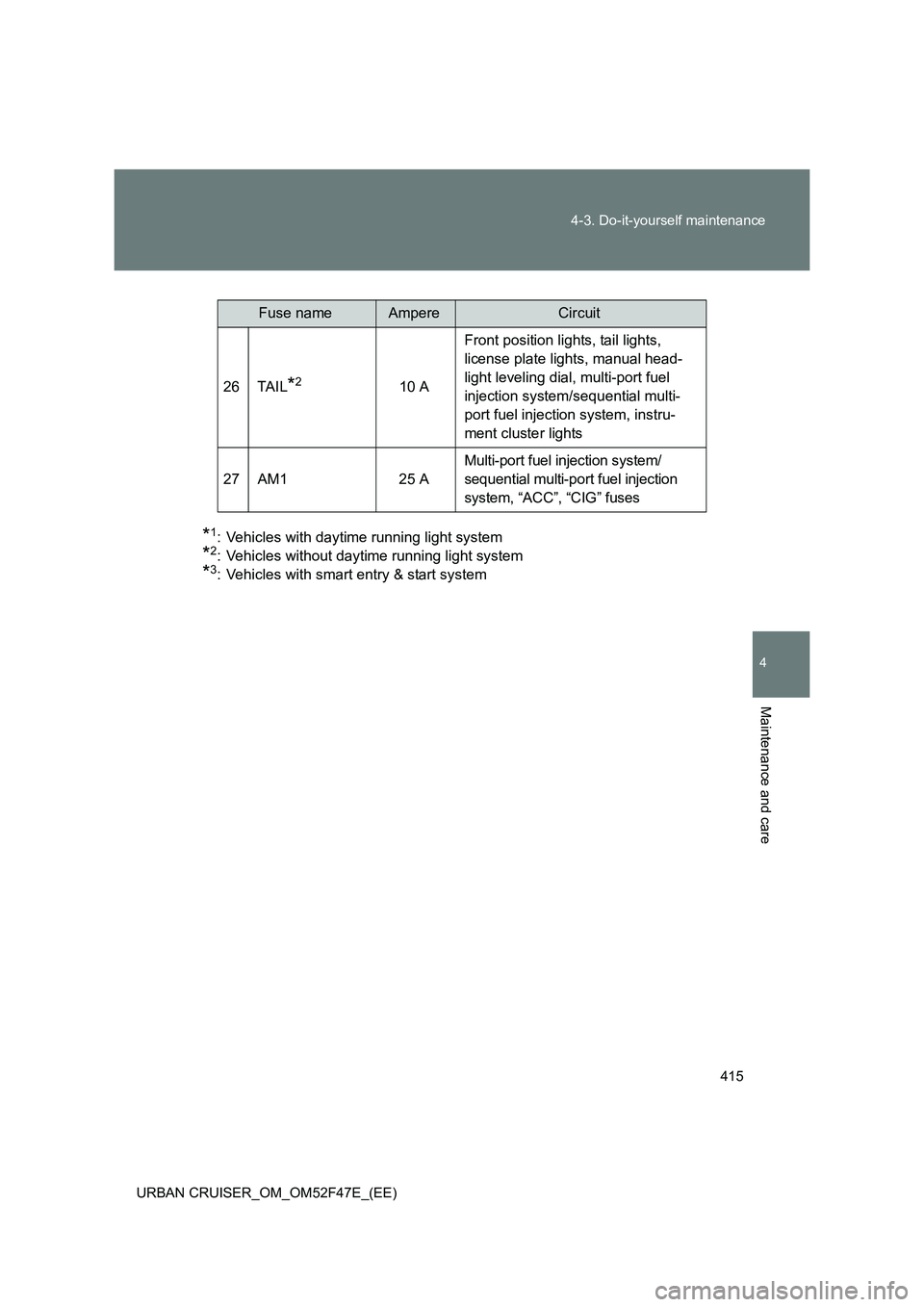

*1: Vehicles with daytime running light system
*2: Vehicles without daytime running light system
*3: Vehicles with smart entry & start system
Fuse nameAmpereCircuit
26 TAIL
*210 A Front position lights, tail lights,
license plate lights, manual head-
light leveling dial, multi-port fuel
injection system/sequential multi-
port fuel injection system, instru-
ment cluster lights
27 AM1 25 A Multi-port fuel injection system/
sequential multi-port fuel injection
system, “ACC”, “CIG” fuses

416
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

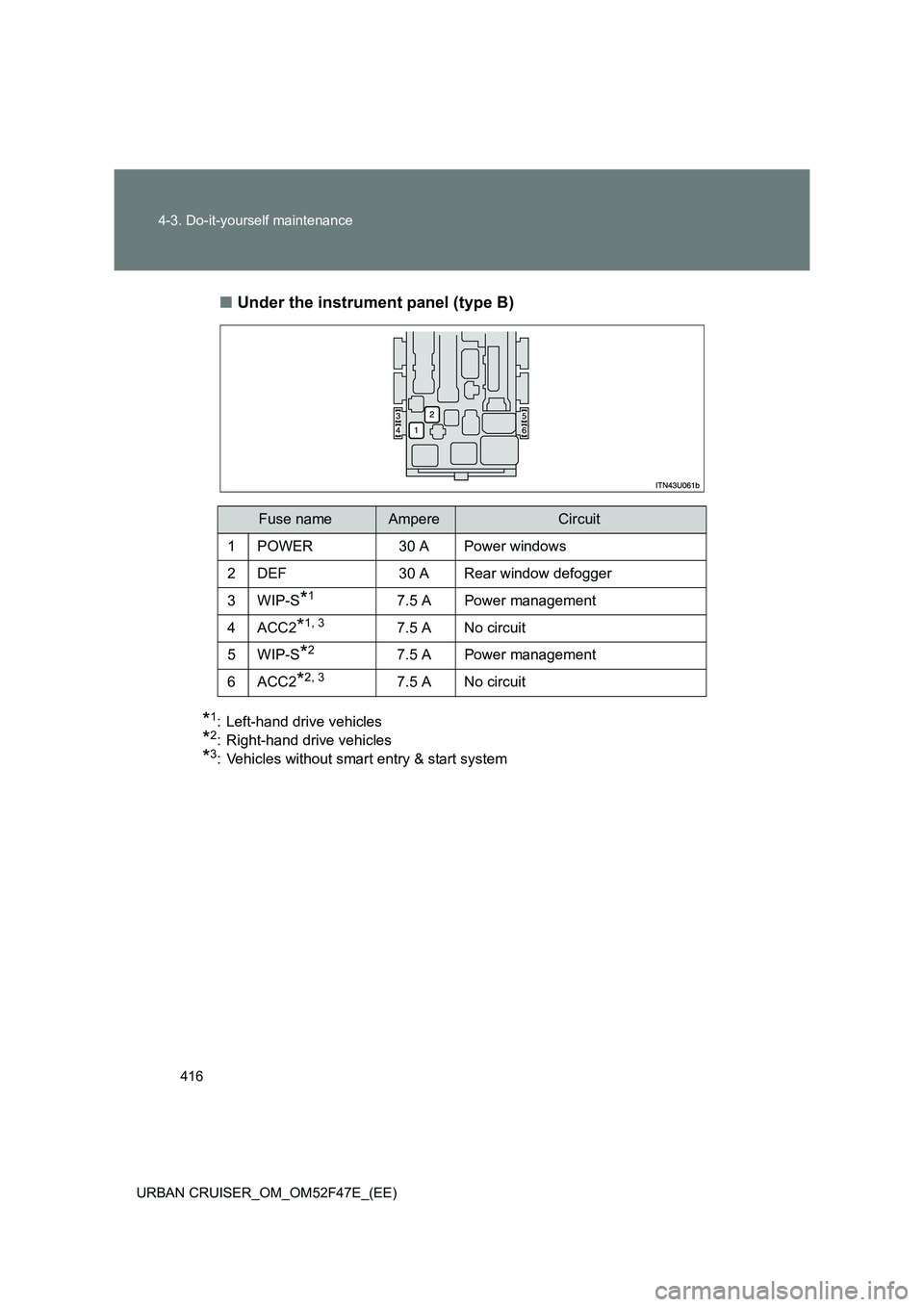

■ Under the instrument panel (type B)
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
*3: Vehicles without smart entry & start system
Fuse nameAmpereCircuit
1 POWER 30 A Power windows
2 DEF 30 A Rear window defogger
3WIP-S
*17.5 A Power management
4ACC2
*1, 37.5 A No circuit
5WIP-S
*27.5 A Power management
6ACC2
*2, 37.5 A No circuit
