2014 TOYOTA URBAN CRUISER Owners Manual

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( →P. 418)
● If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.

418
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 522)
■ Front bulb locations
Front turn signal light
Front position light
Headlight
Front fog light
(if equipped)

419
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■
Rear bulb locations
Back-up light
or rear fog light
License plate lights
Stop/tail light
Rear turn signal lightBack-up light
or rear fog light

420
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
Replacing light bulbs ■ Headlight
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

421
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■

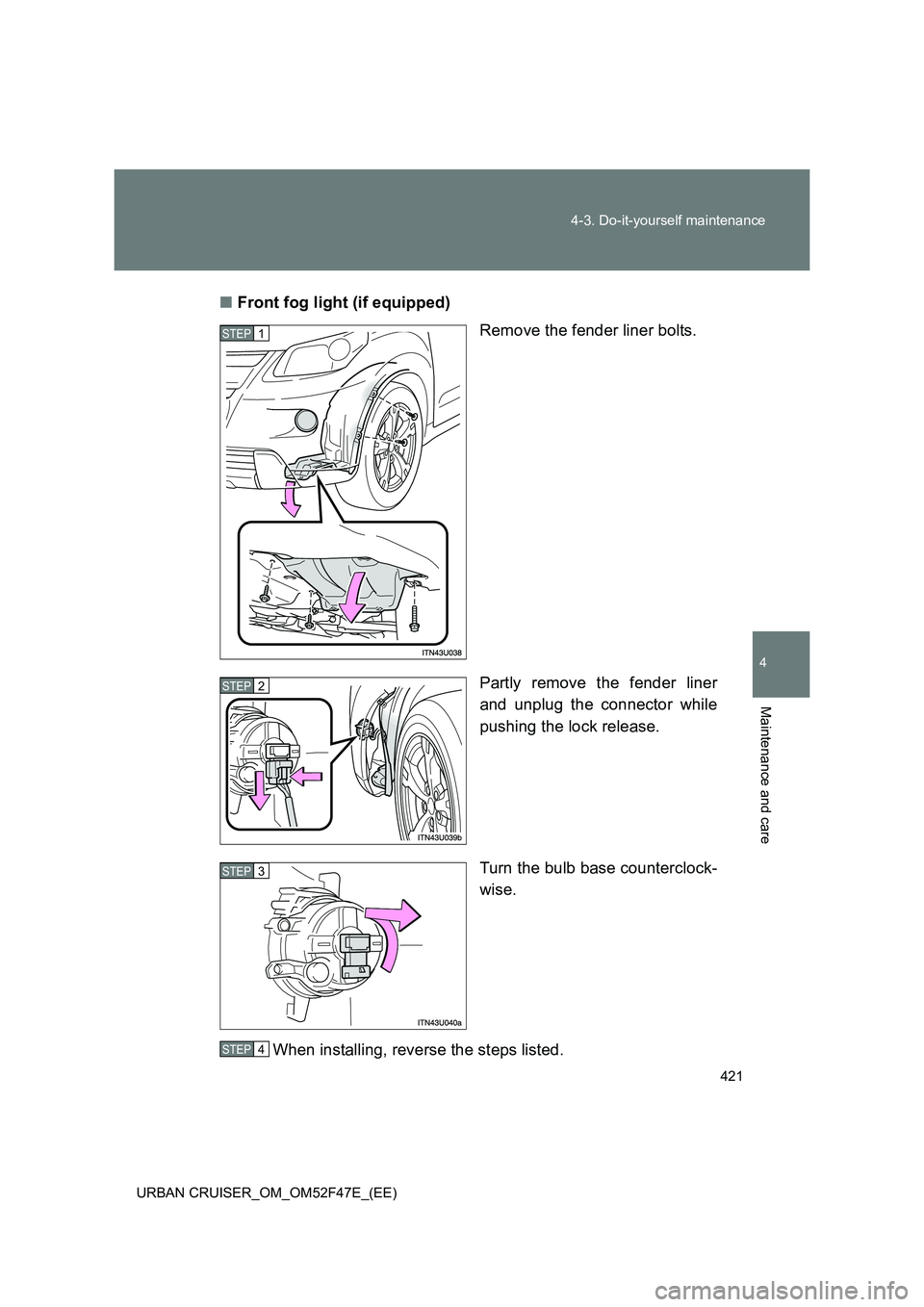

Front fog light (if equipped)
Remove the fender liner bolts.
Partly remove the fender liner
and unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

422
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
■ Front position light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■
Front turn signal light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3

424
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
■ Stop/tail, rear turn signal and back-up light/rear fog light
Open the back door and remove
the cover.
Use a flathead screwdriver which
is wrapped with a cloth.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light/rear fog light
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4
