2014 TOYOTA URBAN CRUISER Owners Manual

297
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
Using the steering switches∗
Turning on the powerPress when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time the button is pressed. If a CD is not
inserted, that mode will be skipped.
FM (1, 2, 3) →CD player →AUX →MW →DAB (if equipped)
∗: If equipped
Some audio features can be cont rolled using the switches on the
steering wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.
Vo lu m e
Radio: Select radio stations
CD: Select tracks, files and discs
Power on, select audio
source

298
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)
Adjusting the volume Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down the button to continue increasing or decreasing the volume.
Selecting a radio stationIn AF-ON mode the radio changes frequency to the strongest signal
of the selected station. Press to select the radio mode.
Press “∧” or “ ∨” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
Selecting a track/file
Press to select the CD mode.
Press “∧” or “ ∨” on to select the desired track/file.
CAUTION
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2

299
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone)∗
∗: If equipped
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without operating the cellular phone.
■ Hands-free system quick guide
Setting a cellular phone. ( →P. 308)
Adding an entry to the phonebook. (Up to 20 names can be
stored.) ( →P. 322)
Dialing by inputting a name. ( →P. 310)
■ Hands-free function list
TitlePage
Using the hands-free system
■ Using the hands-free system for the first
time
P. 306
Making a phone call
■ Making a phone call
• Dialing by inputting a name
• Speed dialing
• Redial
• Call back
■ Receiving a phone call
• Answering the phone
• Refusing the call
■ Transferring a call
■ Using a call history memory
• Dialing by inputting a name
• Storing data in the phone book
• Deleting
P. 310
STEP1
STEP2
STEP3

300
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)
■ Conditions under which the system will not operate
●If using a cellular phone that does not support Bluetooth
®.
● If the cellular phone is switched off.
● If you are outside service range.
● If the cellular phone is not connected.
● If the cellular phone’s battery is low.
■ Bluetooth
® antenna
The antenna is built into the display. If the cellular phone is behind the seat
or in the console box, or touching or covered by metal objects, connection
status may deteriorate.
■ Signal status
This display may not correspond exactly with the cellular phone itself.
TitlePage
Setting a cellular phone
■ Functions and operation proceduresP. 314
Security and system setup
■ Security setting items and operation
procedure
■ System setup items and operation
procedure
P. 318
Using the phone book
■ Adding a new phone number
■ Setting speed dial
■ Changing a registered name
■ Deleting registered name
■ Deleting speed dial
■ Listing the registered data
P. 322

301
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■
When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.
■ About Bluetooth
®
■Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.0 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone, and take OPP service individually. Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

302
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)

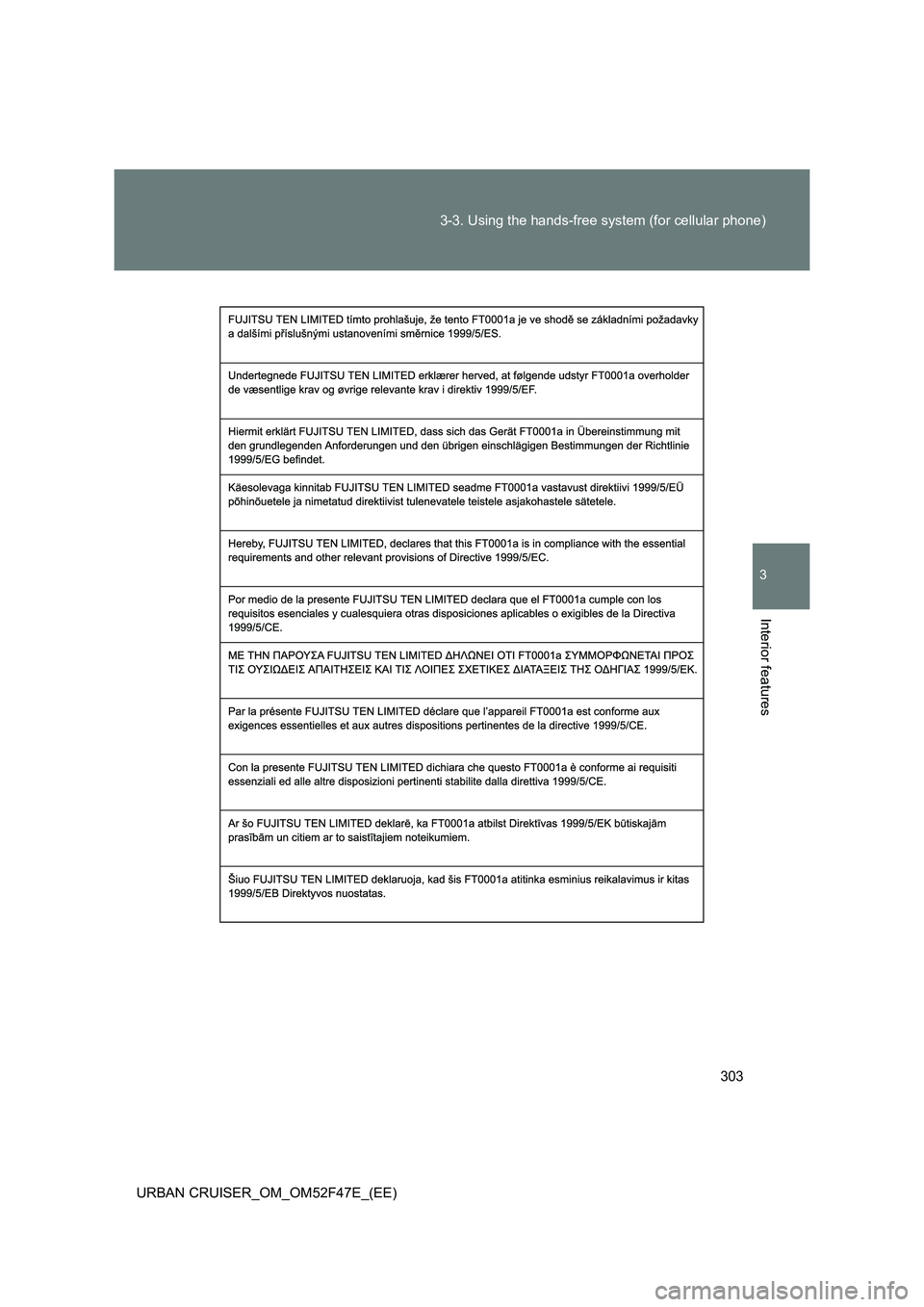

■ Certification for the hands-free system

303
3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

304
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_OM_OM52F47E_(EE)
