4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
●When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and shift
the shift lever in “R”.
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

370
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
Engine compar tment
Gasoline engine
Washer fluid tank (→P. 386)
Engine oil filler cap (→ P. 373)
Battery ( →P. 380)
Fuse box ( →P. 402)Engine coolant reservoir
(→ P. 377)
Radiator ( →P. 379)
Condenser ( →P. 379)
Electric cooling fan
Engine oil level dipstick (→ P. 372)

371
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
Diesel engine
Engine oil filler cap
(→ P. 373)
Fuel filter ( →P. 497)
Battery ( →P. 380)
Fuse box ( →P. 402)
Intercooler ( →P. 379)
Electric cooling fan
Condenser ( →P. 379)Radiator ( →P. 379)
Engine oil level dipstick (→ P. 372)
Engine coolant reservoir (→ P. 377)
Washer fluid tank ( →P. 386)
Fuse box (if equipped) (→ P. 402)

372
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

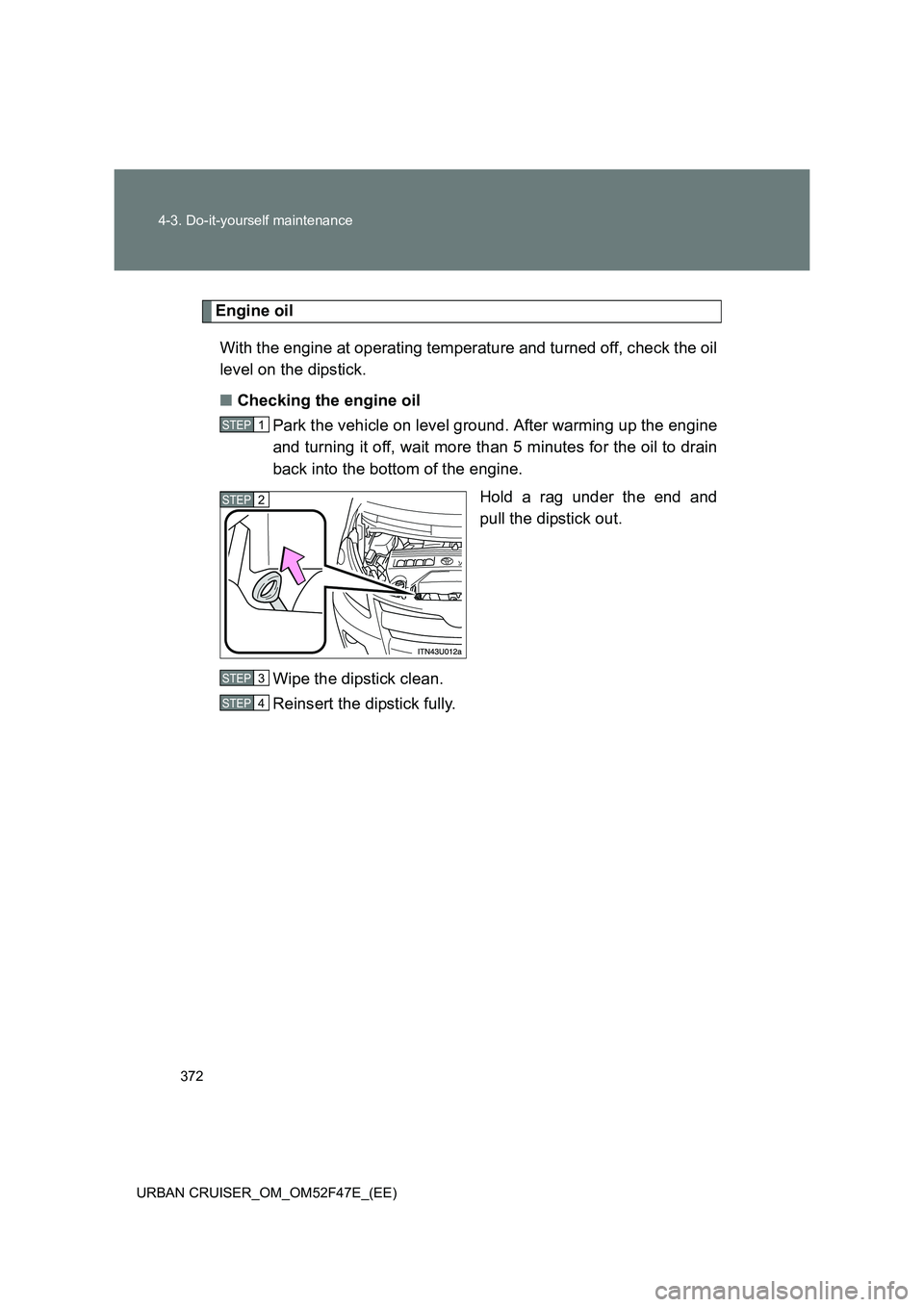

Engine oil With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
STEP1
STEP2
STEP3
STEP4

373
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
STEP5
STEP6

374
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
Make sure to check the oil type and prepare the items needed before
adding oil. Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
About 1.5 L (1.6 qt., 1.3 Imp.qt.) is required to raise the oil level from low to
full on the dipstick.
Engine oil selection →P. 5 11
Items Clean funnel
■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
●When the engine is new, for example dire ctly after purchasing the vehicle
or after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing,
or when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
STEP1
STEP2
STEP3

375
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■
After changing the engine oil (diesel engine only)
The oil change system should be reset. Perform the following procedures:
Vehicles without smart entry & start system
Switch the display to trip meter A ( →P. 196) when the engine is run-
ning.
Turn the engine switch to the “LOCK” position.
While pressing the “MODE” button, set the engine switch to the
“ON” position (but do not start the engine because otherwise the
reset mode will be canceled). Cont inue to press and hold the button
until the multi-information display indicates that the reset is com-
plete.
Vehicles with smart entry & start system Switch the display to trip meter A ( →P. 196) when the engine is run-
ning.
Turn the “ENGINE START STOP” switch OFF.
While pressing the “MODE” button, set the “ENGINE START
STOP” switch to the IGNITION ON mode (but do not start the
engine because otherwise the reset mode will be canceled). Con-
tinue to press and hold the button until the multi-information display
indicates that the reset is complete.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

376
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■ Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota deal er or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, as the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
