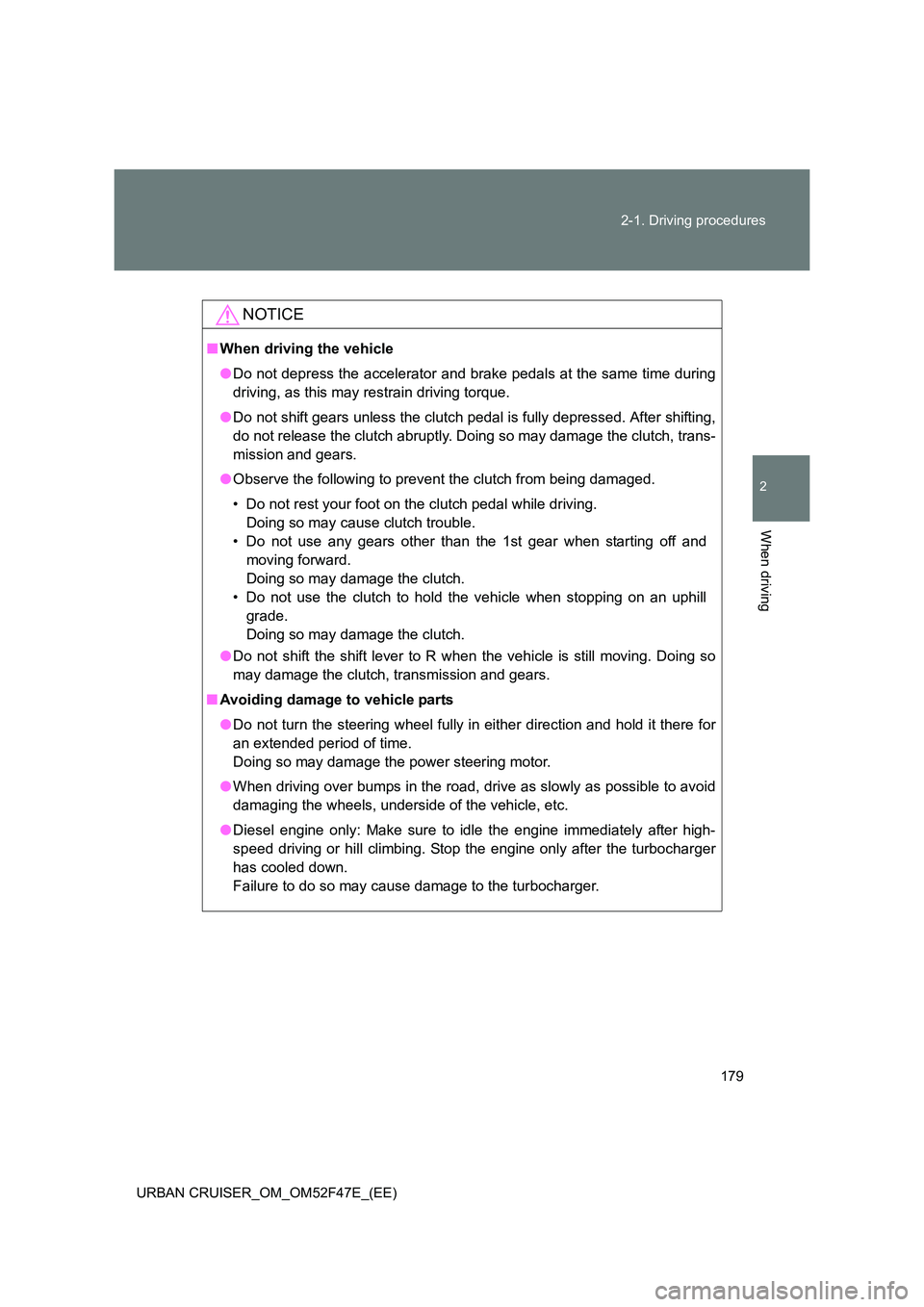

2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
NOTICE
■
When driving the vehicle
●Do not depress the accelerator and brake pedals at the same time during
driving, as this may restrain driving torque.
● Do not shift gears unless the clutch pedal is fully depressed. After shifting,
do not release the clutch abruptly. Doing so may damage the clutch, trans-
mission and gears.
● Observe the following to prevent the clutch from being damaged.
• Do not rest your foot on the clutch pedal while driving.
Doing so may cause clutch trouble.
• Do not use any gears other than the 1st gear when starting off and moving forward.
Doing so may damage the clutch.
• Do not use the clutch to hold the vehicle when stopping on an uphill grade.
Doing so may damage the clutch.
● Do not shift the shift lever to R when the vehicle is still moving. Doing so
may damage the clutch, transmission and gears.
■ Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
● When driving over bumps in the road, dr ive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
● Diesel engine only: Make sure to idle the engine immediately after high-
speed driving or hill climbing. Stop the engine only after the turbocharger
has cooled down.
Failure to do so may cause damage to the turbocharger.

223
2-4. Using other driving systems
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

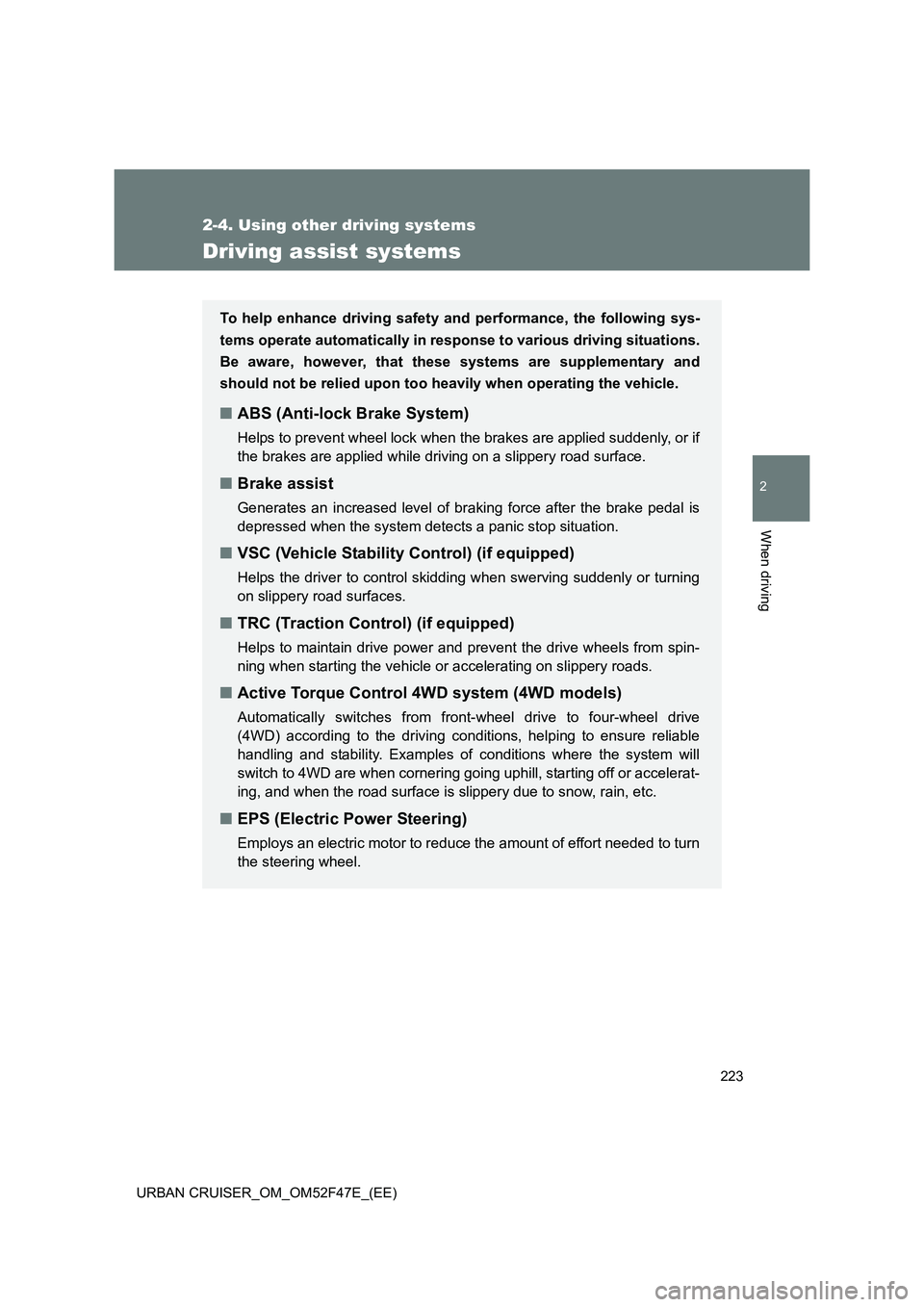

Driving assist systems
To help enhance driving safety and performance, the following sys-
tems operate automatically in response to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavily when operating the vehicle.
■ ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface.
■Brake assist
Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation.
■VSC (Vehicle Stability Control) (if equipped)
Helps the driver to control skidding when swerving suddenly or turning
on slippery road surfaces.
■TRC (Traction Control) (if equipped)
Helps to maintain drive power and pr event the drive wheels from spin-
ning when starting the vehicle or accelerating on slippery roads.
■ Active Torque Control 4WD system (4WD models)
Automatically switches from front -wheel drive to four-wheel drive
(4WD) according to the driving conditions, helping to ensure reliable
handling and stability. Examples of conditions where the system will
switch to 4WD are when cornering going uphill, starting off or accelerat-
ing, and when the road surface is slippery due to snow, rain, etc.
■ EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to turn
the steering wheel.

229
2-4. Using other driving systems
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

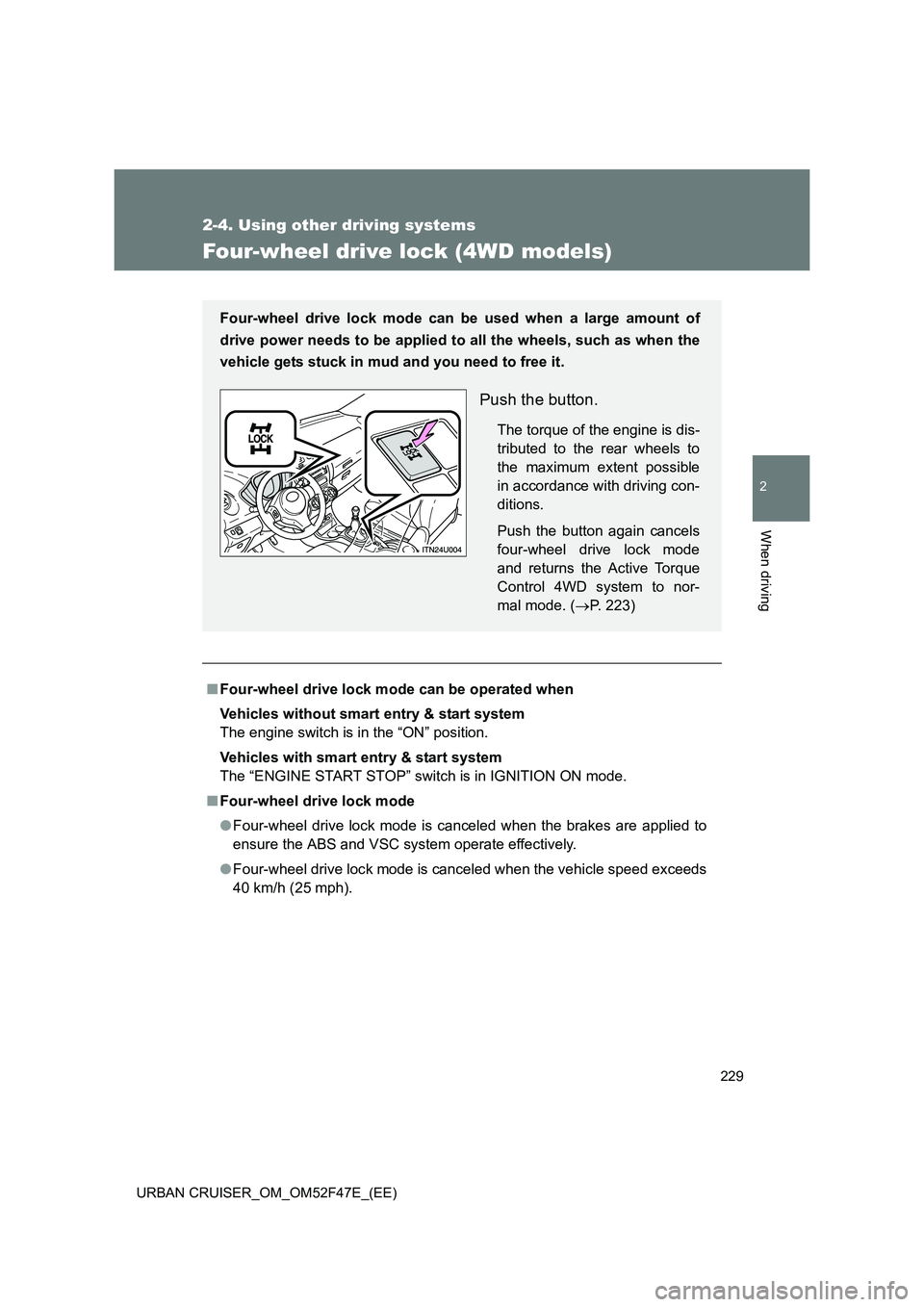

Four-wheel drive lock (4WD models)
■Four-wheel drive lock mode can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Four-wheel drive lock mode
●Four-wheel drive lock mode is canceled when the brakes are applied to
ensure the ABS and VSC system operate effectively.
● Four-wheel drive lock mode is canceled when the vehicle speed exceeds
40 km/h (25 mph).
Four-wheel drive lock mode can be used when a large amount of
drive power needs to be applied to all the wheels, such as when the
vehicle gets stuck in mud and you need to free it.
Push the button.
The torque of the engine is dis-
tributed to the rear wheels to
the maximum extent possible
in accordance with driving con-
ditions.
Push the button again cancels
four-wheel drive lock mode
and returns the Active Torque
Control 4WD system to nor-
mal mode. (
→P. 223)

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

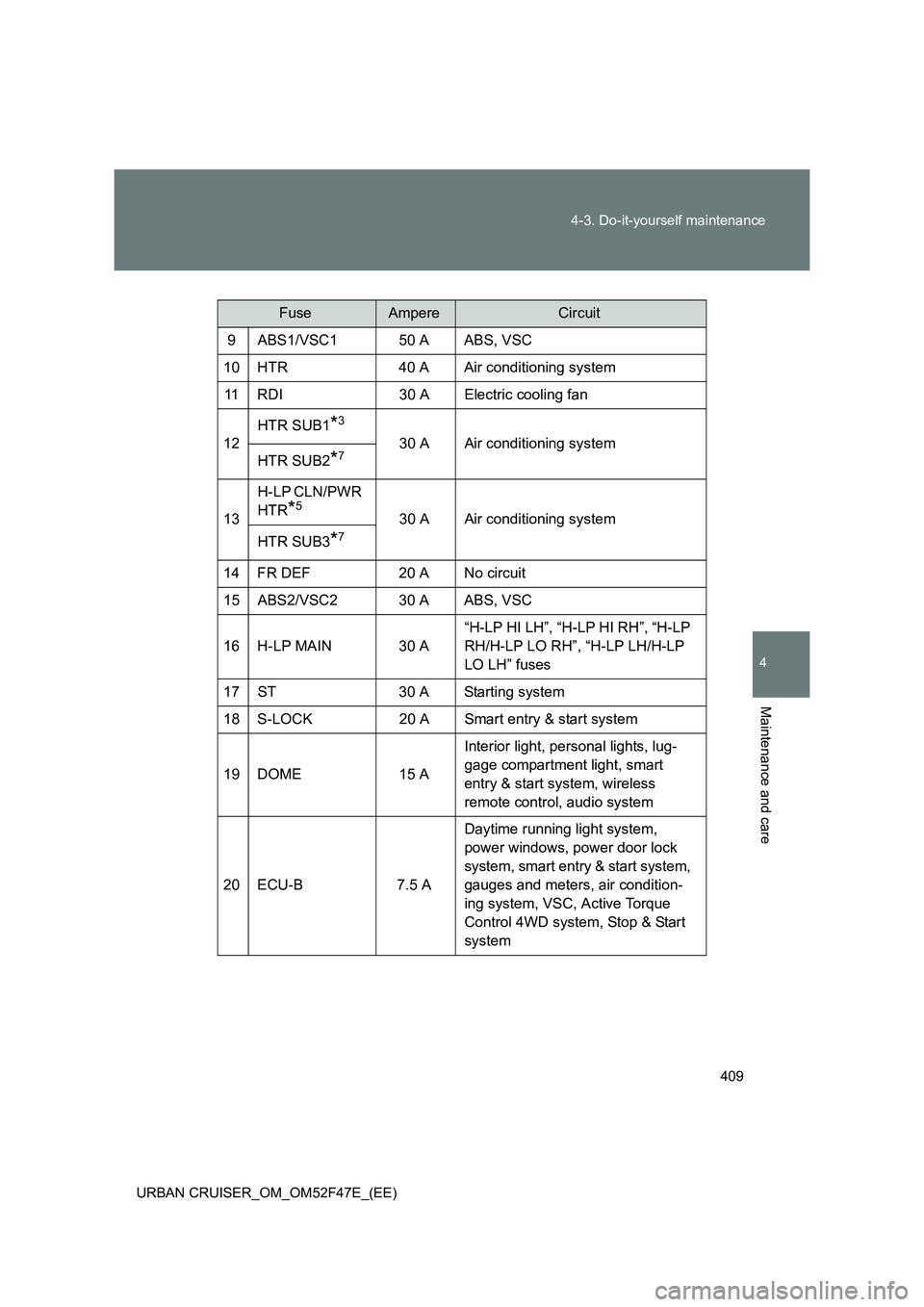

FuseAmpereCircuit
9 ABS1/VSC1 50 A ABS, VSC
10 HTR 40 A Air conditioning system 11 RDI 30 A Electric cooling fan
12
HTR SUB1*3
30 A Air conditioning system
HTR SUB2*7
13 H-LP CLN/PWR
HTR*530 A Air conditioning system
HTR SUB3
*7
14 FR DEF 20 A No circuit
15 ABS2/VSC2 30 A ABS, VSC
16 H-LP MAIN 30 A “H-LP HI LH”, “H-LP HI RH”, “H-LP
RH/H-LP LO RH”, “H-LP LH/H-LP
LO LH” fuses
17 ST 30 A Starting system
18 S-LOCK 20 A Smart entry & start system
19 DOME 15 A Interior light, personal lights, lug-
gage compartment light, smart
entry & start system, wireless
remote control, audio system
20 ECU-B 7.5 A Daytime running light system,
power windows, power door lock
system, smart entry & start system,
gauges and meters, air condition-
ing system, VSC, Active Torque
Control 4WD system, Stop & Start
system

414
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

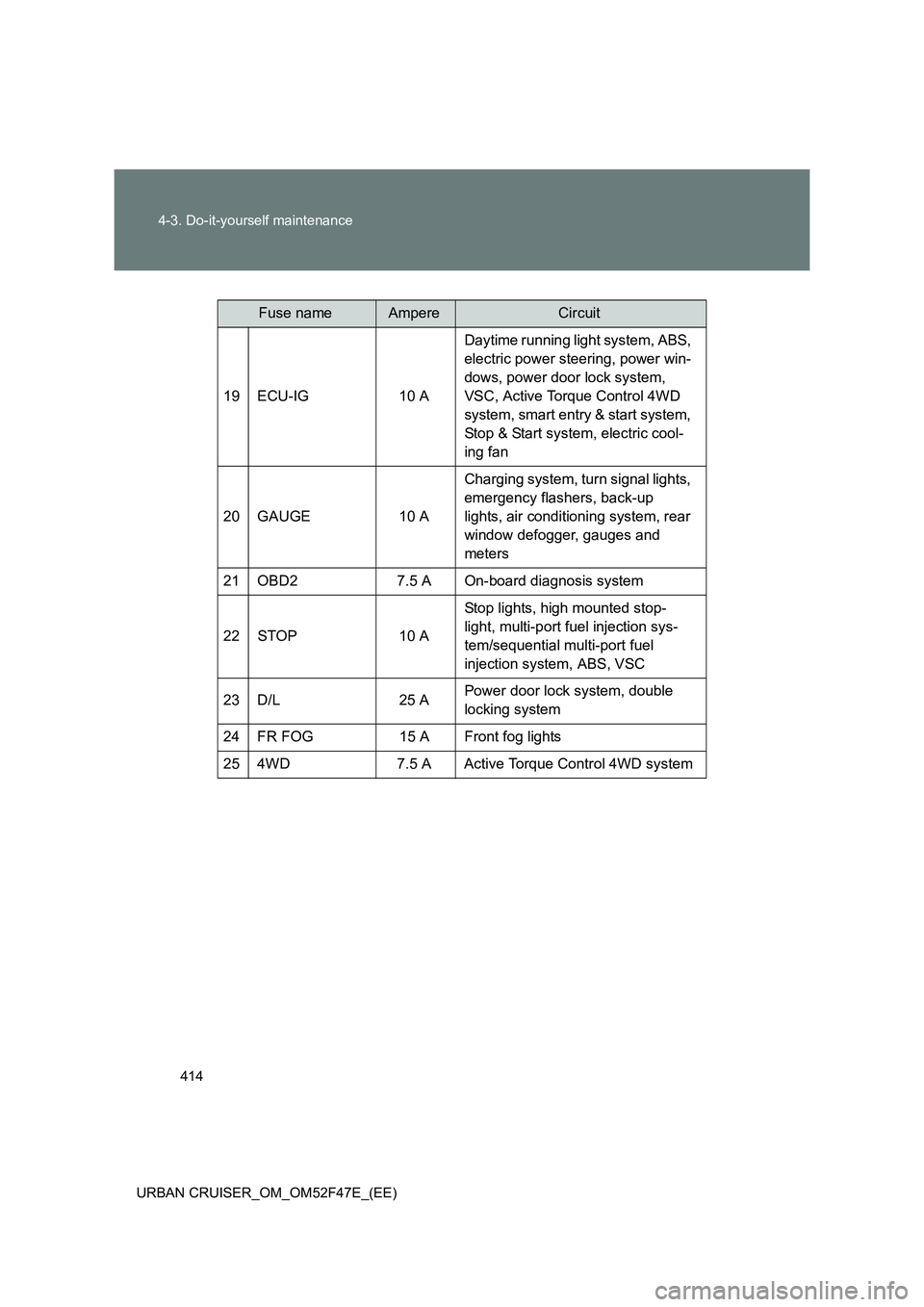

Fuse nameAmpereCircuit
19 ECU-IG 10 A Daytime running light system, ABS,
electric power steering, power win-
dows, power door lock system,
VSC, Active Torque Control 4WD
system, smart entry & start system,
Stop & Start system, electric cool-
ing fan
20 GAUGE 10 A Charging system, turn signal lights,
emergency flashers, back-up
lights, air conditioning system, rear
window defogger, gauges and
meters
21 OBD2 7.5 A On-board diagnosis system
22 STOP 10 A Stop lights, high mounted stop-
light, multi-port fuel injection sys-
tem/sequential multi-port fuel
injection system, ABS, VSC
23 D/L 25 A Power door lock system, double
locking system
24 FR FOG 15 A Front fog lights
25 4WD 7.5 A Active Torque Control 4WD system

5
441
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)

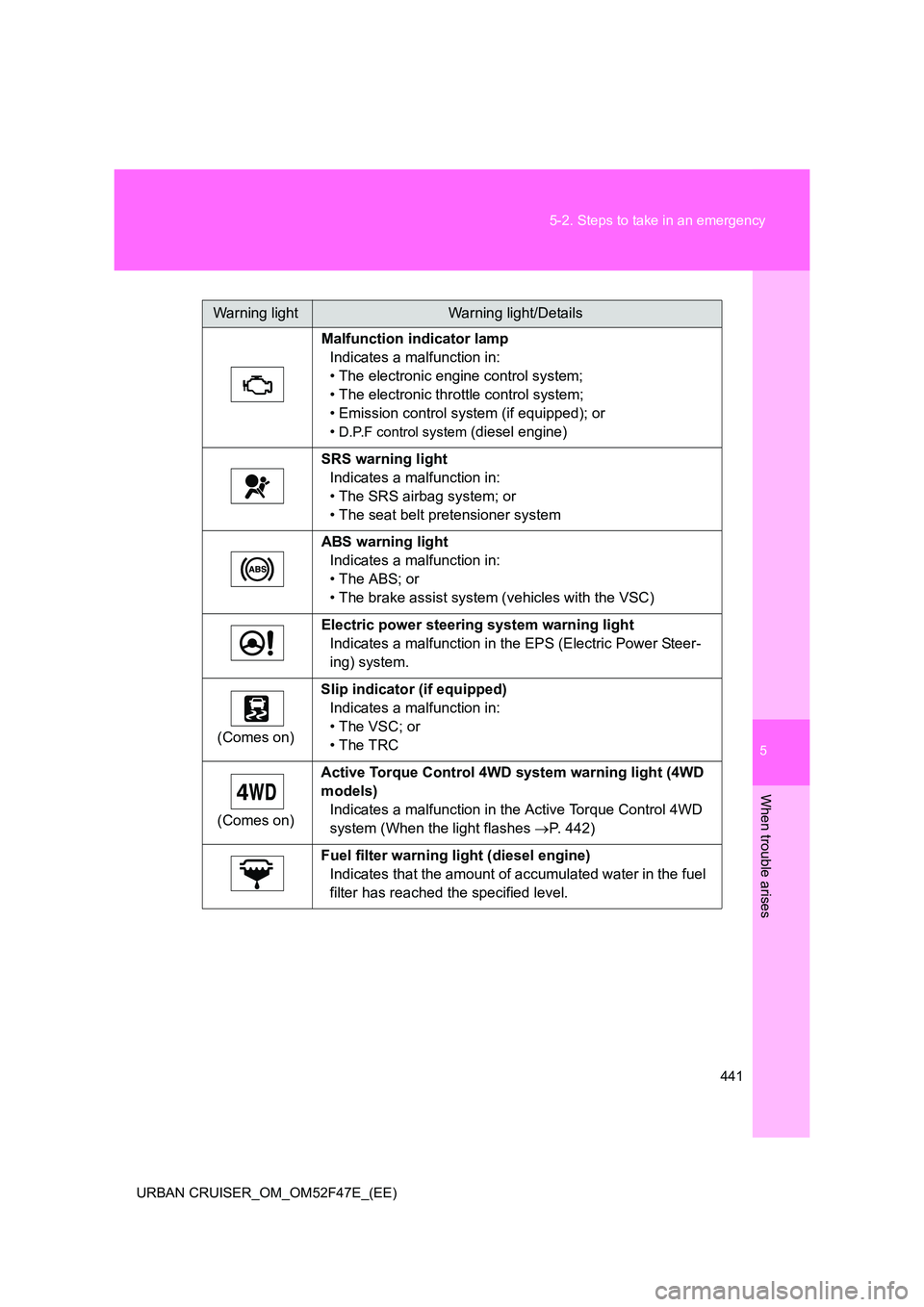

Warning lightWarning light/Details
Malfunction indicator lamp Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• Emission control system (if equipped); or
•
D.P.F control system (diesel engine)
SRS warning light Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system (vehicles with the VSC)
Electric power steering system warning light Indicates a malfunction in the EPS (Electric Power Steer-
ing) system.
(Comes on) Slip indicator (if equipped)
Indicates a malfunction in:
• The VSC; or
• The TRC
(Comes on) Active Torque Control 4WD system warning light (4WD
models)
Indicates a malfunction in the Active Torque Control 4WD
system (When the light flashes →P. 442)
Fuel filter warning light (diesel engine) Indicates that the amount of accumulated water in the fuel
filter has reached the specified level.

5
443
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)

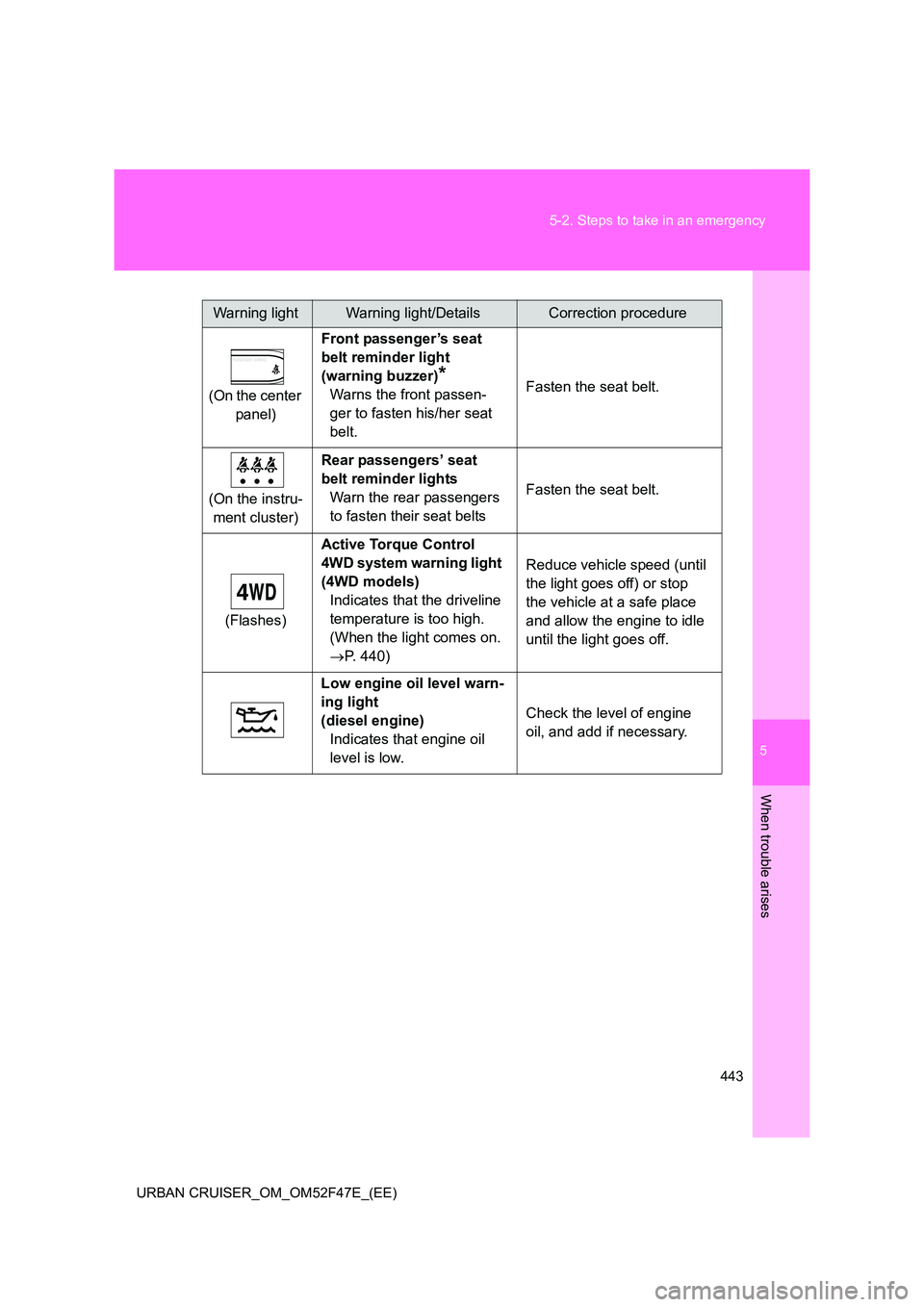

Warning lightWarning light/DetailsCorrection procedure
(On the center panel) Front passenger’s seat
belt reminder light
(warning buzzer)
*
Warns the front passen-
ger to fasten his/her seat
belt.
Fasten the seat belt.
(On the instru- ment cluster) Rear passengers’ seat
belt reminder lights
Warn the rear passengers
to fasten their seat belts Fasten the seat belt.
(Flashes) Active Torque Control
4WD system warning light
(4WD models)
Indicates that the driveline
temperature is too high.
(When the light comes on.
→ P. 440) Reduce vehicle speed (until
the light goes off) or stop
the vehicle at a safe place
and allow the engine to idle
until the light goes off.
Low engine oil level warn-
ing light
(diesel engine) Indicates that engine oil
level is low. Check the level of engine
oil, and add if necessary.

5
457
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)

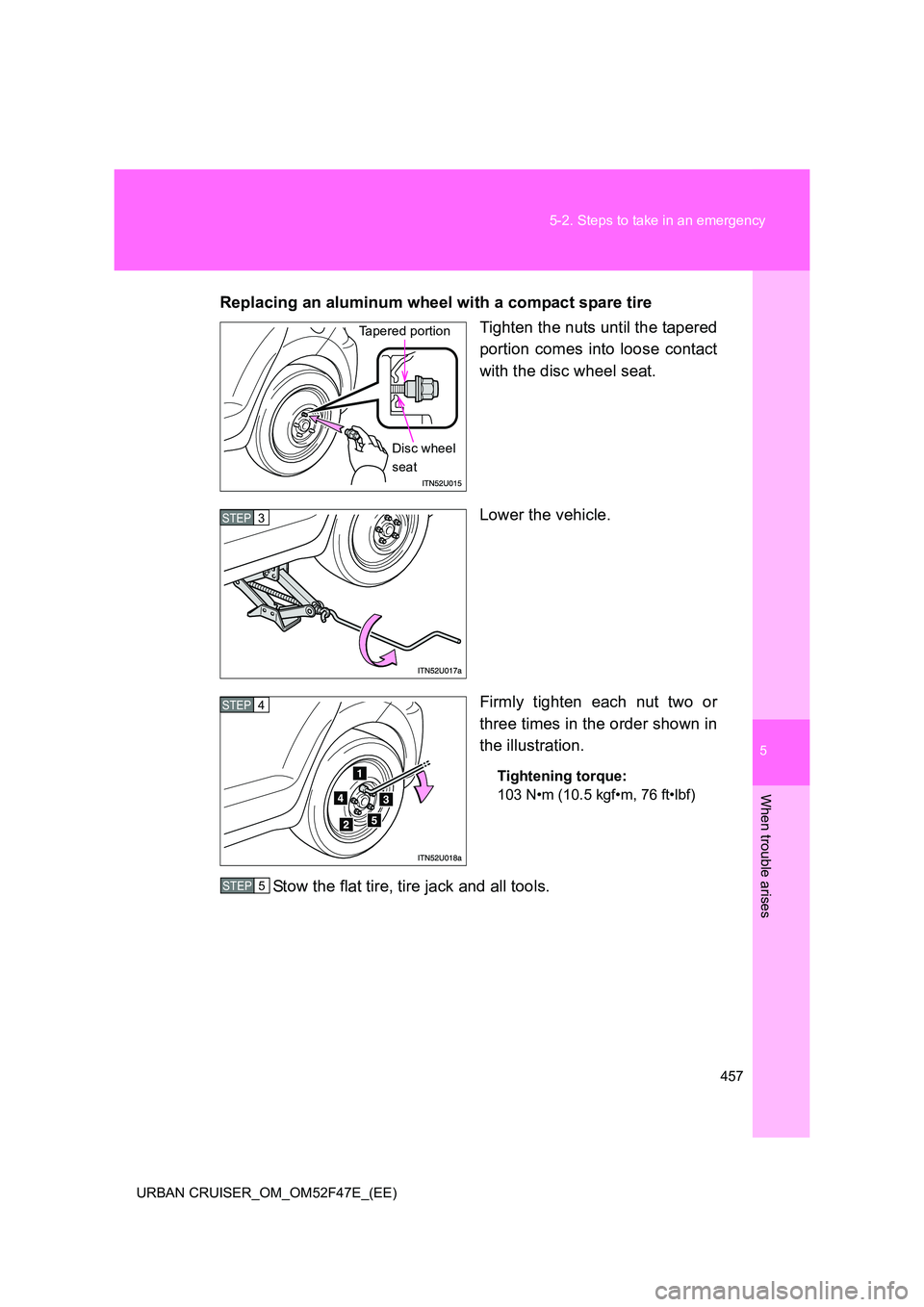

Replacing an aluminum wheel with a compact spare tire
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.
Tapered portion
Disc wheel
seat
STEP3
STEP4
STEP5
