2014 TOYOTA URBAN CRUISER Owners Manual

217
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
2-4. Using other driving systems

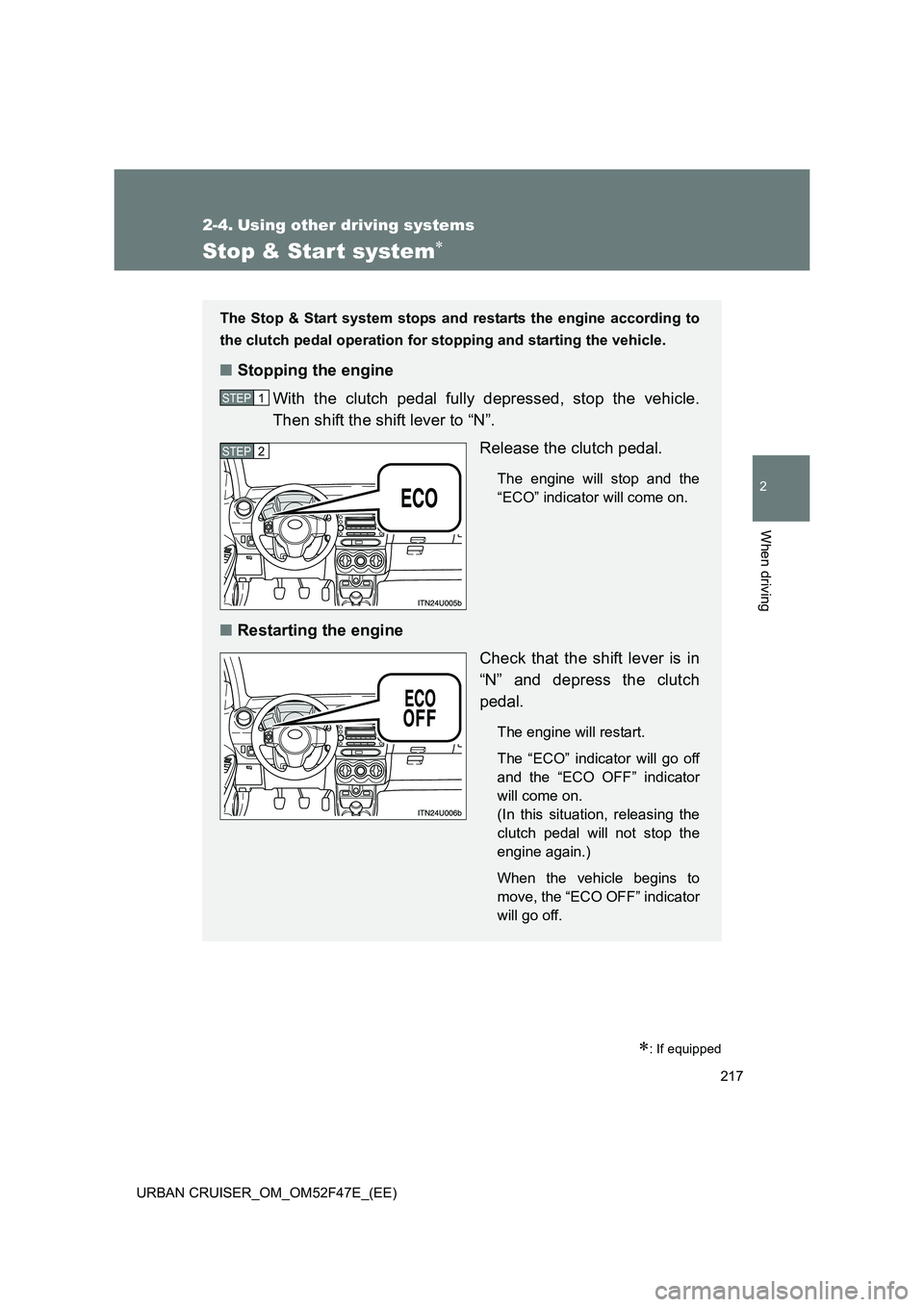

Stop & Star t system∗
∗: If equipped
The Stop & Start system stops and restarts the engine according to
the clutch pedal operation for stopping and starting the vehicle.
■Stopping the engine
With the clutch pedal fully depressed, stop the vehicle.
Then shift the shift lever to “N”. Release the clutch pedal.
The engine will stop and the
“ECO” indicator will come on.
■Restarting the engine
Check that the shift lever is in
“N” and depress the clutch
pedal.
The engine will restart.
The “ECO” indicator will go off
and the “ECO OFF” indicator
will come on.
(In this situation, releasing the
clutch pedal will not stop the
engine again.)
When the vehicle begins to
move, the “ECO OFF” indicator
will go off.
STEP1
STEP2

218
2-4. Using other driving systems
URBAN CRUISER_OM_OM52F47E_(EE)

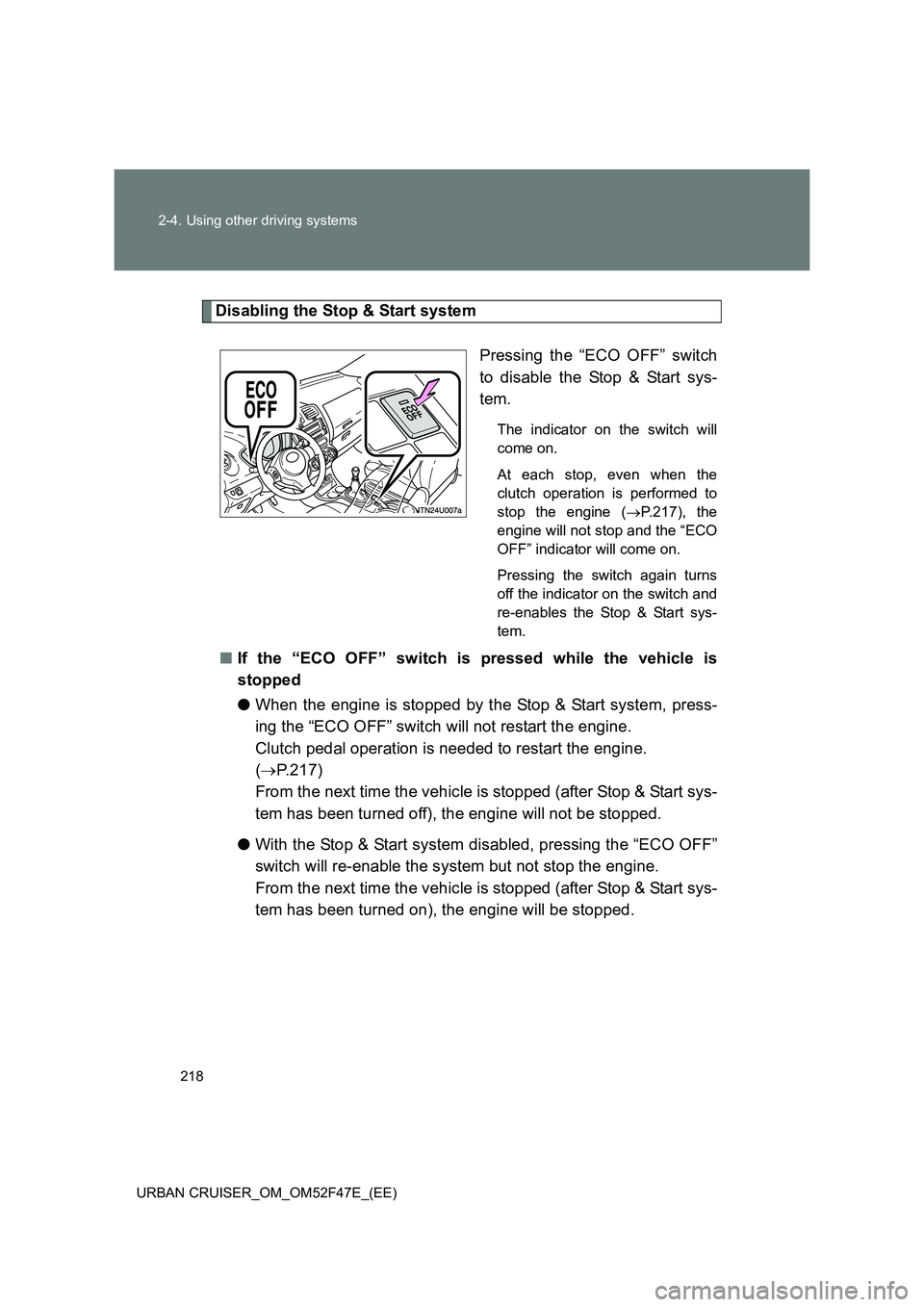

Disabling the Stop & Start system Pressing the “ECO OFF” switch
to disable the Stop & Start sys-
tem.
The indicator on the switch will
come on.
At each stop, even when the
clutch operation is performed to
stop the engine (→P.217), the
engine will not stop and the “ECO
OFF” indicator will come on.
Pressing the switch again turns
off the indicator on the switch and
re-enables the Stop & Start sys-
tem.
■ If the “ECO OFF” switch is pressed while the vehicle is
stopped
● When the engine is stopped by the Stop & Start system, press-
ing the “ECO OFF” switch will not restart the engine.
Clutch pedal operation is needed to restart the engine.
(→ P.217)
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned off), the engine will not be stopped.
● With the Stop & Start system disabled, pressing the “ECO OFF”
switch will re-enable the system but not stop the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned on), the engine will be stopped.

219
2-4. Using other driving systems
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■
Operating conditions
●The Stop & Start system is operational when all of the following condi-
tions are met:
• The engine is adequately warmed up.
• The battery is sufficiently charged.
• The driver’s door is closed.
• The hood is closed.
● In the following circumstances the engine may not be stopped by the
Stop & Start system and the “ECO OFF” indicator will come on. This is
not a malfunction of the Stop & Start system.
• Engine coolant temperature is extremely high.
• The air conditioning system is being used when the vehicle indicator
temperature is extremely high such as after the vehicle was parked
under the hot sun.
• The air conditioning system is being used when the outside tempera- ture is 8 °C (46 °F) or lower.
• Vehicles with an automatic air conditioning system only: The wind- shield defogger is being used.
• The battery is not sufficiently charged.
• Due to traffic or other circumstances the vehicle is stopped repeatedly, resulting in the amount of time the engine is stopped by the Stop &
Start system to become excessively high.
When the above conditions improve, the Stop & Start system will stop and
restart the engine from the next time the vehicle is stopped.

220
2-4. Using other driving systems
URBAN CRUISER_OM_OM52F47E_(EE)
■ Automatic engine start function
In the following situations, the engine may start even without the clutch pedal
being depressed after the “ECO” indicator flashes for a few seconds.
●The brake pedal is pumped or strongly depressed.
● The air conditioning system is being used or turned on.
● Vehicles with an automatic air c onditioning system only: The windshield
defogger is turned on.
● The battery is not sufficiently charged.
● The vehicle starts to roll on an incline.
■ Automatic reactivation of the Stop & Start system
Even if the Stop & Start system is disabled by the “ECO OFF” switch, it will
be automatically re-enabled once the engine switch is turned to the “LOCK”
position then to the “START” position (vehicles without a smart entry & start
system) or the “ENGINE START STOP” switch is turned to OFF then the
engine is started (vehicles with a smart entry & start system).
■ The Stop & Start system protection feature
When an excessively loud sound is being projected by the audio system, the
audio system may be automatically cut off in order to maintain power for the
Stop & Start system function.
If this occurs, turning the engine switch to the “LOCK” position then to the
“ACC” or “ON” position (vehi cles without a smart entry & start system) or the
“ENGINE START STOP” switch to the OFF then to ACCESSORY or IGNI-
TION ON mode (vehicles with a smart entry & start system) re-enables the
audio system.
■ Steering wheel operation
When the engine is stopped by the Stop & Start system, the steering wheel
may become heavier than when driving.

221
2-4. Using other driving systems
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■

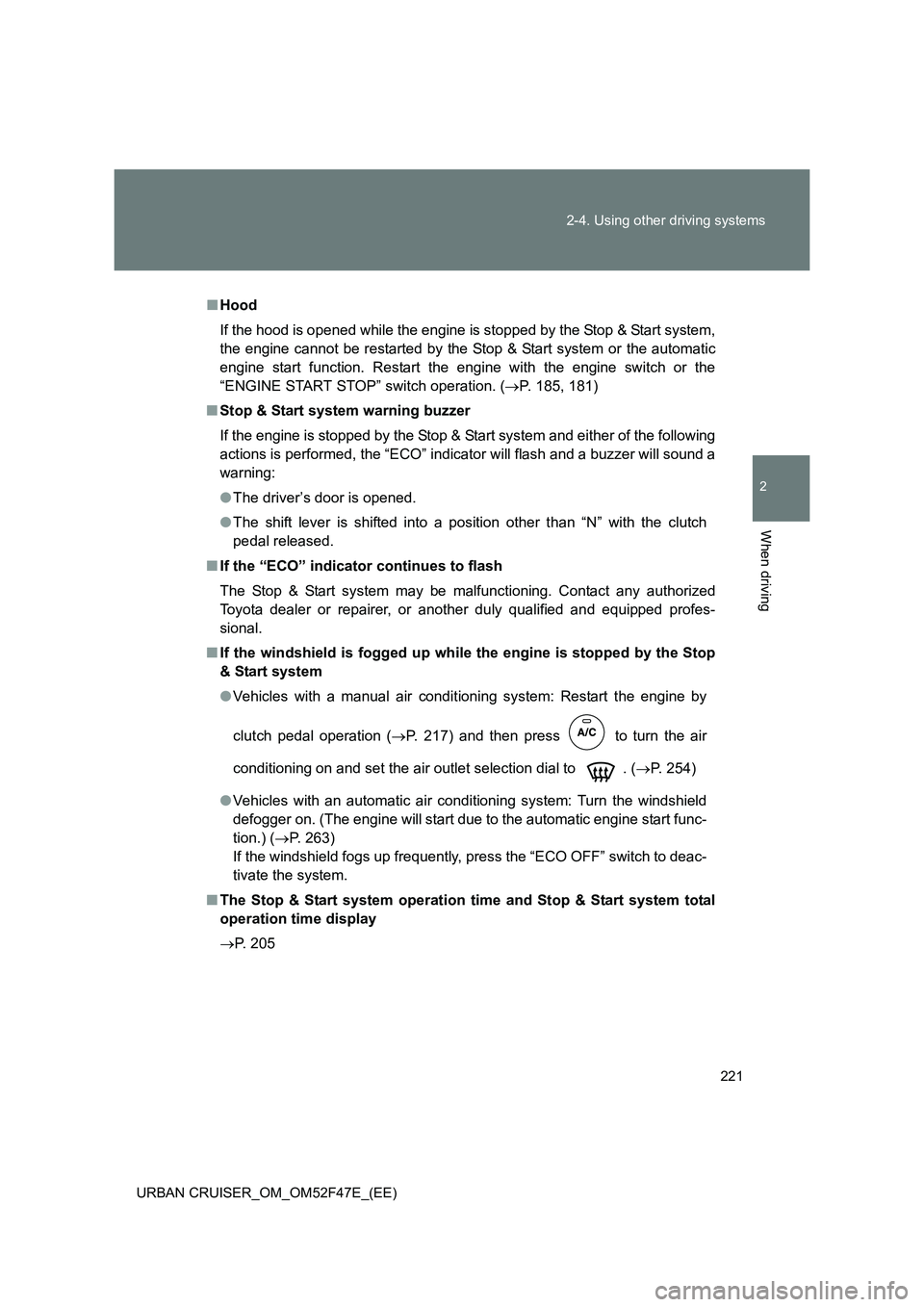

Hood
If the hood is opened while the engine is stopped by the Stop & Start system,
the engine cannot be restarted by the Stop & Start system or the automatic
engine start function. Restart the engine with the engine switch or the
“ENGINE START STOP” switch operation. ( →P. 185, 181)
■ Stop & Start system warning buzzer
If the engine is stopped by the Stop & Start system and either of the following
actions is performed, the “ECO” indicator will flash and a buzzer will sound a
warning:
●The driver’s door is opened.
● The shift lever is shifted into a position other than “N” with the clutch
pedal released.
■ If the “ECO” indicator continues to flash
The Stop & Start system may be malfunctioning. Contact any authorized
Toyota dealer or repairer, or anot her duly qualified and equipped profes-
sional.
■ If the windshield is fogged up while the engine is stopped by the Stop
& Start system
● Vehicles with a manual air condi tioning system: Restart the engine by
clutch pedal operation ( →P. 217) and then press to turn the air
conditioning on and set the air outlet selection dial to . ( →P. 254)
● Vehicles with an automatic air condi tioning system: Turn the windshield
defogger on. (The engine will start due to the automatic engine start func-
tion.) ( →P. 263)
If the windshield fogs up frequently, press the “ECO OFF” switch to deac-
tivate the system.
■ The Stop & Start system operation time and Stop & Start system total
operation time display
→ P. 205

222
2-4. Using other driving systems
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■ When the Stop & Start system is operating
●Keep the shift lever in “N” and apply the brake pedal or parking brake for
safety while the engine is stopped due to the Stop & Start system (while
the “ECO” indicator is on).
Unexpected accidents may occur due to the automatic engine start func-
tion.
● Do not leave the vehicle while the engine is stopped due to the Stop &
Start system (while the “ECO” indicator is on).
Unexpected accidents may occur due to the automatic engine start func-
tion.
● Ensure that the engine is not stopped by the Stop & Start system while the
vehicle is in a poorly ventilated area. The engine may restart due to the
automatic engine start function, causing exhaust gases to collect and
enter the vehicle and resulting in death or a serious health hazard.

223
2-4. Using other driving systems
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
Driving assist systems
To help enhance driving safety and performance, the following sys-
tems operate automatically in response to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavily when operating the vehicle.
■ ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface.
■Brake assist
Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation.
■VSC (Vehicle Stability Control) (if equipped)
Helps the driver to control skidding when swerving suddenly or turning
on slippery road surfaces.
■TRC (Traction Control) (if equipped)
Helps to maintain drive power and pr event the drive wheels from spin-
ning when starting the vehicle or accelerating on slippery roads.
■ Active Torque Control 4WD system (4WD models)
Automatically switches from front -wheel drive to four-wheel drive
(4WD) according to the driving conditions, helping to ensure reliable
handling and stability. Examples of conditions where the system will
switch to 4WD are when cornering going uphill, starting off or accelerat-
ing, and when the road surface is slippery due to snow, rain, etc.
■ EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to turn
the steering wheel.

224
2-4. Using other driving systems
URBAN CRUISER_OM_OM52F47E_(EE)

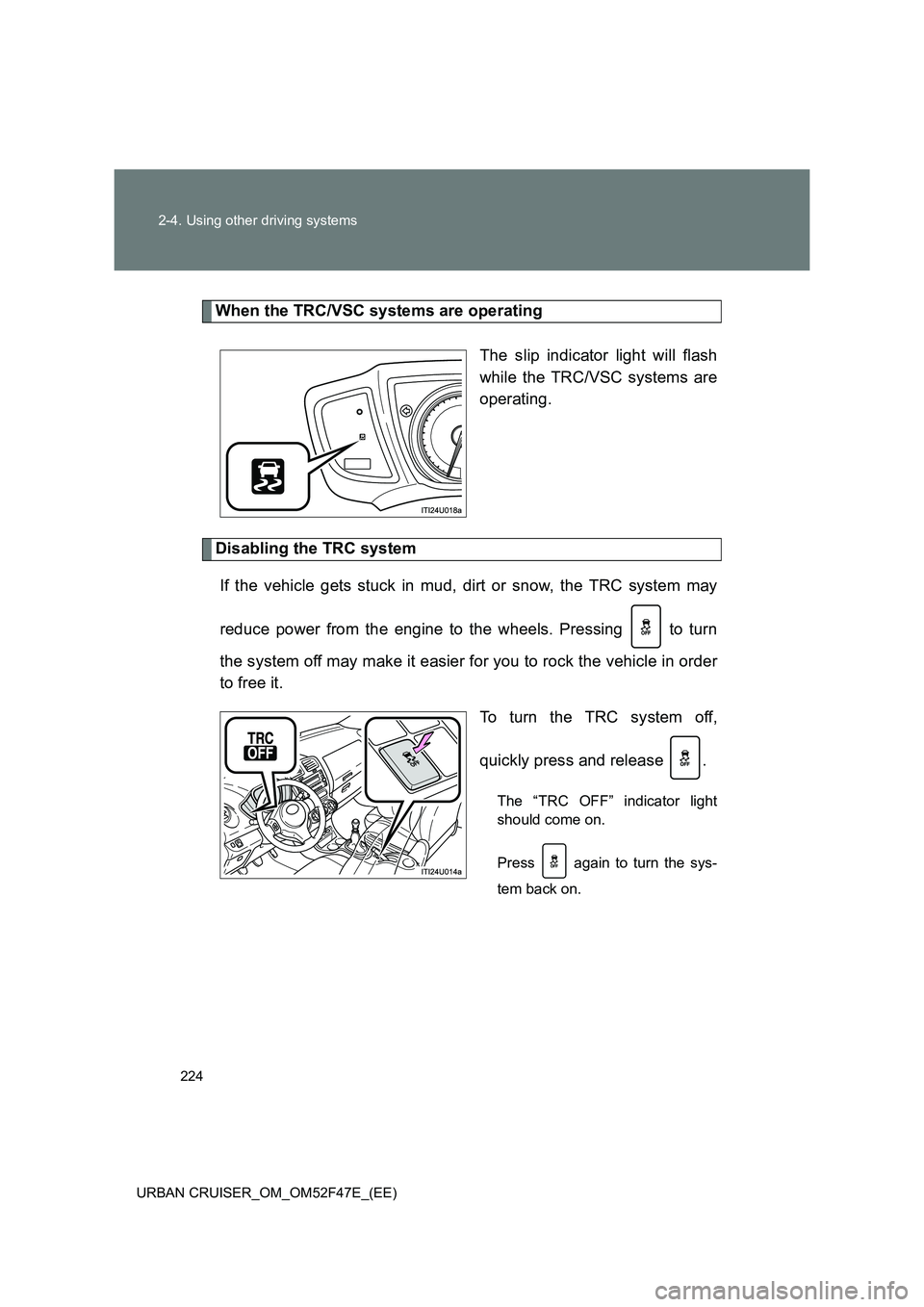

When the TRC/VSC systems are operating The slip indicator light will flash
while the TRC/VSC systems are
operating.
Disabling the TRC systemIf the vehicle gets stuck in mud, dirt or snow, the TRC system may
reduce power from the engine to the wheels. Pressing to turn
the system off may make it easier for you to rock the vehicle in order
to free it. To turn the TRC system off,
quickly press and release .
The “TRC OFF” indicator light
should come on.
Press again to turn the sys-
tem back on.
