2014 TOYOTA URBAN CRUISER Owners Manual

17
URBAN CRUISER_OM_OM52F47E_(EE)
C

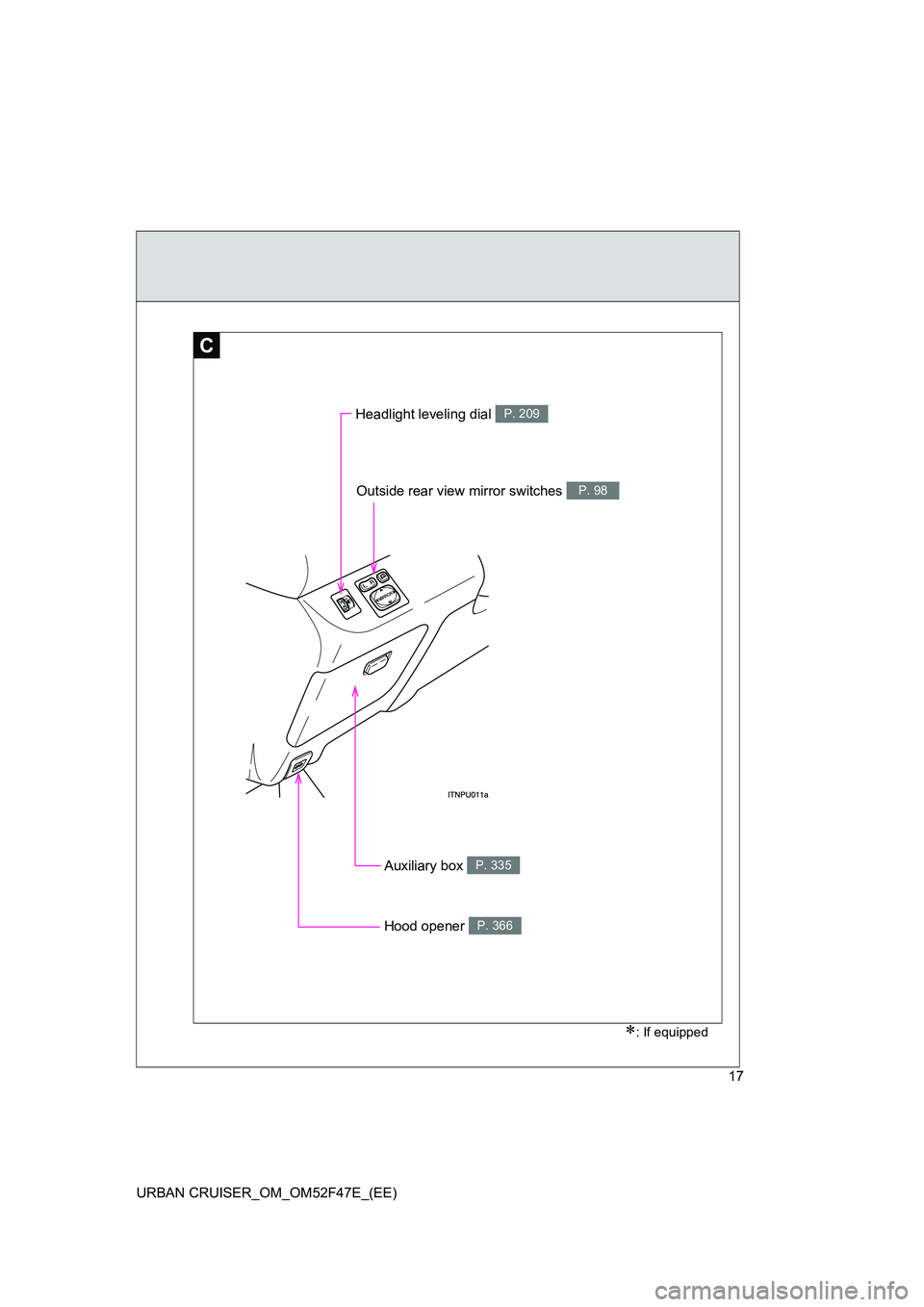

Headlight leveling dial P. 209
Outside rear view mirror switches P. 98
∗: If equipped
Auxiliary box P. 335
Hood opener P. 366

18
URBAN CRUISER_OM_OM52F47E_(EE)
Pictorial indexInterior
(right-hand drive vehicles)
A
Front seat P. 75
Glove box
P. 331
Floor mat P. 344
Cup holder
P. 332
Parking brake P. 194
Cup holder P. 332
SRS side airbag P. 126
Rear seat P. 77
Bottle holder P. 334
Seat belt P. 86
SRS driver airbag P. 126
Head restraint P. 83
Airbag manual on-off
switch
P. 140Horn P. 195
SRS front passenger
airbag
P. 126
Security indicator∗
P. 120
Glove box
P. 331

19
URBAN CRUISER_OM_OM52F47E_(EE)
A
Inside rear view mirror P. 96
SRS curtain shield airbag P. 126
Personal light P. 329
Interior light P. 328
Vanity mirror Sun visor P. 337
P. 336
∗: If equipped
Assist grips P. 343

20
URBAN CRUISER_OM_OM52F47E_(EE)
B

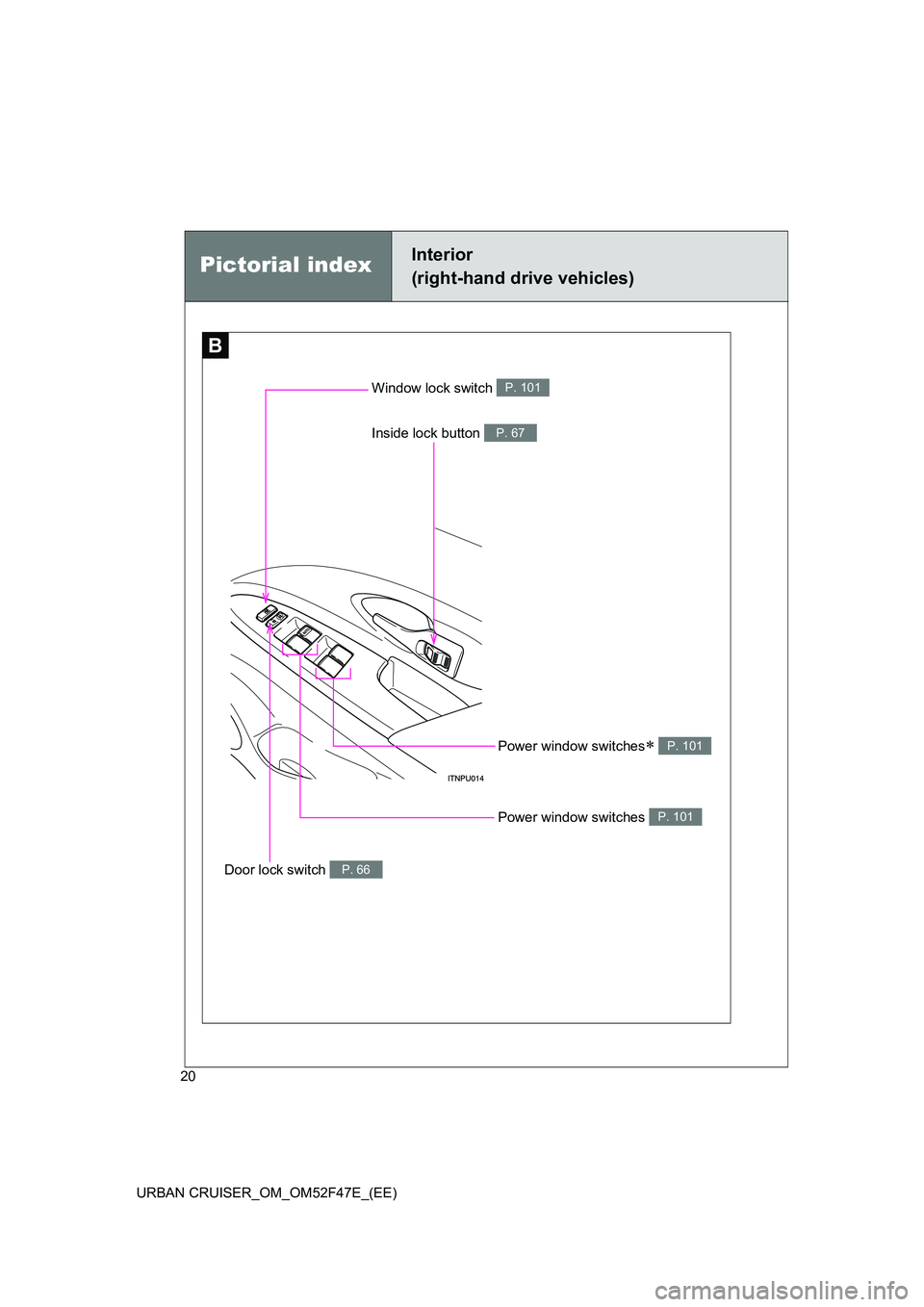

Window lock switch P. 101
Power window switches∗ P. 101
Door lock switch P. 66
Pictorial indexInterior
(right-hand drive vehicles)
Inside lock button P. 67
Power window switches P. 101

21
URBAN CRUISER_OM_OM52F47E_(EE)
C
∗: If equipped

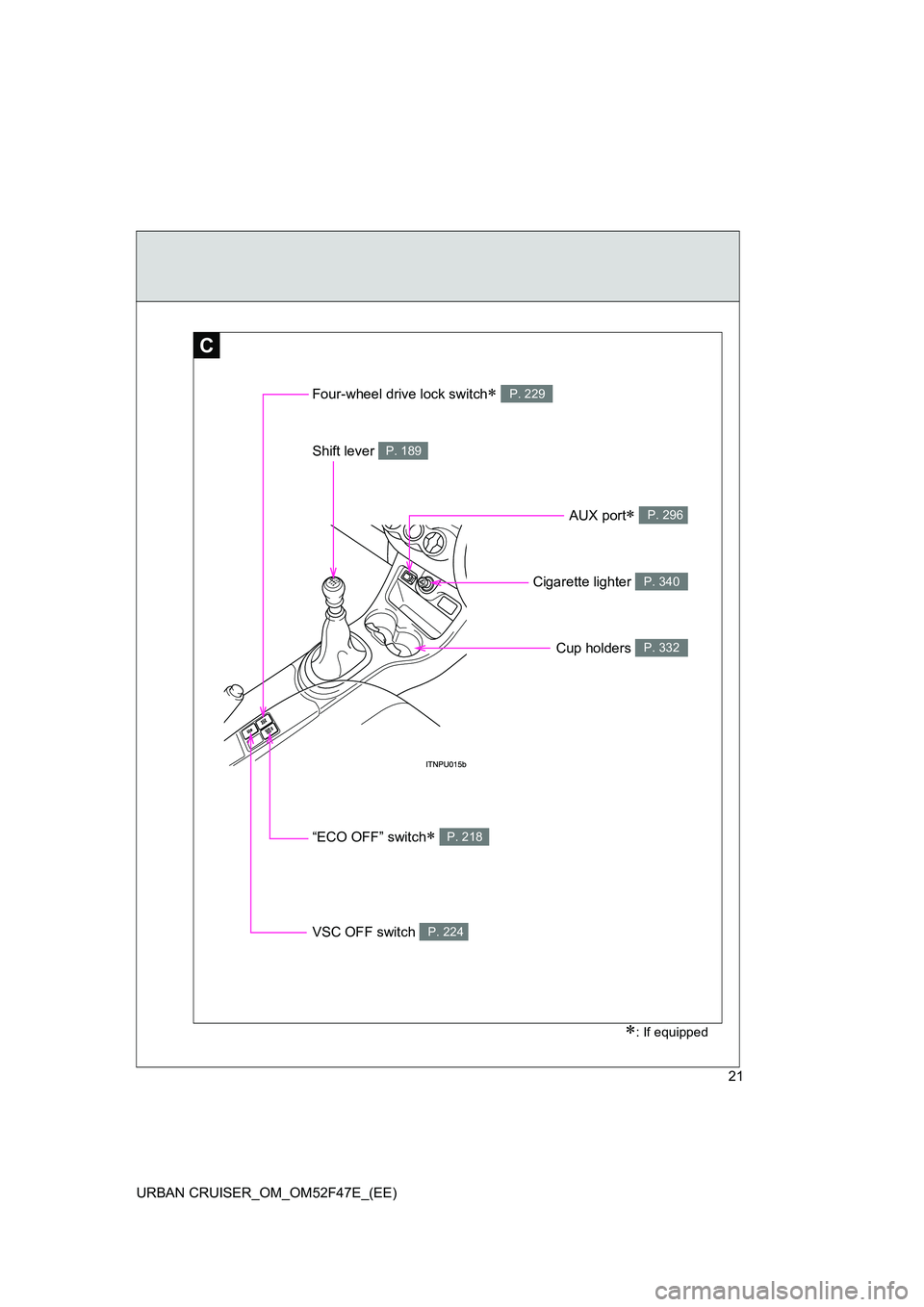

Shift lever P. 189
Cup holders P. 332
Cigarette lighter P. 340
Four-wheel drive lock switch∗ P. 229
VSC OFF switch P. 224
“ECO OFF” switch∗ P. 218
AUX port∗ P. 296

22
URBAN CRUISER_OM_OM52F47E_(EE)
Headlight switch
Turn signal lever
Fog light switch
∗
P. 207
P. 193
P. 211
Gauges and meters
Multi-information display P. 196
P. 202
Audio system∗
Navigation system
*
P. 272
Pictorial indexInstrument panel
(right-hand drive vehicles)
Windshield wipers and
washer switch
Rear window wiper and washer switch
P. 213
P. 215
Bottle holder
P. 334
Fuel filler door opener P. 105
SRS knee airbag P. 126
Tilt and telescopic steering
lock release lever
P. 95

23
URBAN CRUISER_OM_OM52F47E_(EE)
A
∗: If equipped
*: Refer to “Navigation System Owner’s Manual”.
Automatic air conditioning system Manual air conditioning system
Rear window defogger
switch
P. 270
Clock P. 338
“PASSENGER AIRBAG” indicator light
P. 140
Air conditioning
system
P. 259
Emergency flasher switch
P. 428
Clock P. 338Front passenger’s
seat belt reminder light
P. 443
Air conditioning
system
P. 252
Front passenger’s
seat belt reminder light
P. 443
Emergency flasher switch
P. 428
“PASSENGER AIRBAG”
indicator light
P. 140
Rear window defogger switch
P. 270

24
URBAN CRUISER_OM_OM52F47E_(EE)
B
Pictorial indexInstrument panel
(right-hand drive vehicles)
Telephone switch∗
Talk switch
∗
P. 307
P. 307
Engine (ignition) switch (vehicles
without smart entry & start system)
P. 181
Engine (ignition) switch (vehicles
with smart entry & start system)
P. 185
Audio remote control
switches
∗ P. 297
