2014 TOYOTA URBAN CRUISER Owners Manual

89
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
■
Extracting the belt
Push the tab and then pull the
tabs out from the cover.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner does not acti-
vate in the event of a minor frontal
impact, a side impact, a rear
impact or vehicle rollover.
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.

90
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( →P. 143)
● When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 86 regarding seat belt usage.
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
■ Seat belt regulations
If seat belt regulations exist in the country where you reside, contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional for seat belt replacement or installation.

91
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

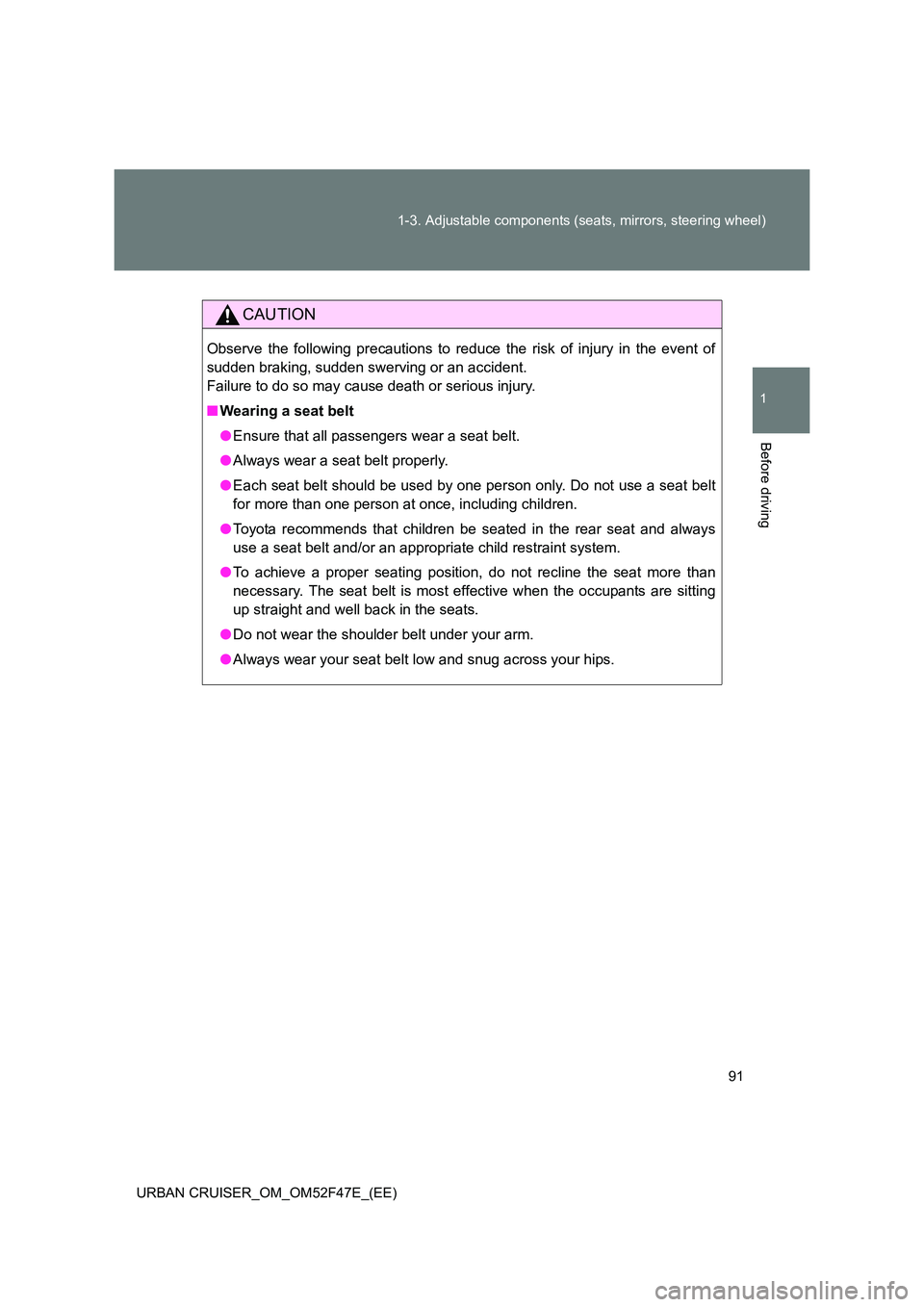

CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■
Wearing a seat belt
●Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.

92
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)

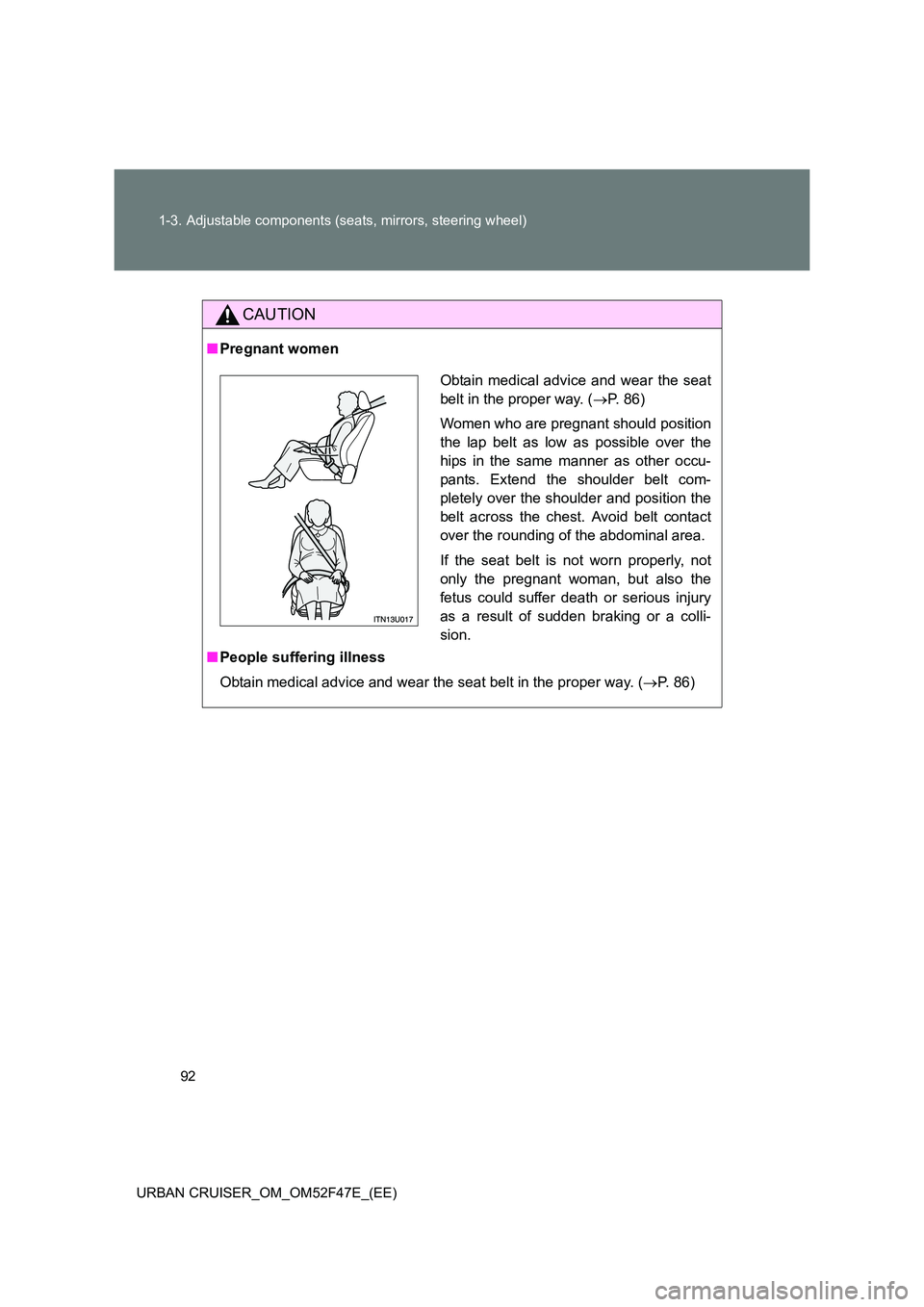

CAUTION
■ Pregnant women
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( →P. 86)
Obtain medical advice and wear the seat
belt in the proper way. ( →P. 86)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

93
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodicall y. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.

94
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■ Seat belt damage and wear
●Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional. Inappropriate handling of the pretensioner may prevent it
from operating properly, resulting in death or serious injury.
■ When using the rear center seat belt
Do not use the rear center seat belt with
either buckle released. Fastening only
one of the buckles may result in death or
serious injury in case of sudden braking
or a collision.

95
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

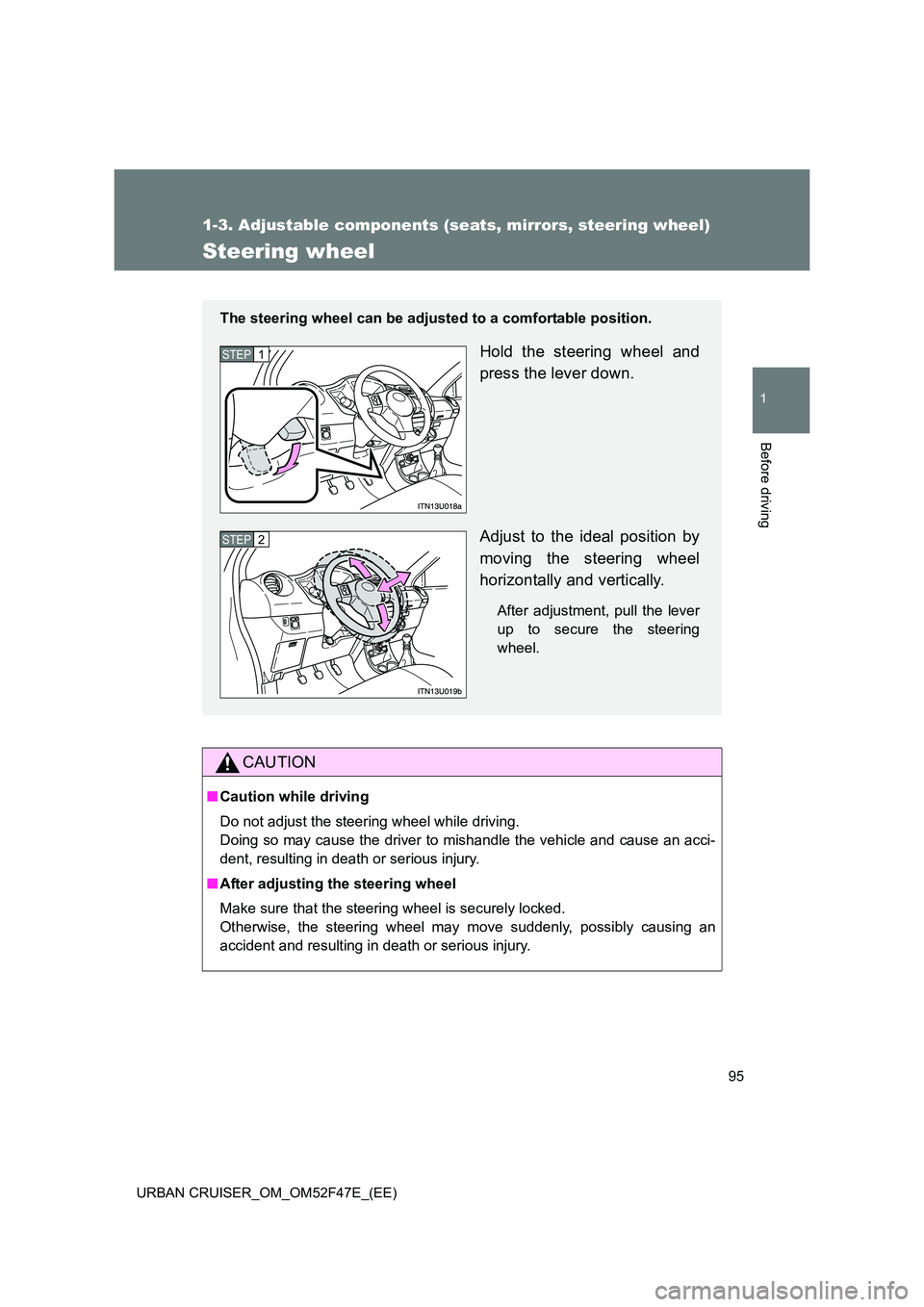

Steering wheel
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
press the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.
STEP1
STEP2

96
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)
Inside rear view mirror
Glare from the headlights of vehicles behind can be reduced by
using the following functions.
Manual anti-glare inside rear view mirrorNormal position
Anti-glare position
Auto anti-glare inside rear view mirror
In automatic mode, sensors are used to detect the headlights of
vehicles behind and the reflected light is automatically reduced. Turns auto mode on/off
The indicator comes on when
auto mode is turned on.
The mirror will revert to the
auto mode each time the
“ENGINE START STOP”
switch is turned to the IGNI-
TION ON mode.
