2014 TOYOTA URBAN CRUISER Owners Manual

281
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
■
Error messages
Refer to the following table and take the appropriate measures. If the prob-
lem is not rectified, take the vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
MessageCauseCorrection
Procedures
WAIT Operation is stopped
due to a high tempera-
ture inside the player Eject the CD and allow
the player to cool down
ERROR1 • The CD may be dirty or
damage
• The CD may be inserted upside down • Clean the CD
• Insert the CD correctly
ERROR3 There is a problem
within the system Eject the CD
ERROR4 Over-current Ask any authorized
Toyota dealer or
repairer, or another
duly qualified and
equipped professional

282
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)

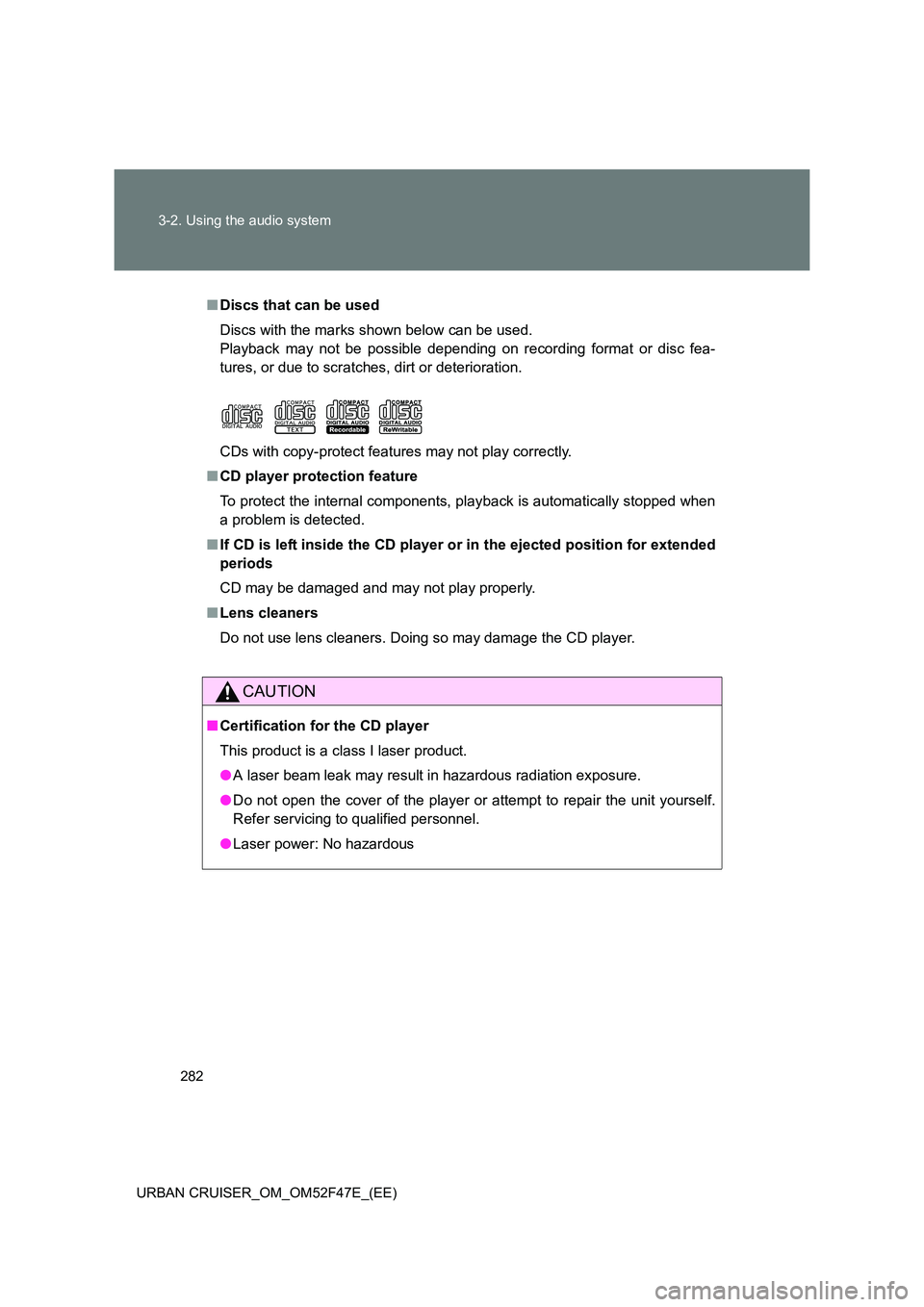

■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
■ If CD is left inside the CD player or in the ejected position for extended
periods
CD may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
CAUTION
■Certification for the CD player
This product is a class I laser product.
●A laser beam leak may result in hazardous radiation exposure.
● Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.
● Laser power: No hazardous

283
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)
NOTICE
■
CDs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 8 cm (3 in.) CD adapters, DualDiscs or printable discs.
Doing so may damage the player and/or the CD insert/eject function.
●CDs that have a diameter that is not 12
cm (4.7 in.)
● Low-quality and deformed CDs
● CDs with a transparent or translucent
recording area
● CDs that have tape, stickers or CD-R
labels attached to them, or that have
had the label peeled off

284
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)
NOTICE
■ Player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
●Do not insert anything other than CDs into the CD slot.
● Do not apply oil to the CD player.
● Store CDs away from direct sunlight.
● Never try to disassemble any part of the CD player.

285
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

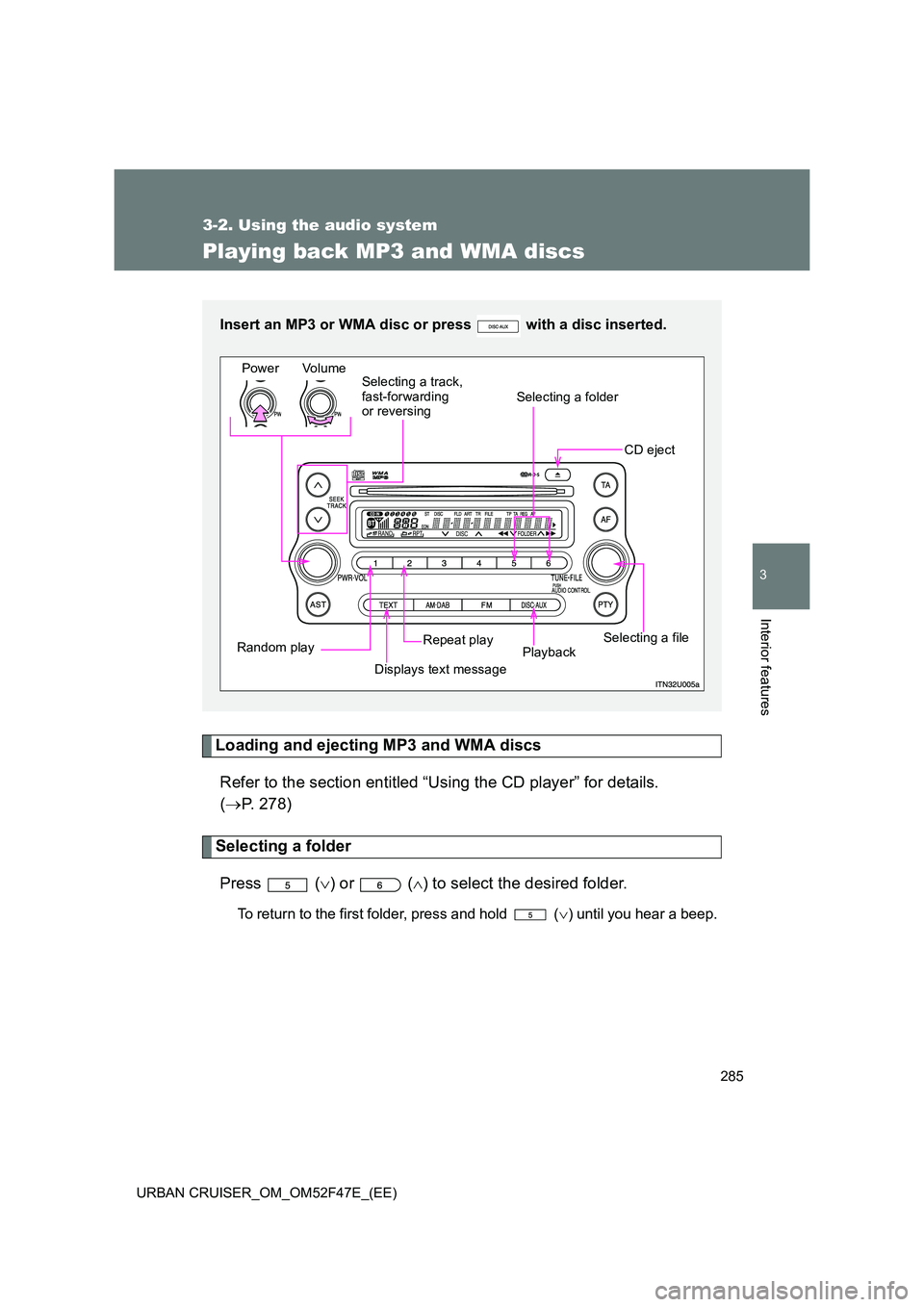

Playing back MP3 and WMA discs
Loading and ejecting MP3 and WMA discsRefer to the section entitled “Using the CD player” for details.
( → P. 278)
Selecting a folder
Press ( ∨) or ( ∧) to select the desired folder.
To return to the first folder, press and hold ( ∨) until you hear a beep.
Insert an MP3 or WMA disc or press with a disc inserted.
Power Volume
CD eject
Selecting a file
Playback
Repeat play
Displays text message
Random play Selecting a track,
fast-forwarding
or reversing
Selecting a folder

286
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)
Selecting a file Turn the dial or press “ ∧” or “ ∨” on to select the
desired file.
Fast forwarding and reversing files
Press and hold “ ∧” or “ ∨” on .
Random playback
■ To play files from a particular folder in random order
Press (RAND).
■ To play all of the files on a disc in random order
Press and hold (RAND) until you hear a beep.
Repeating a file or a folder
■ Repeating a file
Press (RPT).
■ Repeating a folder
Press and hold (RPT) until you hear a beep.

287
3-2. Using the audio system
3
Interior features
URBAN CRUISER_OM_OM52F47E_(EE)

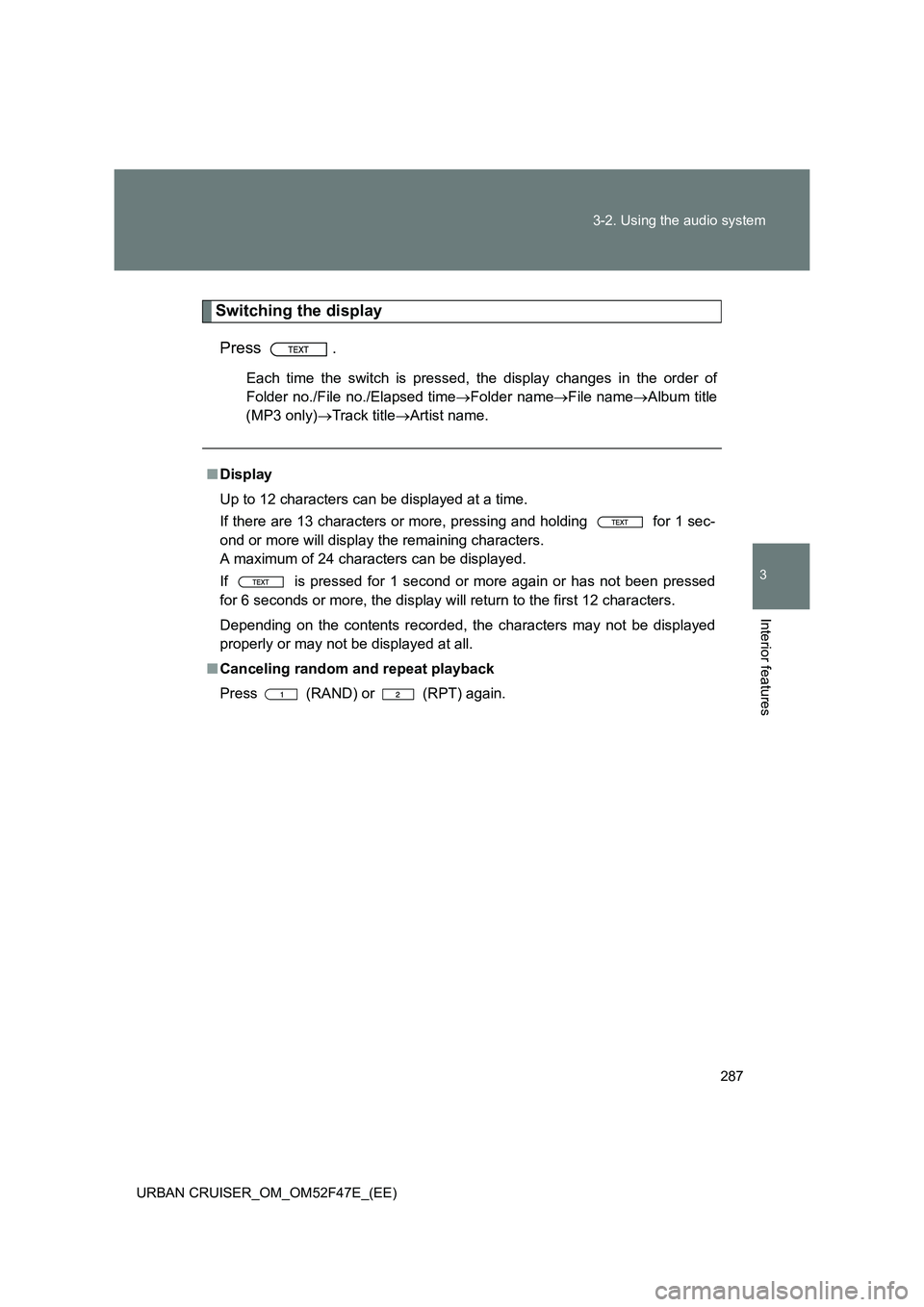

Switching the display
Press .
Each time the switch is pressed, the display changes in the order of
Folder no./File no./Elapsed time →Folder name →File name →Album title
(MP3 only) →Track title →Artist name.
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 sec-
ond or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed
for 6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Canceling random and repeat playback
Press
(RAND) or (RPT) again.

288
3-2. Using the audio system
URBAN CRUISER_OM_OM52F47E_(EE)
■ Error messages
Refer to the following table and take the appropriate measures. If the prob-
lem is not rectified, take the vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
MessageCauseCorrection
Procedures
WAIT Operation is stopped
due to a high tempera-
ture inside the player Eject the CD and allow
the player to cool down
ERROR1 • The CD may be dirty or
damage
• The CD may be inserted upside down • Clean the CD
• Insert the CD correctly
ERROR3 There is a problem
within the system Eject the CD
ERROR4 Over-current Ask any authorized
Toyota dealer or
repairer, or another
duly qualified and
equipped professional
NO MUSIC This indicates that no
playable data is
included in the CD Eject the CD
