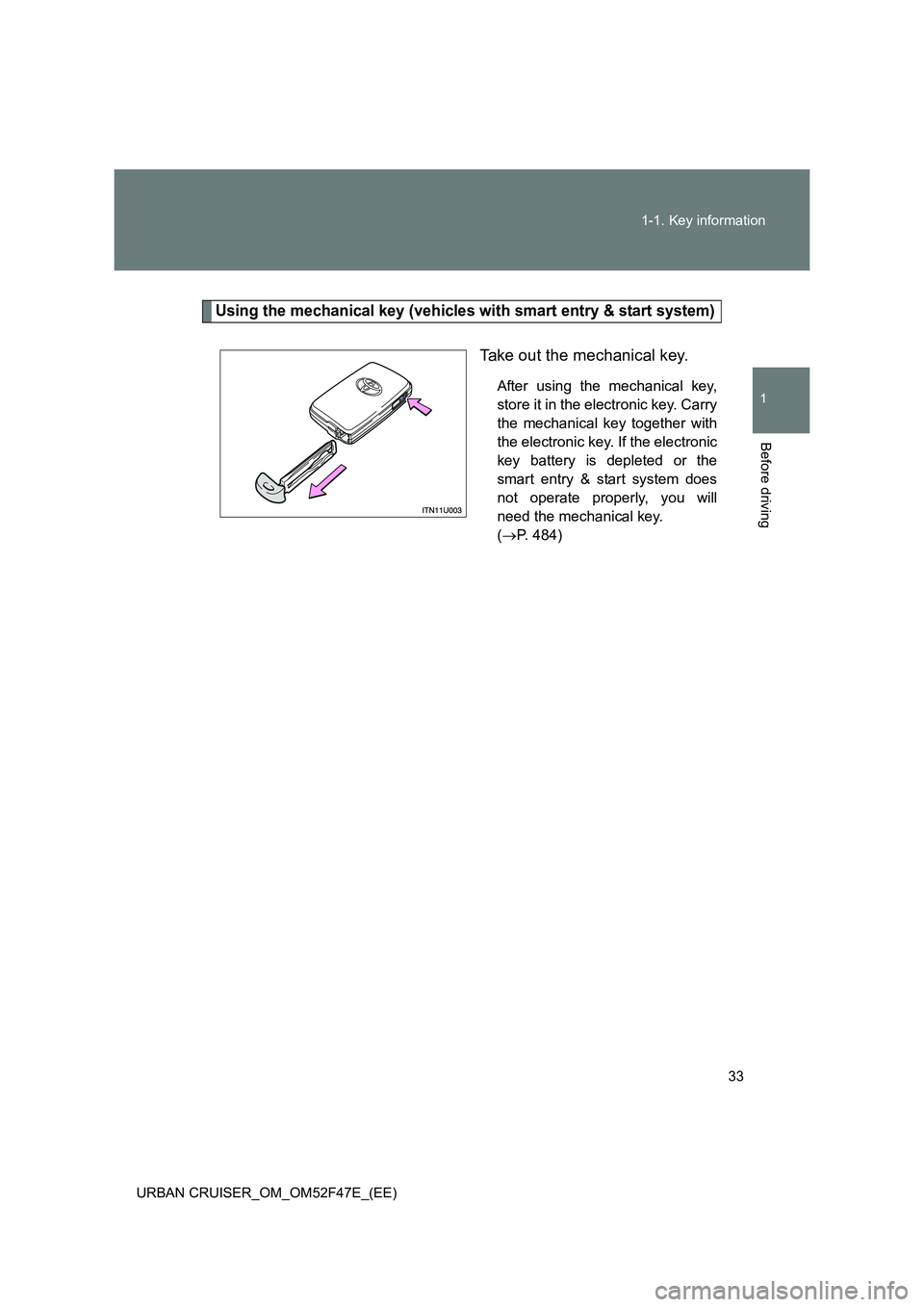

33
1-1. Key information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Using the mechanical key (vehicles with smart entry & start system)
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
smart entry & start system does
not operate properly, you will
need the mechanical key.
(
→ P. 484)

34
1-1. Key information
URBAN CRUISER_OM_OM52F47E_(EE)
■ When required to leave a key to the vehicle with a parking attendant
Lock the glove box. ( →P. 331)
Vehicles without smart entry & start system
Carry the master key for your own use and provide the attendant with the
valet key only.
Vehicles with smart entry & start system
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, using
the key number plate. ( →P. 482)
■ When riding in an aircraft
When bringing a key onto an aircraft, make sure you do not press any but-
tons on the key while inside the aircraft cabin. If you are carrying a key in
your bag etc., ensure that the buttons are not likely to be pressed acciden-
tally. Pressing a button may cause the key to emit radio waves that could
interfere with the operation of the aircraft.

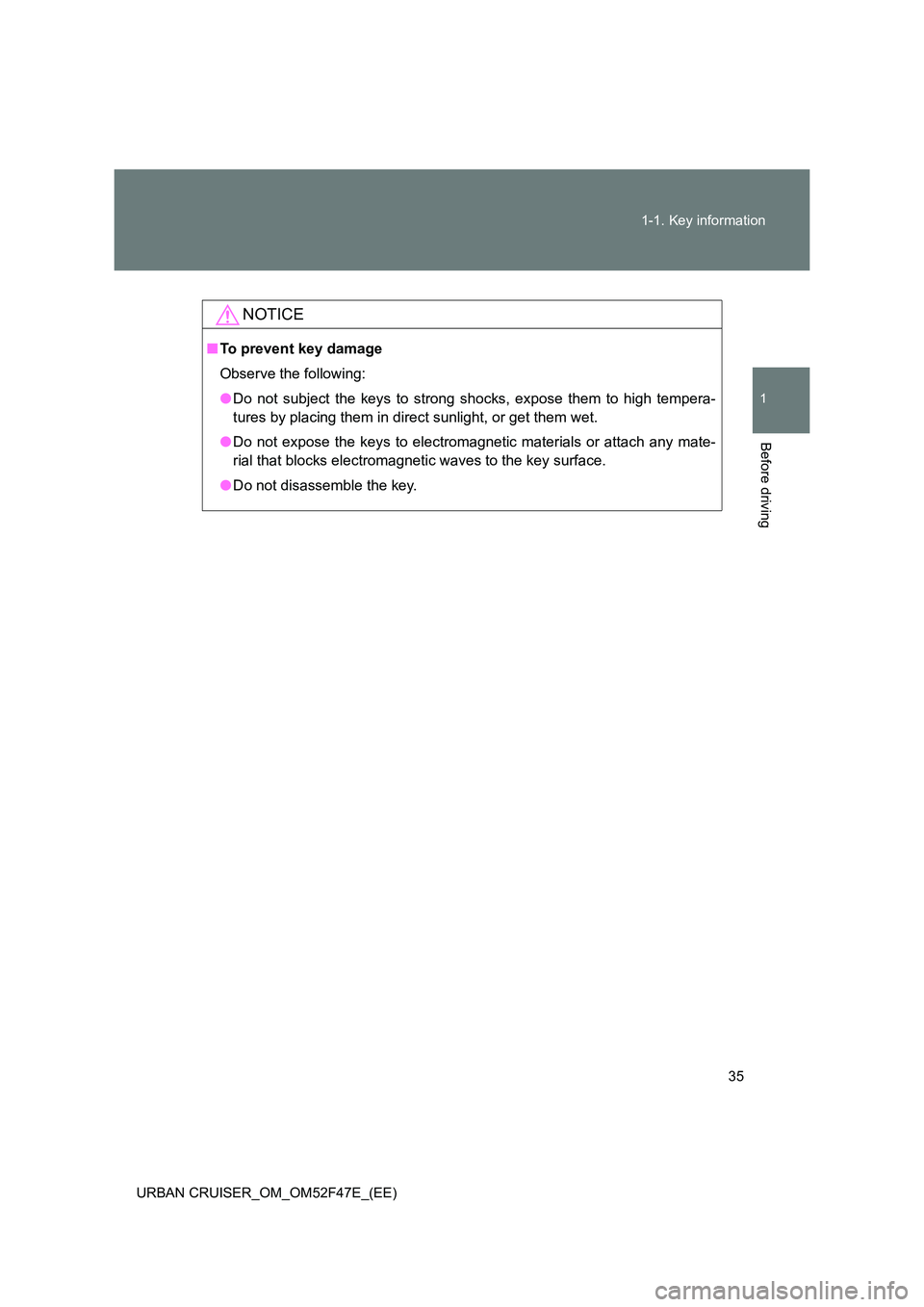

35
1-1. Key information
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
NOTICE
■
To prevent key damage
Observe the following:
●Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
● Do not disassemble the key.

36
URBAN CRUISER_OM_OM52F47E_(EE)
1-2. Opening, closing and locking the doors
Smart entr y & start system∗
∗: If equipped
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Unlocks and locks the doors ( →P. 37)
Unlocks and locks the back door ( →P. 3 7 )
Starts and stops the engine ( →P. 185)

37
1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Unlocking and locking the doors (front door handles only)
Grip the handle to unlock.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after they are locked.
Press the lock button to lock.
Check that the door is securely
locked.
Unlocking and locking the back door
Press the unlock button to
unlock.

38
1-2. Opening, closing and locking the doors
URBAN CRUISER_OM_OM52F47E_(EE)
Press the lock button to lock.
Check that the door is securely
locked.
Antenna location and effective range ■ Antenna location
Antennas outside cabin
Antenna outside luggage com-
partment
Antennas inside cabin

39
1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
■
Effective range (areas within which the electronic key is
detected)
When locking or unlocking
the side doors
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.) of
either of the outside front
door handles.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.
When locking or unlocking
the back door
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.) of
the back door opener switch.

40
1-2. Opening, closing and locking the doors
URBAN CRUISER_OM_OM52F47E_(EE)
■ Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
■ Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situ-
ations, the communication between the electronic key and the vehicle may
be affected, preventing the smart entry & start system and wireless remote
control from operating properly. (Ways of coping: →P. 484)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
