If you have a flat tire (vehicles with a spare tire)
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
● Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “R”.
● Stop the engine.
● Turn on the emergency flashers. ( →P. 428)
■ Location of the spare tire and tools
2WD models
Jack handle
Spare tire
Tool bag
(Towing eyelet
and wheel nut
wrench)

450
5-2. Steps to take in an emergency
URBAN CRUISER_OM_OM52F47E_(EE)

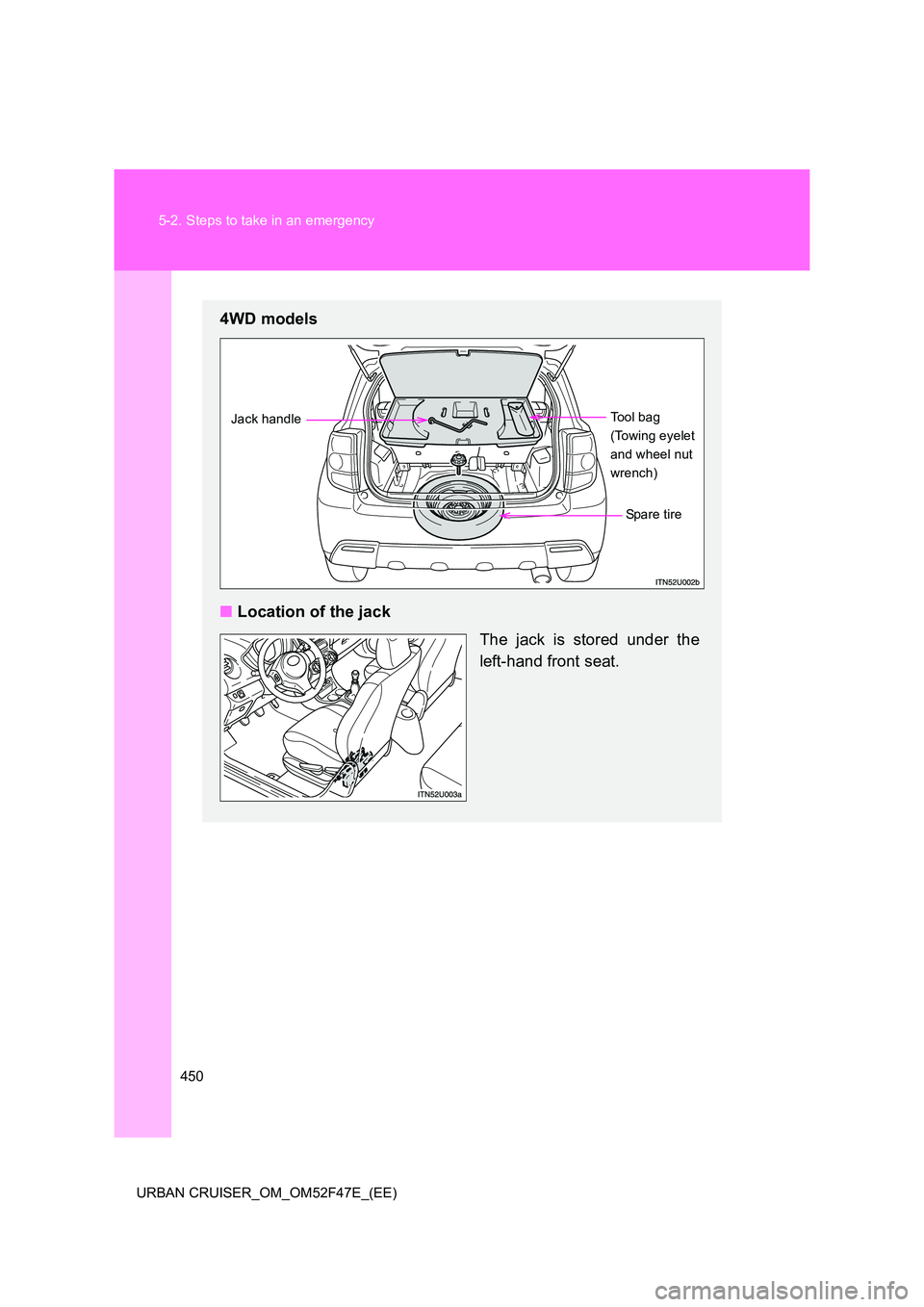

4WD models
■ Location of the jack
The jack is stored under the
left-hand front seat.
Jack handle
Spare tireTool bag
(Towing eyelet
and wheel nut
wrench)

5
451
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)
■
Compact spare tire
The compact spare tire is
designed for temporary emer-
gency use only.
The compact spare tire is
identified by the distinctive
wording “TEMPORARY USE
ONLY” molded into the side-
wall of the tire.

452
5-2. Steps to take in an emergency
URBAN CRUISER_OM_OM52F47E_(EE)

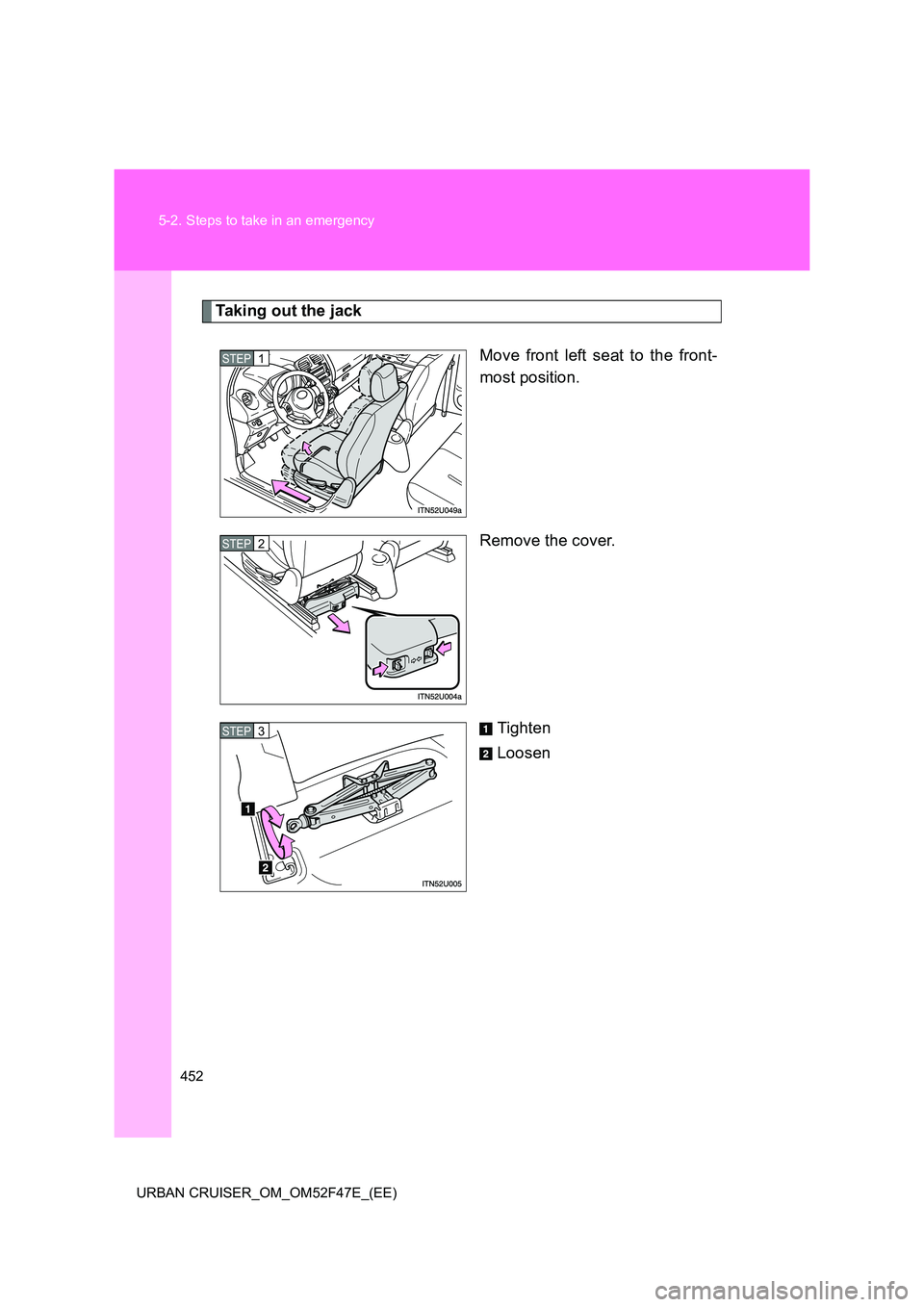

Taking out the jack Move front left seat to the front-
most position.
Remove the cover.
Tighten
Loosen
STEP1
STEP2
STEP3

5
453
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)

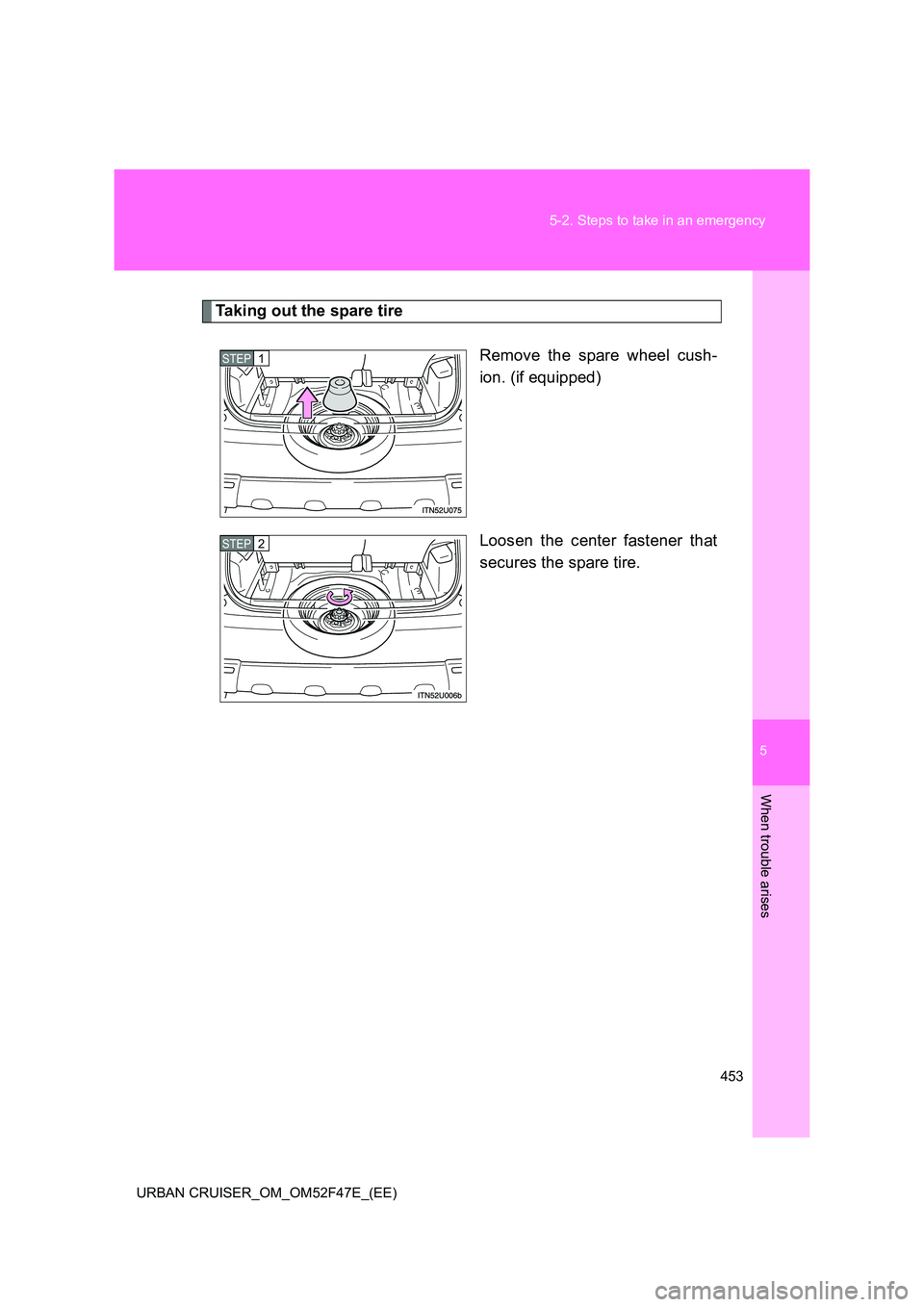

Taking out the spare tire
Remove the spare wheel cush-
ion. (if equipped)
Loosen the center fastener that
secures the spare tire.
STEP1
STEP2

454
5-2. Steps to take in an emergency
URBAN CRUISER_OM_OM52F47E_(EE)

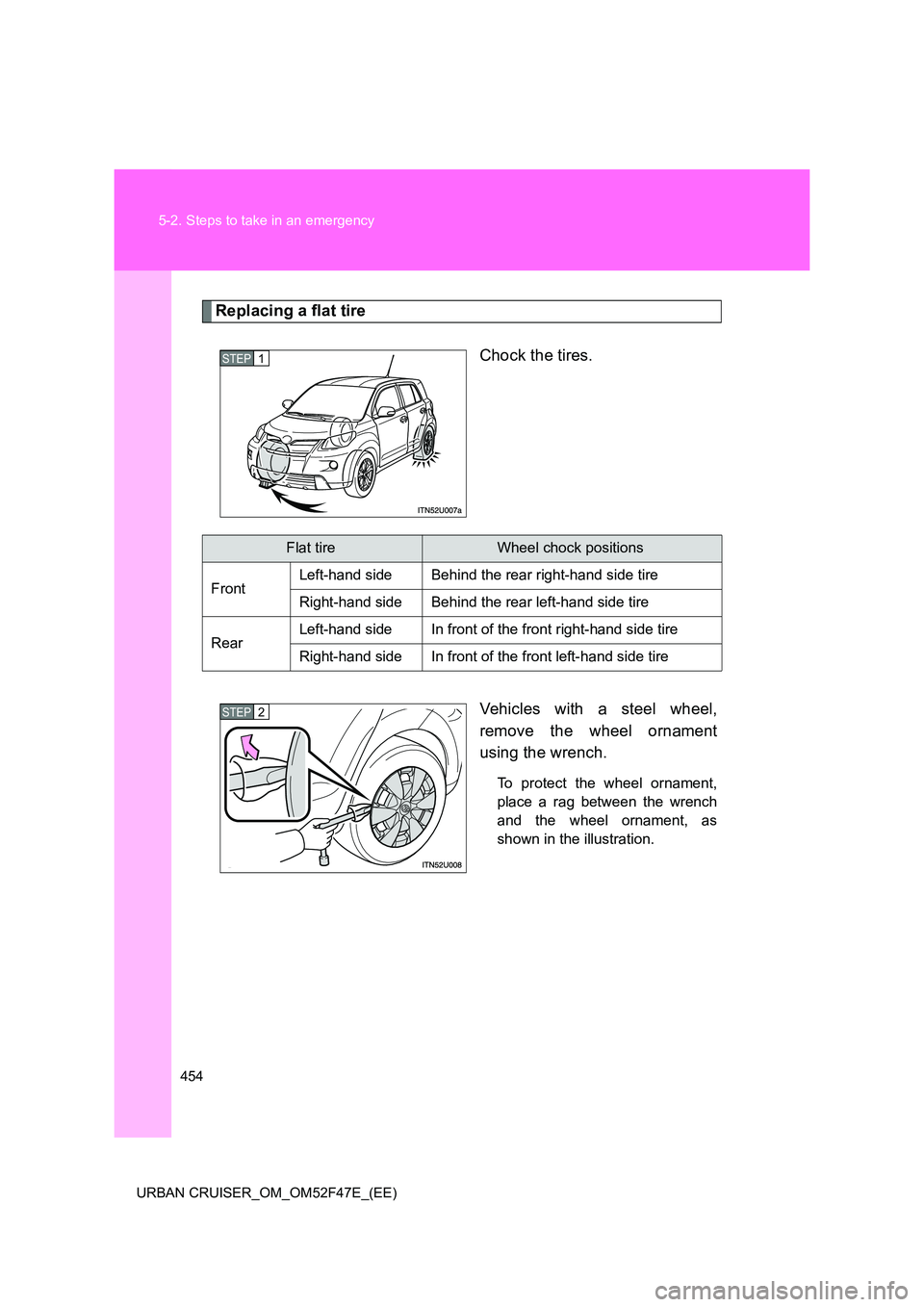

Replacing a flat tire Chock the tires.
Vehicles with a steel wheel,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
STEP1STEP1
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP2

5
455
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP3
STEP4
STEP5
STEP6

456
5-2. Steps to take in an emergency
URBAN CRUISER_OM_OM52F47E_(EE)
Installing the spare tire Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel with a compact spare tire Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
STEP1
STEP2
Tapered portion
Disc wheel
seat
